This is the official 2013 PACCAR MX diagnostic service manual covering injector solenoid fault P1206 code P1206, a short circuit condition detected between ECU D420 pins A3 and A4 on cylinder 5. Published by PACCAR, this technical document provides mechanics and workshop technicians with detailed electrical schematics, component specifications, and step-by-step troubleshooting procedures for diagnosing and resolving fuel injector solenoid failures on MX-series engines compliant with EPA 2013 emissions standards.
The manual outlines the fault code activation criteria, electrical specifications for the injector solenoid valve assembly, and the complete diagnostic workflow required to isolate and repair the root cause.
Document details and specifications — injector solenoid fault
| Brand | PACCAR |
| Model coverage | MX Engines (EPA 2013) |
| System/Group | DTCs / MX Engines (EPA2013) |
| Publication number | P1206 |
| Year/Revision | 2013 |
| Pages | 4 |
| File size | 0.5 MB |
| Format | |
| Language | English |
Table of contents

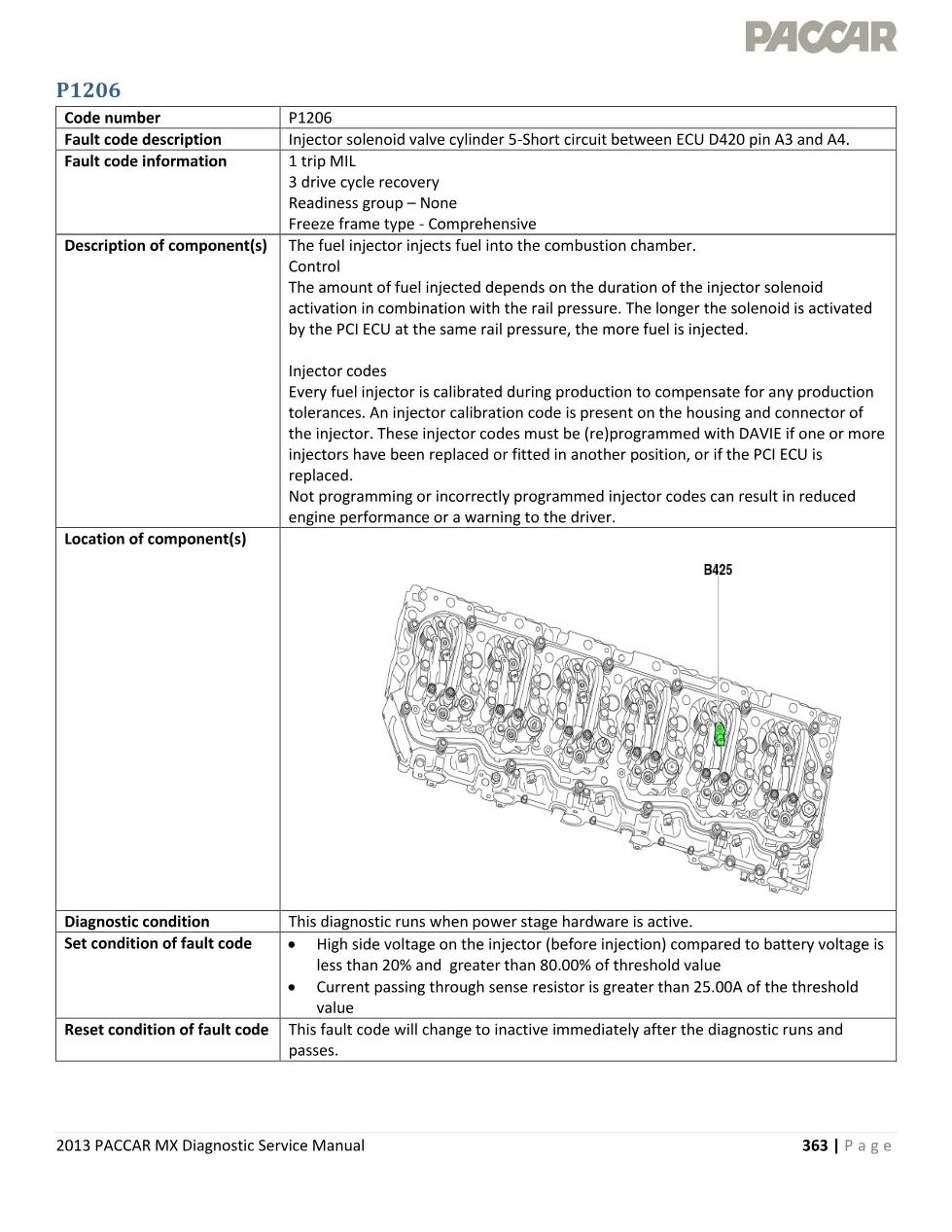

- Fault code description and information (MIL activation, drive cycle recovery)
- Component description and control strategy (fuel injection operation and calibration)
- Injector codes and reprogramming requirements
- Diagnostic condition and fault set/reset criteria

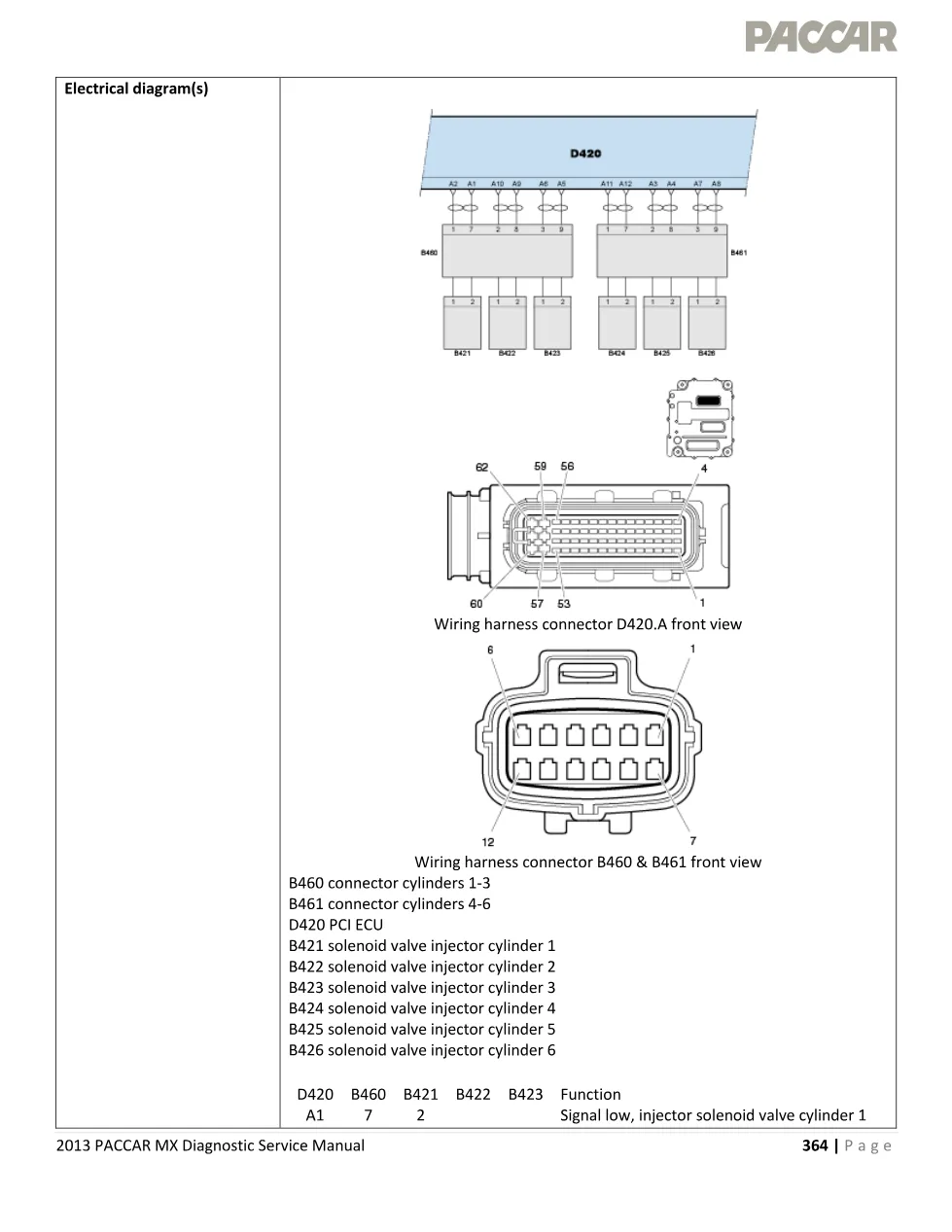

- Electrical wiring diagrams for connectors D420, B460, B461

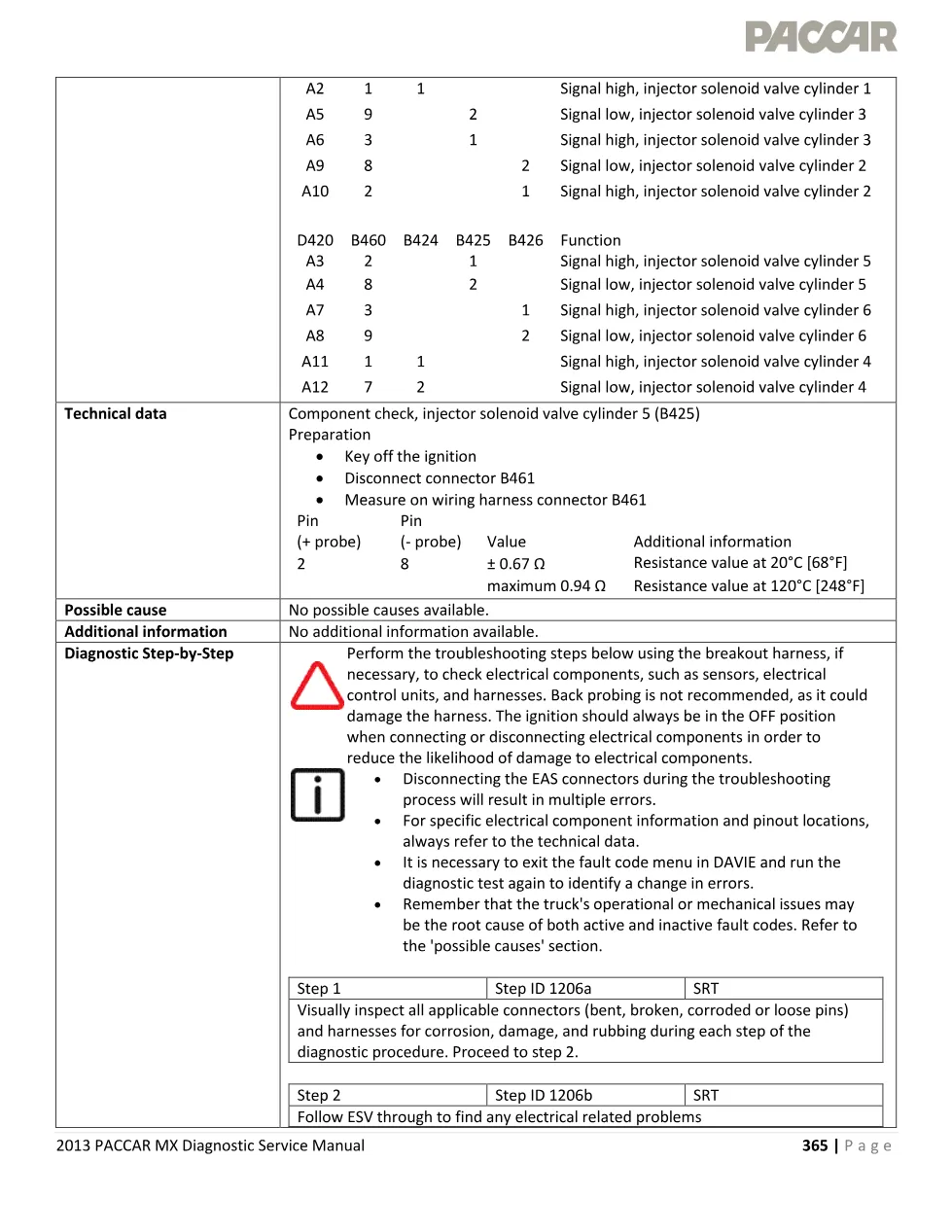

- Connector pinout mapping (D420 ECU pins A1–A12 to injector solenoid circuits)
- Technical data and resistance specifications (injector solenoid valve cylinder 5)
- Step-by-step diagnostic troubleshooting procedure
- Component replacement and DAVIE verification workflow
- Verification drive cycle procedure
