This Fault Code 66 troubleshooting guide is the official Eaton fault isolation procedure for an ECA battery-voltage supply problem on the Fuller Advantage Heavy Duty automated transmission. It load tests the batteries and traces the ECA Power Supply Harness to the 3-Way ECA Connector.
Official document details
| Brand | Eaton |
| Model coverage | Fuller Advantage Heavy Duty automated transmission with Gen1 ECA |
| System / group | Fuller Advantage Heavy Duty / DTCs — Diagnostic Trouble Codes |
| Publication no. | TRTS0980 |
| Revision | 2016.06.20 |
| Pages | 5 |
| File size | 0.58 MB |
| Format | |
| Language | English |
Fault Code 66 troubleshooting contents
The document is organised as a set of numbered fault isolation steps, each with a stated purpose and a clear go-to branch that sends the technician to the next step, a repair or the final verification. The main sections cover:

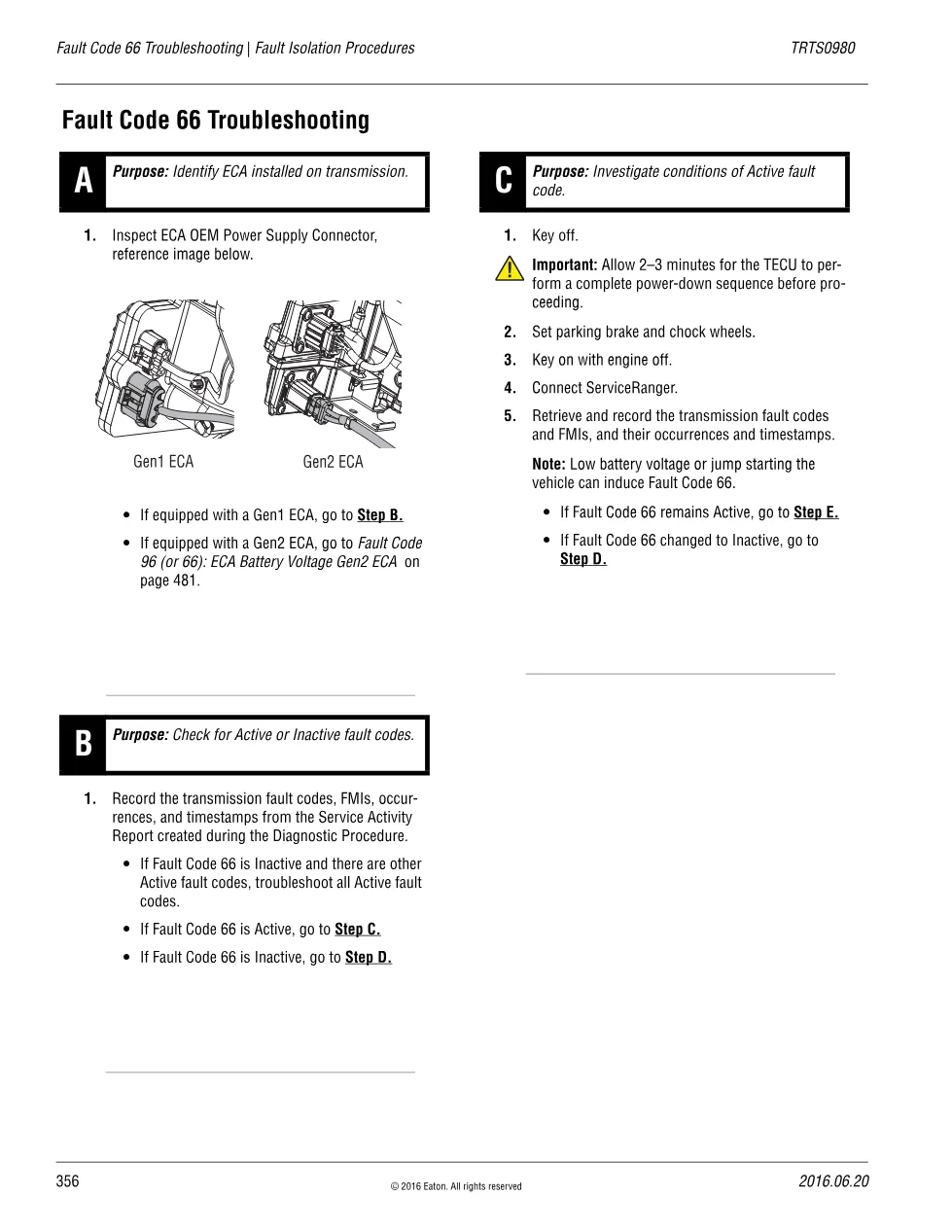

- Identifying a Gen1 versus Gen2 ECA, with Gen2 continued on page 481
- Investigating conditions such as low battery voltage or jump starting

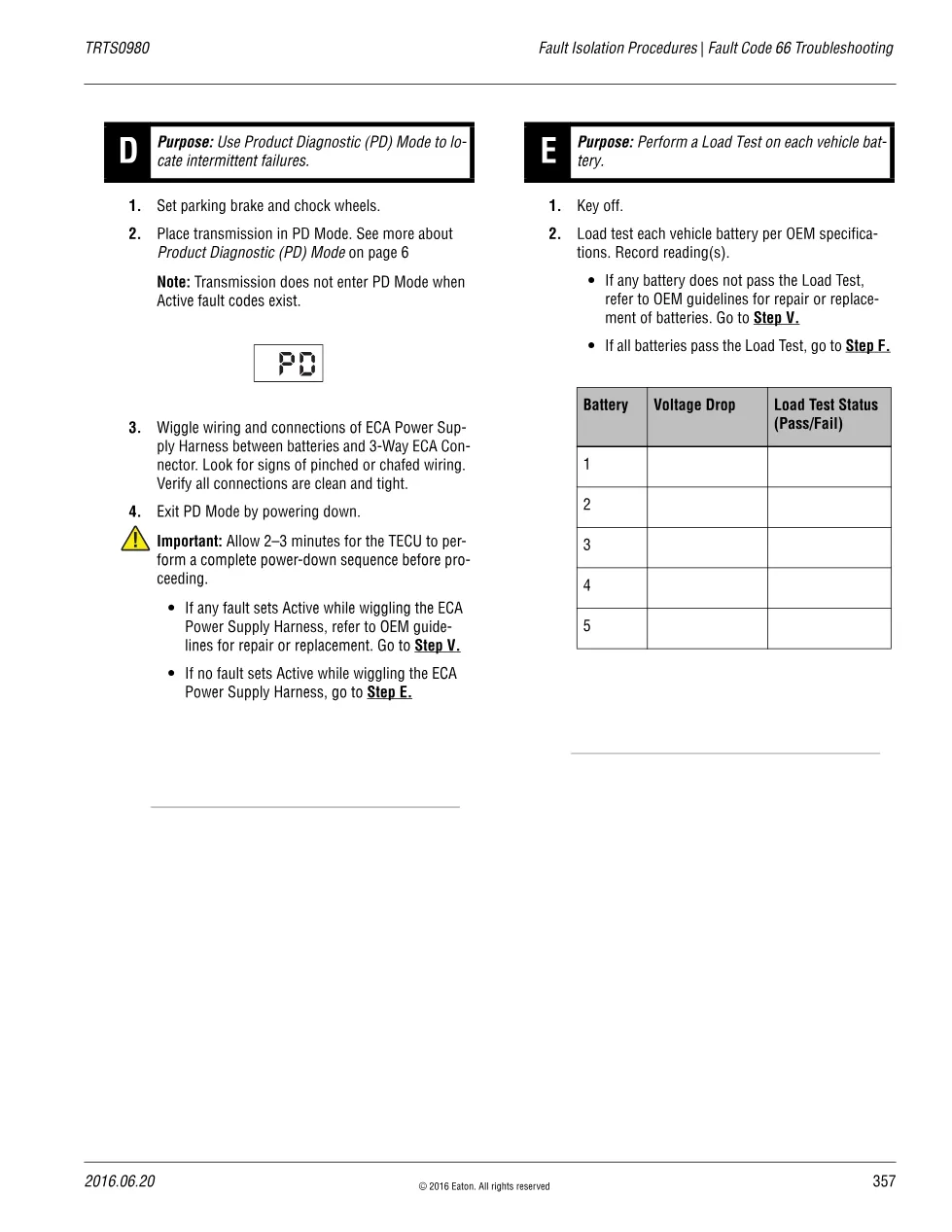

- Using PD Mode while wiggling the ECA Power Supply Harness
- Load testing each vehicle battery

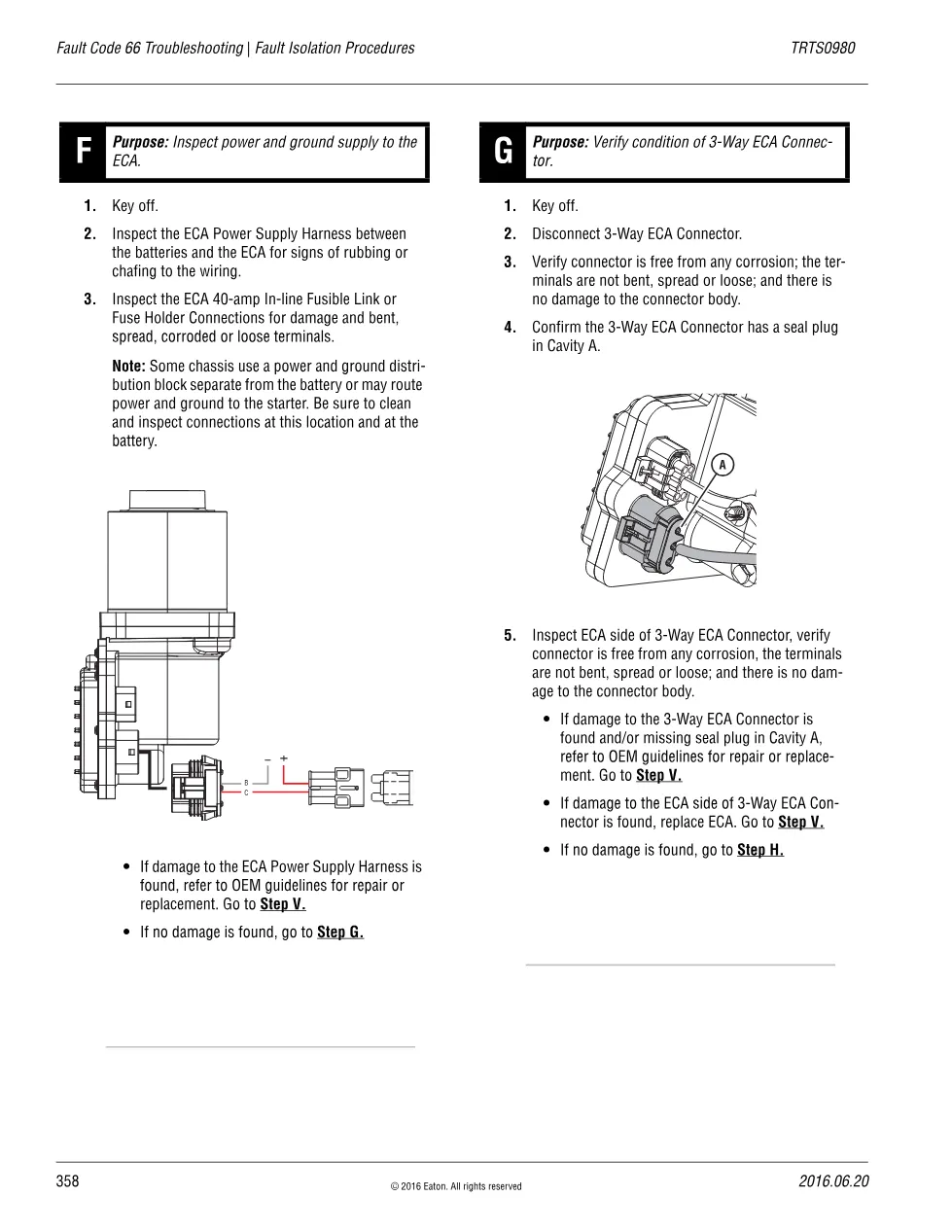

- Inspecting the 3-Way ECA Connector, 40-amp fuse and power and ground supply
- Verifying battery voltage and polarity at the ECA and load testing the harness
Applicable truck models
This Eaton fault isolation procedure applies to trucks fitted with the Fuller Advantage Heavy Duty automated manual transmission, its Electric Clutch Actuator (ECA) and the ECA Power Supply Harness. Every step is performed with ServiceRanger, the Eaton diagnostic software, and cross-referenced to the wider TRTS0980 Fault Isolation Procedures manual. Manufacturer background and current service literature are published on Eaton’s official transmission website.
Who needs the Fault Code 66 troubleshooting manual
Technicians chasing an ECA power complaint after a jump start or weak batteries use this Eaton procedure to confirm supply voltage and polarity at the 3-Way ECA Connector before replacing the actuator.
Because it is drawn straight from Eaton document TRTS0980, the page gives shop staff the same decision trees, connector pin references and pass-or-fail values the manufacturer uses, which shortens diagnosis time and supports accurate warranty documentation.
