This Fault Code 65 troubleshooting guide is the official Eaton fault isolation procedure for an ECA Speed Sensor and engine-speed signal problem on the Fuller Advantage Heavy Duty automated transmission. It compares J1939 engine speed against transmission clutch input speed and verifies sensor resistance.
Official document details
| Brand | Eaton |
| Model coverage | Fuller Advantage Heavy Duty automated transmission |
| System / group | Fuller Advantage Heavy Duty / DTCs — Diagnostic Trouble Codes |
| Publication no. | TRTS0980 |
| Revision | 2016.06.20 |
| Pages | 6 |
| File size | 0.52 MB |
| Format | |
| Language | English |
Fault Code 65 troubleshooting contents
The document is organised as a set of numbered fault isolation steps, each with a stated purpose and a clear go-to branch that sends the technician to the next step, a repair or the final verification. The main sections cover:

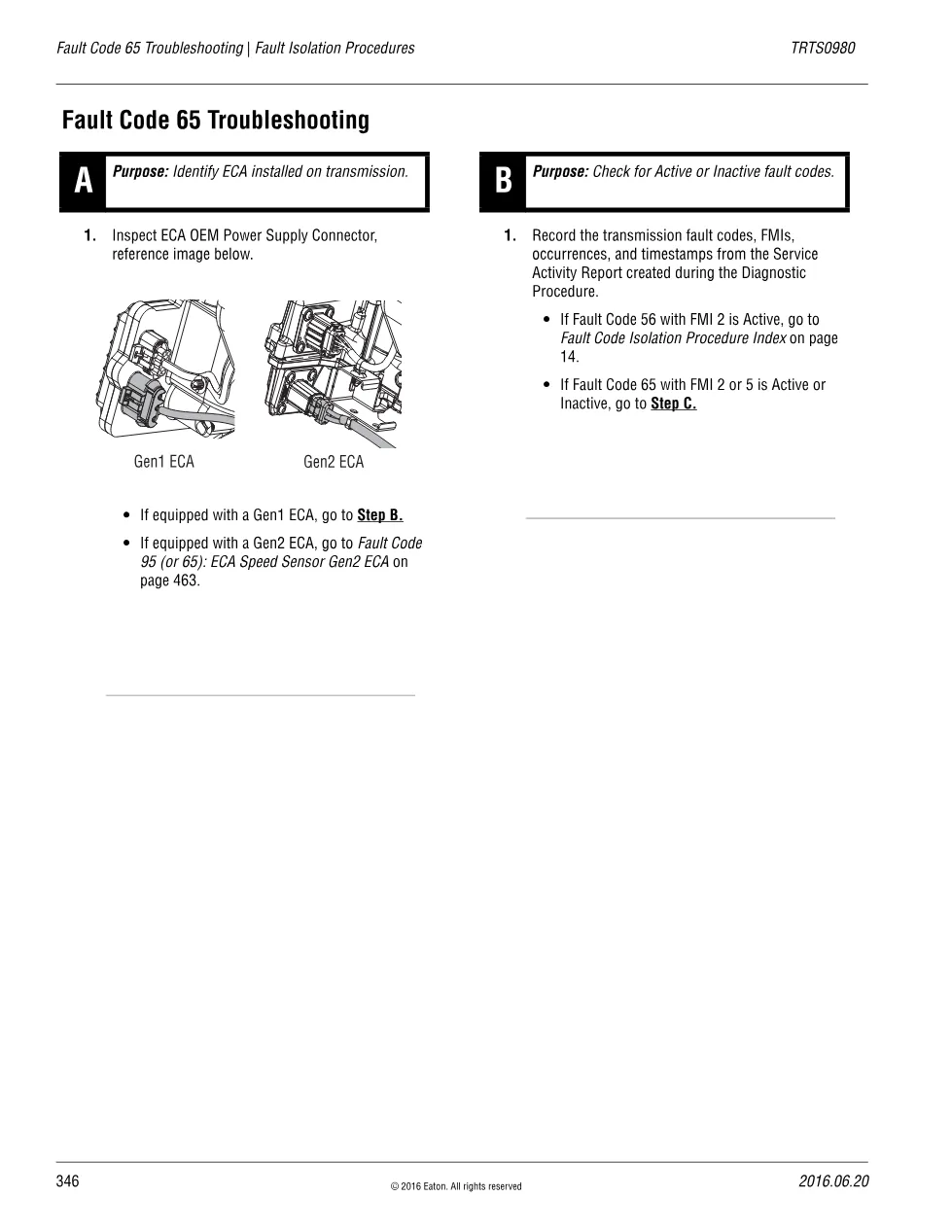

- Identifying a Gen1 versus Gen2 ECA installation

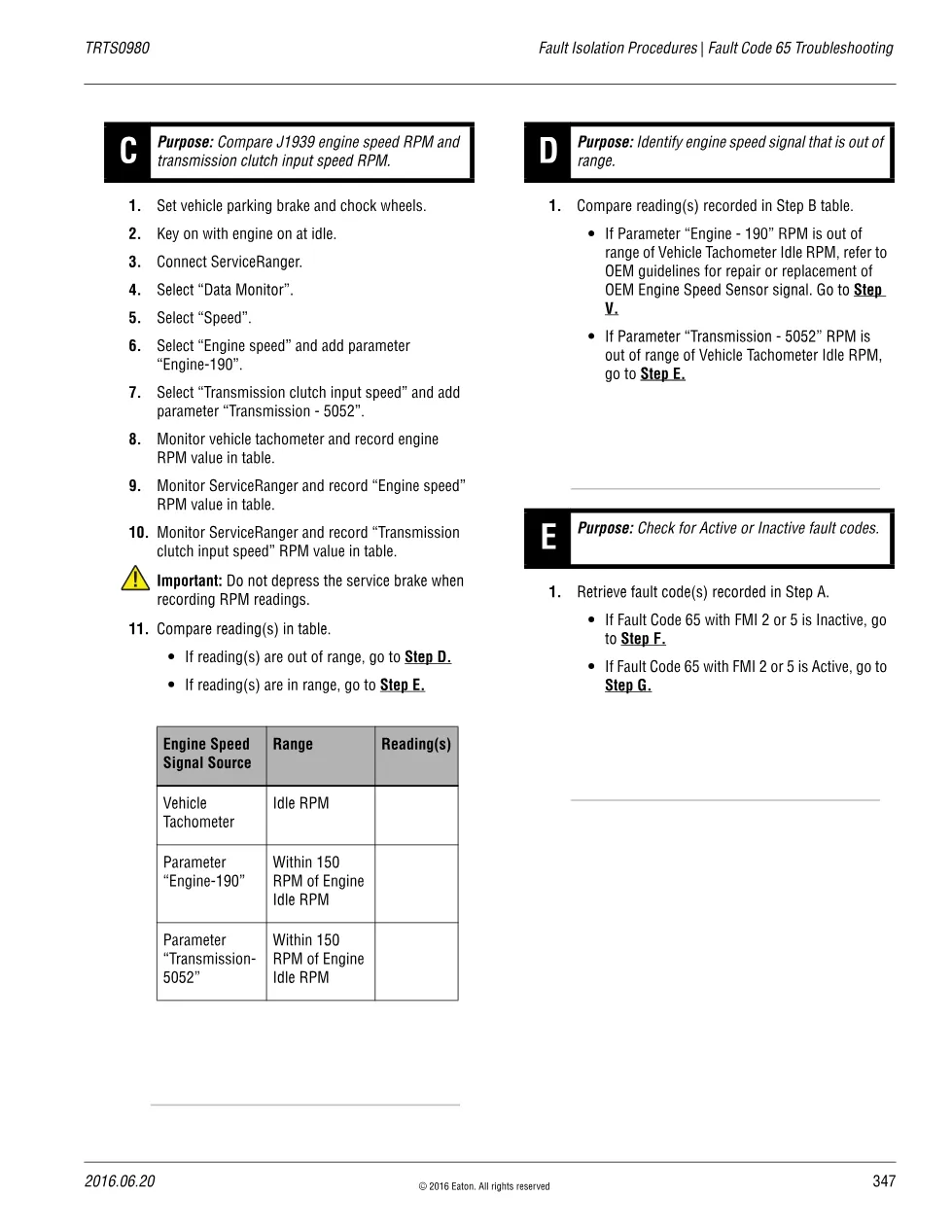

- Comparing J1939 engine speed RPM with transmission clutch input speed

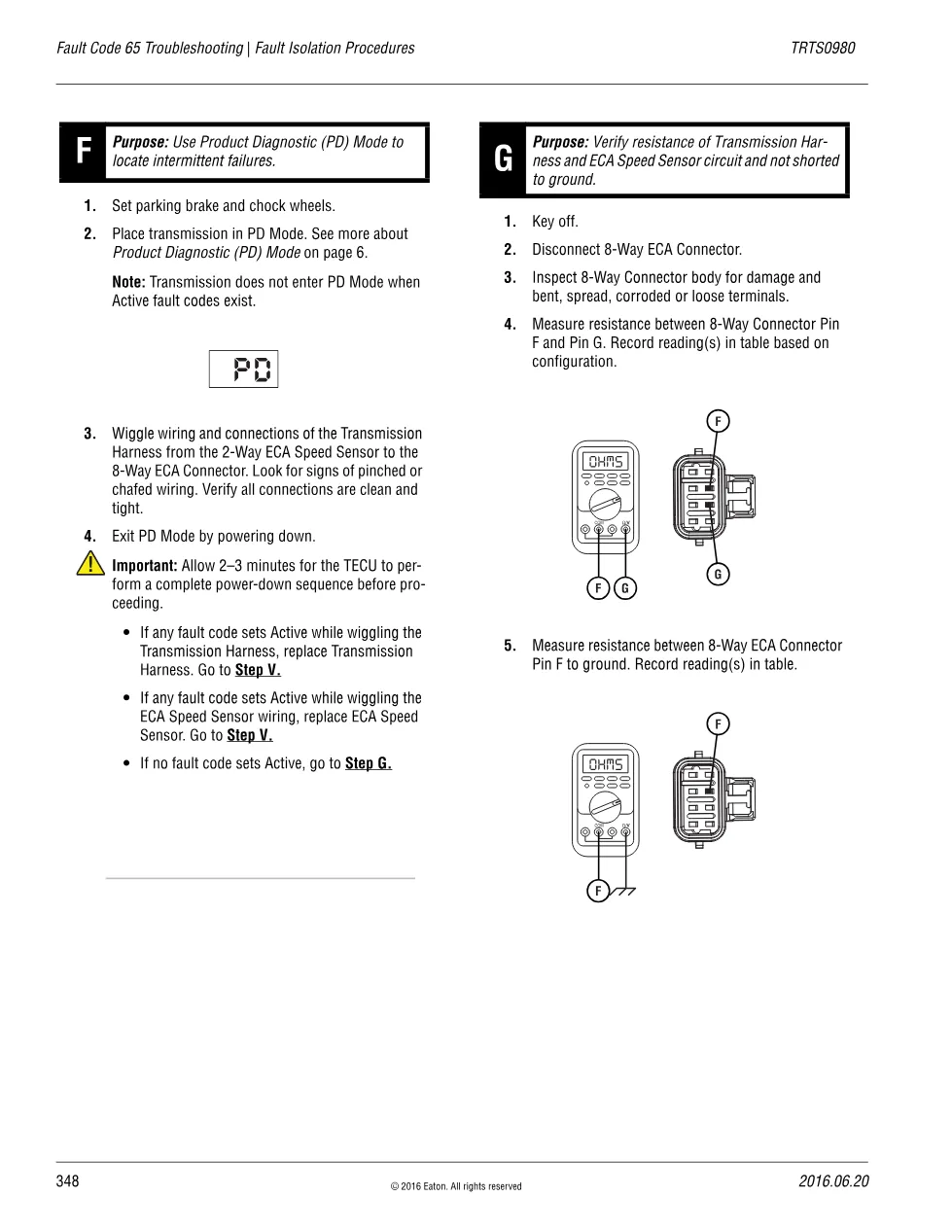

- Using PD Mode to locate intermittent Transmission Harness faults
- Measuring ECA Speed Sensor resistance at the 8-Way and 2-Way connectors
- Inspecting Push-In clutch-housing and Thread-In flywheel-housing sensors
- Inspecting the engine flywheel ring gear and verifying the repair
Applicable truck models
This Eaton fault isolation procedure applies to trucks fitted with the Fuller Advantage Heavy Duty automated manual transmission, its Transmission Electronic Control Unit (TECU) and either a Gen1 or Gen2 ECA Speed Sensor. Every step is performed with ServiceRanger, the Eaton diagnostic software, and cross-referenced to the wider TRTS0980 Fault Isolation Procedures manual. Manufacturer background and current service literature are published on Eaton’s official transmission website.
Who needs the Fault Code 65 troubleshooting manual
Drivability technicians tracing a lost or erratic engine-speed signal use this Eaton procedure to confirm whether the ECA Speed Sensor, the Transmission Harness or the OEM engine signal is at fault.
Because it is drawn straight from Eaton document TRTS0980, the page gives shop staff the same decision trees, connector pin references and pass-or-fail values the manufacturer uses, which shortens diagnosis time and supports accurate warranty documentation.
Related manuals library
The full 6-page PDF, published as Eaton document TRTS0980, is available in the DiagTechPro manuals library; a free account is required to download.
