This page covers the Eaton TECU fault code 11, No TECU Operation, as published in the TRTS0980 fault isolation procedures for the Fuller Advantage Heavy Duty transmission. Fault Code 11 indicates an internal failure of the Transmission Electronic Control Unit detected during power-up self-check.
Official document details
| Brand | Eaton |
| Model coverage | Fuller Advantage Heavy Duty automated transmission (DTCs) |
| System / Group | Fuller Advantage Heavy Duty / DTCs |
| Publication no. | TRTS0980 |
| Year / Revision | © 2016 Eaton |
| Pages | 2 |
| File size | 0.4 MB |
| Format | |
| Language | English |
Inside the Eaton TECU fault code
- Fault Code 11: No TECU Operation overview
- J1587 MID 130 SID 254 FMI 12 and J1939 SA 3 SPN 629
- Detection and conditions to set fault code active
- FMI 12 Bad Intelligent Device
- Fallback behaviour and gear display “F” flash
- Possible causes and component identification (TECU)

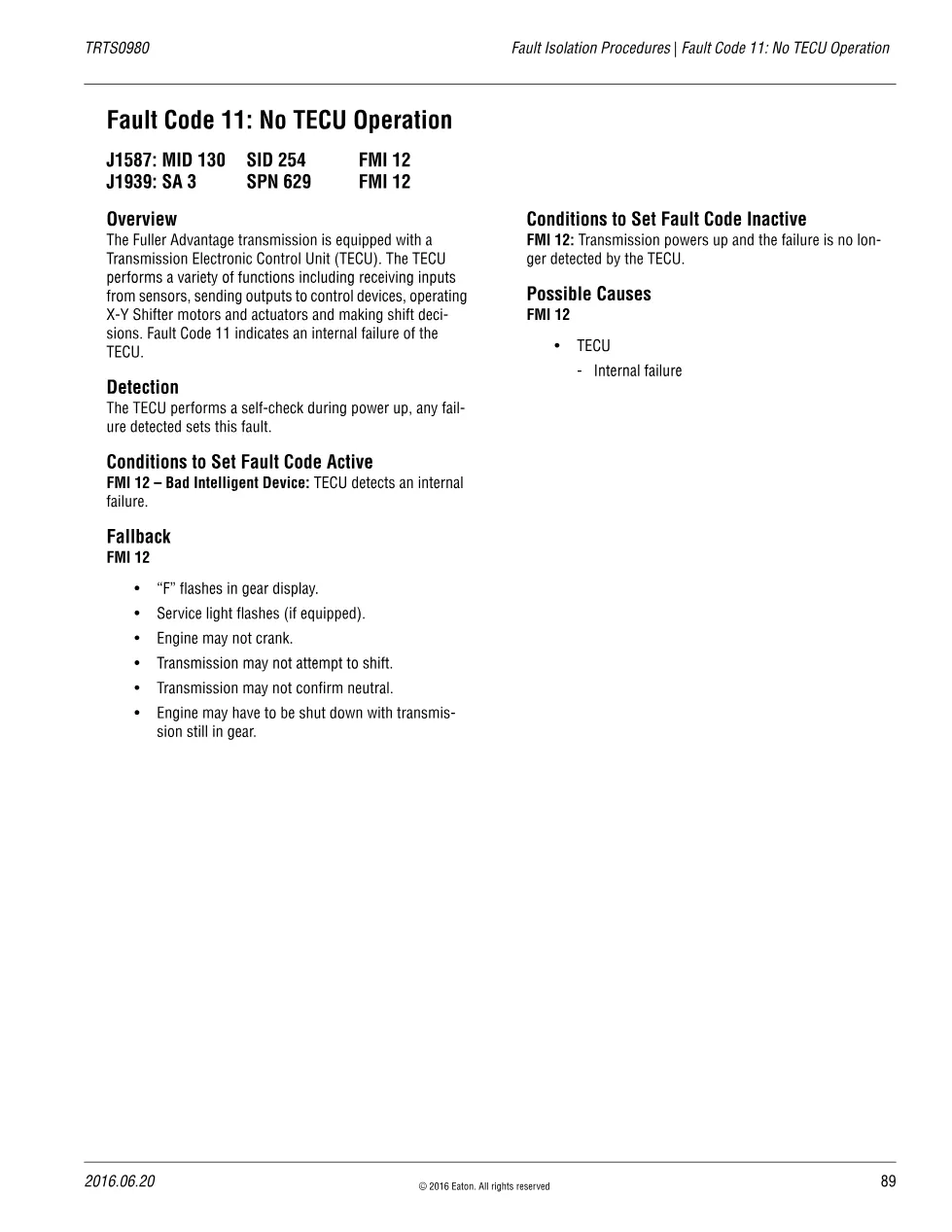

The document opens with the fault definition, then lists the J1587 (MID 130, SID 254, FMI 12) and J1939 (SA 3, SPN 629, FMI 12) identifiers so the code can be matched in any scan tool. It explains that the TECU runs a self-check at every power-up and that any failure detected during that check latches the code. Under FMI 12 the fallback section warns that the gear display shows a flashing “F”, the optional service light flashes, the engine may not crank, and the transmission may not attempt to shift or confirm neutral, sometimes forcing a shutdown while still in gear. The condition clears only when the transmission powers up and the failure is no longer detected. A single component-identification illustration points to the control unit itself.
Applicable truck models
The procedure applies to the Fuller Advantage transmission equipped with a Transmission Electronic Control Unit (TECU) that operates the X-Y shifter motors and makes shift decisions. It is documented for both Fuller Advantage Heavy Duty and Fuller Advantage DTC listings. Verify coverage against your VIN and build sheet on the Eaton Vehicle Group site.
Who needs the Eaton TECU fault code
Drivetrain technicians diagnosing a “F” flashing gear display, a no-crank complaint, or a transmission that will not confirm neutral will use this reference to confirm the FMI 12 internal-failure path before replacing the TECU. It pairs with ServiceRanger fault-code retrieval.
The complete 2-page PDF is available in the DiagTechPro manuals library; a free account is required to download.
