The Eaton Range Solenoid Valve overview explains how Fault Code 43 is detected on the Fuller Advantage Heavy Duty transmission. This TRTS0980 reference describes the electric-over-air solenoid, the 2-speed auxiliary range system it controls and the electrical faults the TECU can see.
Official document details
| Brand | Eaton |
| Model coverage | Fuller Advantage Heavy Duty (and Fuller Advantage) automated transmissions |
| System / Group | Fuller Advantage Heavy Duty / DTCs |
| Publication no. | TRTS0980 |
| Year / Revision | 2016.06.20 (© 2016 Eaton) |
| Pages | 4 |
| File size | 0.61 MB |
| Format | |
| Language | English |
Document table of contents

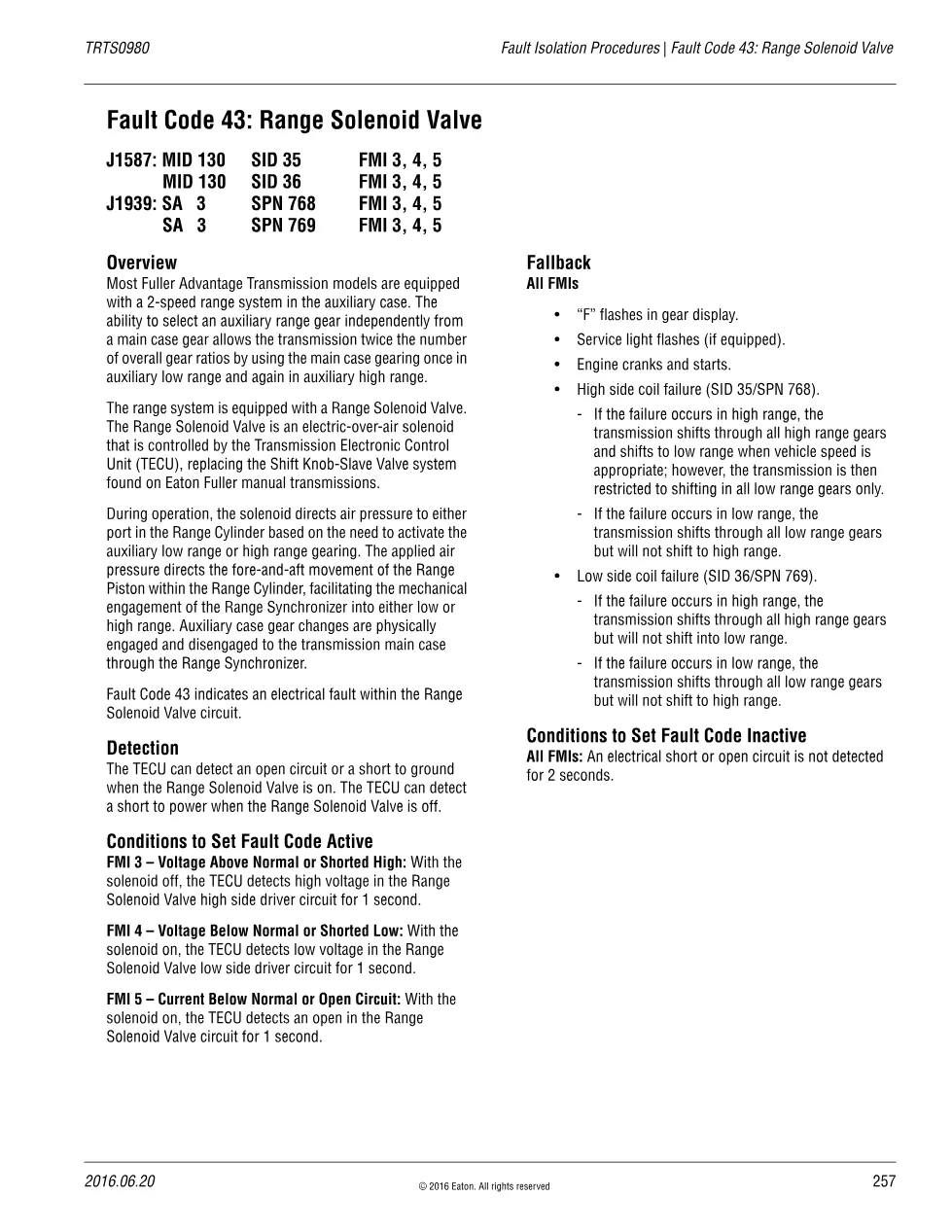

- Overview of the 2-speed auxiliary range system
- How the solenoid directs air to the Range Cylinder
- Detection of open, short-to-ground and short-to-power faults
- Conditions to set Fault Code 43 Active (FMI 3, 4, 5)
- Fallback behaviour by high- and low-side coil

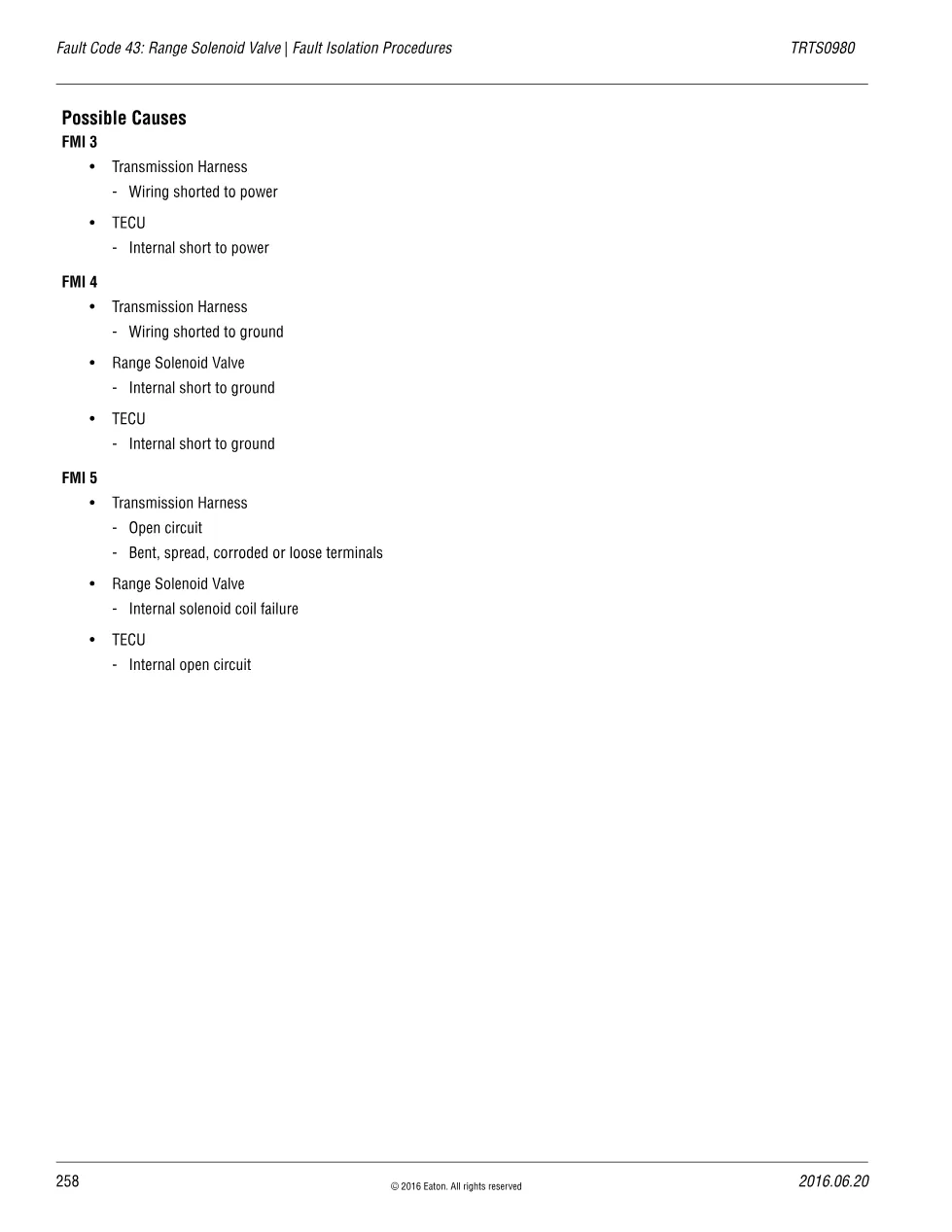

- Possible causes by FMI

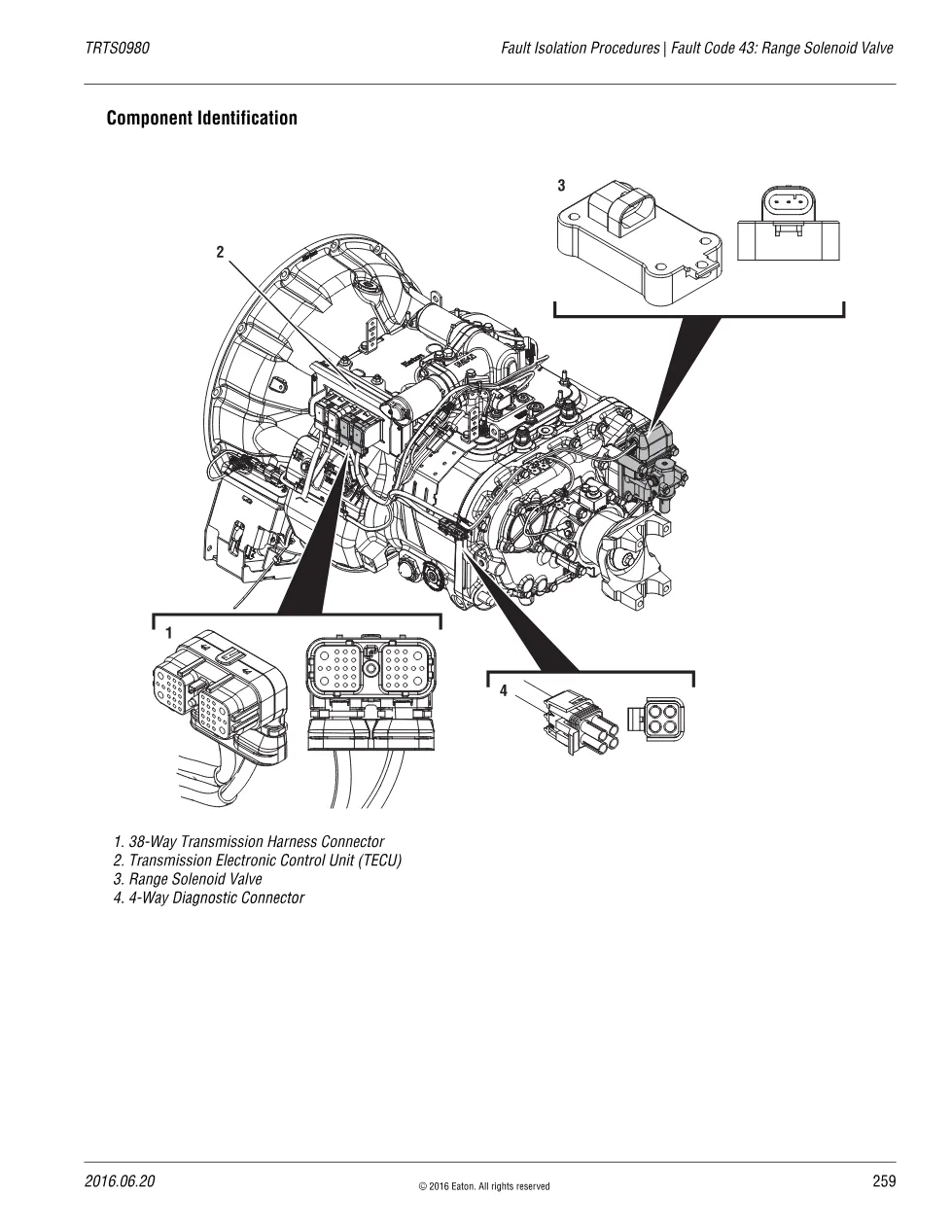

- Component identification and connector pin-out
Applicable truck models
This applies to most Eaton Fuller Advantage Heavy Duty transmissions, which use the TECU-controlled solenoid in place of the Shift Knob-Slave Valve system found on Eaton Fuller manual transmissions (J1587 MID 130 SID 35/36; J1939 SA 3 SPN 768/769). Product data is published on the Eaton Vehicle Group official website.
Eaton Range Solenoid Valve detection logic
The TECU detects an open circuit or short to ground while the solenoid is on, and a short to power while it is off. FMI 3 sets for high voltage on the high-side driver, FMI 4 for low voltage on the low-side driver, and FMI 5 for an open circuit — each after one second, clearing once no fault is seen for two seconds.
Who needs this Eaton Range Solenoid Valve manual
Transmission technicians use this overview to read the fallback pattern — which high- or low-side coil failed and how the truck is restricted between low and high range — before running the matching fault isolation procedure.
