Fault Code 12 troubleshooting is the fault-isolation procedure for an internal TECU failure on the Eaton Fuller Advantage Heavy Duty transmission. This single-page section of publication TRTS0980 confirms that when the code is active or inactive the control unit is replaced, then verifies the repair with ServiceRanger by clearing codes and road testing. It is a short, decisive procedure paired with the Fault Code 12 improper configuration definition.
Official document details
| Brand | Eaton |
|---|---|
| Model coverage | Fuller Advantage & Fuller Advantage Heavy Duty automated transmission |
| System / Group | DTCs – Fault Isolation Procedures |
| Publication no. | TRTS0980 |
| Year / Revision | 2016 (Rev. 2016.06.20) |
| Pages | 1 |
| File size | 0.0 MB |
| Format | |
| Language | English |

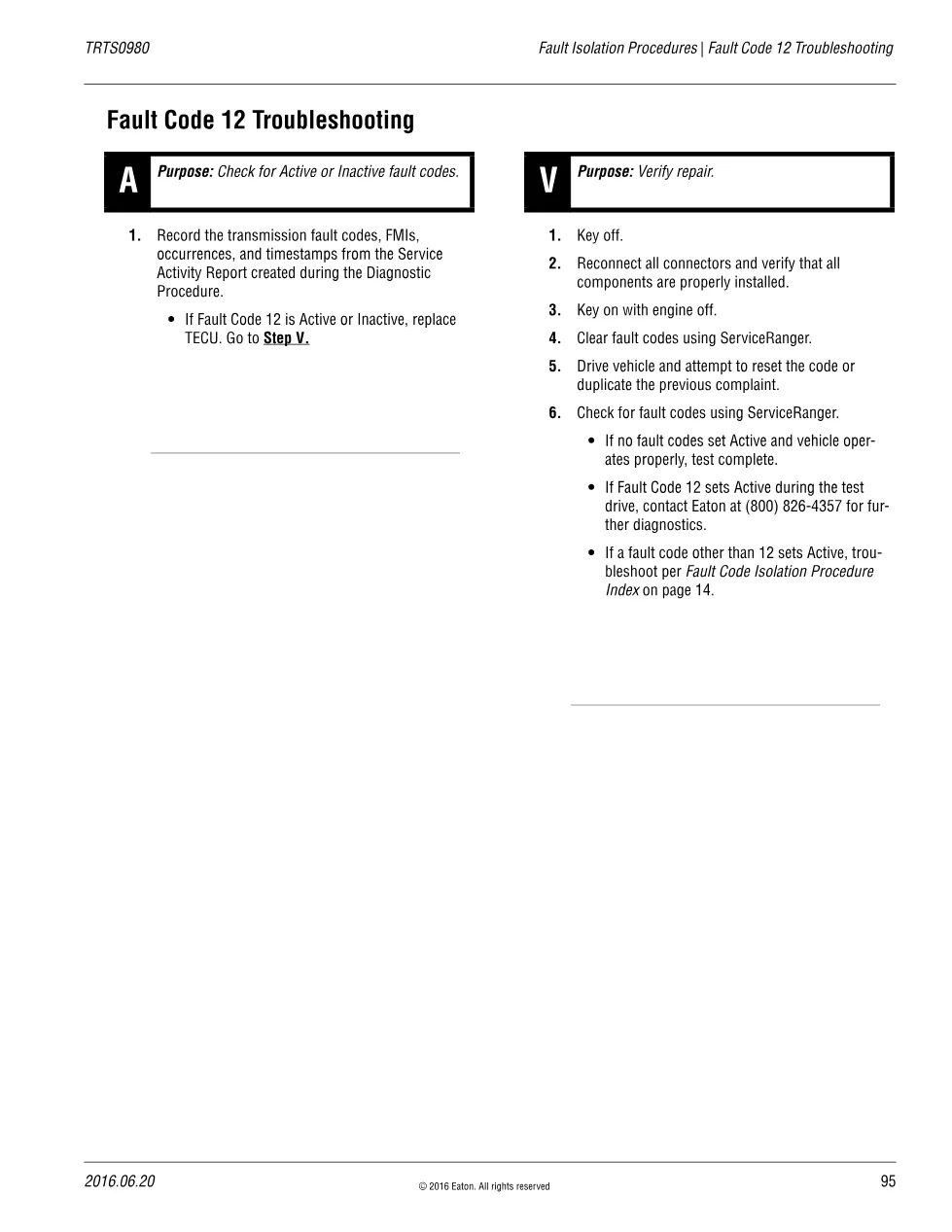

Fault Code 12 troubleshooting table of contents
- Step A – Check for active or inactive fault codes
- Replace the TECU when the code is present
- Verify the repair with ServiceRanger and a test drive
- Step V – Verify repair
Applicable truck models covered
The procedure applies to every Eaton Fuller Advantage and Fuller Advantage Heavy Duty automated transmission, on any chassis OEM, because the fault is internal to the control unit rather than in the vehicle wiring. If a different code sets on the test drive, the technician follows the Fault Code Isolation Procedure Index instead. Transmission data is published on the manufacturer’s official Eaton transmissions website.
Who needs this Code 12 troubleshooting manual
Transmission technicians confronted with an internal control-unit fault use this page to confirm the replace-and-verify path and the escalation contact before and after fitting a new TECU. The page is deliberately brief: once the self-check has failed there is nothing external to adjust, so the emphasis falls on verifying the repair and escalating if the code returns on the road test.
The complete PDF, published under Eaton document TRTS0980, is available in the DiagTechPro manuals library; a free account is required to download it.
