This DT466 special torque values manual is the specifications section of the International DT466 and DT530 (2000-2003) service manual, listing engine clearances, torque figures and service tools. It tabulates connecting rod, piston, ring, pin and cylinder sleeve specifications.
Official document details
| Brand | International Engines |
|---|---|
| Model coverage | International DT466E and DT530E diesel engines |
| System / group | DT466 & DT530 (2000-2003) / Service Manuals |
| Parent publication | DT466/530 (2000-2003) Service Manual (EGES2101) |
| Year / revision | 2000-2003 |
| Pages | 51 |
| File size | 0.4 MB |
| Format | |
| Language | English |
Document table of contents
- Connecting rods, pistons, rings and sleeves specifications
- Piston ring specifications
- Piston pin specifications
- Cylinder sleeve specifications
- Special torque values
- Special service tools
DT466 special torque values reference

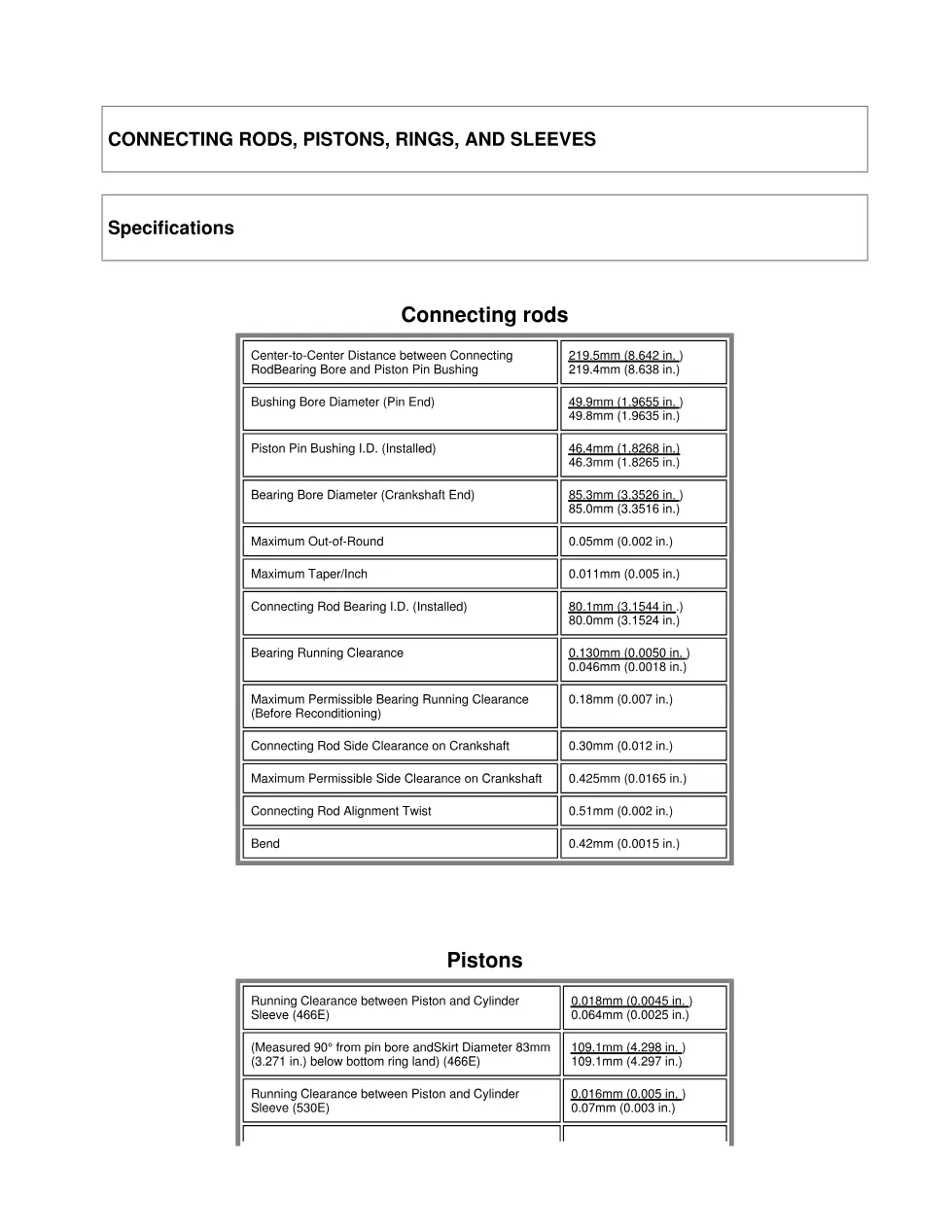

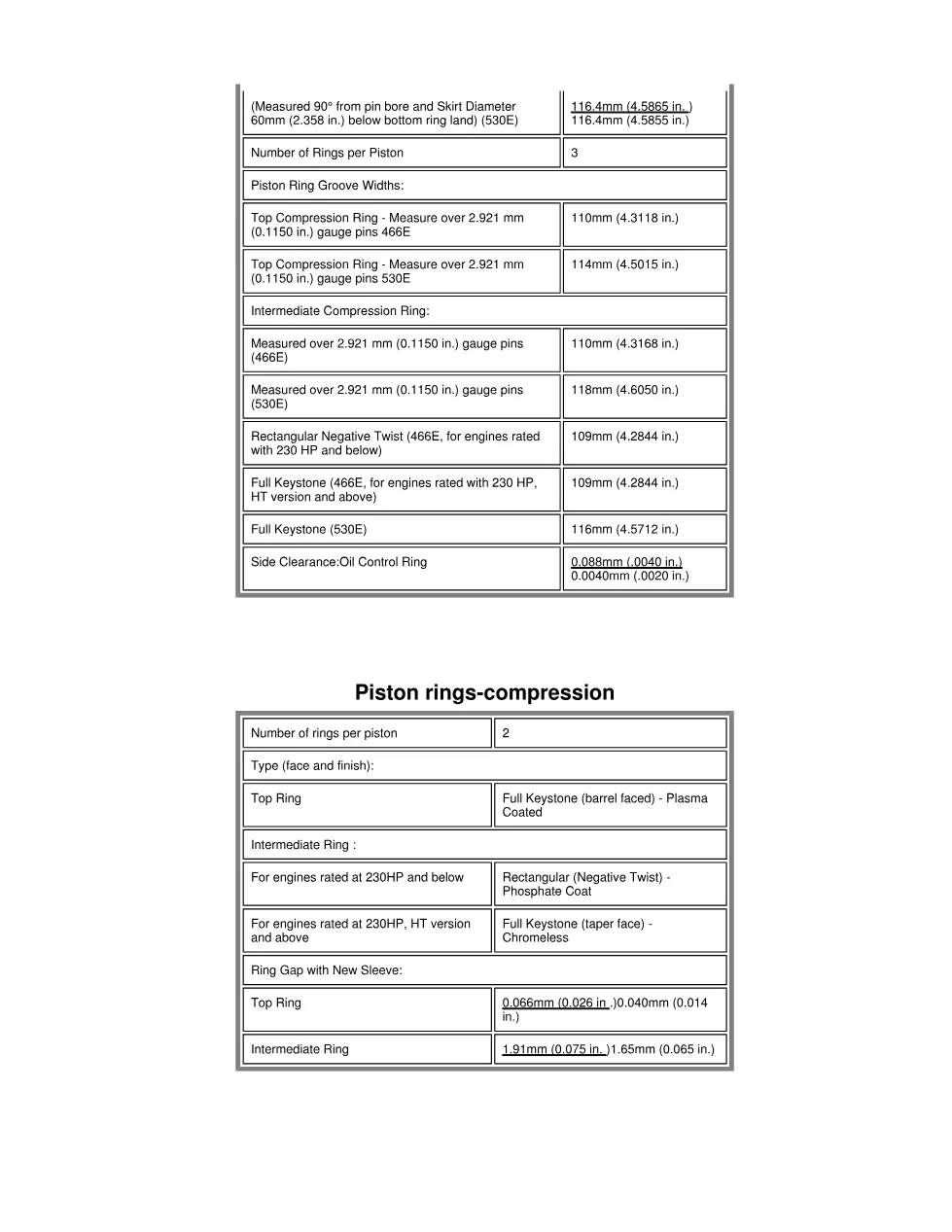

This reference gives connecting rod bearing bore, running clearance (0.046-0.130 mm) and side clearance, piston-to-sleeve running clearances for 466E and 530E, ring groove widths, piston pin clearances and cylinder sleeve inside diameters. Special service tools are called out alongside each specification. Figures and numbered callouts illustrate each operation step by step, and every fastener is tightened to the special torque value published in the companion “Specifications, Special Torque Values, and Service Tools” section (publication EGES2101).
Applicable truck models
It applies to International DT466E (7.6 L) and 530E (8.7 L) diesel engines and is referenced by the other service sections for their torque figures. Always use the latest specification revision. For official model information, see the International Trucks (Navistar) website.
Who needs this special torque values
Every technician overhauling these engines uses this section to confirm clearances and fastener torque before final assembly. Because this is one chapter of the complete International DT466 and DT530 (2000-2003) service manual set, most workshops download it alongside the diagnostic manual, the DTC list and the specification volume so the repair, testing and reference material stay together.
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download.
