This DT466 piston connecting rods manual is Section 6 of the International DT466 and DT530 (2000-2003) service manual, covering piston, ring, connecting rod and cylinder sleeve service. It details ring installation order, piston-to-rod assembly, sleeve fitting and bearing crush.
Official document details
| Brand | International Engines |
|---|---|
| Model coverage | International DT466E and DT530E diesel engines |
| System / group | DT466 & DT530 (2000-2003) / Service Manuals |
| Parent publication | DT466/530 (2000-2003) Service Manual (EGES2101) |
| Year / revision | 2000-2003 |
| Pages | 69 |
| File size | 2.7 MB |
| Format | |
| Language | English |
Document table of contents
- Connecting rods, pistons and rings assembly
- Cylinder sleeve installation
- Connecting rod bearing inserts and caps
- Bearing fitting procedure
- Cylinder sleeve fitting procedure
- Piston and rod assembly removal
- Connecting rod inspection
DT466 piston connecting rods procedures

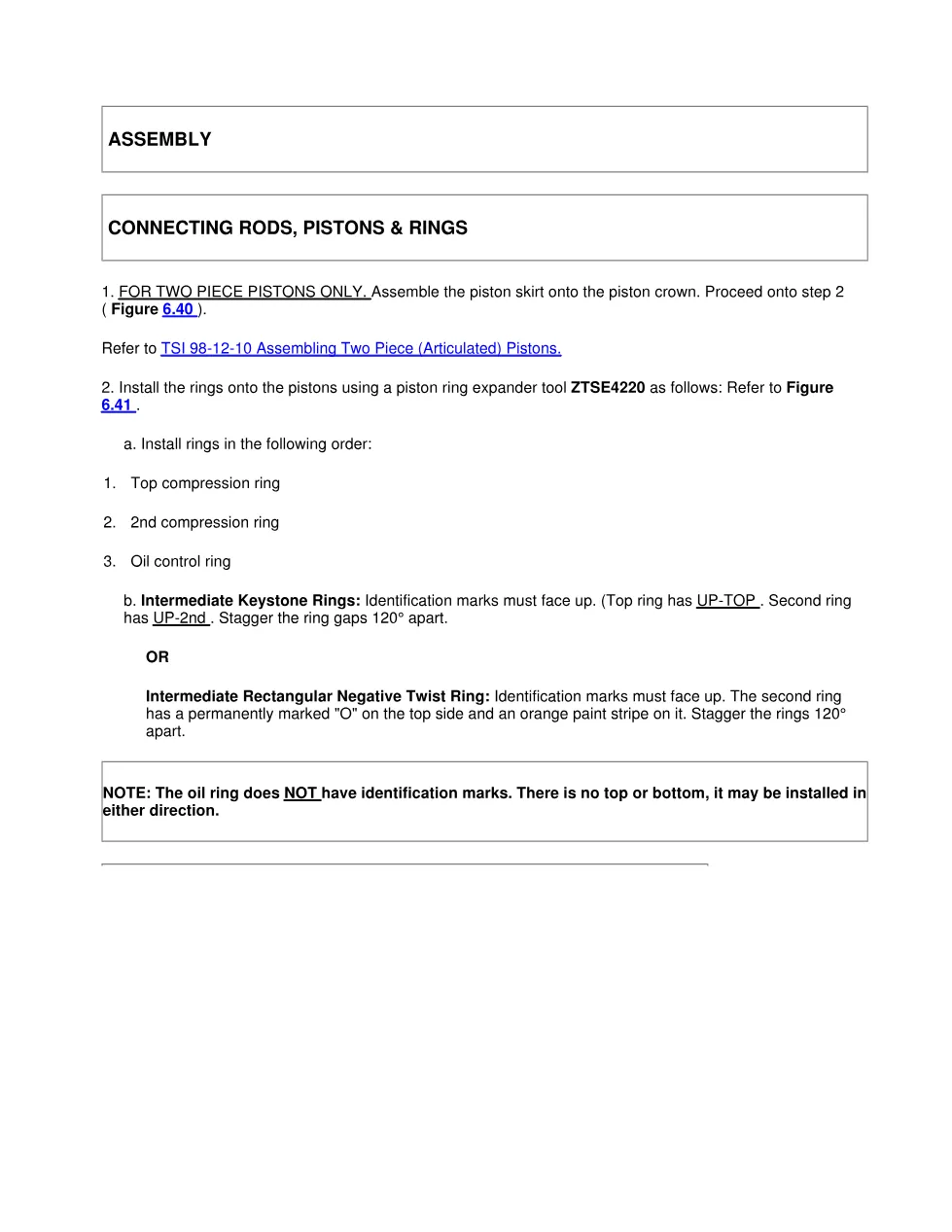

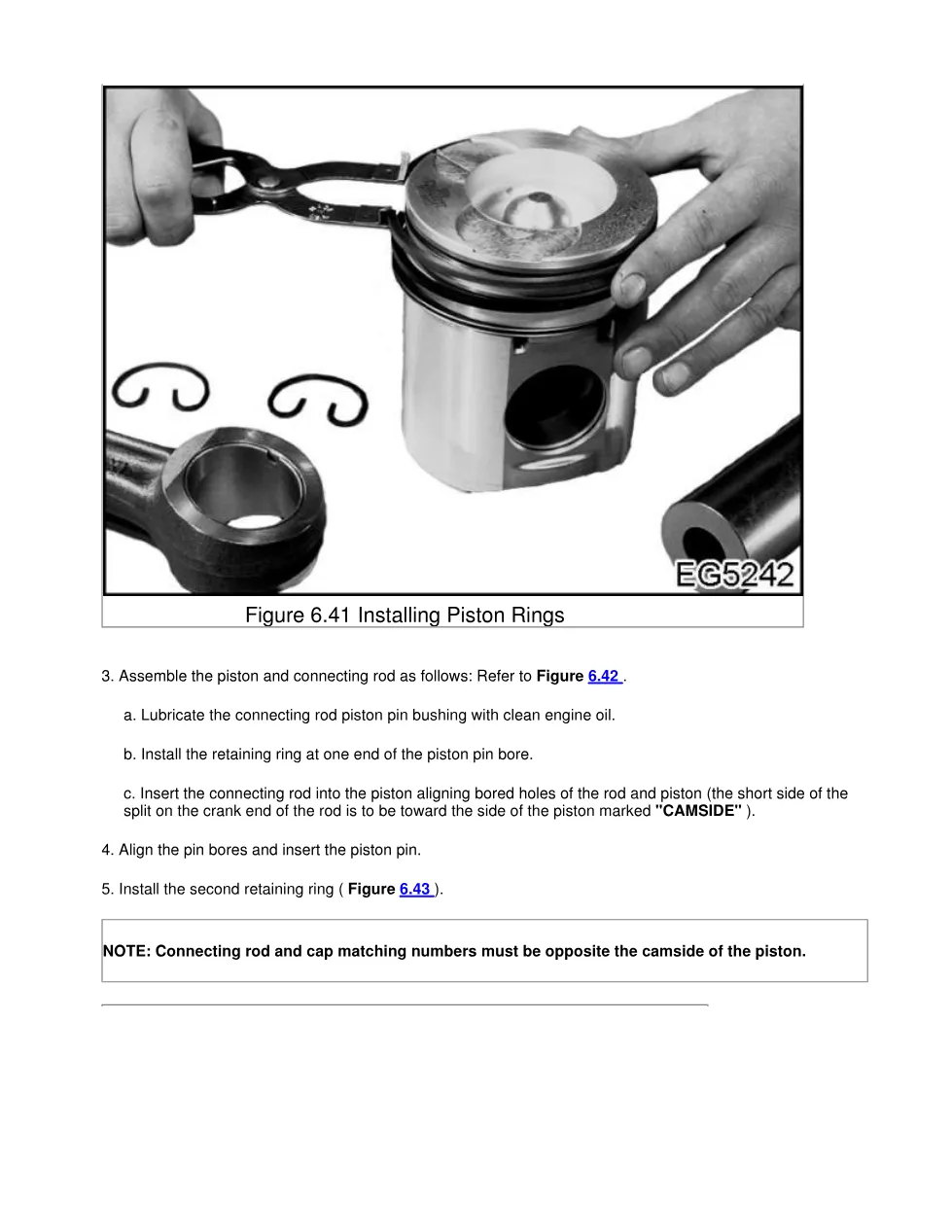

This section explains installing the piston rings in order (top compression, second compression, oil control) with expander tool ZTSE4220, staggering the ring gaps 120° apart, and matching connecting rod cap numbers away from the camside. Cylinder sleeve O-ring installation, sleeve protrusion checks and the bearing fitting procedure with correct bearing crush are included. Figures and numbered callouts illustrate each operation step by step, and every fastener is tightened to the special torque value published in the companion “Specifications, Special Torque Values, and Service Tools” section (publication EGES2101).
Applicable truck models

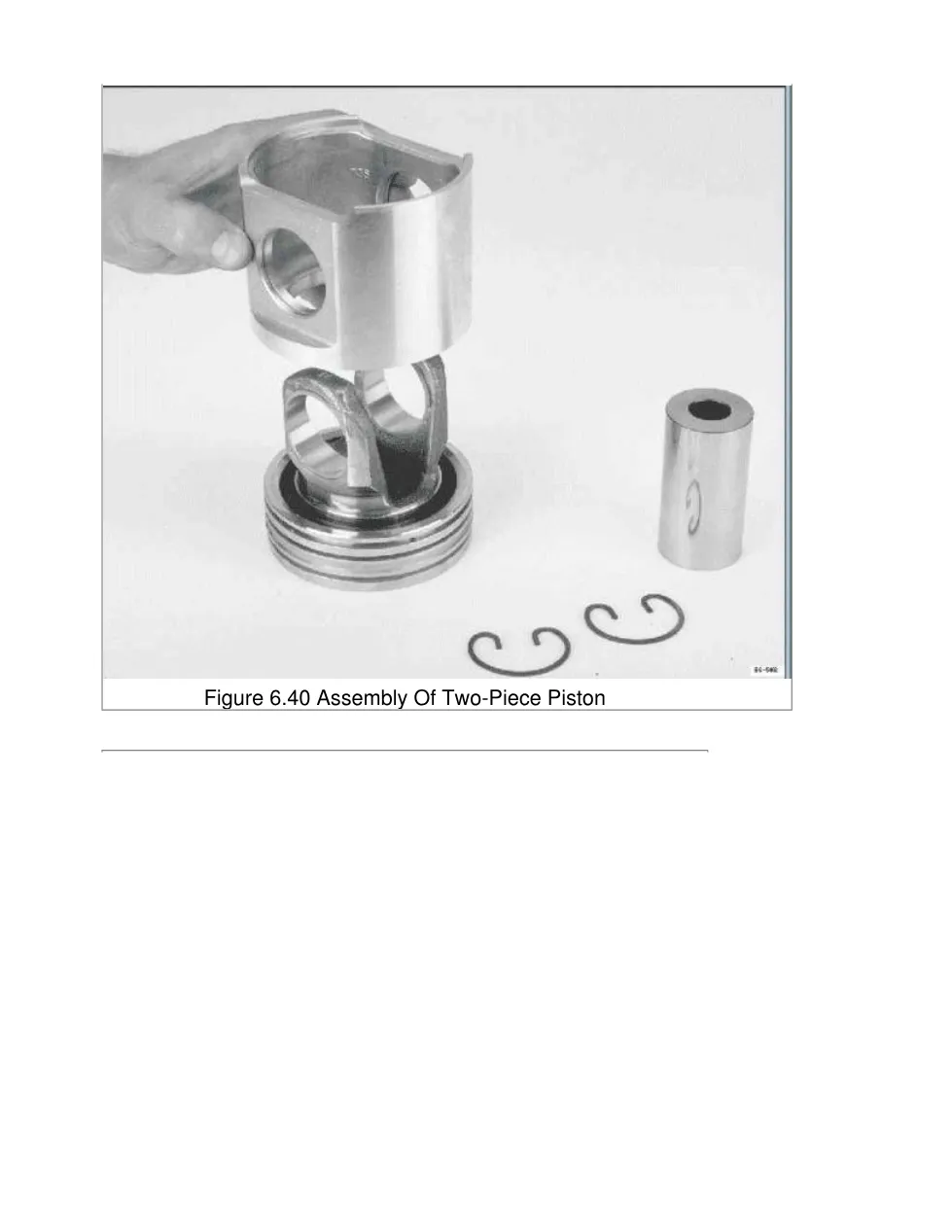

It applies to International DT466E and 530E diesel engines with one-piece or two-piece (articulated) pistons; two-piece assembly references TSI 98-12-10. Follow the running-clearance specifications before reusing any piston. For official model information, see the International Trucks (Navistar) website.
Who needs this DT466 piston connecting rods
Engine rebuilders performing an in-frame or full overhaul rely on these steps to seat rings and torque connecting rod bolts correctly. Because this is one chapter of the complete International DT466 and DT530 (2000-2003) service manual set, most workshops download it alongside the diagnostic manual, the DTC list and the specification volume so the repair, testing and reference material stay together.
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download.
