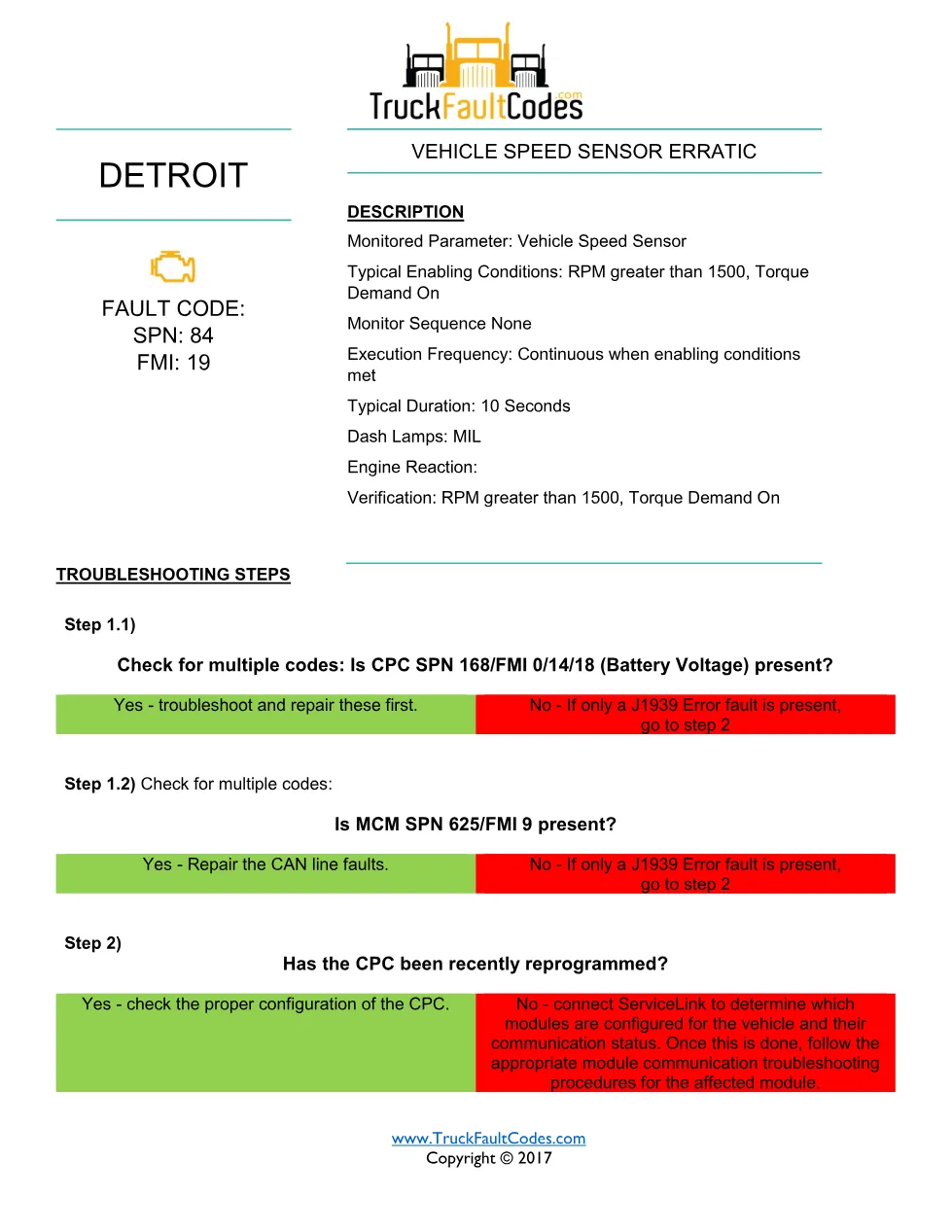

Detroit VSS FMI 19 is the Detroit fault code for a vehicle speed sensor erratic on the DD Series wheel-based vehicle speed sensor circuit. This 1-page reference from the DiagTechPro library reproduces the official Detroit troubleshooting steps so a technician can work the fault in the correct order. It is a factory-style diagnostic guide, not a repair shortcut.
Official document details
| Brand | Detroit (Detroit Diesel) |
| Model coverage | DD13, DD15, DD16 – DD Series (EPA 2007–current) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Suspect Parameter Number | 84 |
| Failure Mode Identifier | 19 |
| Description | Vehicle Speed Sensor Erratic |
| Coverage / Revision | EPA10 / GHG14 |
| Pages | 1 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification and description
- Checking for multiple related fault codes
- CPC battery and MCM CAN checks
- CPC reprogramming and configuration review
- ServiceLink module communication checks
Detroit VSS FMI 19 diagnostic overview
Detroit VSS FMI 19 covers an erratic vehicle speed sensor condition on EPA10 and GHG14 trucks. The technician checks for CPC battery faults (SPN 168) and MCM SPN 625/FMI 9, confirms the CPC configuration after any reprogramming, then uses ServiceLink to check module communication status. It also references Detroit DiagnosticLink (DDDL 7.x) and ServiceLink for reading module configuration and communication status. Each step is written as a yes or no decision, so the result of one measurement points directly to the next check or to the final repair action.
Applicable truck models and engines
It applies to Detroit DD13, DD15 and DD16 engines in the DD Series (EPA 2007 to current) family, and the same code is documented for the Series 60 (DDEC VI) platform. Vehicle speed can be hardwired to the Common Powertrain Controller or transmitted over J1939, so the guide points to the Application and Installation manual and OEM literature for chassis wiring. For factory support tools and warranty information, see Demand Detroit official resources.
Who needs this Detroit VSS FMI 19 manual
This document suits Detroit DD Series technicians who need the EPA10/GHG14 J1939 and module-communication path for an erratic speed sensor signal.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it, view every page, and print the decision steps for use at the workshop bench.
