This Detroit VSS circuit low reference covers the SPN 84 FMI 4 fault on the EPA10 GHG14 calibration, including the description block and the harness checks for a vehicle speed sensor that reads too low. It is part of the DiagTechPro truck manuals library and preserves the original TruckFaultCodes.com Detroit fault-code library (Copyright 2017).
Official document details
| Brand | Detroit |
|---|---|
| Model coverage | Detroit DD Series (EPA 2007-current) engines; the same fault-code procedure is also filed under the Detroit Series 60 (DDEC VI, EPA 2007) group. |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Fault code | SPN 84 / FMI 4 (EPA10 GHG14) |
| Source | TruckFaultCodes.com Detroit fault-code library (Copyright 2017) |
| Pages | 2 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault description and enabling conditions
- Monitored parameter and dash lamps
- VSS harness resistance steps
- Short-circuit repair guidance
Diagnostic steps in the Detroit VSS circuit low document

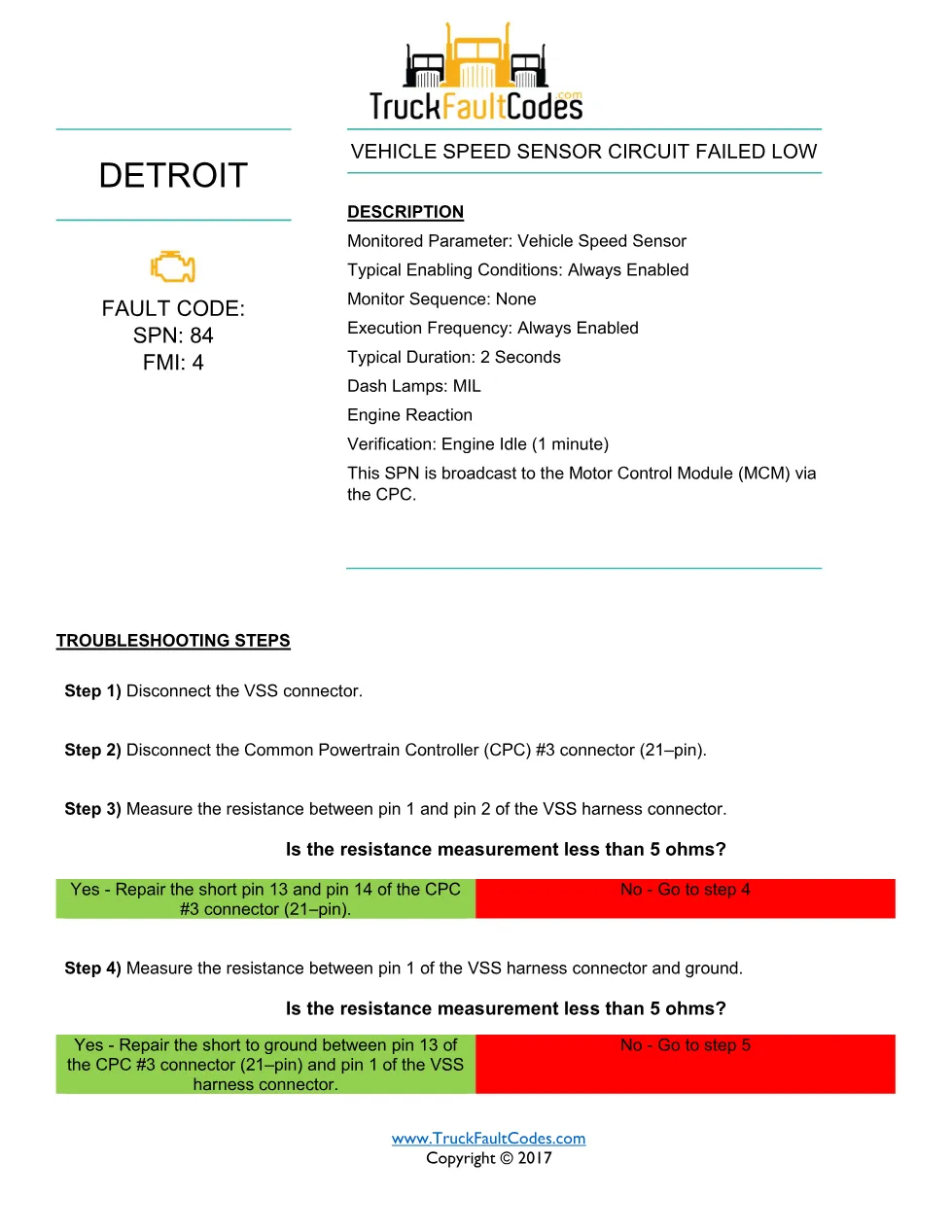

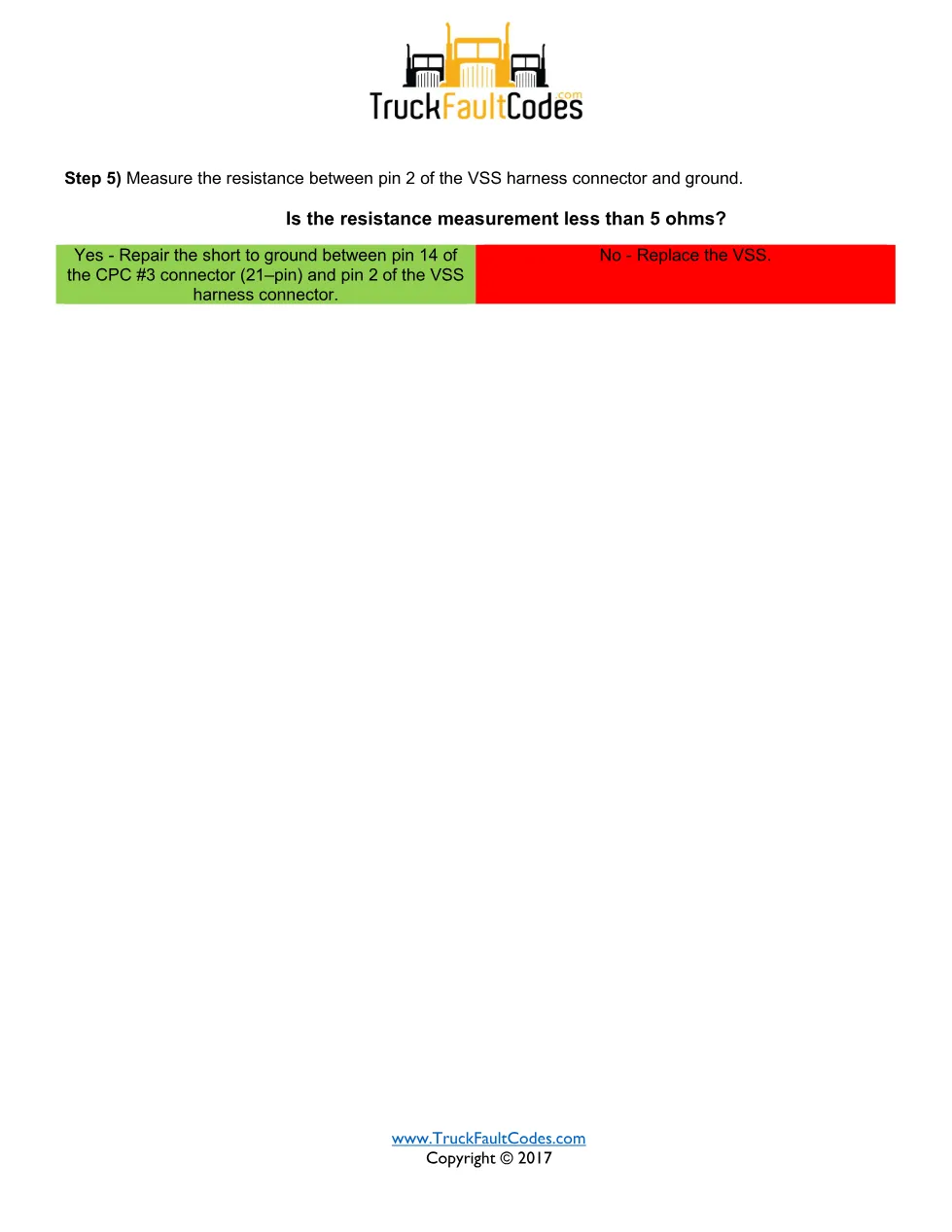

The document lists the monitored parameter as Vehicle Speed Sensor, a typical duration of 2 seconds and a MIL dash lamp, and notes the signal is broadcast to the Motor Control Module (MCM) through the Common Powertrain Controller. Troubleshooting disconnects the VSS and CPC #3 (21-pin) connectors and measures harness resistance between pins and to ground to find a short before condemning the sensor.
The Vehicle Speed Sensor circuit failed low condition on Detroit DD Series trucks is read and cleared with DiagnosticLink (formerly DDDL); the SPN and FMI pair identifies the exact circuit and failure mode. Confirm the code is active and capture freeze-frame data before running the pinpoint tests, then clear it and road-test the truck to verify the repair has held.
Applicable truck models and engines
This document applies to Detroit DD Series (EPA 2007-current) engines; the same fault-code procedure is also filed under the Detroit Series 60 (DDEC VI, EPA 2007) group. For factory service data, parts and warranty information, consult Detroit’s official DD engine support.
Who needs the Detroit VSS circuit low manual
It suits Detroit DD Series technicians who need the EPA10 enabling conditions and pin-level resistance targets rather than a generic speed-sensor writeup.
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download it.
