Detroit VSS FMI 21 is the Detroit fault code for a vehicle speed sensor erratic on the DD Series wheel-based vehicle speed sensor circuit. This 2-page reference from the DiagTechPro library reproduces the official Detroit troubleshooting steps so a technician can work the fault in the correct order. It is a factory-style diagnostic guide, not a repair shortcut.
Official document details
| Brand | Detroit (Detroit Diesel) |
| Model coverage | DD13, DD15, DD16 – DD Series (EPA 2007–current) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Suspect Parameter Number | 84 |
| Failure Mode Identifier | 21 |
| Description | Vehicle Speed Sensor Erratic |
| Coverage / Revision | ALL YEARS |
| Pages | 2 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents

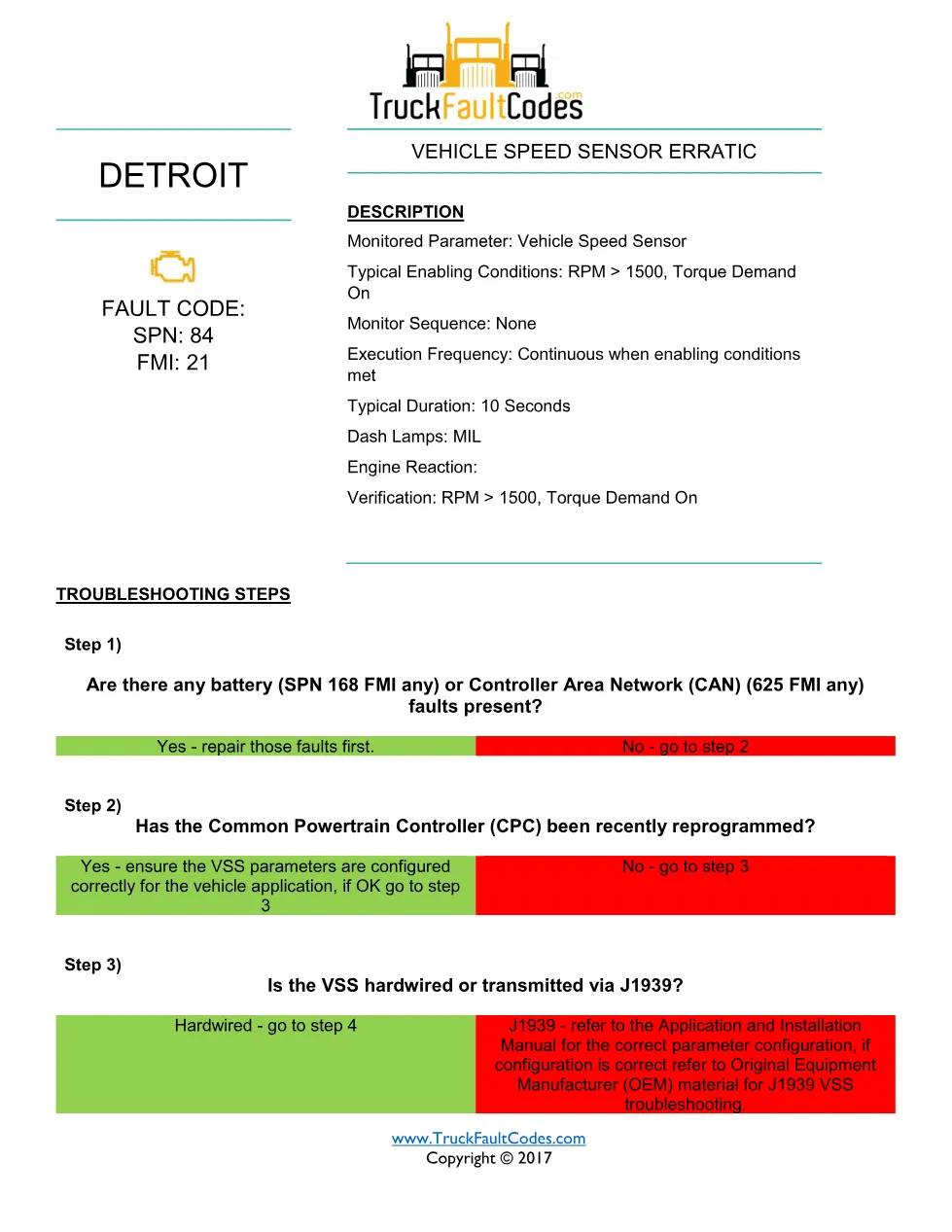

- Fault code identification and description
- Battery and CAN fault pre-checks
- Hardwired versus J1939 VSS configuration

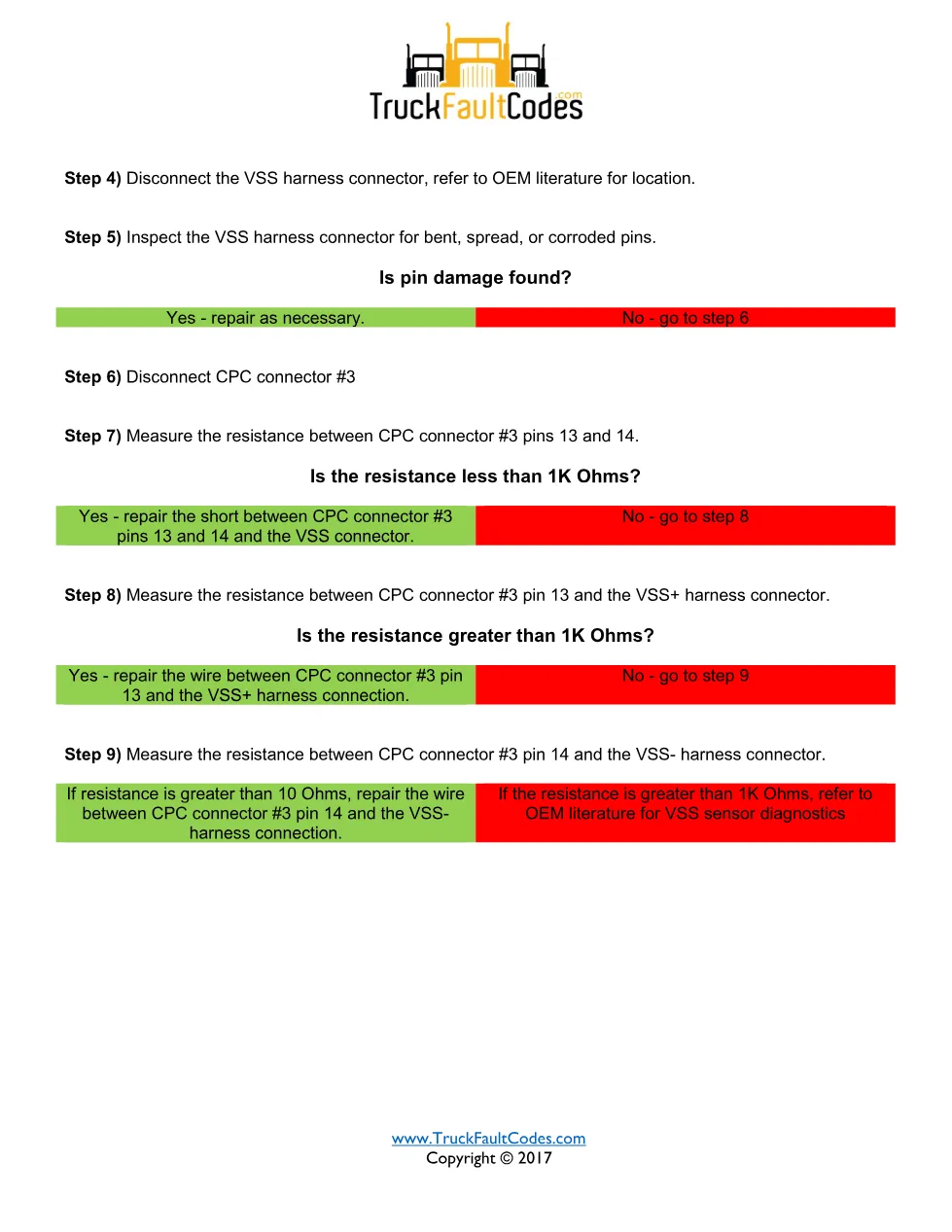

- CPC connector #3 resistance checks
- VSS+ and VSS- harness diagnostics
Detroit VSS FMI 21 diagnostic overview
Detroit VSS FMI 21 documents an erratic vehicle speed sensor signal across all model years. The technician rules out battery (SPN 168) and CAN (625) faults, confirms the hardwired or J1939 configuration, then checks resistance across CPC connector #3 pins 13 and 14 and the VSS+ and VSS- harness before referring to OEM sensor diagnostics. Each step is written as a yes or no decision, so the result of one measurement points directly to the next check or to the final repair action.
Applicable truck models and engines
It applies to Detroit DD13, DD15 and DD16 engines in the DD Series (EPA 2007 to current) family, and the same code is documented for the Series 60 (DDEC VI) platform. Vehicle speed can be hardwired to the Common Powertrain Controller or transmitted over J1939, so the guide points to the Application and Installation manual and OEM literature for chassis wiring. For factory support tools and warranty information, see Demand Detroit official resources.
Who needs this Detroit VSS FMI 21 manual
This document suits Detroit DD Series technicians who want the all-years version of the erratic vehicle speed sensor checks, including the CPC connector #3 resistance limits.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it, view every page, and print the decision steps for use at the workshop bench.
