This Detroit CPC4 oil pressure reference documents fault code SPN 100/FMI 18 (Oil Pressure Low) for Detroit DD-series engines on the GHG14 platform. It reproduces the original TruckFaultCodes.com fault tree, from the first check through the final repair, so the code can be confirmed and worked in the exact order the factory intended. Each step lists the measured value or check and the pass or fail branch that follows, matching the layout used in the source document.
Detroit CPC4 oil pressure troubleshooting overview

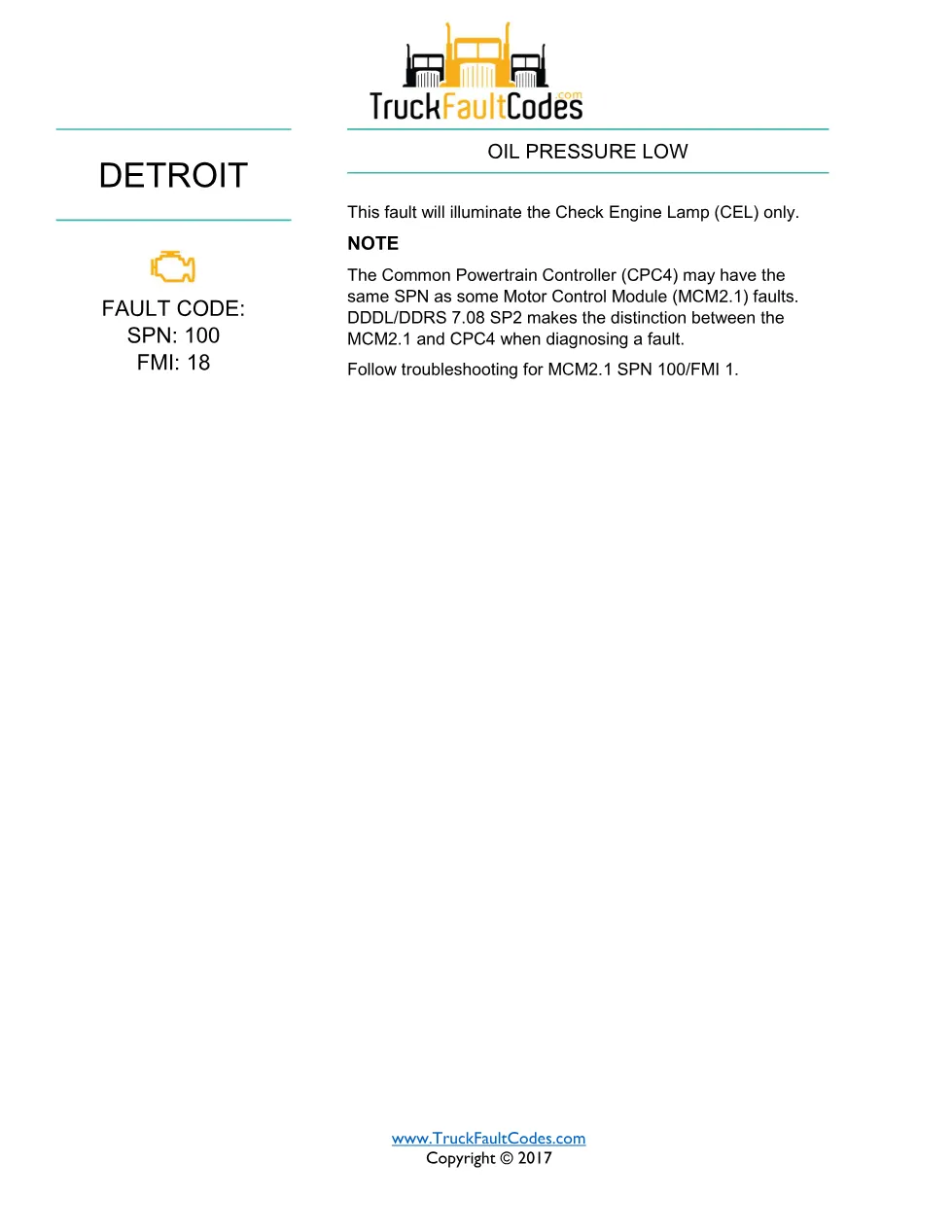

This short GHG14 note explains that the Common Powertrain Controller (CPC4) can share SPN 100 with Motor Control Module (MCM2.1) faults and that the code lights the Check Engine Lamp only. It directs using DDDL/DDRS 7.08 SP2 to tell the controllers apart and following the MCM2.1 SPN 100/FMI 1 procedure. Follow the checks in sequence and verify the repair before clearing the code and releasing the vehicle.
Official document details
| Brand | Detroit |
| Model coverage | Detroit DD-series engines on the GHG14 platform |
| System / group | DTCs — engine oil pressure (CPC4/MCM2.1) |
| Fault code | SPN 100/FMI 18 |
| Source publication | TruckFaultCodes.com (© 2017) |
| Pages | 1 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification — SPN 100/FMI 18
- Check Engine Lamp (CEL) illumination only
- CPC4 versus MCM2.1 SPN overlap note
- DDDL/DDRS 7.08 SP2 fault distinction
- Redirect to MCM2.1 SPN 100/FMI 1
Applicable truck models
It applies to Detroit DD-series engines on the GHG14 platform with CPC4 and MCM2.1 controllers. Always cross-check the reading against any companion codes before condemning a component. For the official product and service literature, visit the Detroit Diesel website.
Who needs this Detroit CPC4 oil pressure manual
Technicians who pull SPN 100/FMI 18 on a GHG14 truck and must identify which controller set the oil-pressure code. It is written for shop use as a quick, printable reference to keep beside a diesel diagnostic tool during the job.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
