The DEF metering valve circuit fault sheet is the official Detroit DD Series diagnostic for a metering-valve low-side (short to ground) fault, stored under SPN 3361 FMI 4 for EPA10 calibrations. It records the monitored parameter DEF Metering Valve, dash lamps MIL, CEL, engine reaction Derate 25%, verification by SCR Quantity Test, exactly as published by TruckFaultCodes.com (© 2017).
Official document details
| Brand | Detroit |
|---|---|
| Model coverage | Detroit DD Series diesel engines (EPA 2007-current) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Fault code | SPN 3361 / FMI 4 |
| Fault condition | Diesel Exhaust Fluid (DEF) Metering Valve Circuit Failed Low |
| Monitored parameter | DEF Metering Valve |
| Dash lamps | MIL, CEL |
| Engine reaction | Derate 25% |
| Verification | SCR Quantity Test |
| Emissions calibration | EPA10 |
| Source / Publisher | TruckFaultCodes.com |
| Year / Revision | 2017 |
| Pages | 2 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification: SPN 3361, FMI 4
- Description and monitored parameter
- Typical enabling conditions
- Troubleshooting steps
- Component inspection and repair verification
DEF metering valve circuit troubleshooting steps

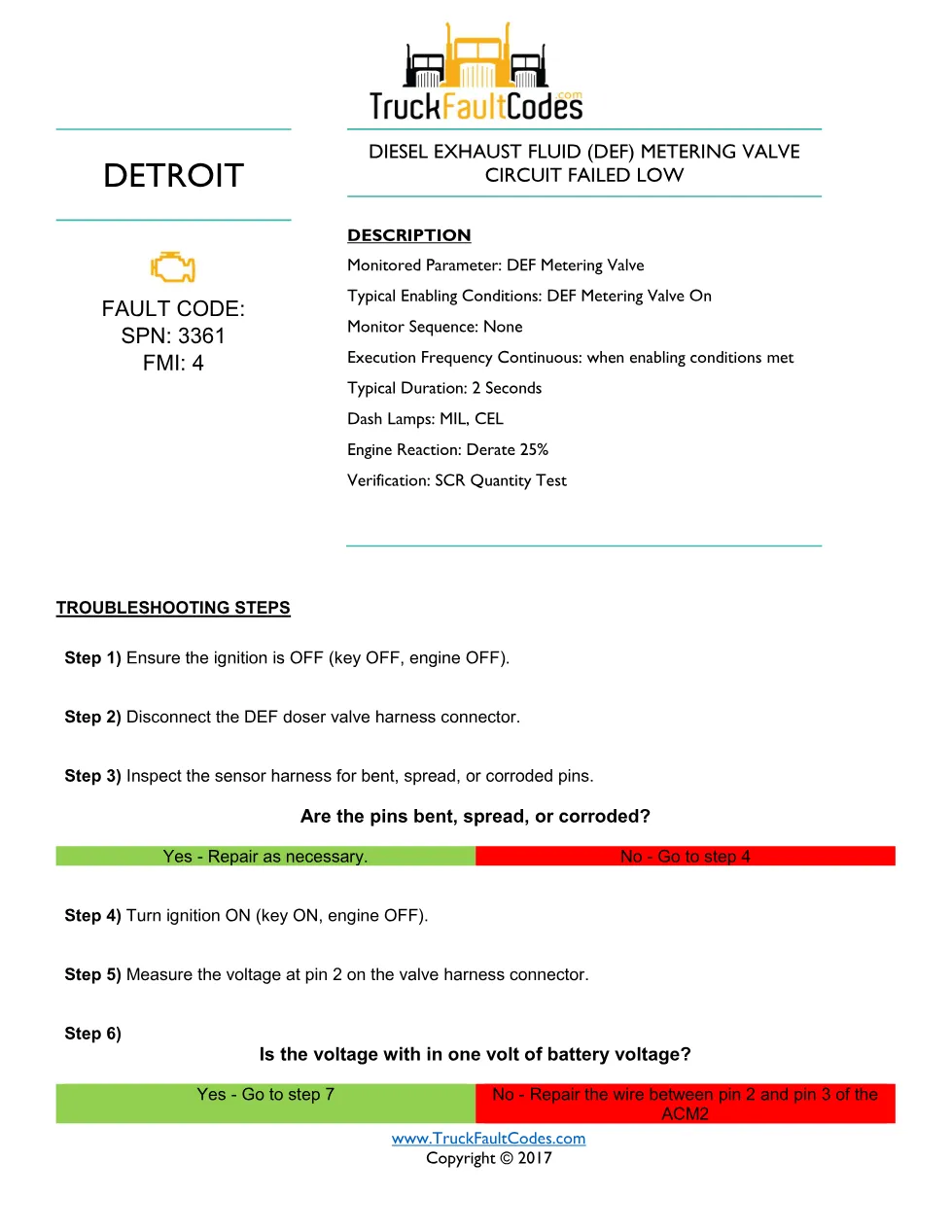

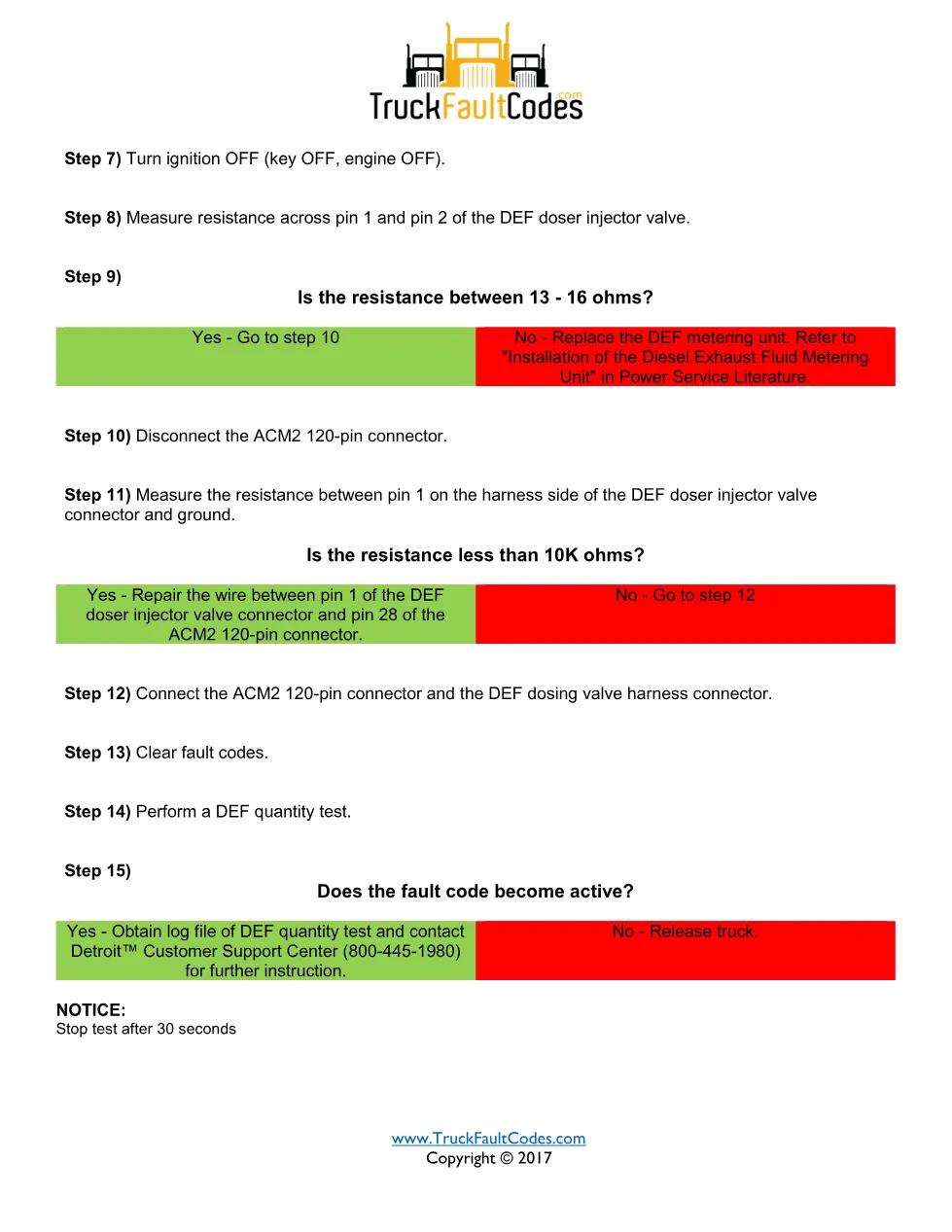

The sheet has the technician check the metering-valve wiring for a short to ground or open, inspect the connector pins, repair the fault and then confirm dosing with the SCR Quantity Test.
Applicable truck models
This code sheet applies to trucks powered by Detroit DD Series diesel engines built to the EPA10 emissions calibration; always match the SPN 3361 FMI 4 listing to the vehicle’s own engine family before repair. Confirm the emissions family on the vehicle emissions label, because aftertreatment and dosing hardware differs between the EPA07, EPA10 and GHG14 builds and a mismatched procedure can send you to the wrong component. For engine coverage and dealer service information, see the Detroit Diesel official website.
