Cummins fault code 289 is the official Cummins troubleshooting chart for the vehicle accessory shutdown driver circuit, marked “not identifiable”, on M11 M11 CELECT Plus (1995-98) engines. This 4-page PDF from the Cummins service literature explains the relay circuit, its OEM-dependent location, and the connector and resistance checks that confirm the repair.
Official document details
| Brand | Cummins |
|---|---|
| Model coverage | M11 CELECT Plus (1995-98) |
| System / Group | Vehicle Accessory Shutdown Driver |
| Fault code | Code 289 · PID S040 · SPN 593 · FMI 11 |
| Warning lamp | Yellow |
| Year / Revision | Copyright 2017 |
| Pages | 4 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Circuit description
- Component location
- Troubleshooting steps
- Connector and pin inspection
- Fault code verification and clearing
Cummins fault code 289 troubleshooting summary

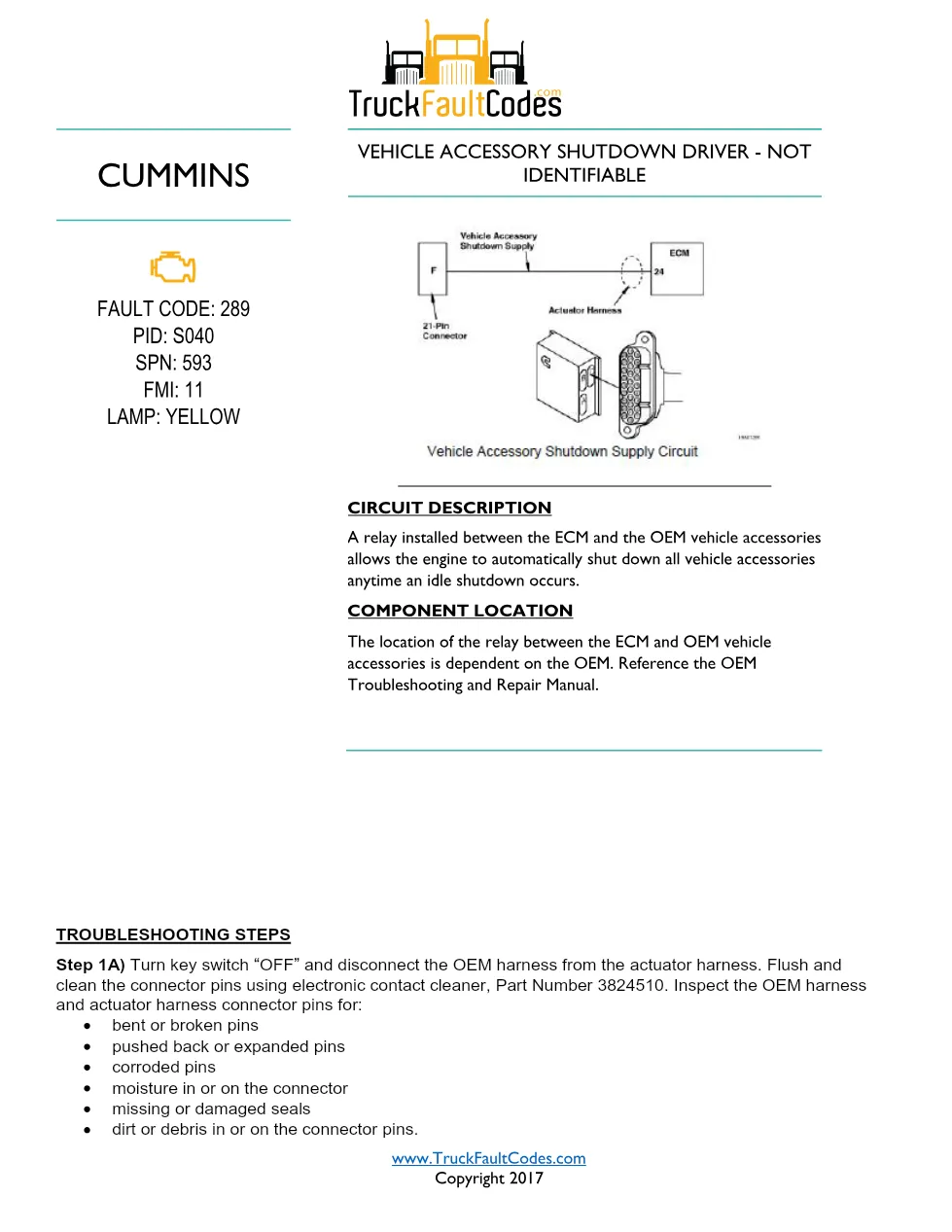

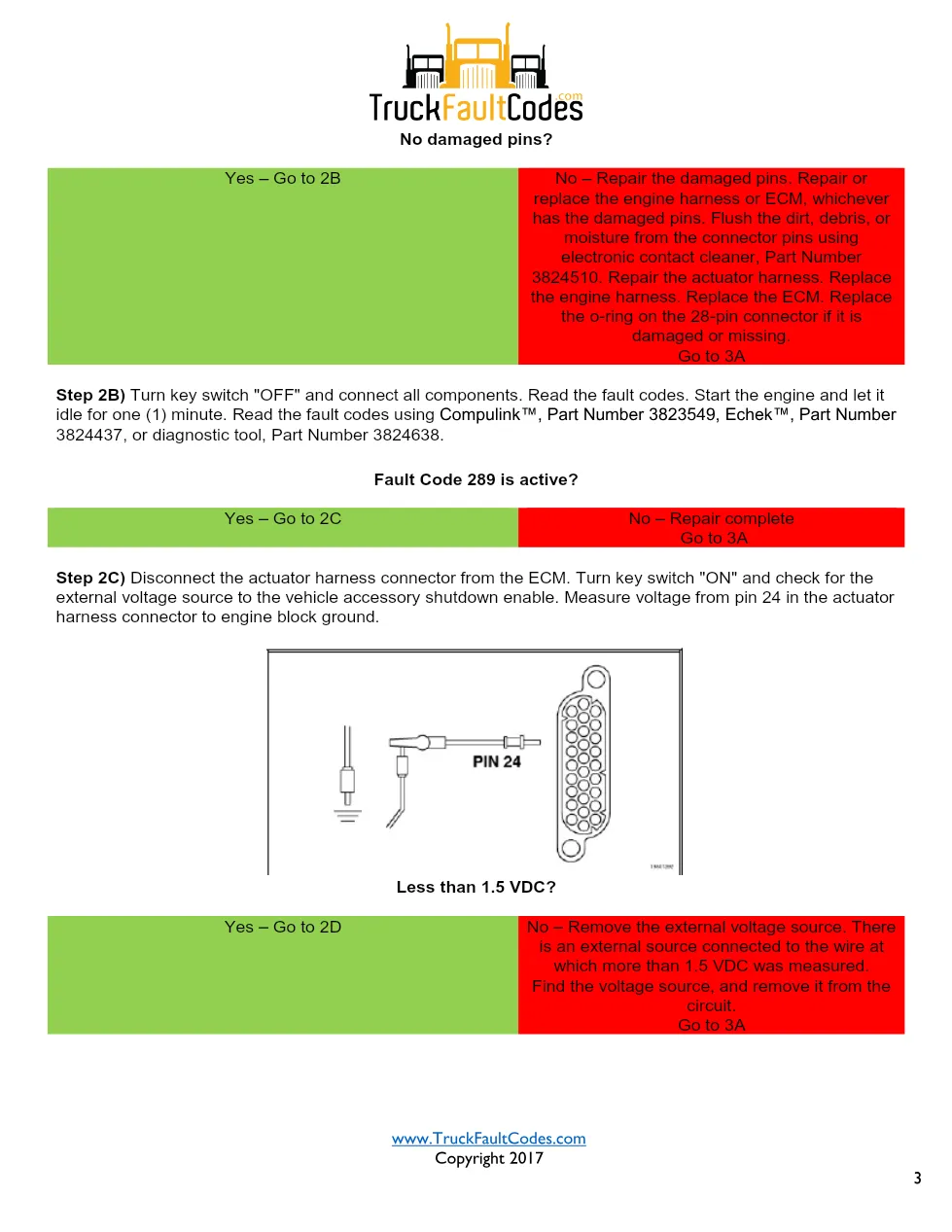

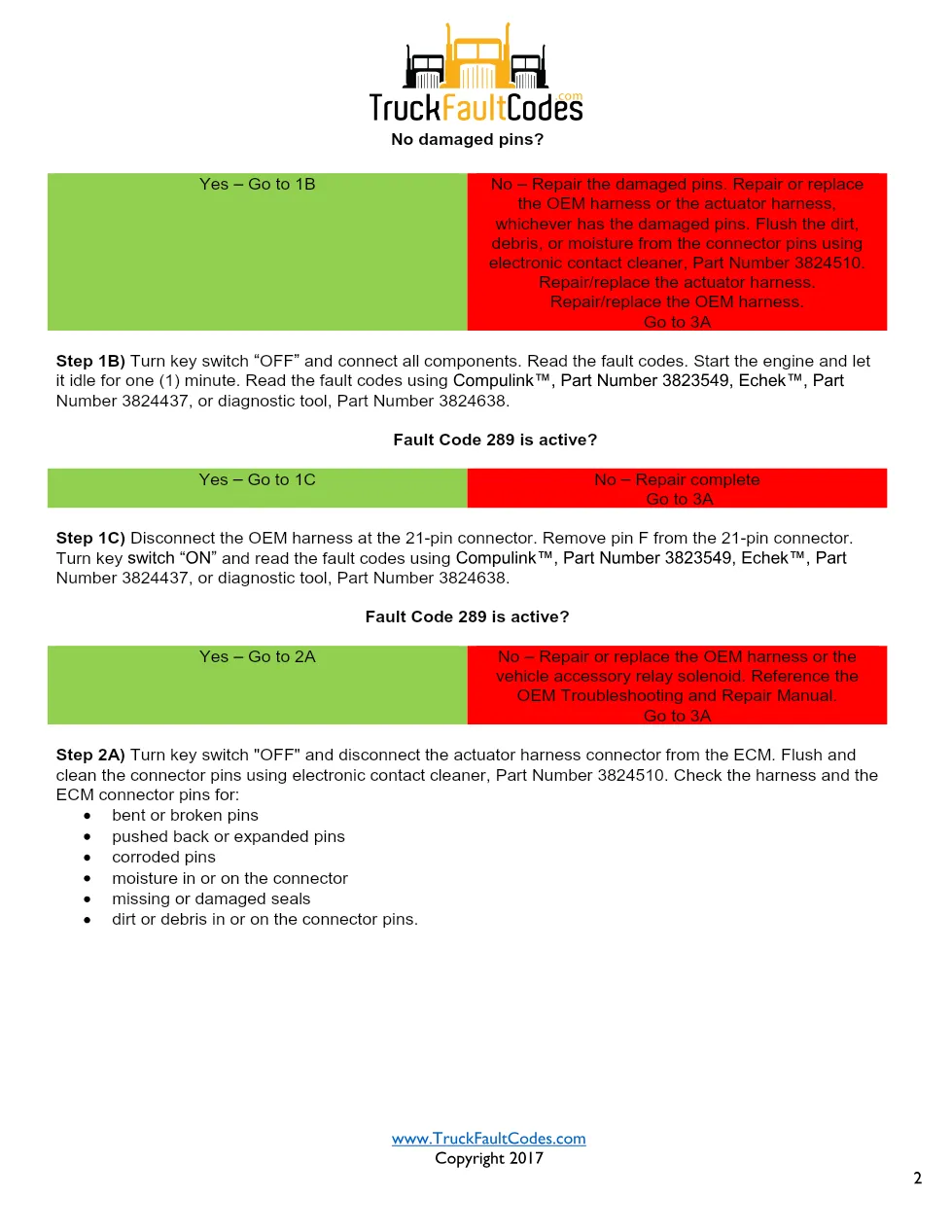

A relay installed between the ECM and the OEM vehicle accessories lets the engine automatically shut down all vehicle accessories whenever an idle shutdown occurs. The location of that relay is dependent on the OEM, so the chart refers the technician to the OEM Troubleshooting and Repair Manual for the exact position. The document then works through labelled steps that disconnect the OEM harness from the actuator harness, flush and inspect the connector pins, and verify the fault code is inactive after the repair.
Referenced Cummins service items include electronic contact cleaner, Part Number 3824510. Each pin inspection and resistance measurement is paired with a pass or fail branch so the harness or relay is repaired only when the reading confirms the fault.
