This 5-page PDF documents Cummins fault code 254, the fuel shutoff solenoid supply circuit on the Cummins M11 and N14 CELECT Plus (1995-98) engine platform. Published in the TruckFaultCodes.com fault code library (© 2017), it carries the red lamp, PID S017, SPN 632 and FMI 4 and service repair time code 00-602, and lays out the full factory troubleshooting tree.
Cummins fault code 254 document details
| Brand | Cummins |
| Model coverage | M11 and N14 CELECT Plus (1995-98) |
| System / group | Fuel Shutoff Solenoid Supply Circuit — Fault Code 254 |
| Publication reference | TruckFaultCodes.com fault code reference (© 2017) |
| Year / revision | 1995-98 platform, TruckFaultCodes.com 2017 edition |
| Pages | 5 |
| File size | 0.25 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification (PID S017, SPN 632, FMI 4, red lamp)
- Circuit description
- Component location
- Shop talk on external wiring and grounds
- Troubleshooting steps

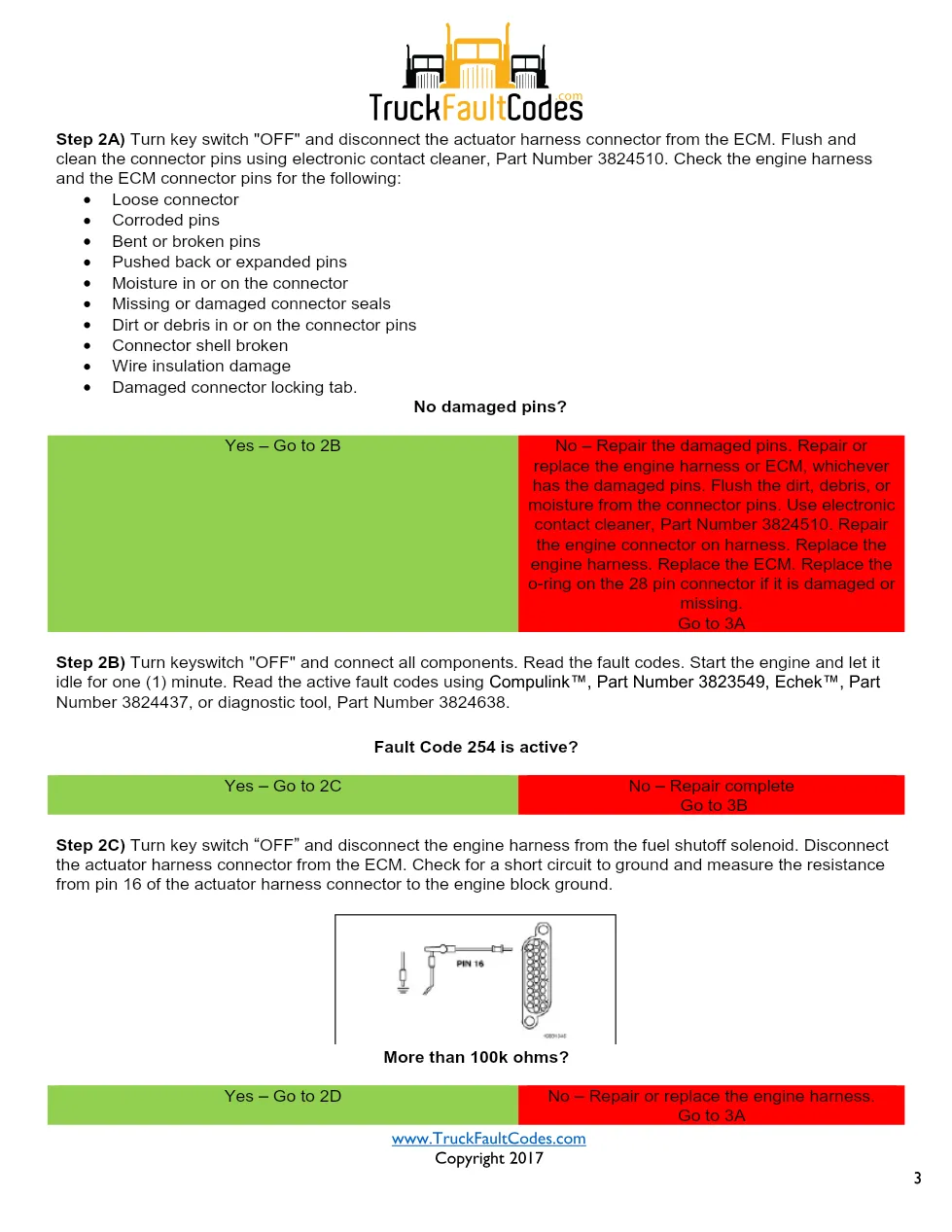

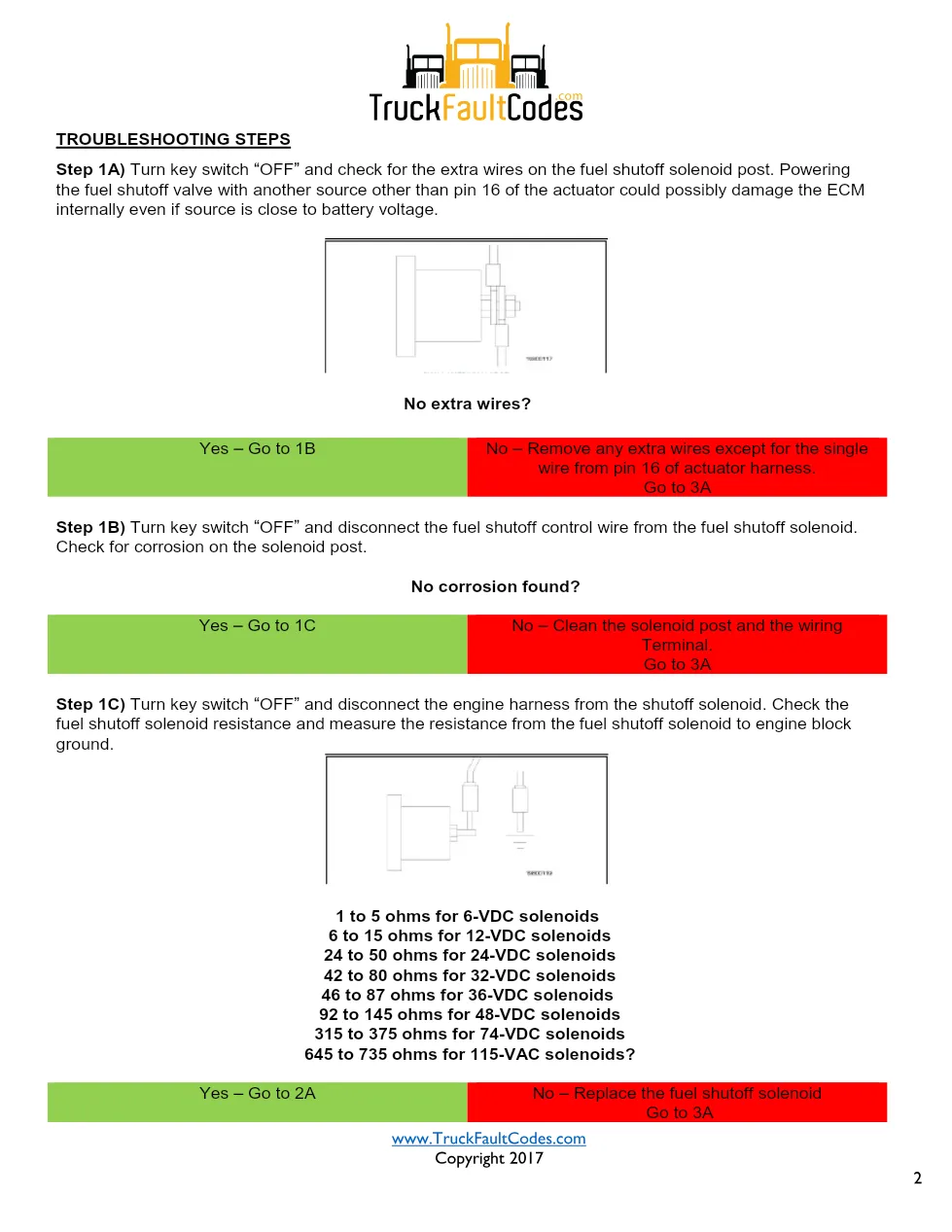

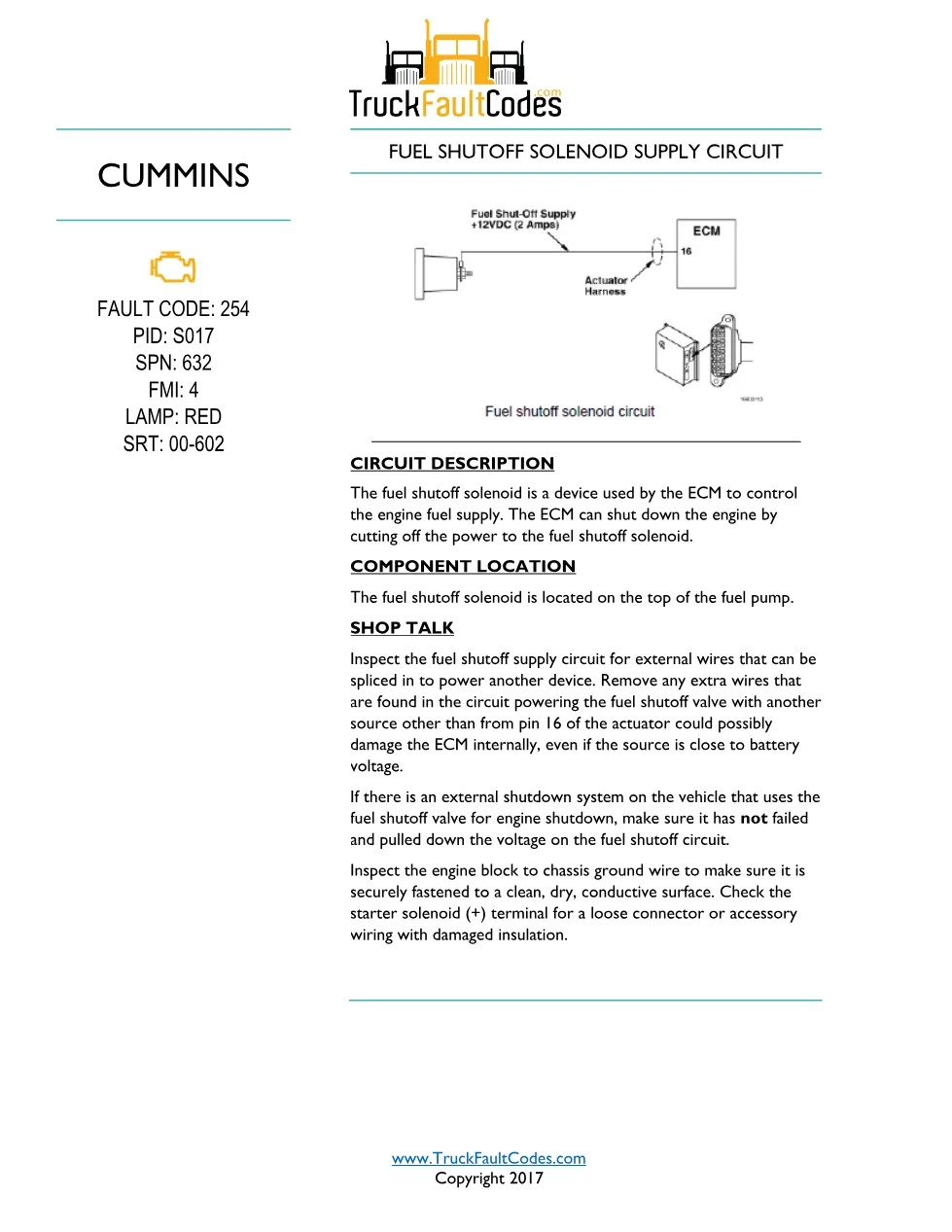

Circuit description and component location
The fuel shutoff solenoid lets the ECM control the engine fuel supply, and the ECM can shut the engine down by cutting power to the solenoid. This is a red-lamp supply-circuit fault. The fuel shutoff solenoid is located on top of the fuel pump.
Any extra wire that powers the fuel shutoff valve from a source other than pin 16 of the actuator can damage the ECM internally and must be removed, and the engine block-to-chassis ground wire is checked for a clean, tight connection. All checks are made with a Cummins service tool such as Compulink, Echek or a diagnostic tool, and inactive codes are cleared once the repair is confirmed.
Applicable truck models and engines
This document applies to Cummins M11 and N14 CELECT Plus (1995-98) electronic engines and is filed under the CELECT Plus diagnostic trouble codes group, so it suits on-highway and industrial installations that run these engines. For engine specifications and dealer support, see the official Cummins support site at the Cummins engine support portal. The full PDF is part of the fuel shutoff solenoid supply circuit chapter of the CELECT Plus fault code series held in the DiagTechPro manuals library.
Who needs this Cummins fault code 254 manual
Truck technicians and workshop owners need this document when a red lamp warns of a fuel shutoff solenoid supply problem on M11 or N14 CELECT Plus engines, so they can follow the factory pin checks, resistance measurements and step-by-step decisions instead of guessing at parts.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
Applies to these truck models
This is the manufacturer document shared across 2 model families. It applies to:
- Cummins DTCs
- Cummins M11 CELECT Plus (1995-98)
