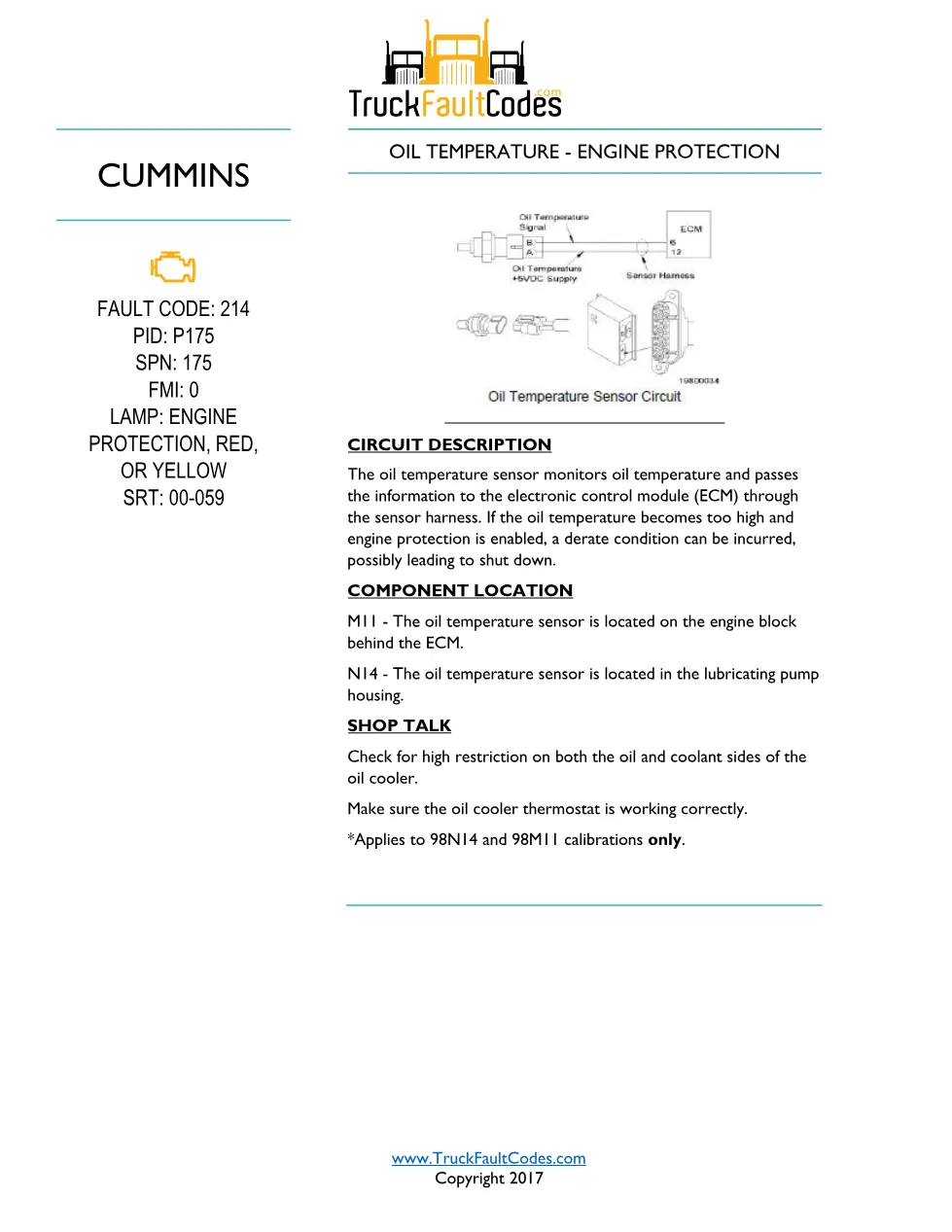

This 2-page PDF documents Cummins fault code 214, the oil temperature engine protection fault on the Cummins M11 and N14 CELECT Plus (1995-98) engine platform. Published in the TruckFaultCodes.com fault code library (© 2017), it carries the engine protection, red or yellow lamp, PID P175, SPN 175 and FMI 0 and service repair time code 00-059, and lays out the full factory troubleshooting tree.
Cummins fault code 214 document details
| Brand | Cummins |
| Model coverage | M11 and N14 CELECT Plus (1995-98) |
| System / group | Oil Temperature Engine Protection — Fault Code 214 |
| Publication reference | TruckFaultCodes.com fault code reference (© 2017) |
| Year / revision | 1995-98 platform, TruckFaultCodes.com 2017 edition |
| Pages | 2 |
| File size | 0.19 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification (PID P175, SPN 175, FMI 0)
- Circuit description
- Component location
- Shop talk on oil cooler restriction

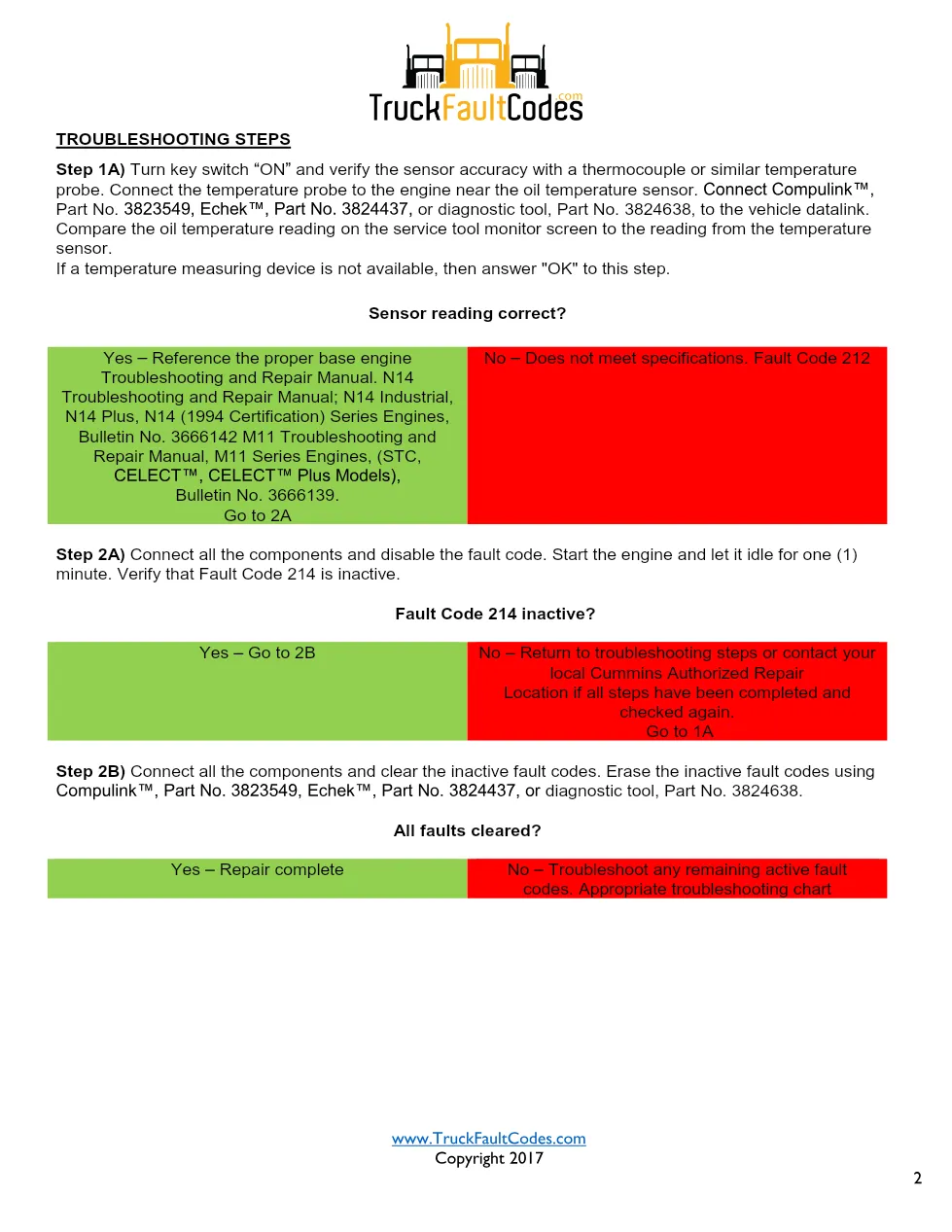

- Troubleshooting steps
Circuit description and component location
The oil temperature sensor monitors oil temperature and passes the information to the ECM through the sensor harness. This code trips the engine protection system when oil temperature becomes too high, which can force a derate or shutdown. On the M11 the oil temperature sensor is on the engine block behind the ECM; on the N14 it is in the lubricating pump housing.
Both the oil and coolant sides of the oil cooler are checked for high restriction, the oil cooler thermostat is confirmed to be working, and the fault applies to 98 N14 and 98 M11 calibrations only. All checks are made with a Cummins service tool such as Compulink, Echek or a diagnostic tool, and inactive codes are cleared once the repair is confirmed.
Applicable truck models and engines
This document applies to Cummins M11 and N14 CELECT Plus (1995-98) electronic engines and is filed under the CELECT Plus diagnostic trouble codes group, so it suits on-highway and industrial installations that run these engines. For engine specifications and dealer support, see the official Cummins support site at the Cummins engine support portal. The full PDF is part of the oil temperature engine protection fault chapter of the CELECT Plus fault code series held in the DiagTechPro manuals library.
Who needs this Cummins fault code 214 manual
Truck technicians and workshop owners need this document when a engine protection, red or yellow lamp warns of a oil temperature engine protection problem on M11 or N14 CELECT Plus engines, so they can follow the factory pin checks, resistance measurements and step-by-step decisions instead of guessing at parts.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
Applies to these truck models
This is the manufacturer document shared across 2 model families. It applies to:
- Cummins DTCs
- Cummins M11 CELECT Plus (1995-98)
