This 5-page PDF documents Cummins fault code 212, the oil temperature sensor circuit on the Cummins M11 and N14 CELECT Plus (1995-98) engine platform. Published in the TruckFaultCodes.com fault code library (© 2017), it carries the yellow lamp, PID P175, SPN 175 and FMI 3 and service repair time code 00-093, and lays out the full factory troubleshooting tree.
Cummins fault code 212 document details
| Brand | Cummins |
| Model coverage | M11 and N14 CELECT Plus (1995-98) |
| System / group | Oil Temperature Sensor Low Signal — Fault Code 212 |
| Publication reference | TruckFaultCodes.com fault code reference (© 2017) |
| Year / revision | 1995-98 platform, TruckFaultCodes.com 2017 edition |
| Pages | 5 |
| File size | 0.39 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification (PID P175, SPN 175, FMI 3, yellow lamp)
- Circuit description
- Component location
- Shop talk and sensor resistance table

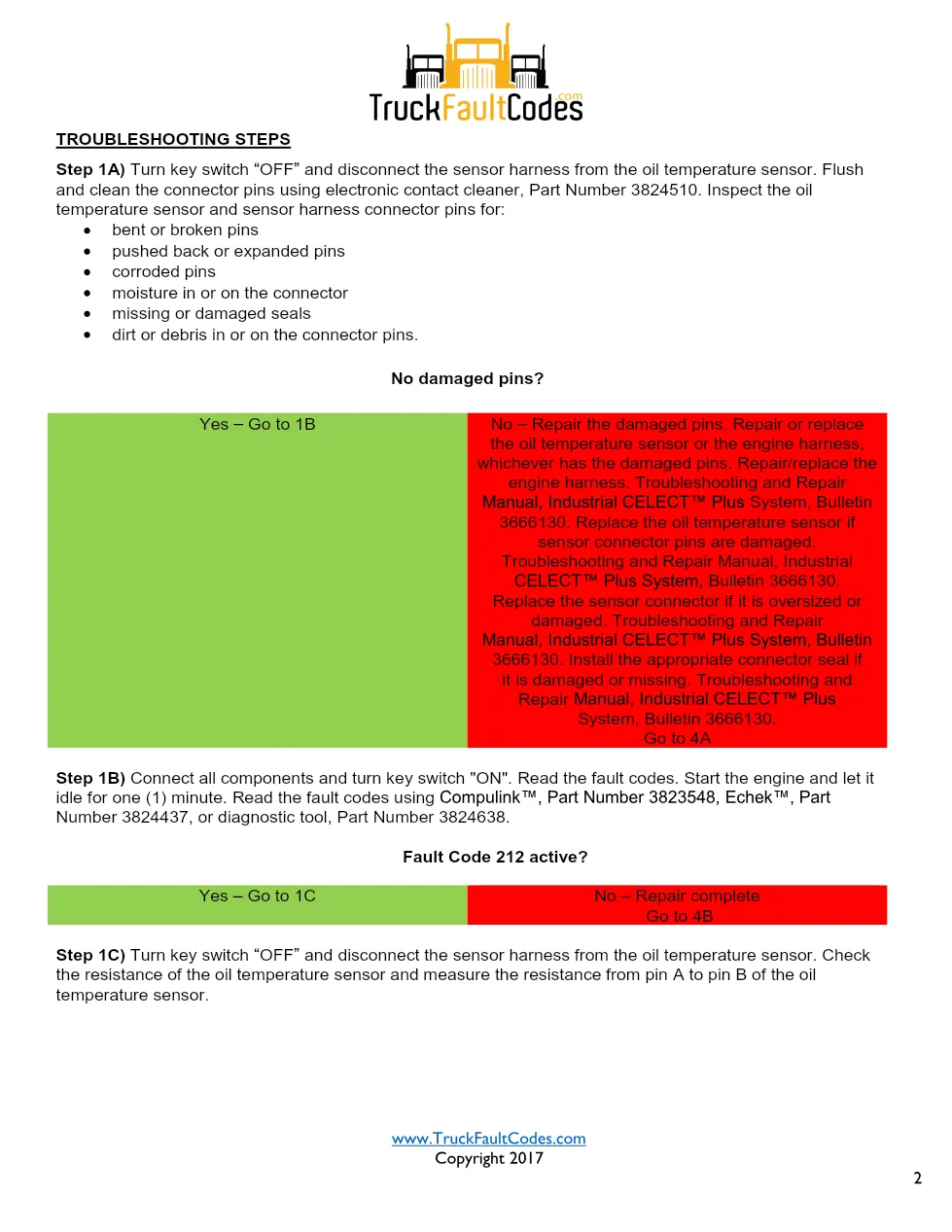

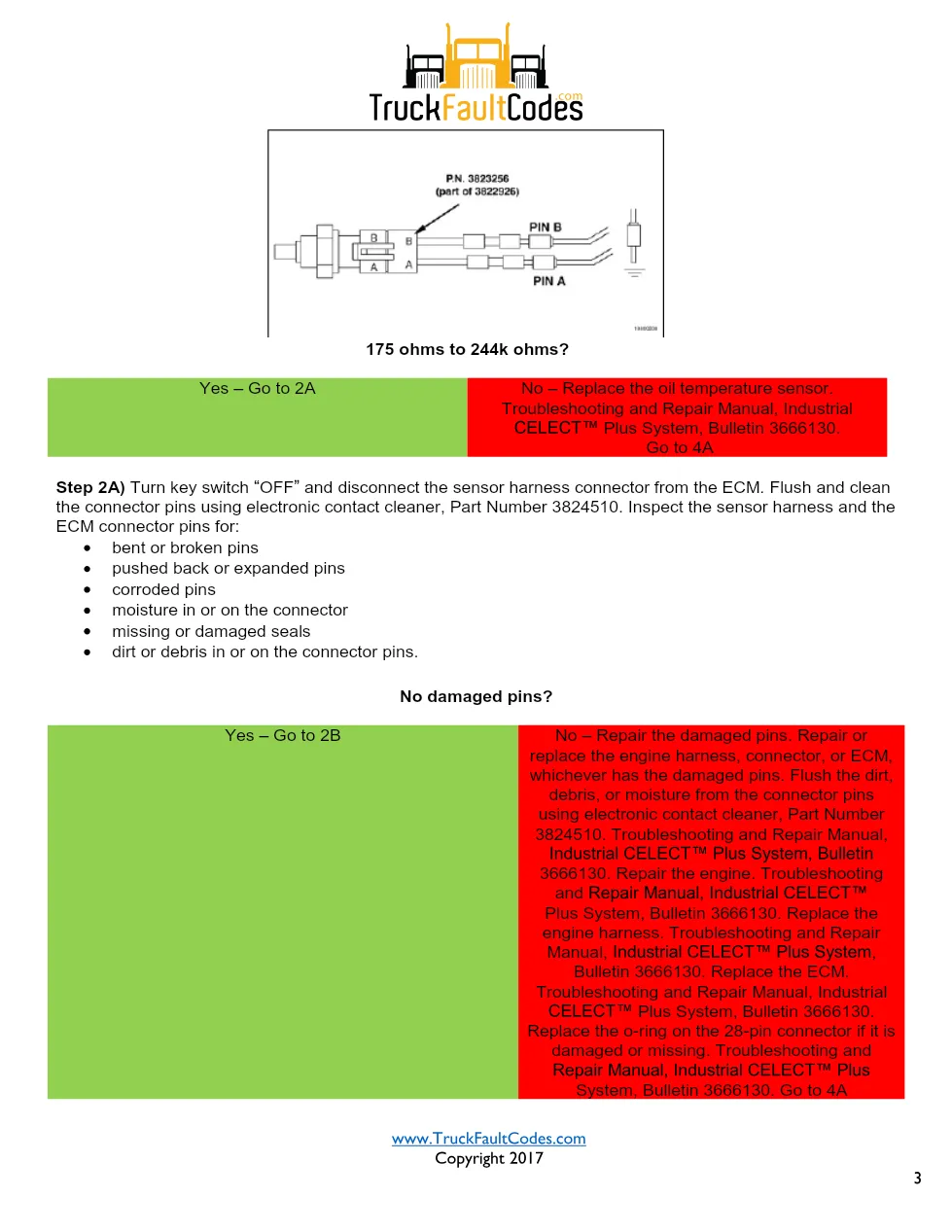

- Troubleshooting steps

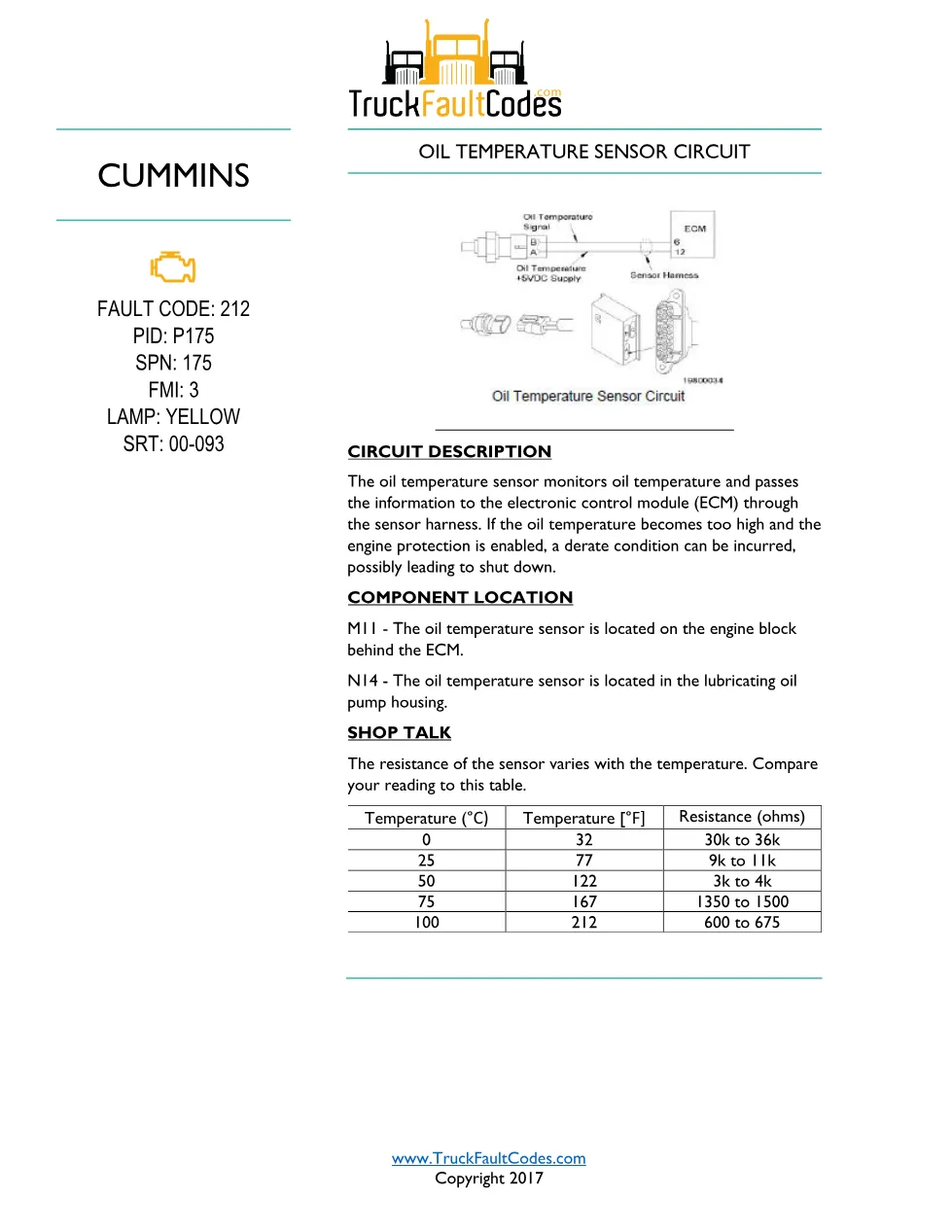

Circuit description and component location
The oil temperature sensor monitors oil temperature and passes the information to the ECM through the sensor harness. This FMI 3 code points to a high-signal or open condition, and high oil temperature with engine protection enabled can force a derate. On the M11 the oil temperature sensor is on the engine block behind the ECM; on the N14 it is in the lubricating oil pump housing.
The sensor harness connector pins are flushed with electronic contact cleaner and inspected, and sensor resistance is compared against the table that runs from about 30k to 36k ohms at 0 C down to 600 to 675 ohms at 100 C. All checks are made with a Cummins service tool such as Compulink, Echek or a diagnostic tool, and inactive codes are cleared once the repair is confirmed.
Applicable truck models and engines
This document applies to Cummins M11 and N14 CELECT Plus (1995-98) electronic engines and is filed under the CELECT Plus diagnostic trouble codes group, so it suits on-highway and industrial installations that run these engines. For engine specifications and dealer support, see the official Cummins support site at the Cummins engine support portal. The full PDF is part of the oil temperature sensor circuit chapter of the CELECT Plus fault code series held in the DiagTechPro manuals library.
Who needs this Cummins fault code 212 manual
Truck technicians and workshop owners need this document when a yellow lamp warns of a oil temperature sensor low signal problem on M11 or N14 CELECT Plus engines, so they can follow the factory pin checks, resistance measurements and step-by-step decisions instead of guessing at parts.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
Applies to these truck models
This is the manufacturer document shared across 2 model families. It applies to:
- Cummins DTCs
- Cummins M11 CELECT Plus (1995-98)
