This 2-page PDF documents Cummins fault code 155, the intake manifold temperature protection fault on the Cummins M11 and N14 CELECT Plus (1995-98) engine platform. Published in the TruckFaultCodes.com fault code library (© 2017), it carries the engine protection or yellow lamp, PID P105, SPN 105 and FMI 0 and service repair time code none, and lays out the full factory troubleshooting tree.
Cummins fault code 155 document details
| Brand | Cummins |
| Model coverage | M11 and N14 CELECT Plus (1995-98) |
| System / group | Intake Manifold Temperature Engine Protection — Fault Code 155 |
| Publication reference | TruckFaultCodes.com fault code reference (© 2017) |
| Year / revision | 1995-98 platform, TruckFaultCodes.com 2017 edition |
| Pages | 2 |
| File size | 0.20 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification (PID P105, SPN 105, FMI 0)
- Circuit description
- Component location
- Shop talk on compartment temperature
- Troubleshooting steps

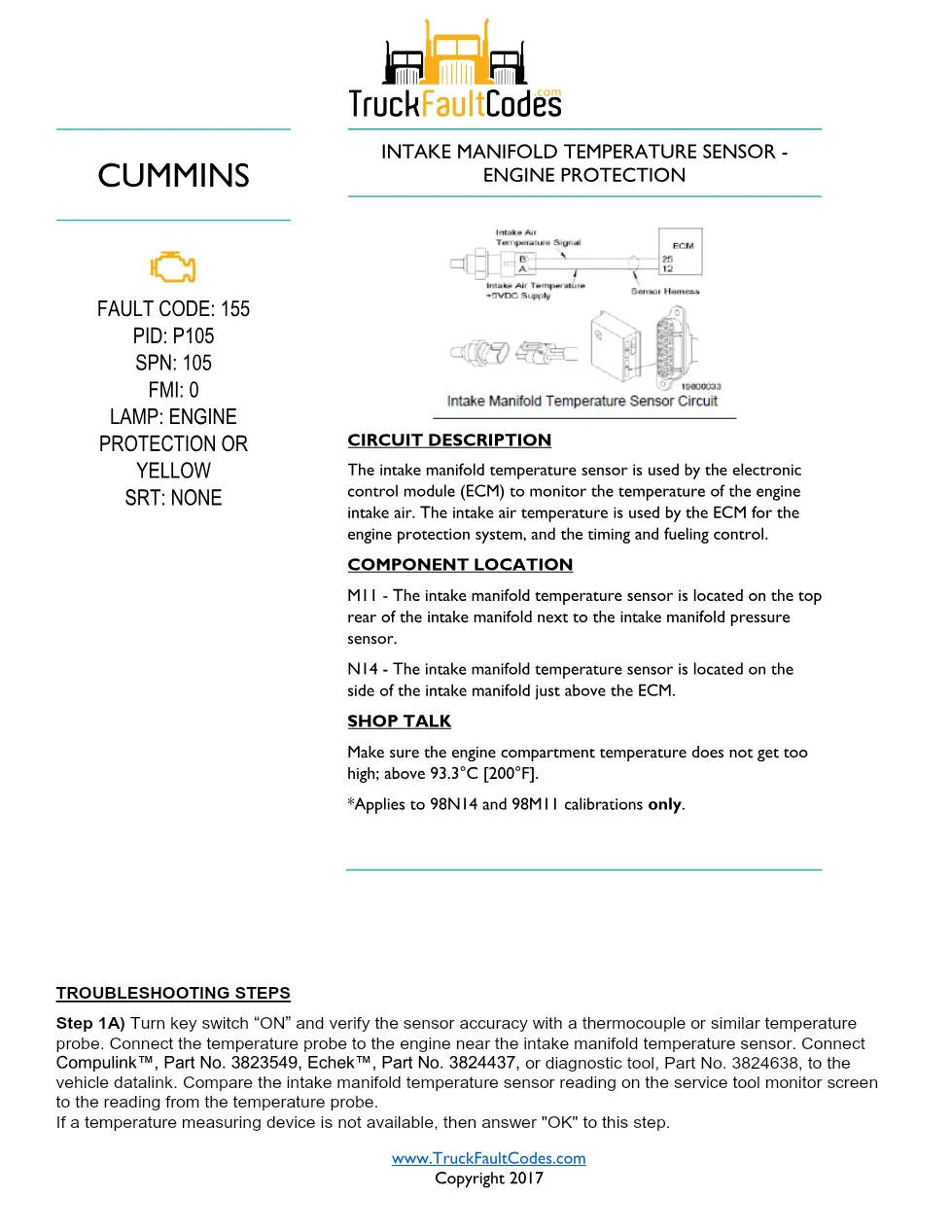

Circuit description and component location
The intake manifold temperature sensor lets the ECM monitor engine intake air temperature, which the ECM uses for the engine protection system and for timing and fueling control. This code trips engine protection on high intake temperature. On the M11 the intake manifold temperature sensor is on the top rear of the intake manifold next to the pressure sensor; on the N14 it is on the side of the manifold just above the ECM.
The engine compartment temperature must not climb above 93.3 C (200 F), the sensor reading is verified against a thermocouple on the service tool, and the fault applies to 98 N14 and 98 M11 calibrations only. All checks are made with a Cummins service tool such as Compulink, Echek or a diagnostic tool, and inactive codes are cleared once the repair is confirmed.
Applicable truck models and engines
This document applies to Cummins M11 and N14 CELECT Plus (1995-98) electronic engines and is filed under the CELECT Plus diagnostic trouble codes group, so it suits on-highway and industrial installations that run these engines. For engine specifications and dealer support, see the official Cummins support site at the Cummins engine support portal. The full PDF is part of the intake manifold temperature protection fault chapter of the CELECT Plus fault code series held in the DiagTechPro manuals library.
Who needs this Cummins fault code 155 manual
Truck technicians and workshop owners need this document when a engine protection or yellow lamp warns of a intake manifold temperature protection problem on M11 or N14 CELECT Plus engines, so they can follow the factory pin checks, resistance measurements and step-by-step decisions instead of guessing at parts.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
Applies to these truck models
This is the manufacturer document shared across 2 model families. It applies to:
- Cummins DTCs
- Cummins M11 CELECT Plus (1995-98)
