The Workhorse 2004 P32-L31 schematics document is the official Workhorse technical reference covering Workhorse 2005 & Older / 2004 Electrical Schematics. This 26-page resource explains sheet Identification – drawing reference box explanation, giving technicians factory-accurate information instead of guesswork.

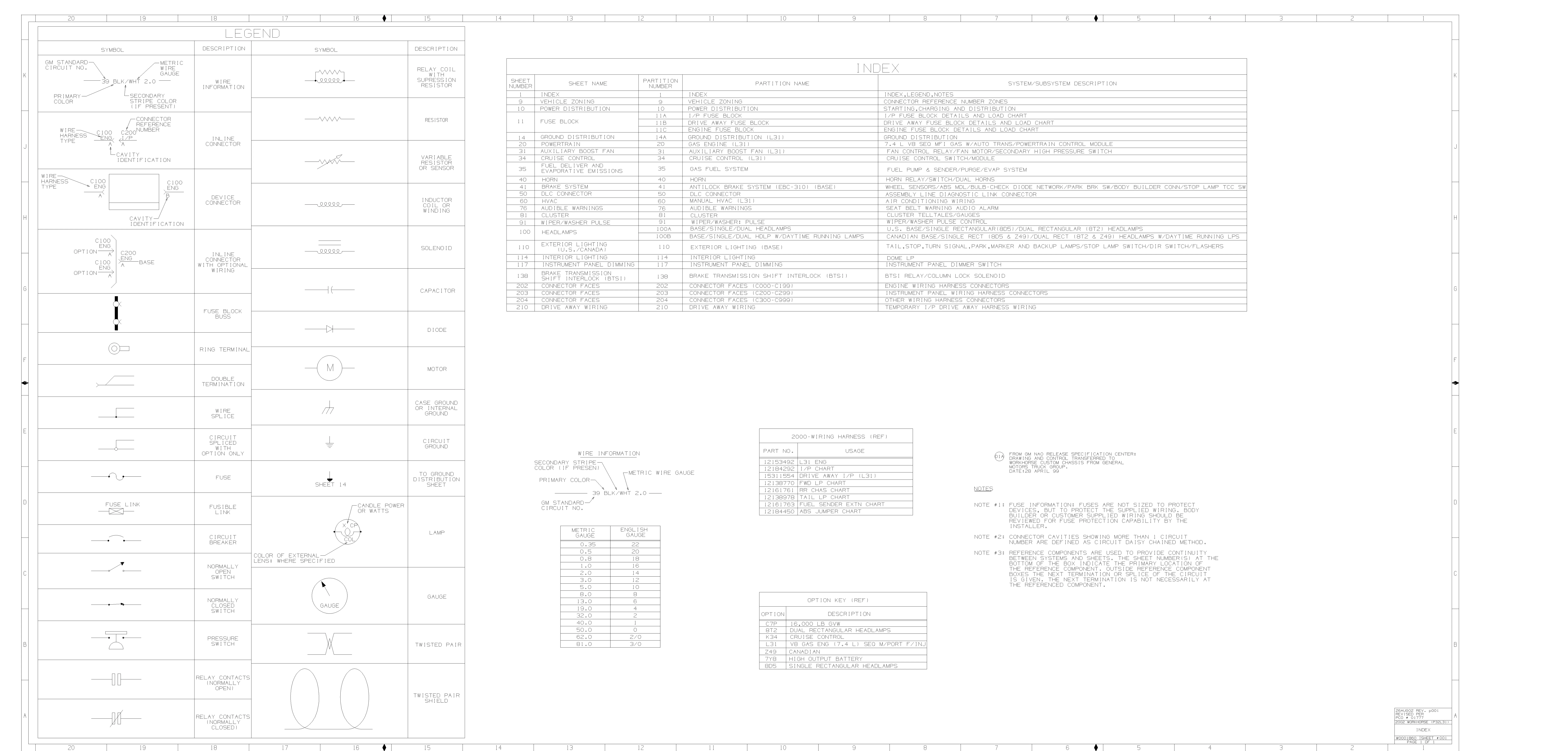

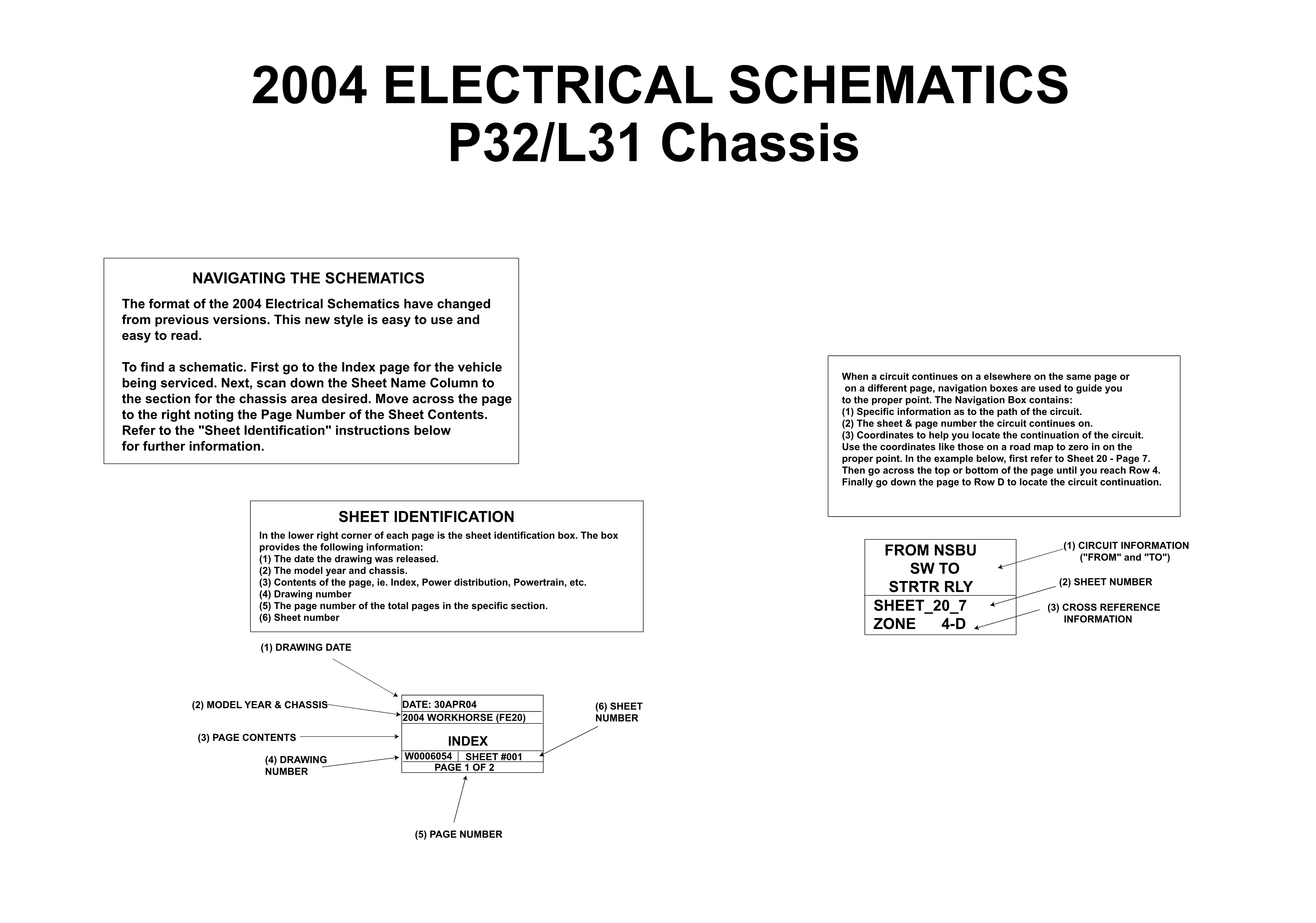

Working directly from the manufacturer’s own document keeps terminology, part numbers, and procedure order consistent with what a dealership or fleet audit expects, instead of relying on a third-party summary that can drop a step or mislabel a component. The preview pages below show the exact layout a technician sees once the file is downloaded, so there are no surprises about scope or formatting before registering for access.
A manufacturer-issued document like this one is the baseline reference a workshop keeps on file so repeat repairs follow the same verified sequence, and so warranty or audit paperwork can point back to an authoritative source instead of an internal note or a forum post.
Workhorse 2004 P32-L31 schematics: document details
| Brand | Workhorse |
| Model coverage | Workhorse 2005 & Older |
| System/Group | Workhorse 2004 Electrical Schematics |
| Publication number | W0006054 |
| Year/Revision | 30 APR 2004 |
| Pages | 26 |
| File size | 2.0 MB |
| Format | |
| Language | English |
Table of contents
- Sheet Identification – drawing reference box explanation
- Navigating the Schematics – circuit path guidance and navigation box usage
- Index – chassis area sections with sheet and page references
- Electrical circuit schematics – complete wiring diagrams by system and chassis zone
Applies to the 2004 P32-L31 schematics
The 2004 P32-L31 schematics applies to Workhorse 2005 & Older / 2004 Electrical Schematics documented by Workhorse. For complete manufacturer documentation, see Workhorse official.
Who needs this 2004 P32-L31 schematics guide
Diesel technicians, fleet maintenance staff, and workshop owners need this 2004 P32-L31 schematics to diagnose faults and complete repairs using the manufacturer’s own factory data rather than guesswork.
