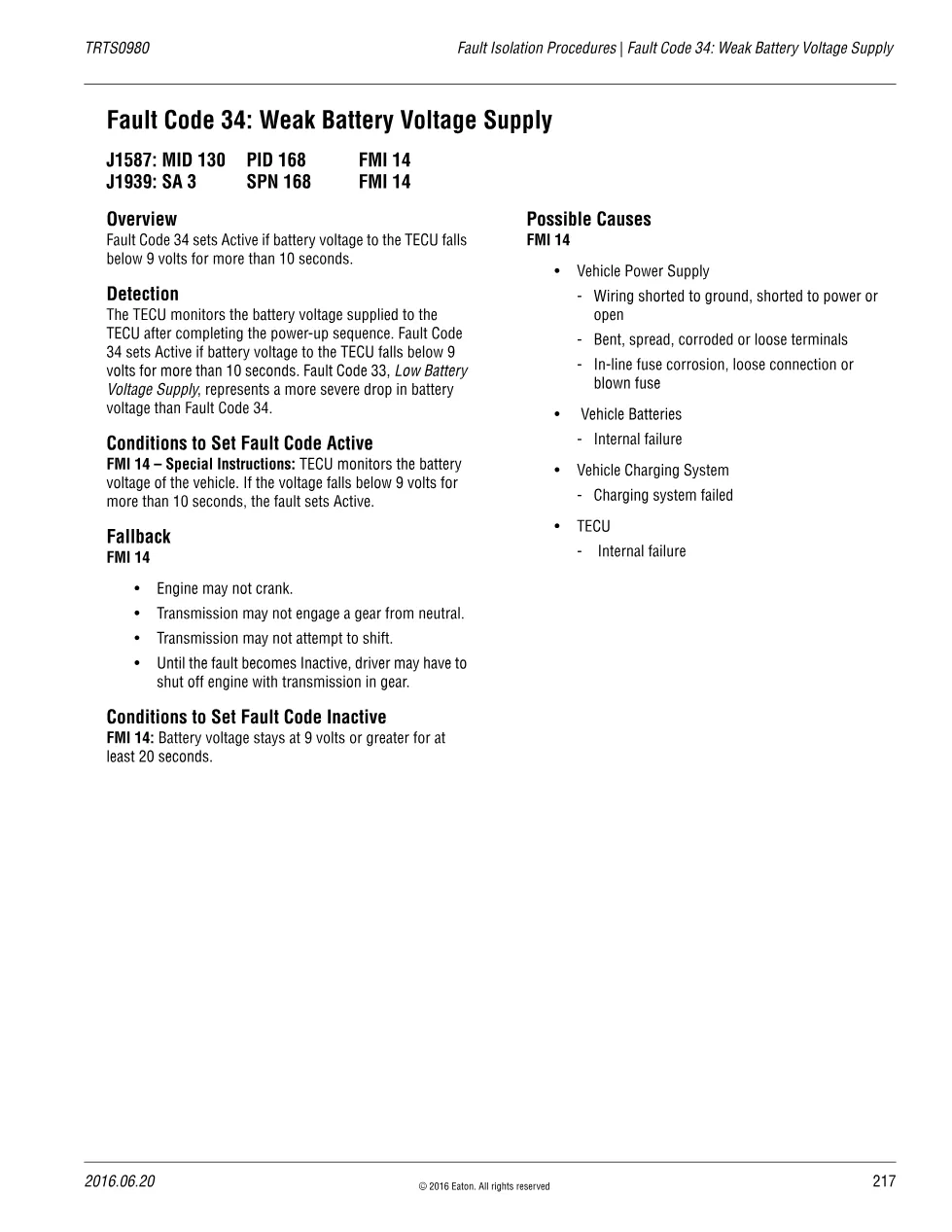

The Weak Battery Voltage Supply document is the official Eaton Fuller Advantage Heavy Duty reference (publication TRTS0980) for Fault Code 34, which sets Active when battery voltage to the TECU falls below 9 volts for more than 10 seconds. This 2-page PDF describes the detection window, fallback behavior and the possible causes across the vehicle power and charging systems.

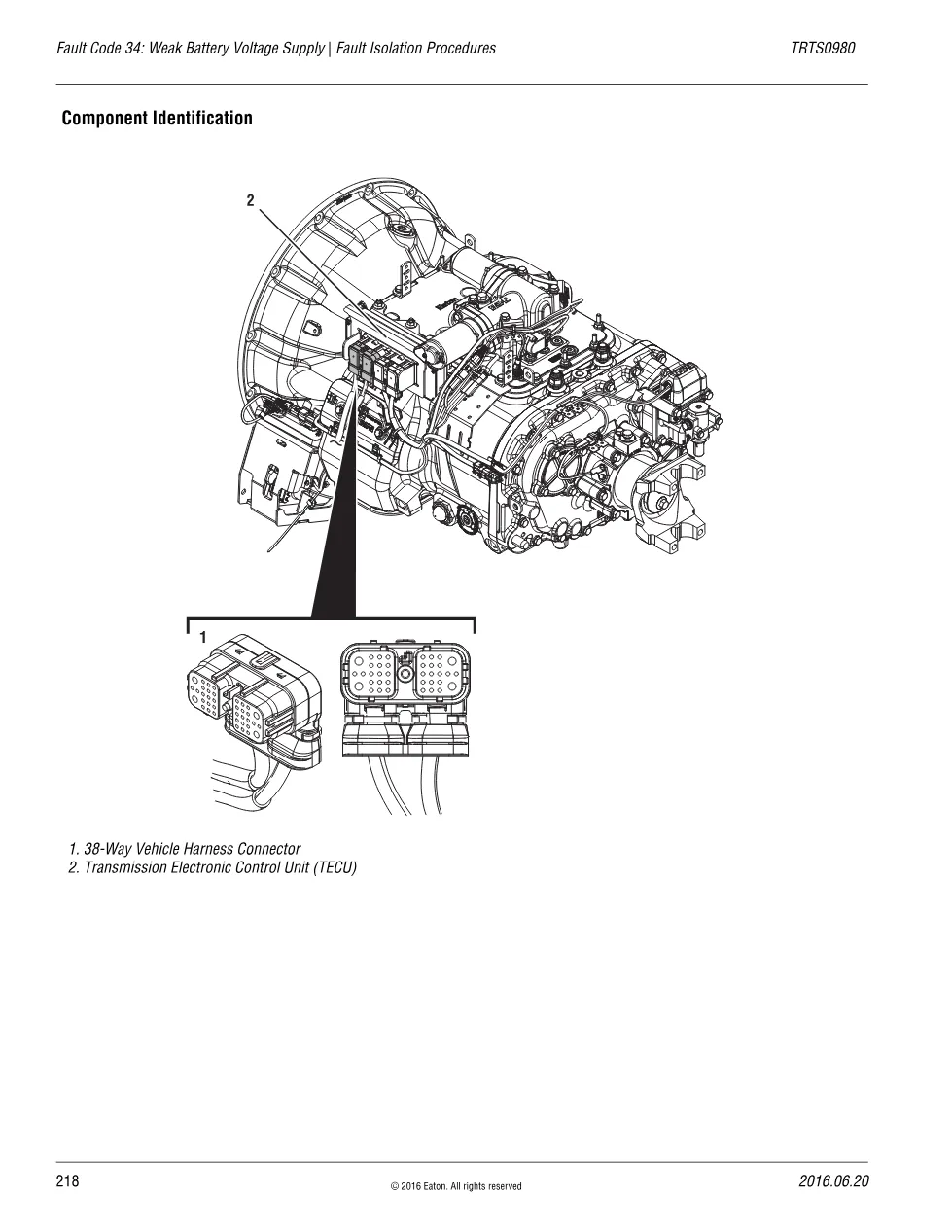

Weak Battery Voltage Supply document details
| Brand | Eaton |
|---|---|
| Model coverage | Fuller Advantage Heavy Duty and Fuller Advantage |
| System / Group | DTCs / Fault Isolation Procedures |
| Publication no. | TRTS0980 |
| Year / Revision | 2016.06.20 (© 2016 Eaton) |
| Pages | 2 |
| File size | 0.5 MB |
| Format | |
| Language | English |
Document sections and coverage
- Overview and thresholds (J1587: MID 130 PID 168 FMI 14)
- Detection — battery voltage below 9 volts for more than 10 seconds
- Fallback behavior, including possible no-crank and no-shift conditions
- Conditions to set the fault Inactive (9 volts or greater for 20 seconds)
- Possible causes across Vehicle Power Supply, batteries and charging system
Applicable transmissions and supply
The reference covers Fuller Advantage Heavy Duty transmissions and notes that Fault Code 33 represents a more severe drop in battery voltage than Fault Code 34. Causes include in-line fuse corrosion, a failed charging system and open or shorted Vehicle Power Supply wiring. The document also notes fallback effects such as the engine not cranking and the transmission not engaging a gear from neutral until the fault becomes Inactive. Manufacturer data is published on Eaton’s official Roadranger website.
