SPN 609 FMI 16 is the Detroit DD Series diagnostic fault-code sheet (SPN 609 / FMI 16) that documents an internal temperature of the CPC4 that is too high. This 2-page PDF, drawn from the Detroit / Detroit Diesel Corporation (DDC) troubleshooting reference (© 2017), gives the workshop the exact measured checks needed to confirm and repair the fault rather than guess at it.
SPN 609 FMI 16 document details
| Brand | Detroit (Detroit Diesel Corporation) |
| Model coverage | DD Series (EPA 2007-Current); Series 60 (DDEC VI, EPA 2007) |
| System / Group | Diagnostic Trouble Codes (DTCs) – SPN 609 / FMI 16 |
| Source | Detroit / DDC diagnostic troubleshooting reference |
| Year / Revision | © 2017 |
| Pages | 2 |
| File size | 0.22 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code definition (SPN 609, FMI 16)
- Multiple-code checks
- CPC4 and MCM2.1 cross-checks
- Troubleshooting steps
- Active-fault retest
- Detroit Customer Support contact
Fault definition and diagnosis

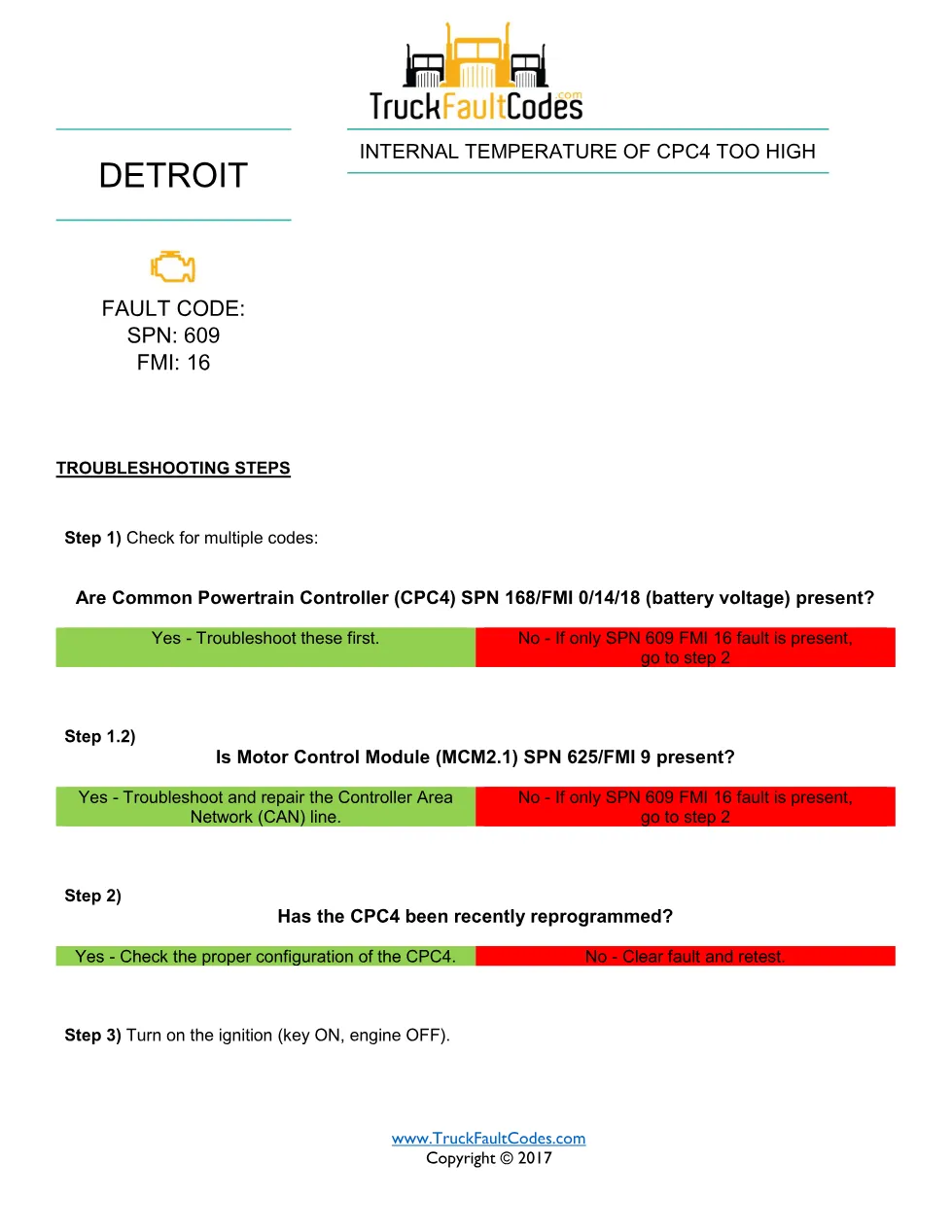

Diagnosis starts by checking for Common Powertrain Controller (CPC4) battery-voltage faults (SPN 168) and a Motor Control Module (MCM2.1) SPN 625/FMI 9, which would indicate a Controller Area Network line fault to repair first. If only this code is present, the technician confirms whether the CPC4 was recently reprogrammed, clears the fault, turns the ignition on and retests; if the active fault returns, the sheet directs a call to the Detroit Customer Support Center.
Applicable truck models
It applies to GHG14 Detroit DD Series engines (EPA 2007 to current) built with the CPC4 and MCM2.1 control modules. For engine specifications and authorised service information, see the official Detroit engine website.
Who needs the SPN 609 FMI 16 manual
Diesel technicians and workshop owners diagnosing this Detroit DTC with DiagnosticLink or ServiceLink use it to follow the manufacturer sequence step by step, and to confirm the SPN 609 / FMI 16 repair before returning the truck to service.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download it.
