SPN 609 FMI 13 is the Detroit DD Series diagnostic fault-code sheet (SPN 609 / FMI 13) that documents a CPC4 software diagnostics fault. This 2-page PDF, drawn from the Detroit / Detroit Diesel Corporation (DDC) troubleshooting reference (© 2017), gives the workshop the exact measured checks needed to confirm and repair the fault rather than guess at it.
SPN 609 FMI 13 document details
| Brand | Detroit (Detroit Diesel Corporation) |
| Model coverage | DD Series (EPA 2007-Current); Series 60 (DDEC VI, EPA 2007) |
| System / Group | Diagnostic Trouble Codes (DTCs) – SPN 609 / FMI 13 |
| Source | Detroit / DDC diagnostic troubleshooting reference |
| Year / Revision | © 2017 |
| Pages | 2 |
| File size | 0.22 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code definition (SPN 609, FMI 13)
- Multiple-code checks
- CPC4 and MCM2.1 cross-checks
- Troubleshooting steps
- CPC reprogramming verification
- Detroit Customer Support contact
Fault definition and diagnosis

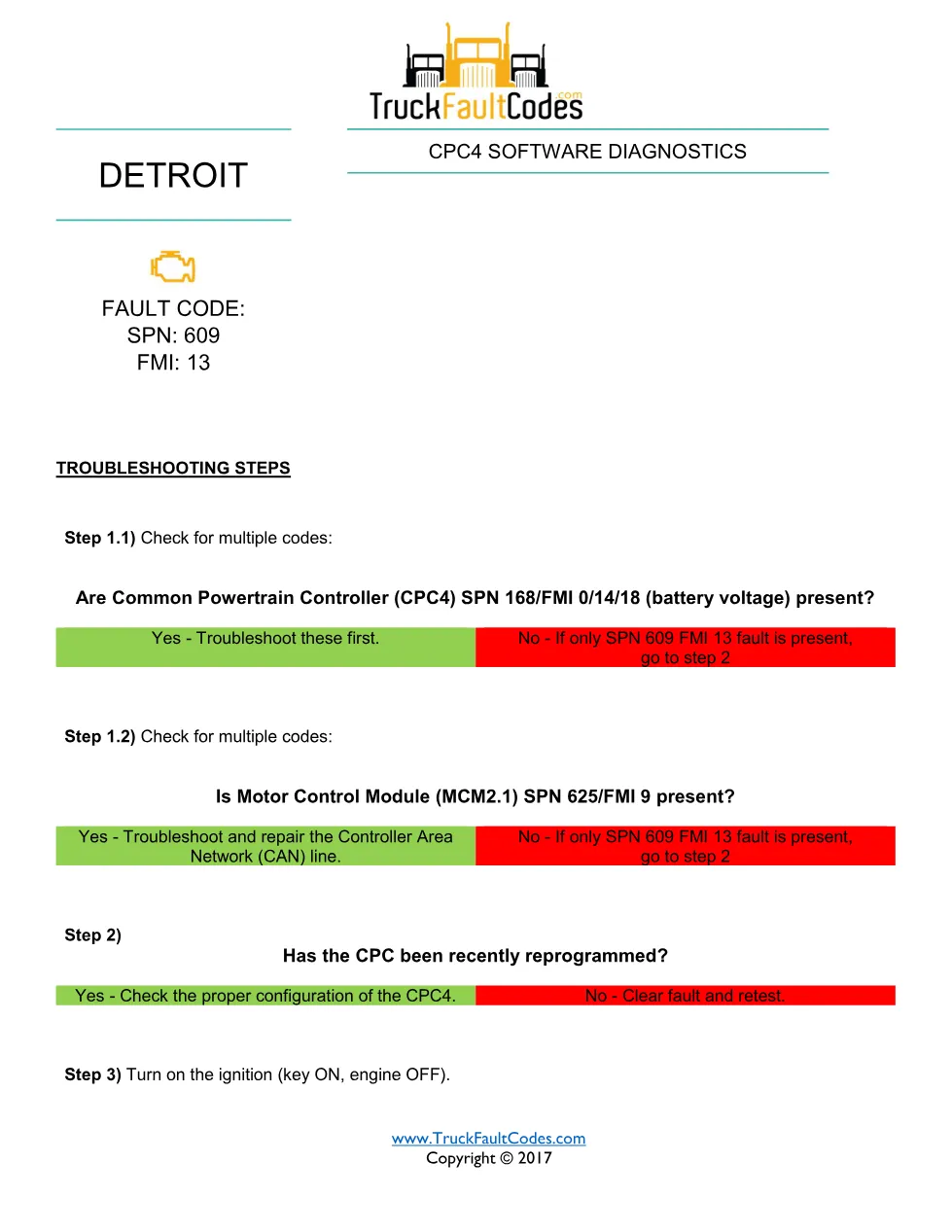

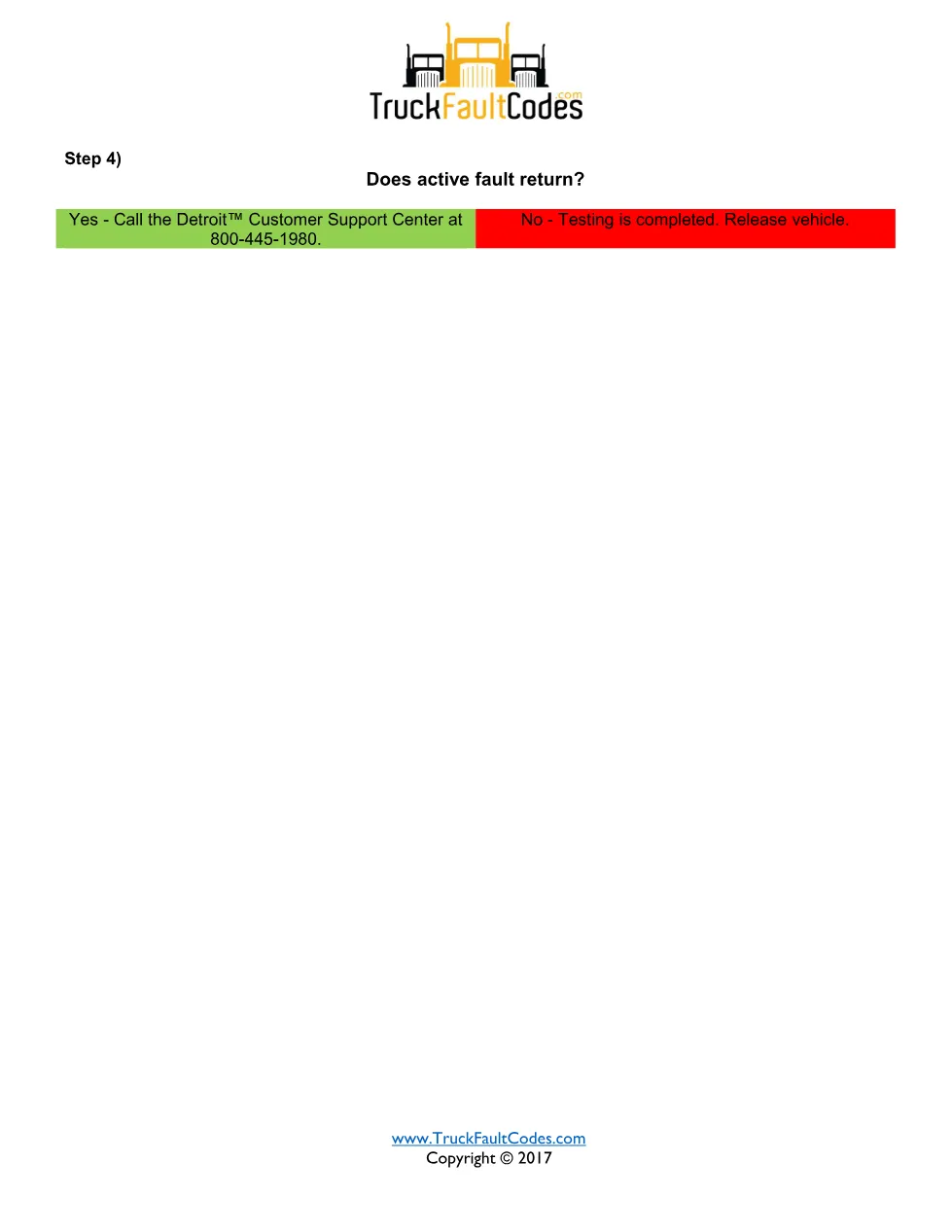

Diagnosis begins with a check for multiple codes: Common Powertrain Controller (CPC4) battery-voltage faults (SPN 168) and a Motor Control Module (MCM2.1) SPN 625/FMI 9, which would signal a Controller Area Network line fault to troubleshoot and repair first. If only this software diagnostics code is present, the technician confirms whether the CPC was recently reprogrammed and follows the retest sequence in the sheet. The document keeps the CPC4 software diagnostics path short, escalating to the Detroit Customer Support Center when the fault cannot be cleared by reprogramming or retesting.
Applicable truck models
It applies to GHG14 Detroit DD Series engines (EPA 2007 to current) built with the CPC4 and MCM2.1 control modules. For engine specifications and authorised service information, see the official Detroit engine website.
Who needs the SPN 609 FMI 13 manual
Diesel technicians and workshop owners diagnosing this Detroit DTC with DiagnosticLink or ServiceLink use it to follow the manufacturer sequence step by step, and to confirm the SPN 609 / FMI 13 repair before returning the truck to service.
