SPN 615 FMI 3 is the Detroit DD Series diagnostic fault-code sheet (SPN 615 / FMI 3) that documents an Axial Power Turbine (APT) air seal pressure regulator valve circuit that has failed high. This 1-page PDF, drawn from the Detroit / Detroit Diesel Corporation (DDC) troubleshooting reference (© 2017), gives the workshop the exact measured checks needed to confirm and repair the fault rather than guess at it.
SPN 615 FMI 3 document details
| Brand | Detroit (Detroit Diesel Corporation) |
| Model coverage | DD Series (EPA 2007-Current); Series 60 (DDEC VI, EPA 2007) |
| System / Group | Diagnostic Trouble Codes (DTCs) – SPN 615 / FMI 3 |
| Source | Detroit / DDC diagnostic troubleshooting reference |
| Year / Revision | © 2017 |
| Pages | 1 |
| File size | 0.21 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code definition (SPN 615, FMI 3)
- Troubleshooting steps
- APT valve harness connector checks
- MCM 120-pin connector resistance measurement
- Wiring repair or valve replacement
Fault definition and diagnosis

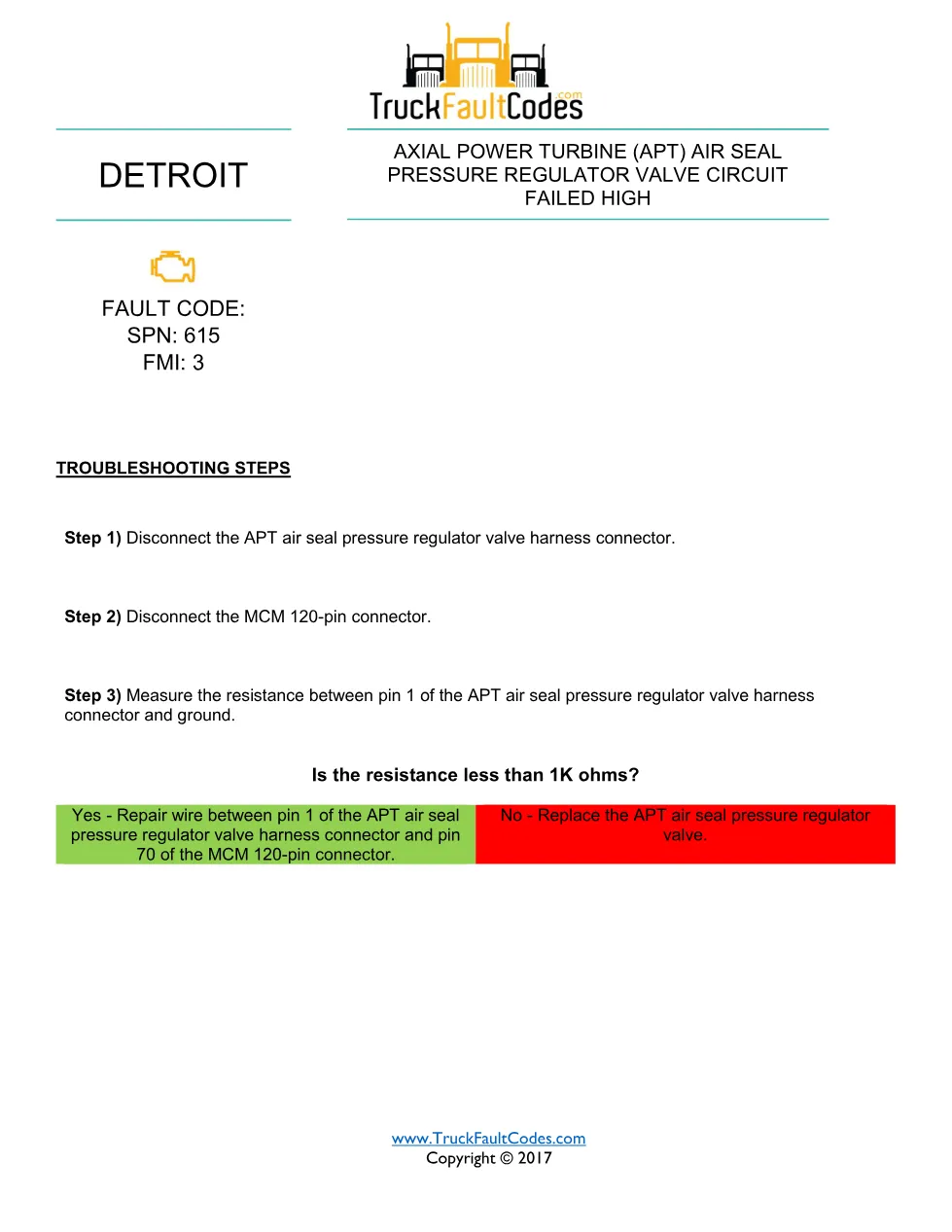

The technician disconnects the APT air seal pressure regulator valve harness connector and the MCM 120-pin connector, then measures the resistance between pin 1 of the valve harness connector and ground. A low resistance points to repairing the wire between that pin and pin 70 of the MCM 120-pin connector, while a high resistance directs replacement of the air seal pressure regulator valve.
Applicable truck models
It applies to Detroit DD Series engines (EPA 2007 to current) and Series 60 (DDEC VI, EPA 2007) turbocharged engines using the axial power turbine air seal valve circuit. For engine specifications and authorised service information, see the official Detroit engine website.
Who needs the SPN 615 FMI 3 manual
Diesel technicians and workshop owners diagnosing this Detroit DTC with DiagnosticLink or ServiceLink use it to follow the manufacturer sequence step by step, and to confirm the SPN 615 / FMI 3 repair before returning the truck to service.
