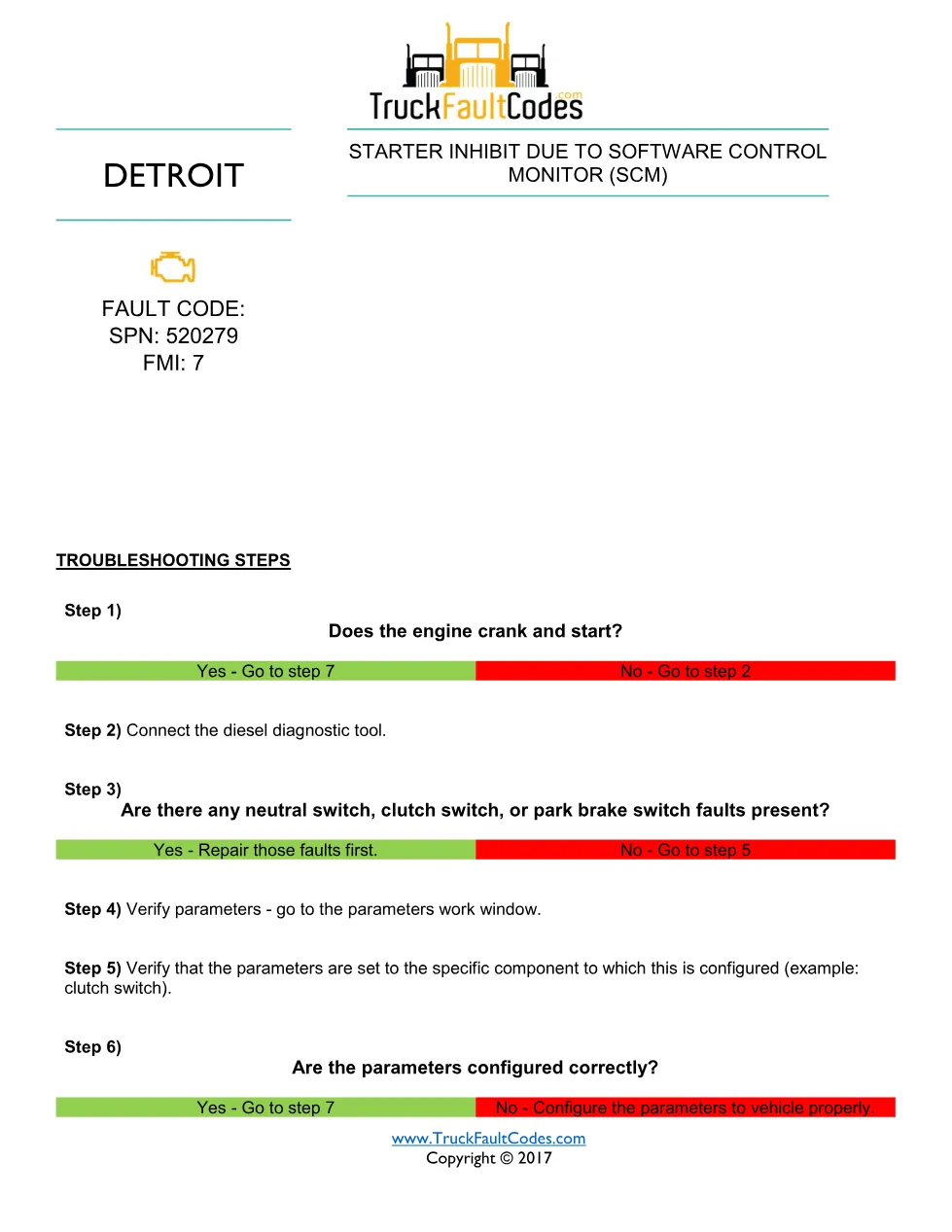

SPN 520279 FMI 7 is the Detroit fault code for a starter inhibit caused by the Software Control Monitor (SCM), and this 2-page PDF walks through the diagnosis. The code centres on whether the engine cranks and starts, and on correctly configured neutral, clutch and park-brake parameters.
Official document details
| Brand | Detroit |
| Model coverage | DD Series (EPA 2007-current); also Series 60 (DDEC VI) |
| System / Group | Diagnostic Trouble Codes (DTCs) |
| Fault code | SPN 520279, FMI 7 |
| Year / Revision | Copyright 2017 (TruckFaultCodes.com) |
| Pages | 2 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification (SPN and FMI)
- Does the engine crank and start?
- Neutral, clutch and park-brake switch faults
- Verifying vehicle parameter configuration

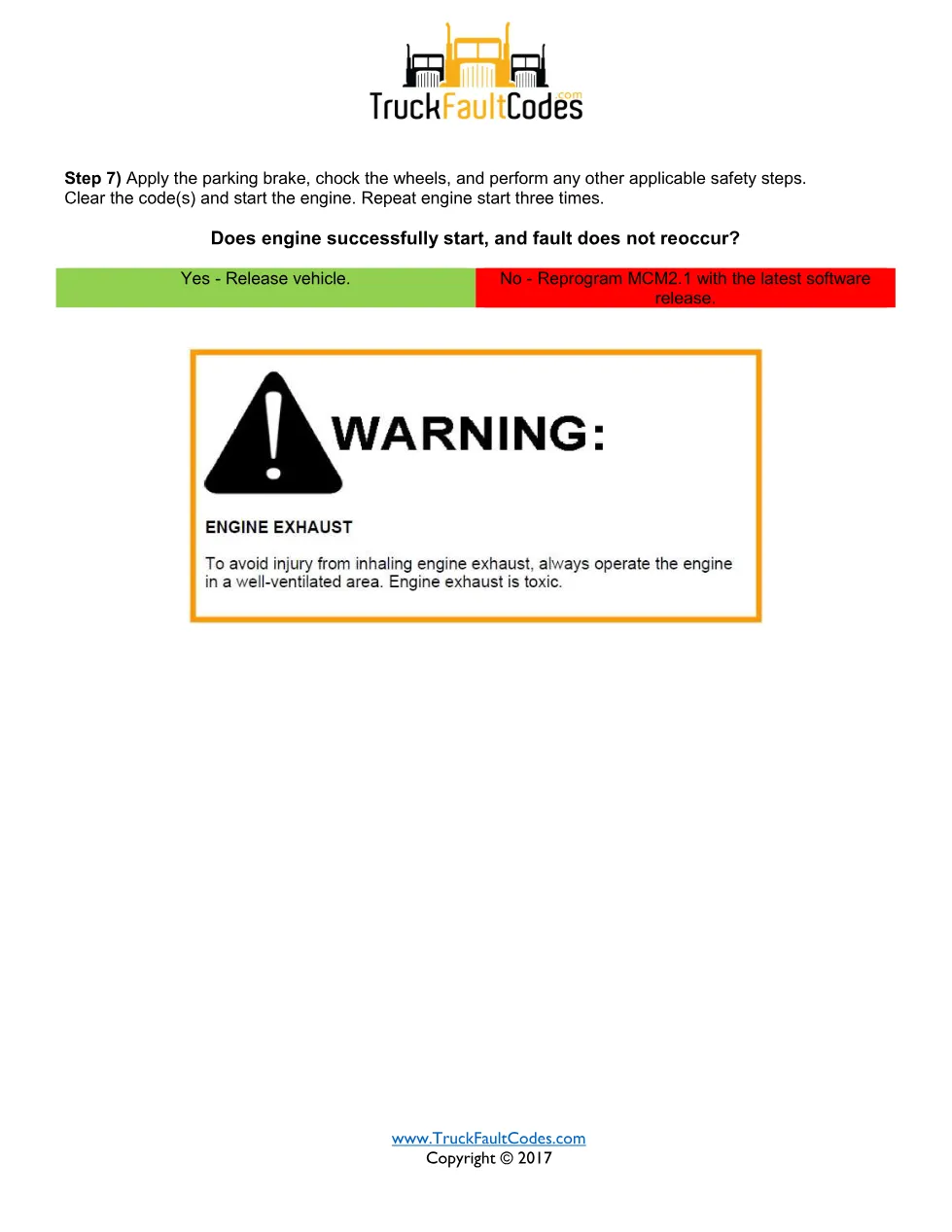

- Repeat start test and MCM2.1 reprogramming
Applicable models for SPN 520279 FMI 7
This diagnostic trouble code applies to Detroit DD13, DD15 and DD16 engines built to EPA 2007 and later standards, and to the Series 60 (DDEC VI) set. The procedure uses the diesel diagnostic tool to confirm switch faults and parameter settings before a repeat start test and, if needed, reprogramming the MCM2.1 with the latest software. For programming support, see the official Detroit Diesel website.
Who needs this 520279 FMI 7 guide
Technicians chasing a no-crank or starter inhibit complaint use this guide to check switch faults, verify the configured parameters, and decide whether an MCM2.1 software update resolves the fault. This library page summarises the official Detroit fault-code sheet published on TruckFaultCodes.com (Copyright 2017) and is meant as a quick reference. Because the correct fix depends on module software levels and configuration, confirm the latest software release and programming steps against current Detroit Power Service Literature and the diesel diagnostic tool before replacing any hardware. After reprogramming, clear all fault codes and re-test; if the code stays active, contact the Detroit Customer Support Center at 800-445-1980 with your diagnostic log files. The complete PDF is available in the DiagTechPro manuals library, where a free account is required to download.
