SPN 520268 FMI 16 is the Detroit Diesel fault-code service sheet that documents an MCM2.1 fuel-rail pressure deviation greater than 200 bar detected while the engine is under load. This eight-page procedure walks through the full fuel-system integrity diagnosis from customer interview to component replacement. This DiagTechPro library page summarizes what the 8-page PDF contains so a technician can confirm it is the right document before downloading.
Official document details
| Brand | Detroit (Detroit Diesel) |
|---|---|
| Model coverage | DD Series (EPA 2007-Current); Series 60 DDEC VI (EPA 2007) |
| System / group | GHG14 diagnostic trouble codes |
| Suspect Parameter Number | 520268 |
| Failure Mode Identifier | 16 |
| Source | TruckFaultCodes.com, © 2017 |
| Pages | 8 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents

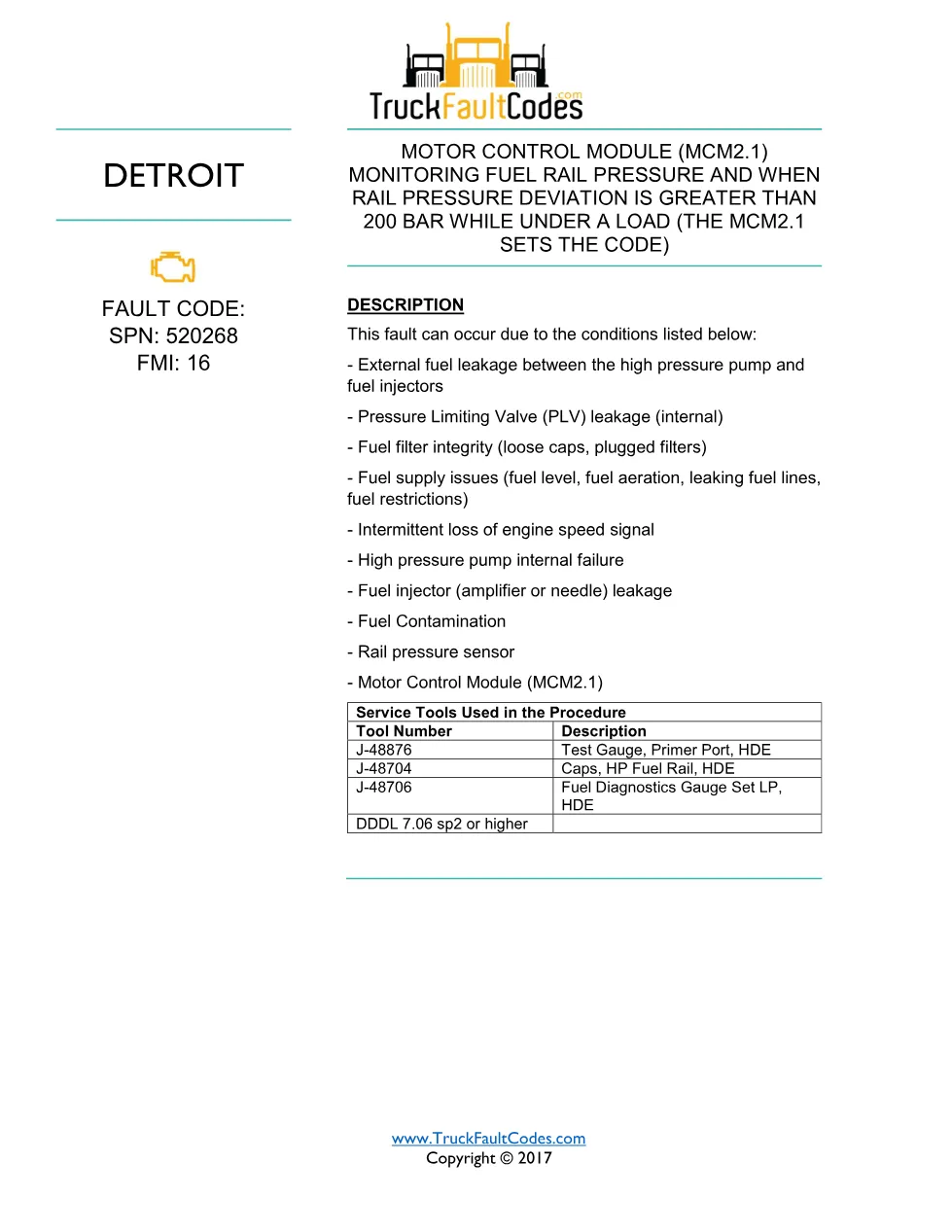

- Description and probable causes
- Service tools: J-48876, J-48704, J-48706, DDDL 7.06 sp2

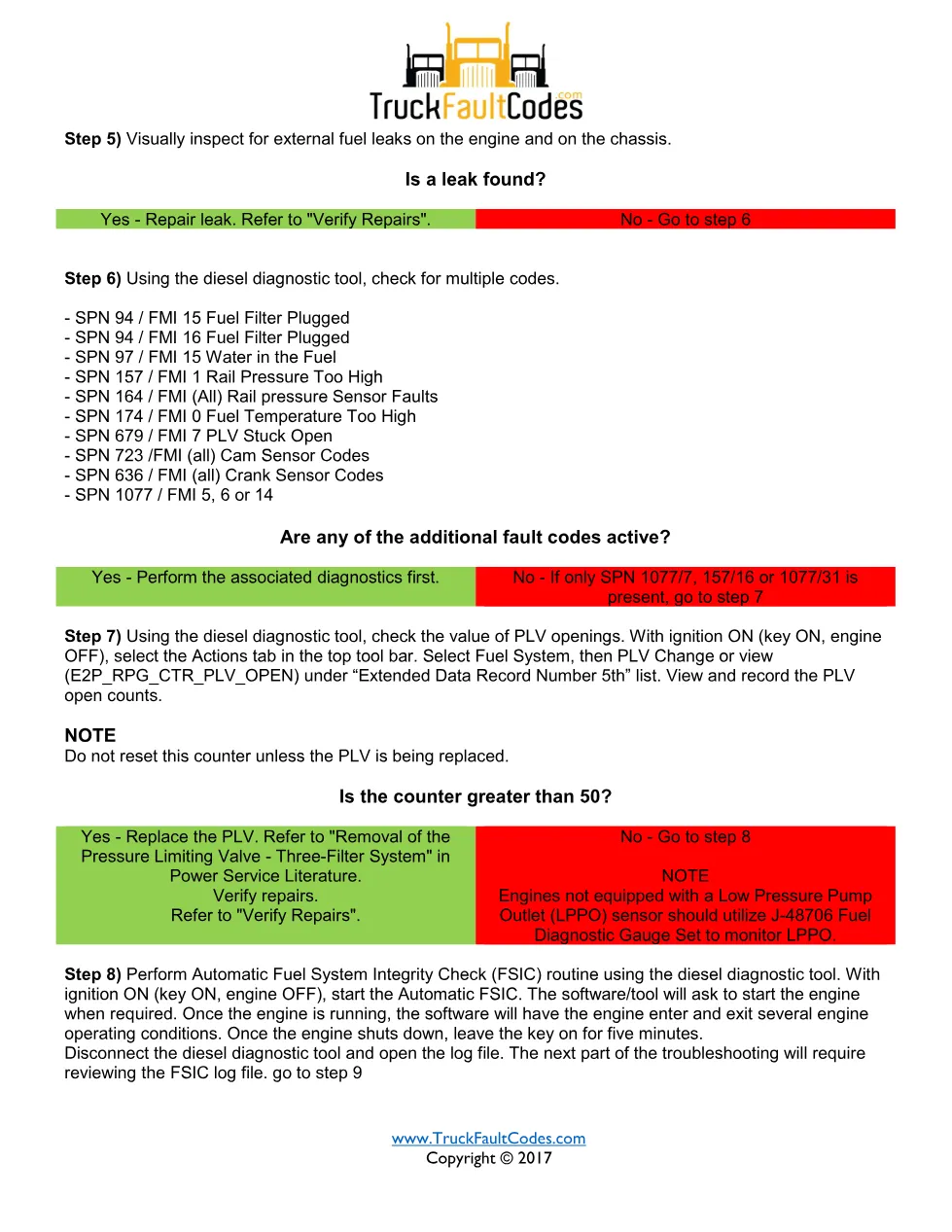

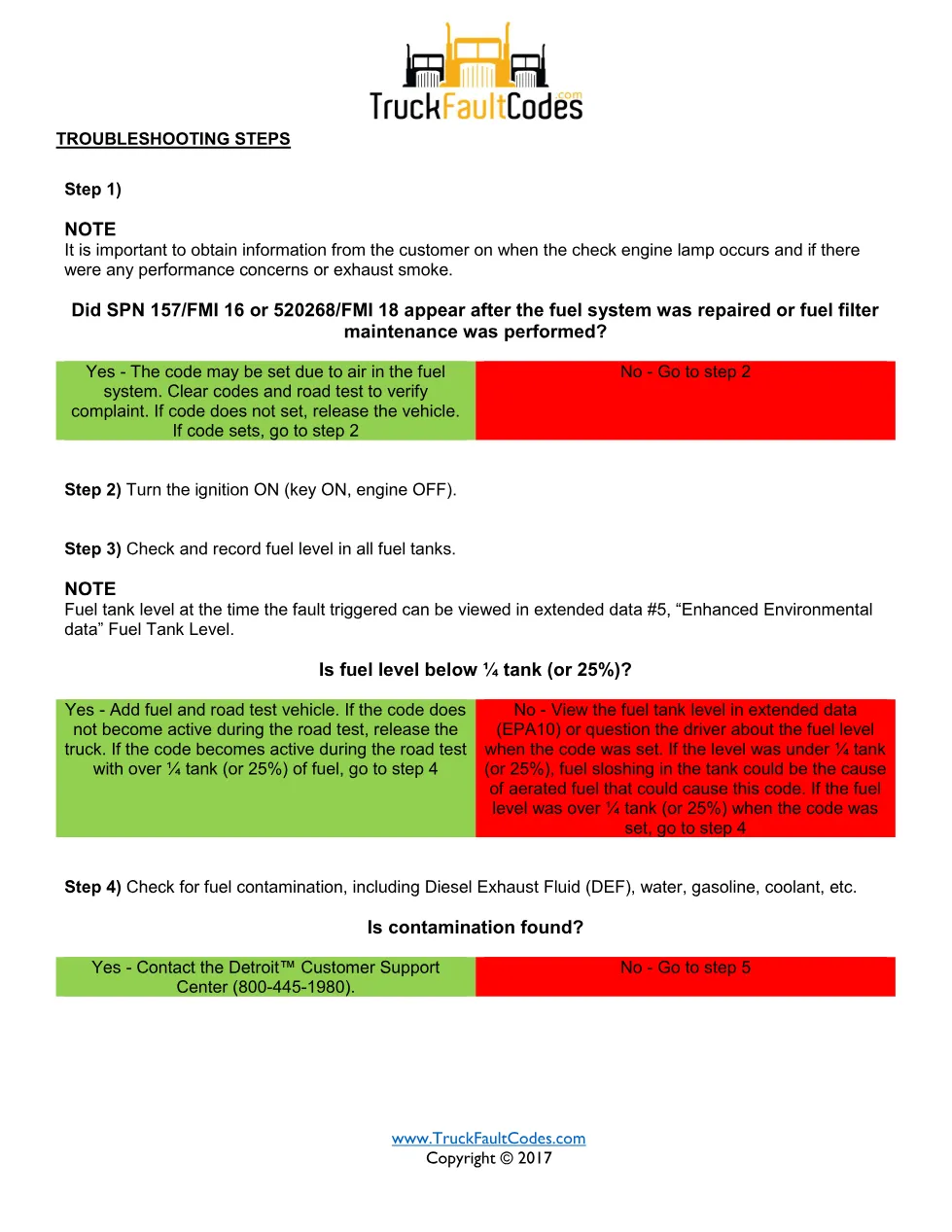

- Steps 1-8: fuel level, contamination and FSIC routine
- Steps 9-16: bleed-off timing and idle speed balance
- Steps 17-22: aerated fuel and PLV flow tests
- Steps 23-24: MCM2.1 connector inspection and replacement
SPN 520268 FMI 16 diagnostic summary
The document lists possible causes including external fuel leakage between the high-pressure pump and injectors, Pressure Limiting Valve (PLV) leakage, fuel filter integrity, fuel supply and aeration issues, intermittent loss of engine-speed signal, high-pressure pump failure, injector leakage, fuel contamination, and the rail-pressure sensor. Service tools called out are J-48876, J-48704 and J-48706, with DDDL 7.06 sp2 or higher. The step-by-step flow covers fuel-level and contamination checks, a Fuel System Integrity Check (FSIC) routine, rail-pressure bleed-off timing, PLV flow testing, and high-pressure pump verification before any MCM2.1 replacement.
Applicable Detroit truck models
This fault-code sheet applies to Detroit DD Series engines certified to EPA 2007 and later emissions standards, and it is cross-listed under the Detroit Series 60 (DDEC VI, EPA 2007) diagnostic set. For full engine specifications and support details, see the official Detroit website.
Who needs this SPN 520268 FMI 16 manual
This is a workshop-grade reference for Detroit diesel technicians chasing a hard-start, low-power or check-engine-lamp complaint tied to rail pressure, giving a structured path so the pump, PLV or injectors are only replaced after the correct tests.
The complete PDF is available in the DiagTechPro manuals library; a free account is required to download it.
