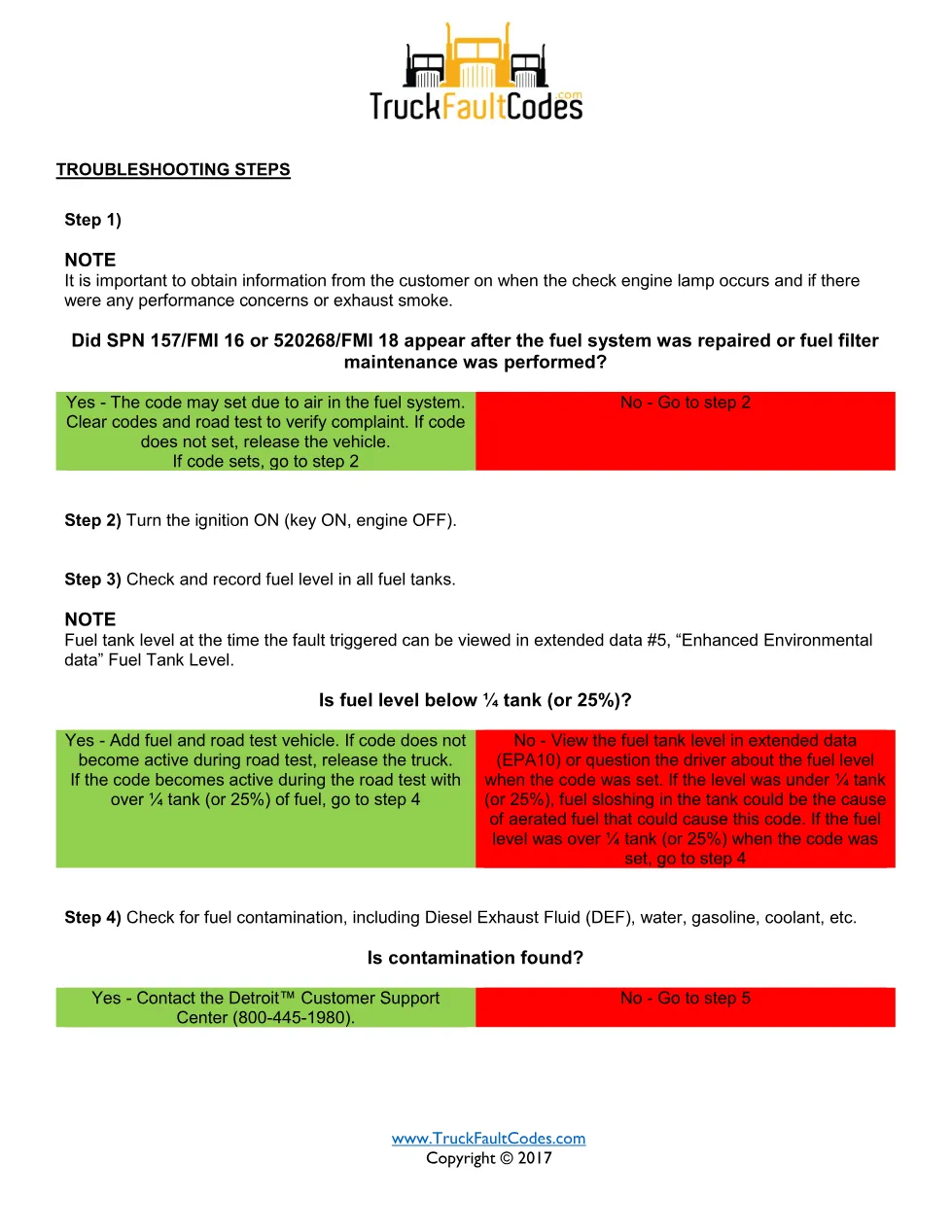

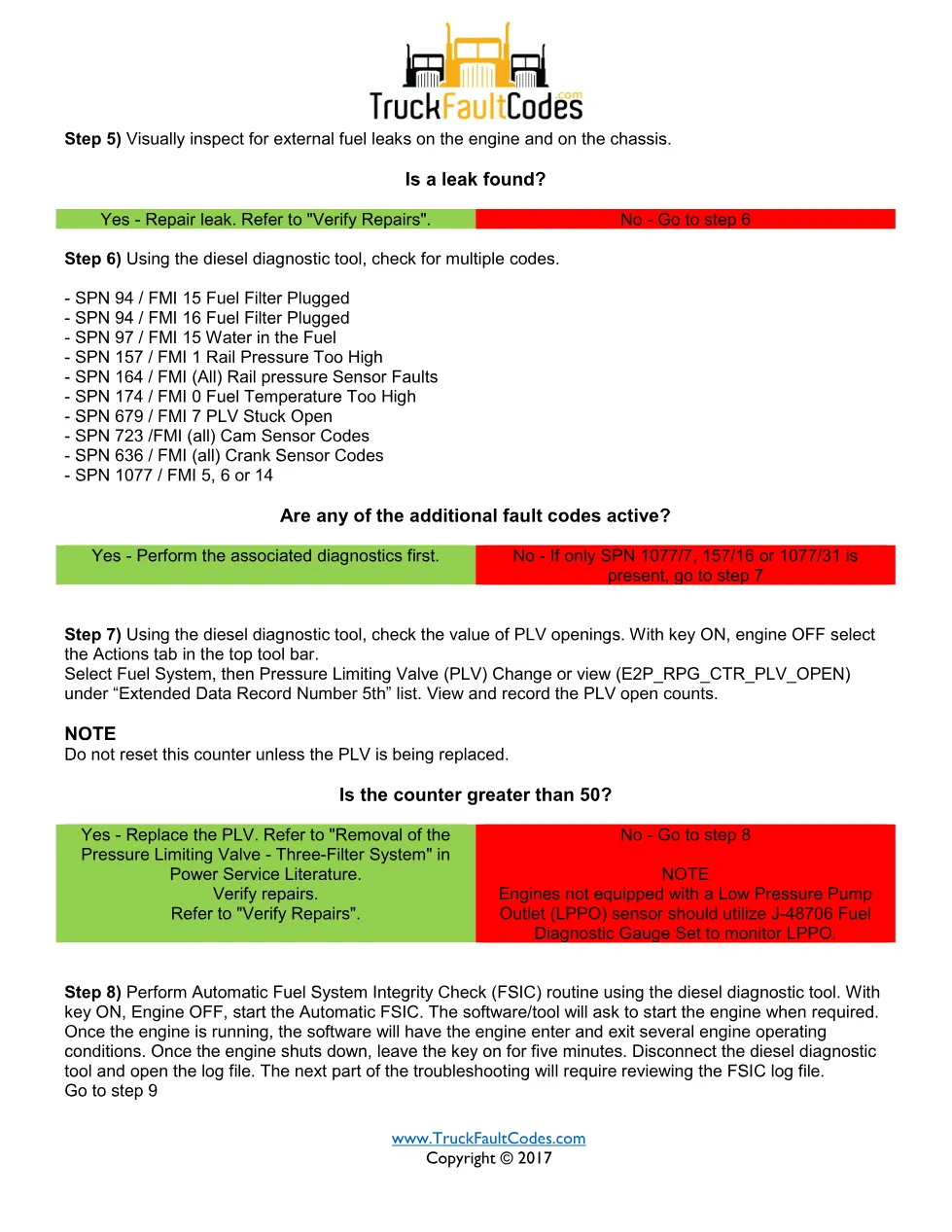

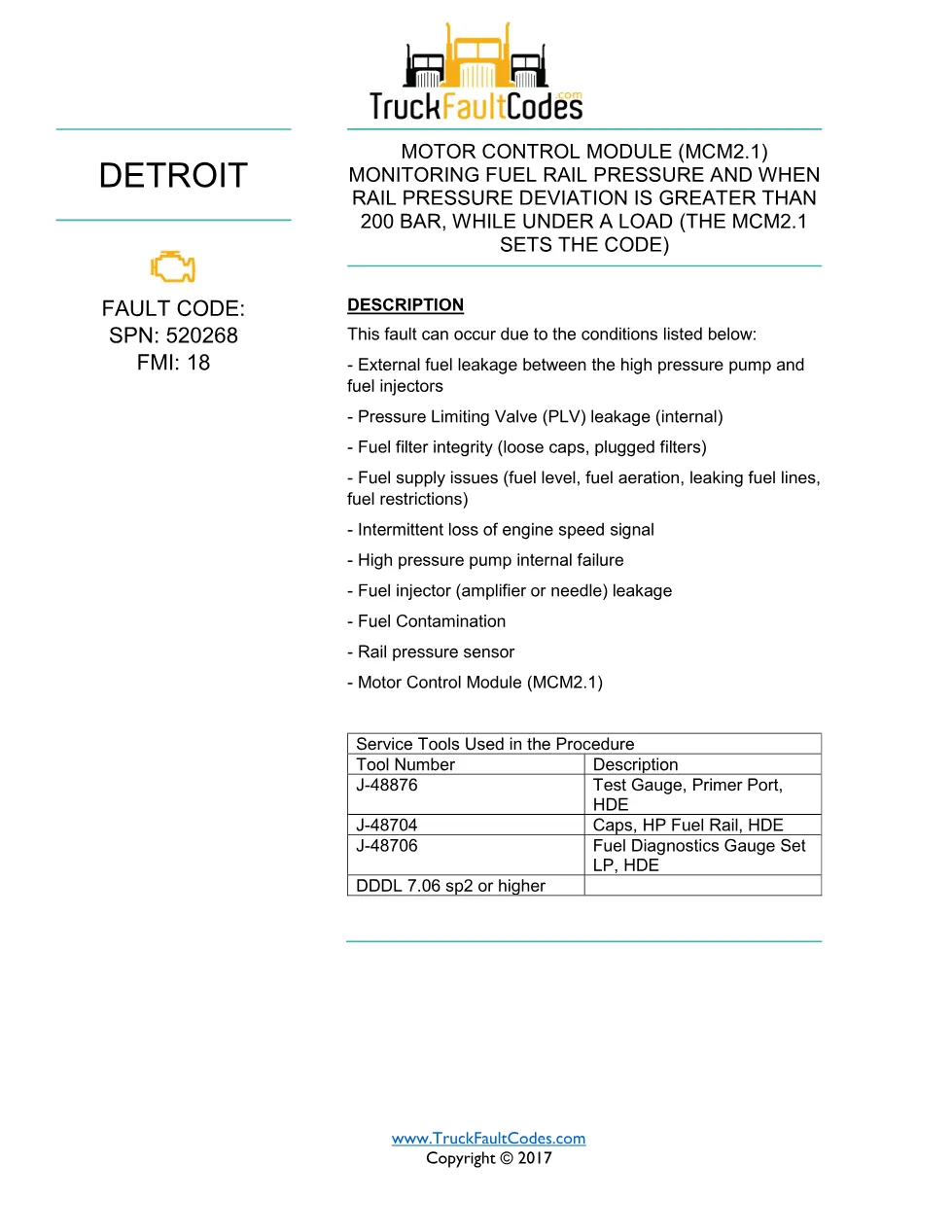

SPN 520268 FMI 18 is the Detroit fault code the MCM2.1 sets when fuel rail pressure deviation exceeds 200 bar under load, and this 7-page PDF is a full high-pressure fuel-system diagnostic. It lists likely causes from fuel leaks, filters and aeration to a failing high-pressure pump, injectors or rail pressure sensor.
Official document details
| Brand | Detroit |
| Model coverage | DD Series (EPA 2007-current); also Series 60 (DDEC VI) |
| System / Group | Diagnostic Trouble Codes (DTCs) |
| Fault code | SPN 520268, FMI 18 |
| Year / Revision | Copyright 2017 (TruckFaultCodes.com) |
| Pages | 7 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Document table of contents
- Fault code identification (SPN and FMI)
- Possible causes of the rail pressure deviation
- Service tools used in the procedure
- Fuel level, contamination and external leak checks
- Fuel System Integrity Check (FSIC) routine
- Rail pressure bleed-off and pump capping tests
- High pressure pump, PLV and MCM2.1 checks
Applicable models for SPN 520268 FMI 18
This diagnostic trouble code applies to Detroit DD13, DD15 and DD16 engines built to EPA 2007 and later standards, using the three-filter fuel system references, DDDL 7.06 sp2 or higher, and service tools such as J-48876, J-48704 and J-48706. For fuel-system service literature and dealer support, see the official Detroit Diesel website.
Who needs this SPN 520268 FMI 18 guide
Technicians diagnosing power loss, a check-engine lamp or a suspected high-pressure fuel fault use this guide to run the FSIC, read bleed-off and idle-balance data, and isolate the pump, PLV, injectors or MCM2.1. This library page summarises the official Detroit fault-code sheet published on TruckFaultCodes.com (Copyright 2017) and is meant as a quick reference. The source document lists exact resistance or pressure ranges, connector pin numbers and torque values in charts, so always confirm those specifications against current Detroit Power Service Literature and the diesel diagnostic tool before condemning a part. Recording your measured values as you work through each step also makes it easier to escalate the case to the Detroit Customer Support Center at 800-445-1980 if the fault stays active. The complete PDF is available in the DiagTechPro manuals library, where a free account is required to download.
