This page covers the Detroit fault code SPN 5016 FMI 3, Coolant Valve Supply Voltage Failed High, on DD Platform engines. It documents the seven-step diagnostic flow for the coolant valve circuit and the ACM.
Official document details
| Brand | Detroit |
| Model coverage | Detroit DD13, DD15 and DD16 (DD Platform) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Source | TruckFaultCodes.com |
| Year / Revision | 2017 (EPA10 / GHG14) |
| Pages | 1 |
| File size | 0.30 MB |
| Format | |
| Language | English |
SPN 5016 FMI 3 table of contents
- Fault description and affected circuit
- Coolant valve connector inspection
- Fault-active test with key on
- ACM 120-pin connector isolation
- Harness short to battery repair

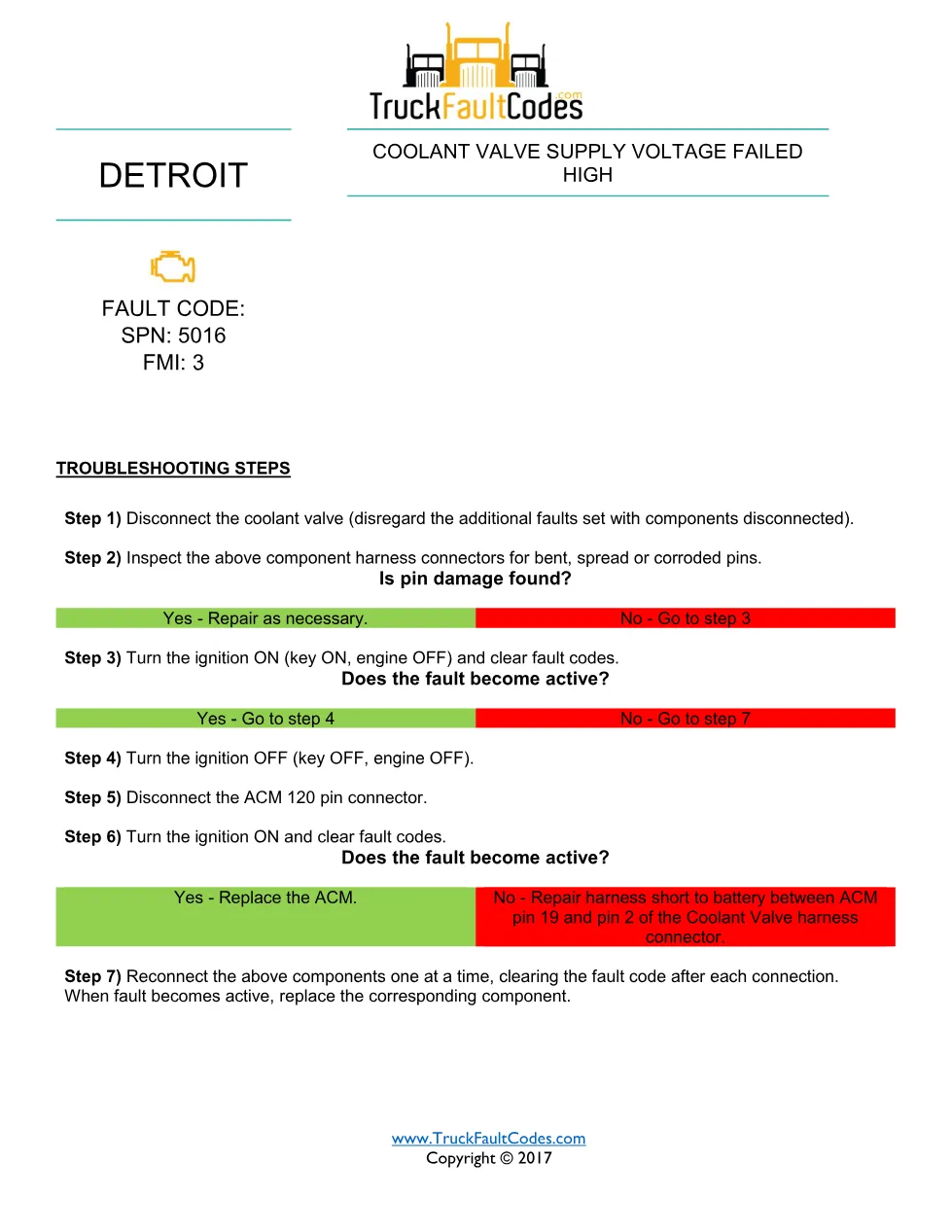

This circuit fault reports a high supply voltage on the coolant valve driver. The procedure begins by disconnecting the coolant valve and inspecting its harness connector for bent, spread or corroded pins.
With the key on and codes cleared, the technician watches whether the fault returns. If it does, the ACM 120-pin connector is disconnected and codes cleared again: if the fault stays active the ACM is replaced, and if it clears the harness short to battery between ACM pin 19 and pin 2 of the coolant valve connector is repaired. If the fault did not return, components are reconnected one at a time until the failing part is identified.
Applicable truck models
This guide applies to Detroit DD13, DD15 and DD16 engines on EPA10 and GHG14 builds. The diagnosis centres on the ACM 120-pin connector and the coolant valve harness. For manufacturer support, see Detroit’s official website.
Who needs this SPN 5016 FMI 3 manual
Electrical technicians diagnosing a coolant valve supply voltage fault on DD Series engines use this concise guide to decide between a harness short and an ACM failure. It follows the factory decision-tree troubleshooting format used across Detroit DTC guides.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
