This page covers the Detroit fault code SPN 5016 FMI 4, Diesel Exhaust Fluid (DEF) Coolant Valve Supply Voltage Failed Low, on DD Platform engines. It documents the seven-step diagnostic flow for the DEF coolant valve circuit.
Official document details
| Brand | Detroit |
| Model coverage | Detroit DD13, DD15 and DD16 (DD Platform) |
| System / Group | DD Series (EPA 2007-Current) / DTCs |
| Source | TruckFaultCodes.com |
| Year / Revision | 2017 (EPA10 / GHG14) |
| Pages | 1 |
| File size | 0.30 MB |
| Format | |
| Language | English |
SPN 5016 FMI 4 table of contents
- Fault description and affected circuit
- DEF coolant valve connector inspection
- Fault-active test with key on
- ACM 120-pin connector isolation
- Harness short to ground repair

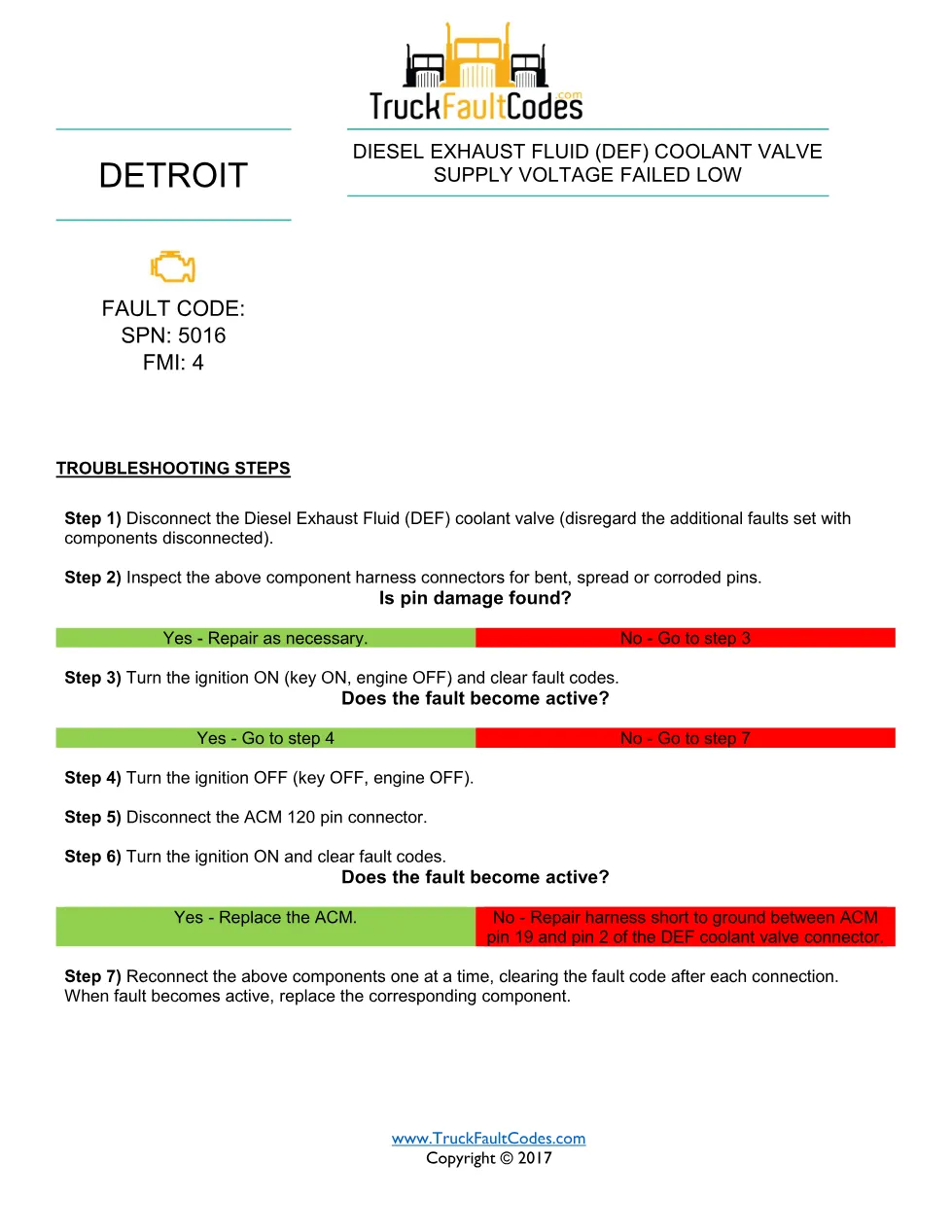

This circuit fault reports a low supply voltage on the DEF coolant valve driver. Diagnosis starts by disconnecting the DEF coolant valve and inspecting its harness connector for bent, spread or corroded pins.
With the key on and codes cleared, the technician checks whether the fault returns. If it does, the ACM 120-pin connector is disconnected and codes cleared again: if the fault stays active the ACM is replaced, and if it clears the harness short to ground between ACM pin 19 and pin 2 of the DEF coolant valve connector is repaired. If the fault did not return, components are reconnected one at a time until the failing part is found.
Applicable truck models
This guide applies to Detroit DD13, DD15 and DD16 engines on EPA10 and GHG14 builds. The diagnosis centres on the ACM 120-pin connector and the DEF coolant valve harness. For manufacturer support, visit Detroit’s official website.
Who needs this SPN 5016 FMI 4 manual
Electrical technicians diagnosing a DEF coolant valve supply voltage fault on DD Series engines use this concise guide to decide between a harness short to ground and an ACM failure.
The full PDF is available in the DiagTechPro manuals library; a free account is required to download.
