This PACCAR PTO oil temperature diagnostic manual covers procedures for diagnosing and repairing inoperative temperature gauges using the Electronic Service Analyst (ESA) diagnostic tool. Published by PACCAR in September 2011, the document provides step-by-step troubleshooting for DTC 9003 (open circuit) and DTC 9004 (short circuit) faults affecting the PTO oil temperature gauge on cab instrumentation systems.
The manual is designed for service technicians with ESA knowledge who need to isolate faults in the thermistor-based temperature sensing circuit, from wiring inspection to sensor replacement procedures.
Document details and specifications — PACCAR PTO oil
| Brand | PACCAR |
| System/Group | DTCs / Cab Instrumentation (2011 & Newer) |
| Publication Number | PM819003/KM815056 |
| Revision Date | 09/16/2011 |
| Pages | 4 |
| File Size | 0.2 MB |
| Format | |
| Language | English |
Table of contents
- PTO Oil Temperature Gauge Inoperative — DTC 9003 and DTC 9004

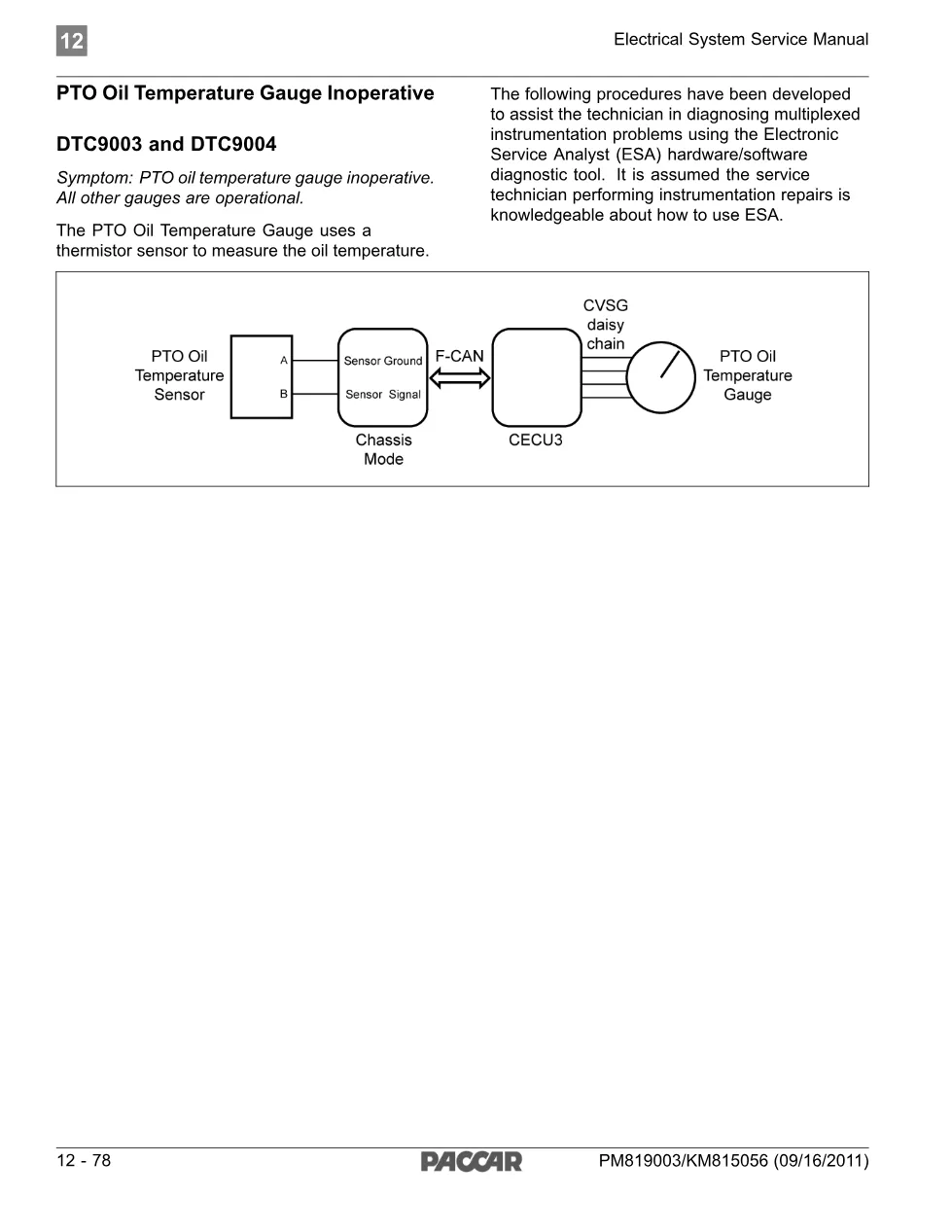

- Symptom Description and Sensor Overview

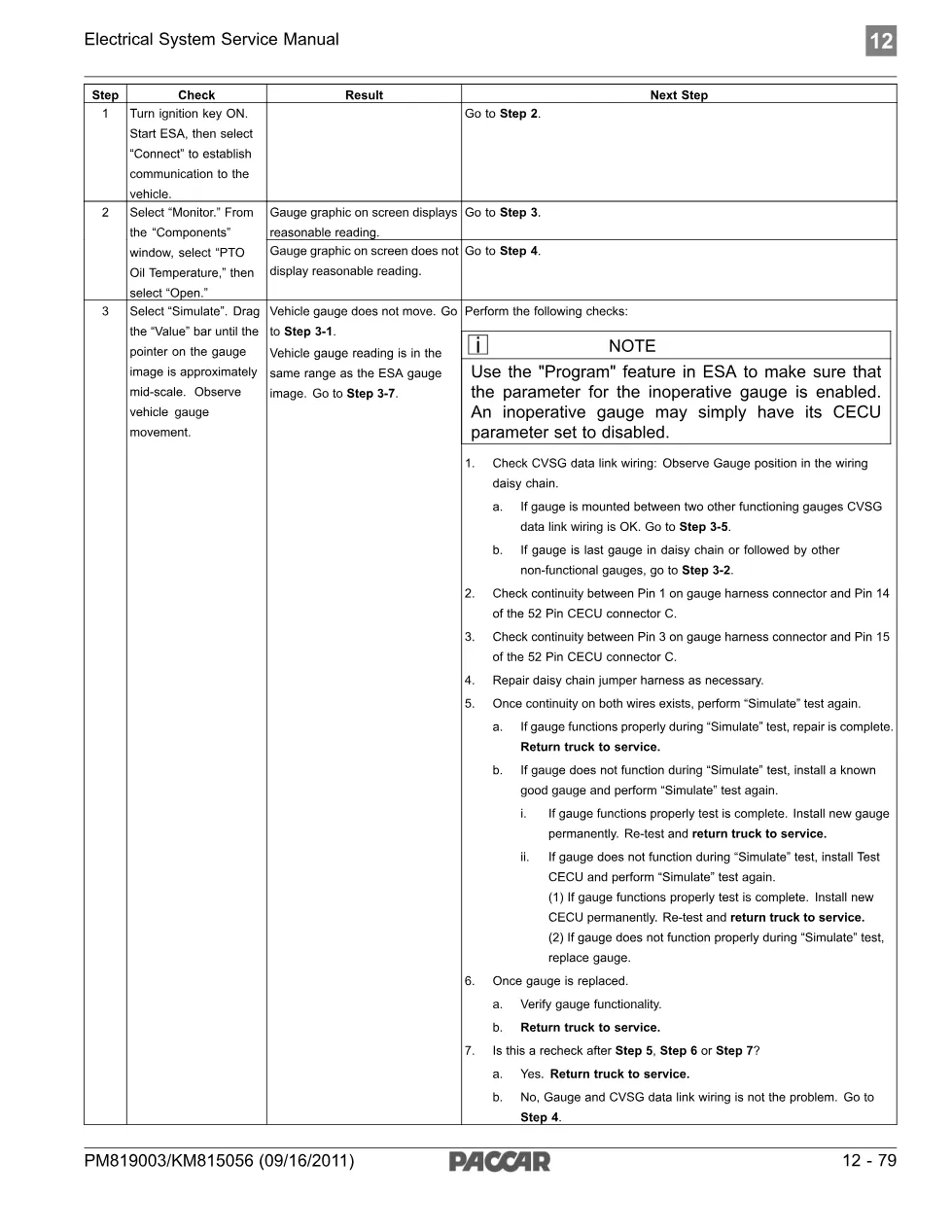

- Step-by-Step Diagnostic Procedure (Steps 1–7)
- ESA Monitor and Simulate Function Guidance
- CVSG Data Link Wiring Inspection
- Gauge and CECU Testing Protocol
- Oil Temperature Sensor Continuity Testing

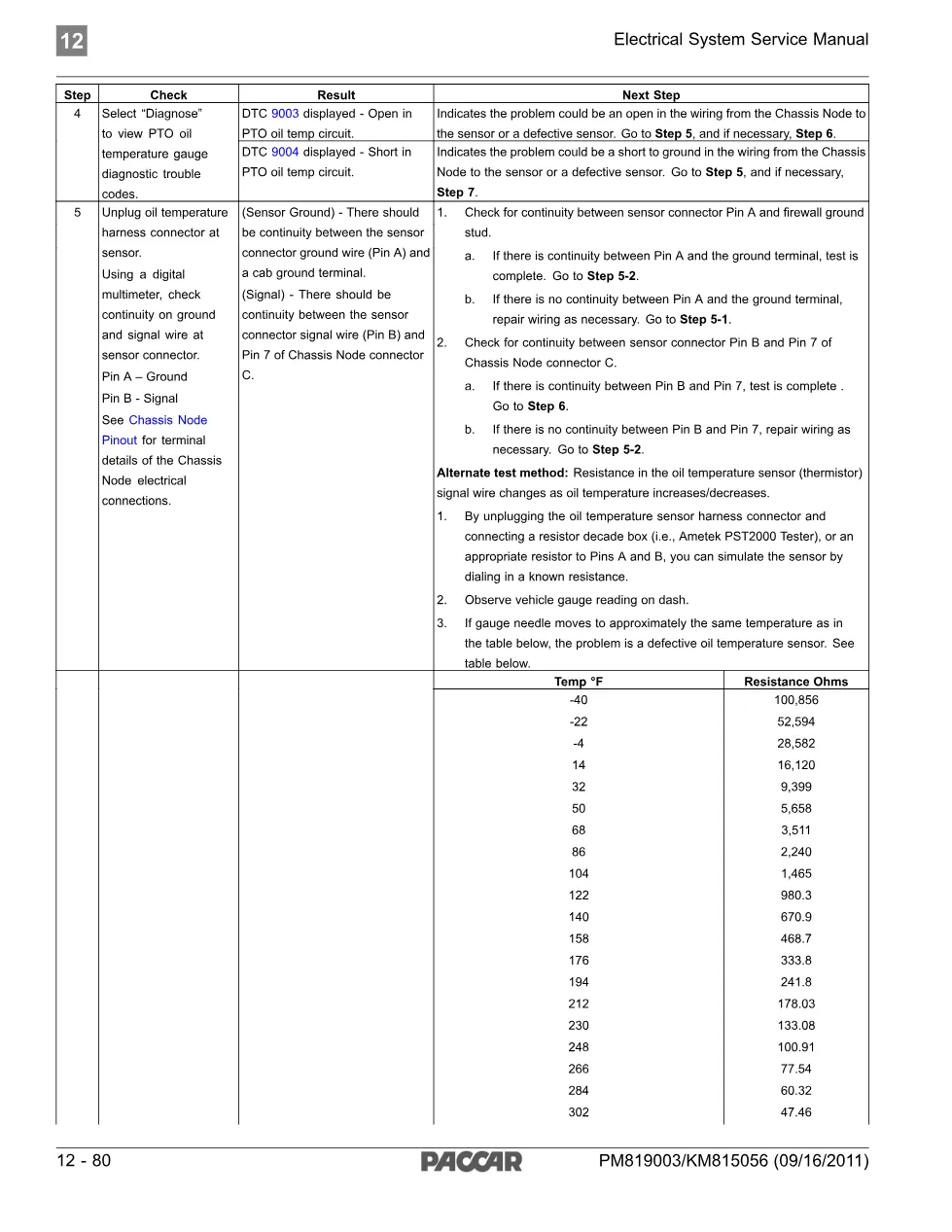

- Thermistor Resistance Reference Table (−40°F to 392°F)
- DTC 9003 Active Fault Resolution (Open Circuit)
- DTC 9004 Active Fault Resolution (Short Circuit)
- Chassis Node Pinout Reference
Applies to these models
This PACCAR PTO oil temperature manual applies to PACCAR trucks manufactured in 2011 and newer with multiplexed cab instrumentation systems featuring the thermistor-based temperature sensor circuit and 52-pin CECU (Cab Electronic Control Unit) architecture. Specific coverage includes the CVSG data link wiring configuration, Chassis Node connectors, and all associated harness connections for the PTO oil temperature gauge component.
For complete manufacturer specifications and additional technical resources, visit PACCAR official website.
Who needs this PACCAR PTO oil temperature manual
Service technicians and workshop owners diagnosing inoperative PACCAR temperature gauges benefit directly from this PTO oil temperature resource. The manual is essential for shops equipped with ESA diagnostic software who need detailed fault isolation procedures, thermistor sensor testing methods, and wiring continuity verification steps to resolve DTC 9003 and DTC 9004 faults.
The complete PDF is available in the DiagTechPro manuals library. A free account is required to download.
