This PACCAR P1230 DTC troubleshooting document provides mechanics and workshop technicians with systematic fault isolation procedures for common rail pump unit 1 (L092) failures on PACCAR MX Europe engines compliant with EPA 2004 emissions standards. Published by PACCAR, this technical reference covers electrical diagnostics, component inspection, and repair verification cycles.
The PACCAR P1230 DTC troubleshooting guide assumes proper supply power and ground to the PCI ECU and requires DAVIE diagnostics software for clearing codes and running quick checks throughout the diagnostic sequence.
Document details and specifications — PACCAR P1230 DTC
| Brand | PACCAR |
| System/Group | DTCs / MX Europe Engines (EPA 2004) |
| Model coverage | PACCAR MX-series diesel engines |
| Year/Revision | 17-Aug-2017 |
| Pages | 4 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Table of contents
- Step 1 – Common rail pump unit 1 (L092) checks
- Step 1A – Visual inspection, connections and wiring, common rail pump unit 1 (L092)
- Step 1B – Electrical checks, resistance, common rail pump unit 1 (L092)
- Step 2 – PCI ECU (D420) connector and engine harness checks
- Step 2A – Electrical checks, isolation of short circuit, engine harness
- Step 3 – PCI ECU (D420) checks
- Step 3A – Investigate related DTCs
- Step 4 – Repair verification
- Step 4A – Repair verification cycles
- Step 4B – DAVIE diagnostics, quick check, active DTCs
Key diagnostic procedures

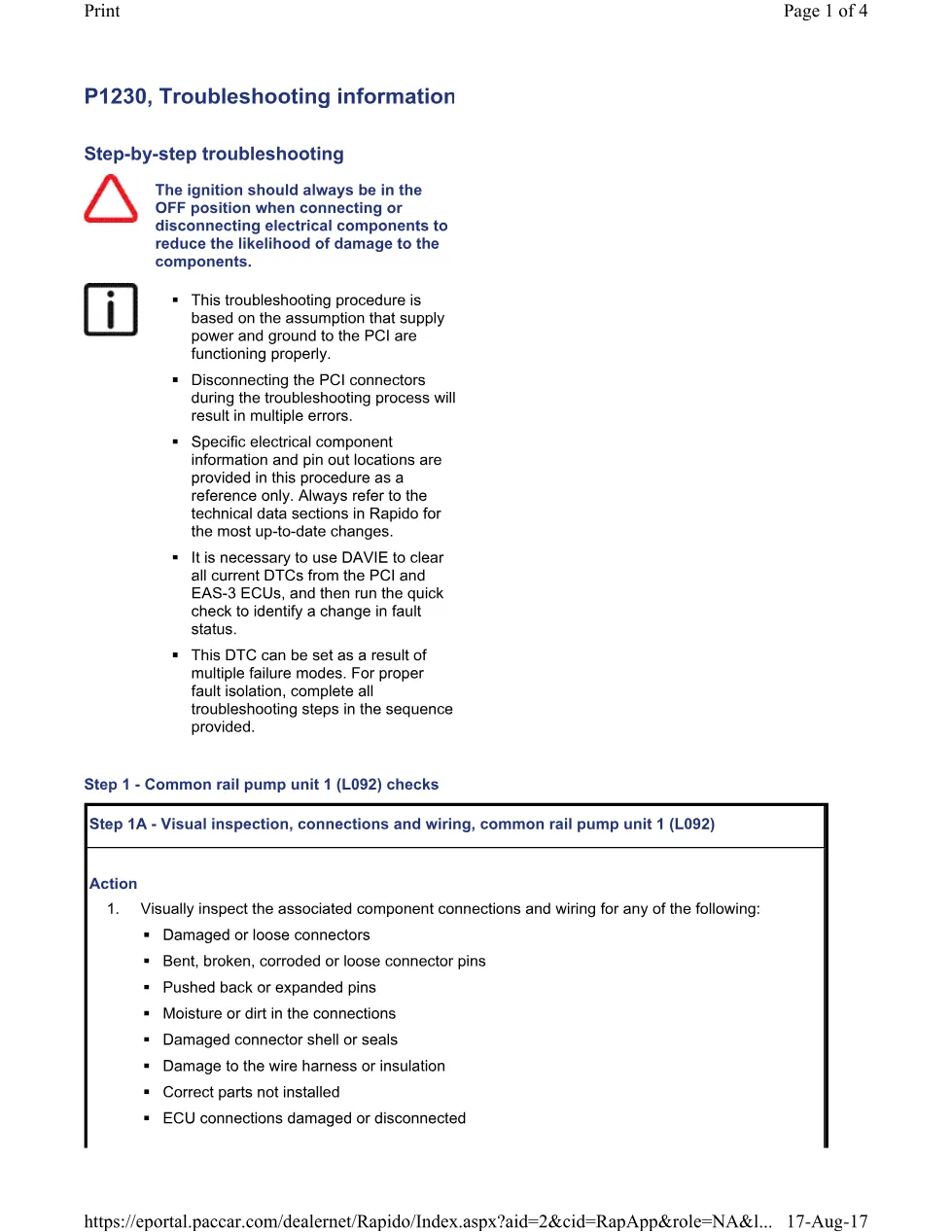

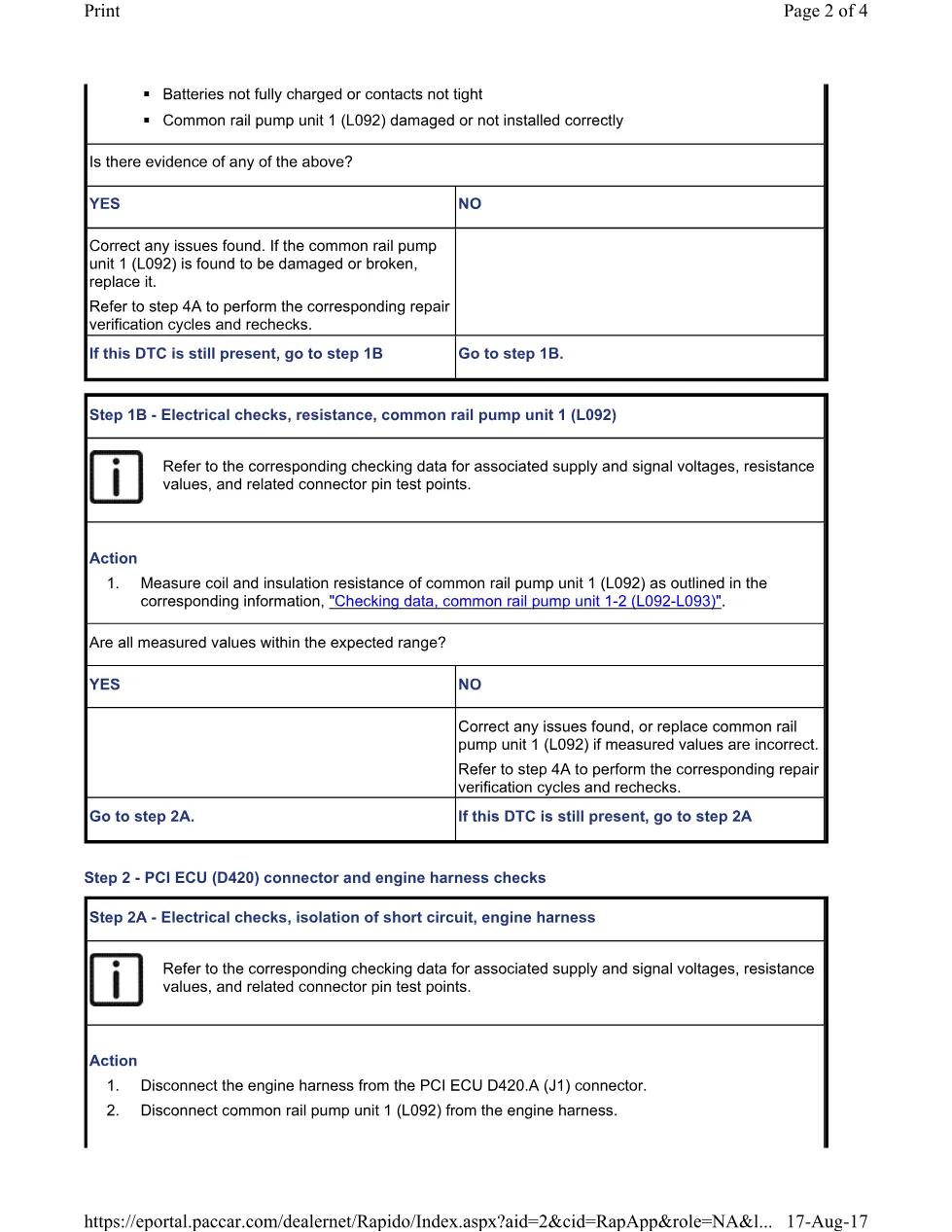

The PACCAR P1230 DTC troubleshooting process begins with visual inspection of the common rail pump unit 1 connector, wiring harness, and ECU connections for damage, corrosion, or loose pins. Technicians must measure coil and insulation resistance values against manufacturer specifications before proceeding to electrical isolation tests on the engine harness.

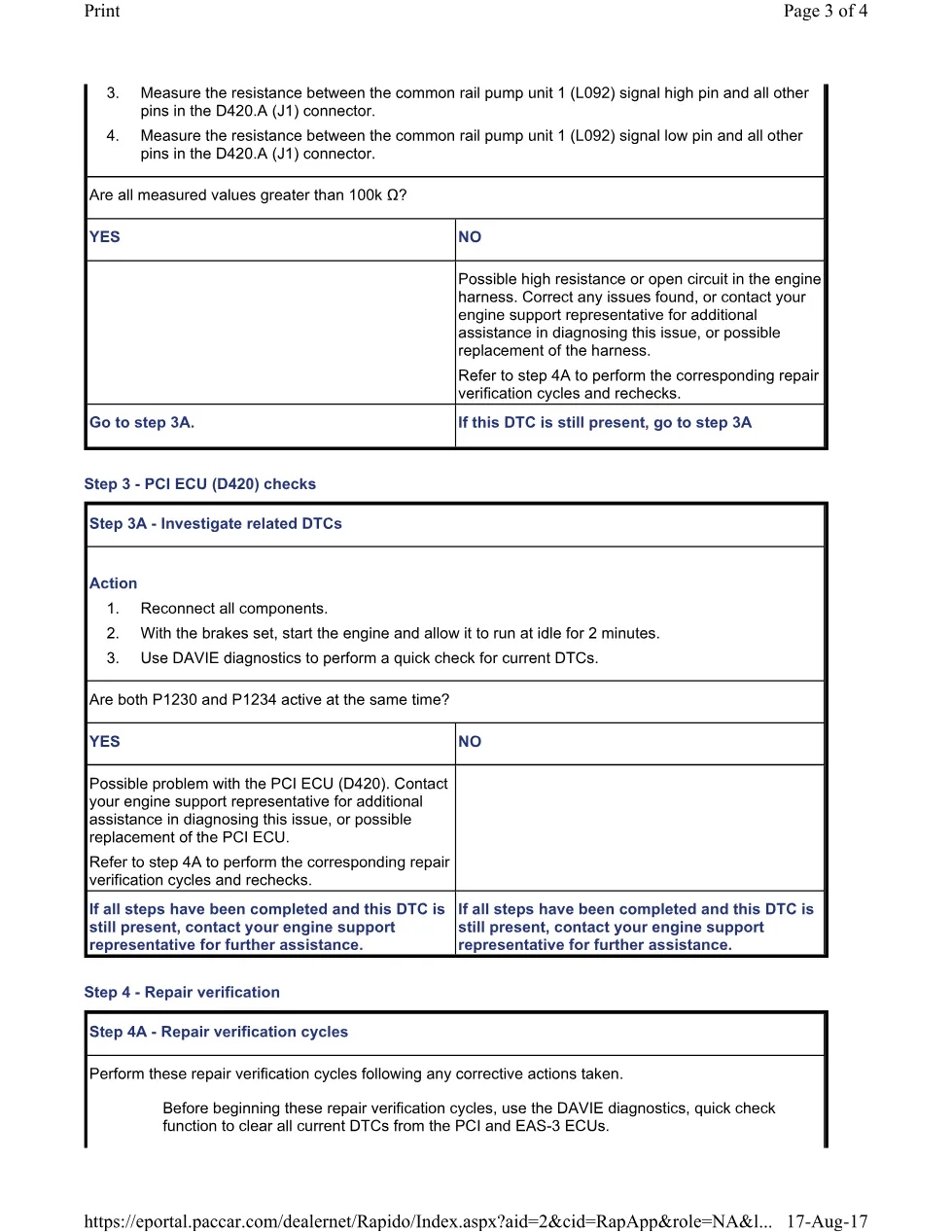

Critical steps include disconnecting the PCI ECU D420.A connector and measuring resistance between signal pins and all other harness pins to isolate short circuits. The document emphasizes that the ignition must remain OFF when connecting or disconnecting components to prevent electrical damage.
Repair verification requires clearing all DTCs using DAVIE diagnostics, running initialization cycles with the ignition in the ON position, and confirming P1230 status changes to inactive. If both P1230 and P1234 codes remain active simultaneously after component checks, the PCI ECU itself may require replacement.
Applies to these models
This PACCAR P1230 DTC troubleshooting manual applies to PACCAR MX-series diesel engines manufactured to EPA 2004 emissions standards. The procedures target fault codes in the common rail fuel pump injection system and associated PCI engine control modules used in medium and heavy-duty trucks. PACCAR official website
Who needs this PACCAR P1230 DTC troubleshooting guide
Certified diesel technicians, fleet maintenance managers, and independent workshop owners diagnosing PACCAR engine fault codes require this P1230 DTC troubleshooting reference. The structured diagnostic approach ensures accurate fault isolation without unnecessary component replacement and reduces diagnostic time in high-volume repair environments.
