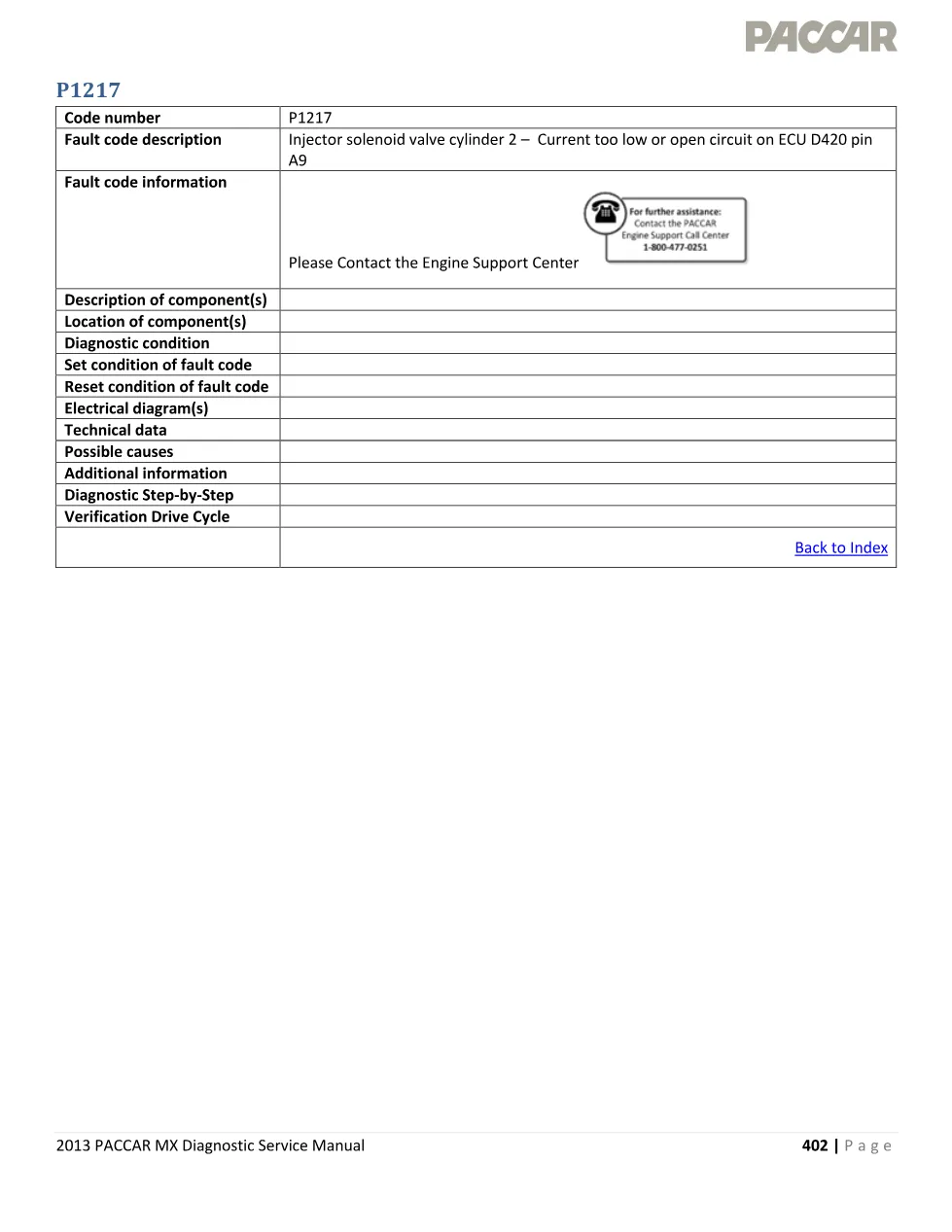

This document is the 2013 PACCAR MX Diagnostic Service Manual covering the PACCAR P1217 injector solenoid code. Published by PACCAR for engine technicians and workshop diagnosticians, it provides fault identification, component location, diagnostic conditions, and step-by-step verification procedures specific to cylinder 2 injector solenoid valve circuit failures on ECU D420 pin A9.
The manual addresses current-too-low and open-circuit fault conditions that trigger code P1217 during MX engine operation, offering structured diagnostic guidance for rapid fault isolation and resolution.
Document details and specifications — PACCAR P1217 injector
| Brand | PACCAR |
| Model coverage | MX Engines (EPA 2013) |
| System/Group | DTCs / MX Engines (EPA2013) |
| Publication no. | Not specified |
| Year/Revision | 2013 |
| Pages | 1 |
| File size | 0.4 MB |
| Format | |
| Language | English |
Table of contents
- Code number: P1217
- Fault code description: Injector solenoid valve cylinder 2 – Current too low or open circuit on ECU D420 pin A9
- Fault code information and Engine Support Center contact details
- Description of component(s)
- Location of component(s)
- Diagnostic condition
- Set condition of fault code
- Reset condition of fault code
- Electrical diagram(s)
- Technical data
- Possible causes
- Additional information
- Diagnostic Step-by-Step procedures
- Verification Drive Cycle
