This PACCAR P00BA DTC troubleshooting guide is an official technical manual published by PACCAR for diesel engine diagnostics on medium and heavy-duty trucks. The document covers systematic fault isolation procedures for P00BA fuel system fault codes on MX Europe engines certified to EPA 2004 emissions standards. It provides step-by-step instructions using DAVIE diagnostic software and detailed component inspection sequences.
The PACCAR P00BA DTC troubleshooting manual is structured around six primary diagnostic phases: active and inactive fault code verification, high-pressure fuel component inspection, engine start condition review, low-pressure fuel system pressure testing, high-pressure fuel system evaluation using DAVIE diagnostic tests, and repair verification cycles. Each section contains conditional decision trees to isolate the root cause efficiently without unnecessary component replacement.
Document details and specifications — PACCAR P00BA DTC
| Brand | PACCAR |
| Model coverage | MX Europe Engines (EPA 2004) |
| System/Group | DTCs / MX Europe Engines |
| Publication number | P00BA |
| Year/Revision | 15-Aug-2017 |
| Pages | 7 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Table of contents

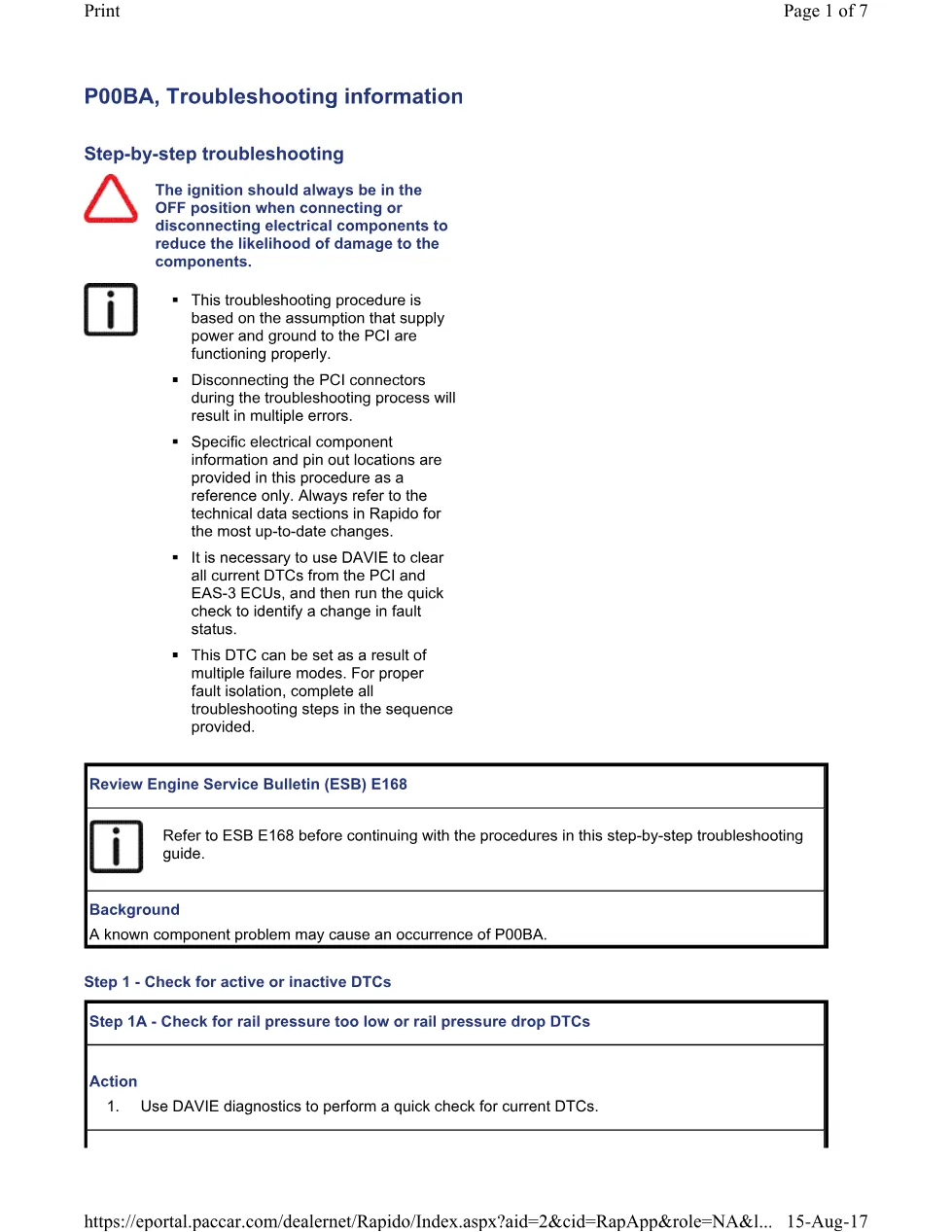

- Step-by-step troubleshooting overview and safety precautions

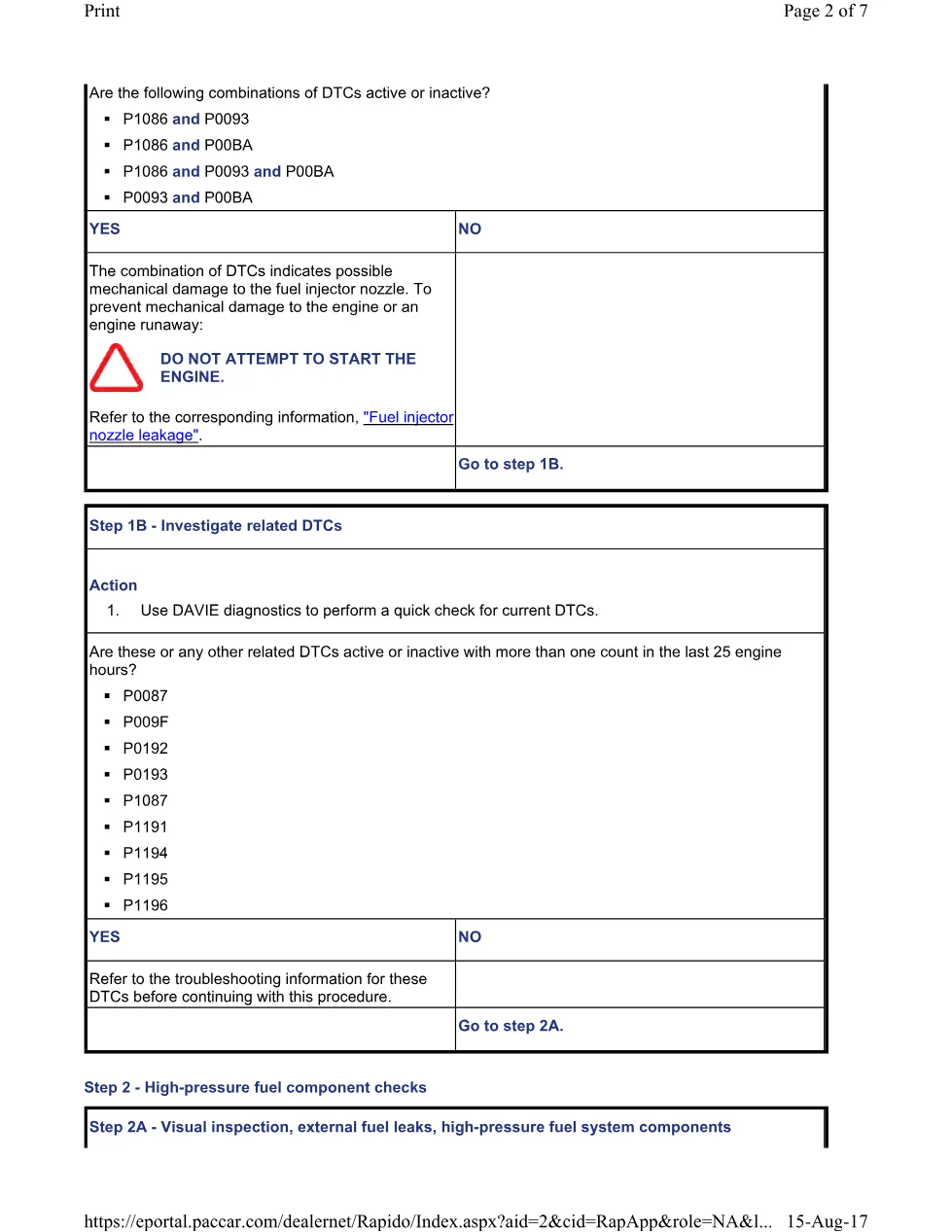

- Step 1A: Check for active or inactive DTCs (rail pressure combinations)
- Step 1B: Investigate related DTCs (P0087, P009F, P0192, P0193, P1087, P1191, P1194, P1195, P1196)

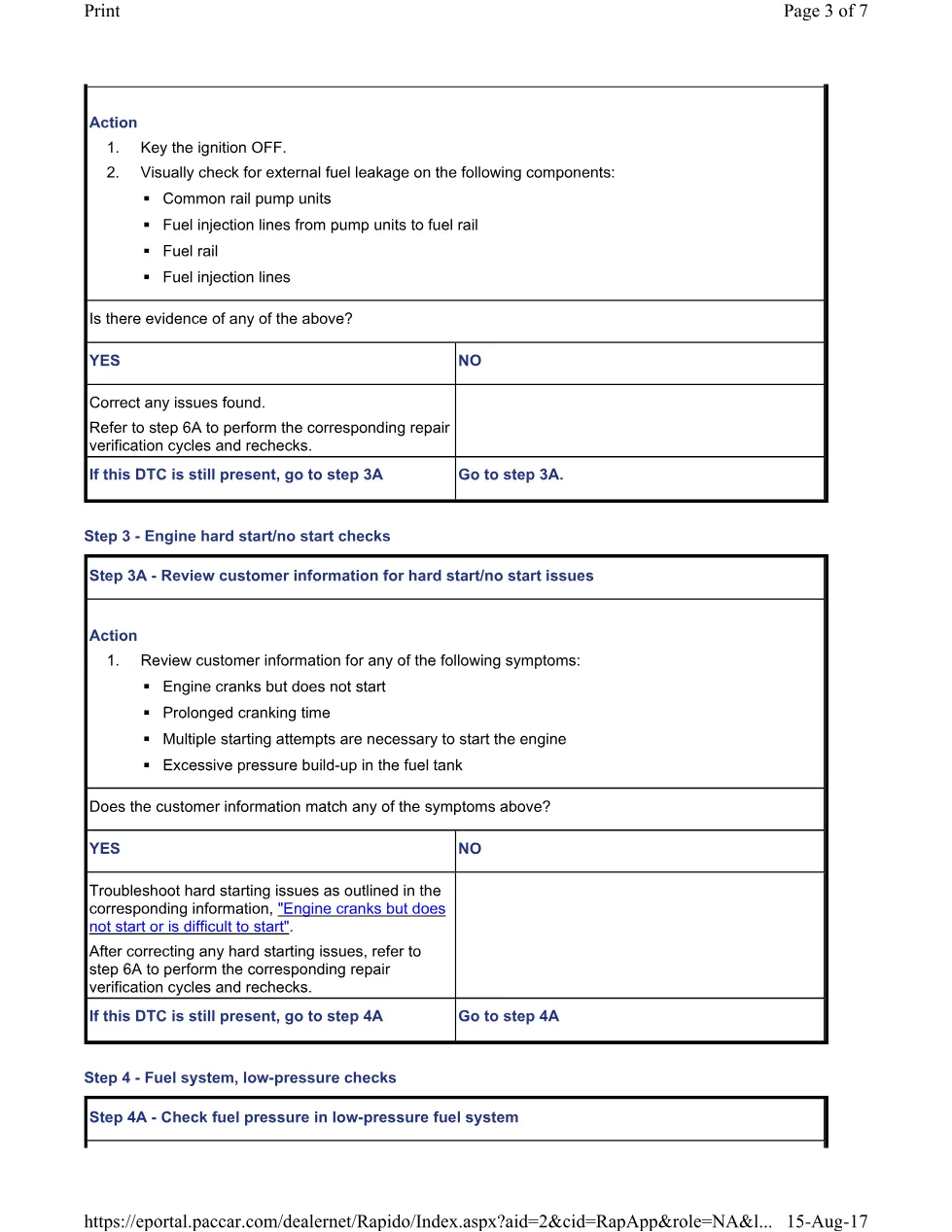

- Step 2A: Visual inspection of external fuel leaks and high-pressure fuel system components
- Step 3A: Review customer information for hard start/no start issues
- Step 4A: Check fuel pressure in low-pressure fuel system
- Step 5A: DAVIE test—Evaluate pump unit performance
- Step 5B: DAVIE test—Evaluate injector back leakage
- Step 6A: Repair verification cycles (System Initiation and Steady State)
- Step 6B: DAVIE diagnostics quick check for active DTCs after repair
Applies to these models
This PACCAR P00BA DTC troubleshooting guide applies to PACCAR MX Europe engines meeting EPA 2004 emissions standards. The procedures are applicable to fuel injection systems using common rail technology, high-pressure fuel pumps, fuel rails, and injector assemblies found on PACCAR medium and heavy-duty trucks distributed in European markets. PACCAR official website.
Who needs this P00BA DTC troubleshooting manual
Diesel mechanics and workshop owners servicing PACCAR trucks with MX Europe engines require this P00BA DTC troubleshooting guide to diagnose and resolve fuel system fault codes. Technicians must have access to DAVIE diagnostic software and fuel system testing equipment to complete the procedures outlined in this manual.
The complete P00BA DTC troubleshooting guide PDF is available in the DiagTechPro manuals library. A free account is required to download the full 7-page service document.
