The PACCAR MX P127A page of the 2013 PACCAR MX Diagnostic Service Manual is the manufacturer reference for diagnostic trouble code P127A, described in the manual as “EGR pressure difference – Data valid but too low”. It is a 6-page PDF section covering EGR pressure difference diagnostics on EPA2013 PACCAR MX engines, and it keeps the same layout as every other code page in that manual.
Document details and coverage
| Brand | PACCAR |
| Model coverage | PACCAR MX engines, EPA2013 emissions |
| System group | DTCs / MX Engines (EPA2013) |
| Source publication | 2013 PACCAR MX Diagnostic Service Manual |
| Fault code | P127A |
| Subject | EGR pressure difference |
| Pages | 6 |
| File size | 0.5 MB |
| Format | |
| Language | English |
What PACCAR MX P127A means

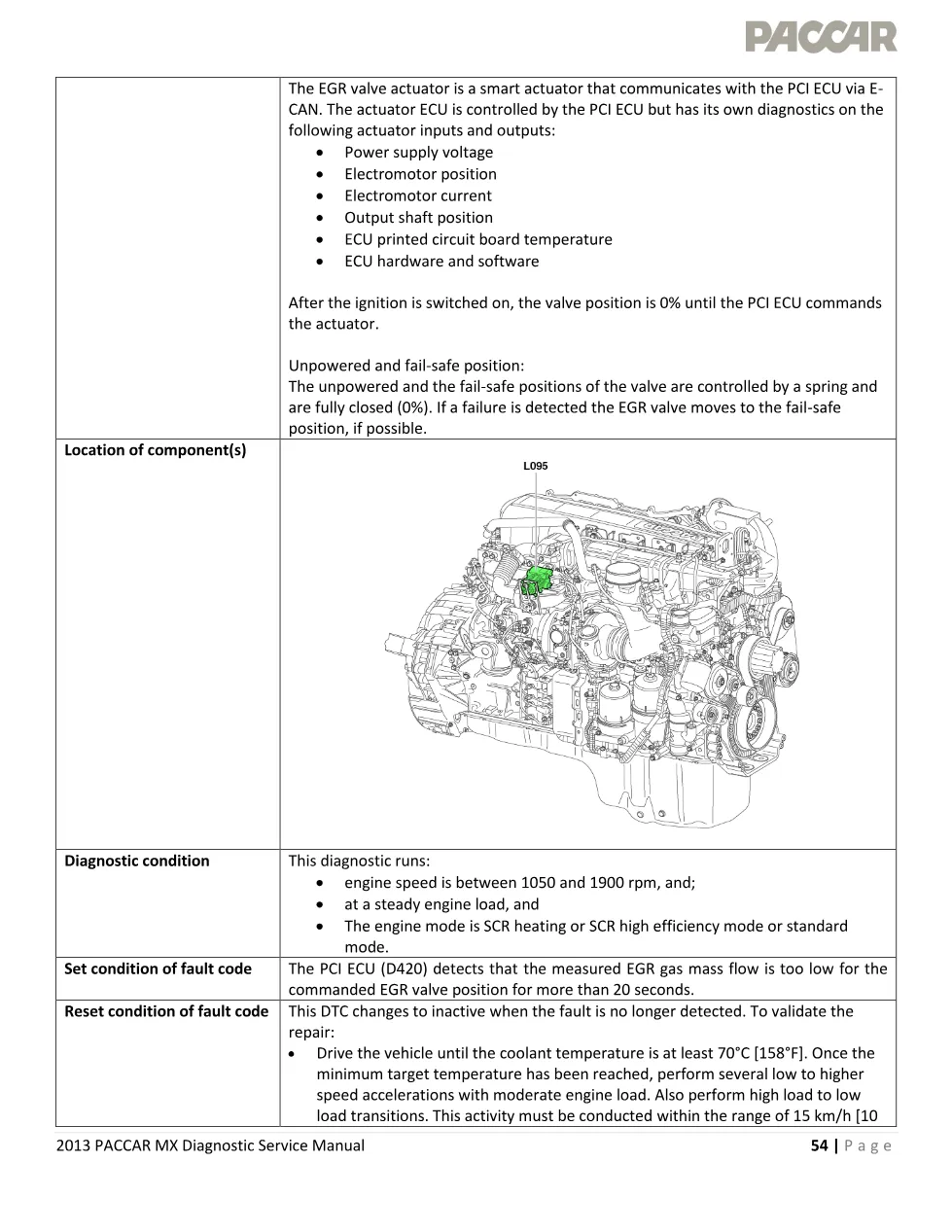

The manual files P127A as a 2 trip MIL code with 3 drive cycle recovery, readiness group None and freeze frame type Generic. The diagnostic runs when engine speed is between 1050 and 1900 rpm, engine load is steady and the engine mode is SCR heating, SCR high efficiency or standard. The code sets when the PCI ECU (D420) detects that measured EGR gas mass flow is too low for the commanded EGR valve position for more than 20 seconds, and it changes to inactive when the fault is no longer detected.
Possible causes and technical data
- Leaking EGR system
- Clogged EGR system
- Fouled EGR pressure difference sensor venturi
- Sticking EGR valve
- EGR pressure difference sensor deviation

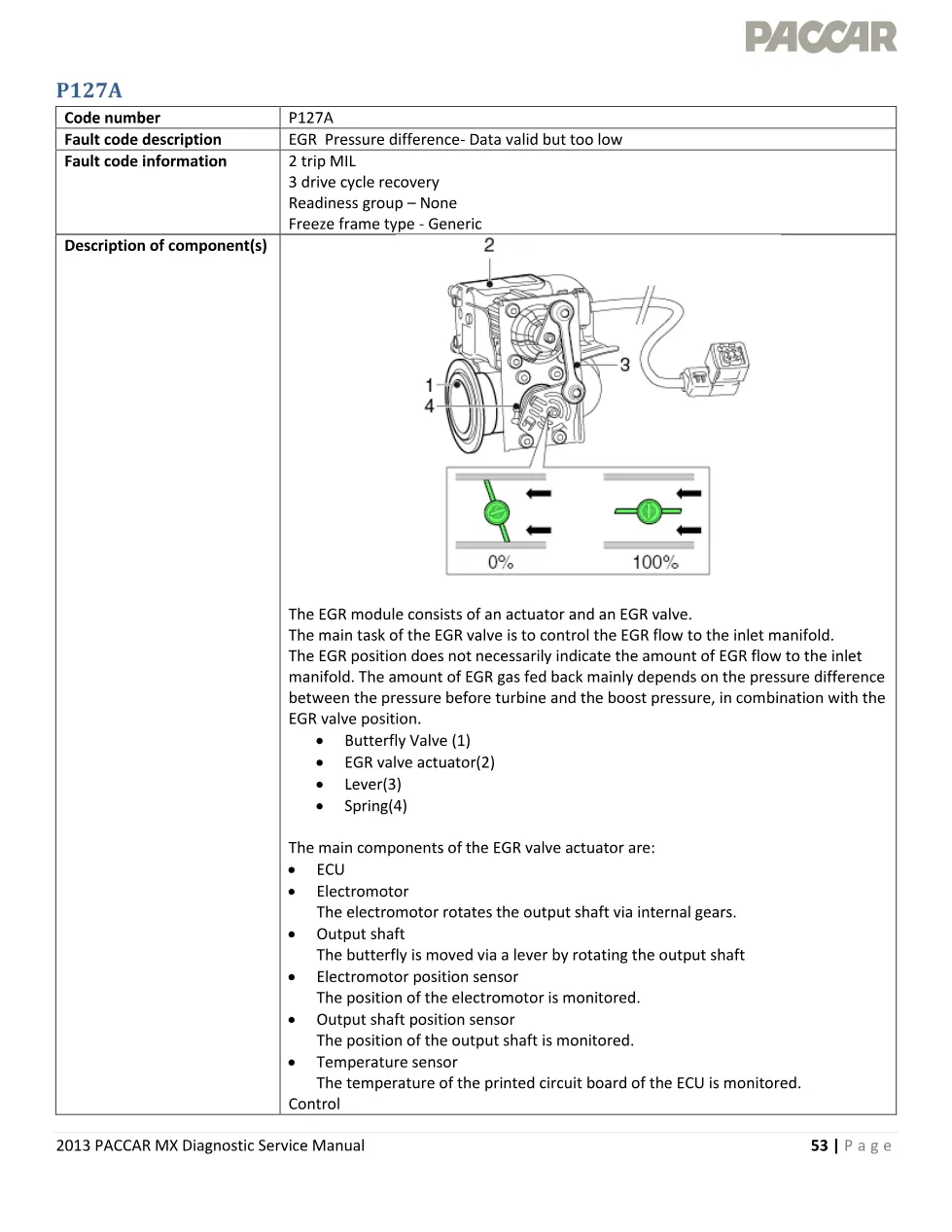

The manual explains that the EGR module is an actuator plus an EGR valve, that valve position does not by itself indicate flow, and it prints pin-to-pin measurement tables including a ± 60 Ω reading with the ignition switched on, taken with the DAVIE Vehicle Communication Interface connected. The page then runs 6 numbered troubleshooting steps, each with its own step ID, starting from a visual inspection of connectors and harness with the ignition off. The manual warns against back probing, notes that disconnecting the EAS connectors during troubleshooting produces multiple errors, and reminds the technician to exit the fault code menu in DAVIE and rerun the test before judging whether anything changed.
Who needs this PACCAR MX P127A manual page
Heavy-duty technicians, fleet shops and independent workshops diagnosing Kenworth and Peterbilt trucks with EPA2013 PACCAR MX engines use this page to confirm what the ECU actually measured before parts are ordered. For engine literature, dealer locations and support contacts beyond this single code, start at the PACCAR corporate website.

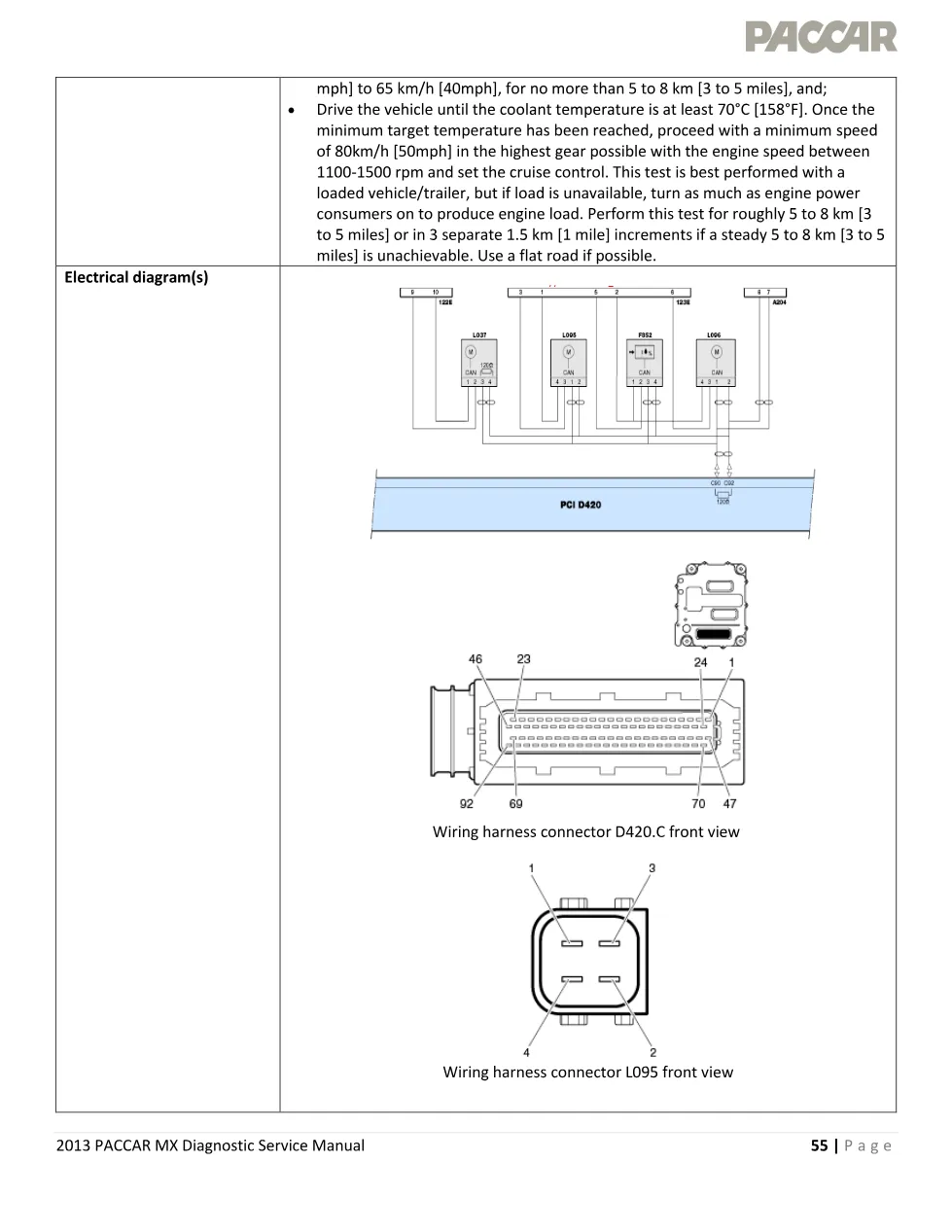

The complete PACCAR MX P127A extract from the 2013 PACCAR MX Diagnostic Service Manual is filed in the DiagTechPro manuals library, where the 6-page PDF can be viewed or downloaded with a free account.
