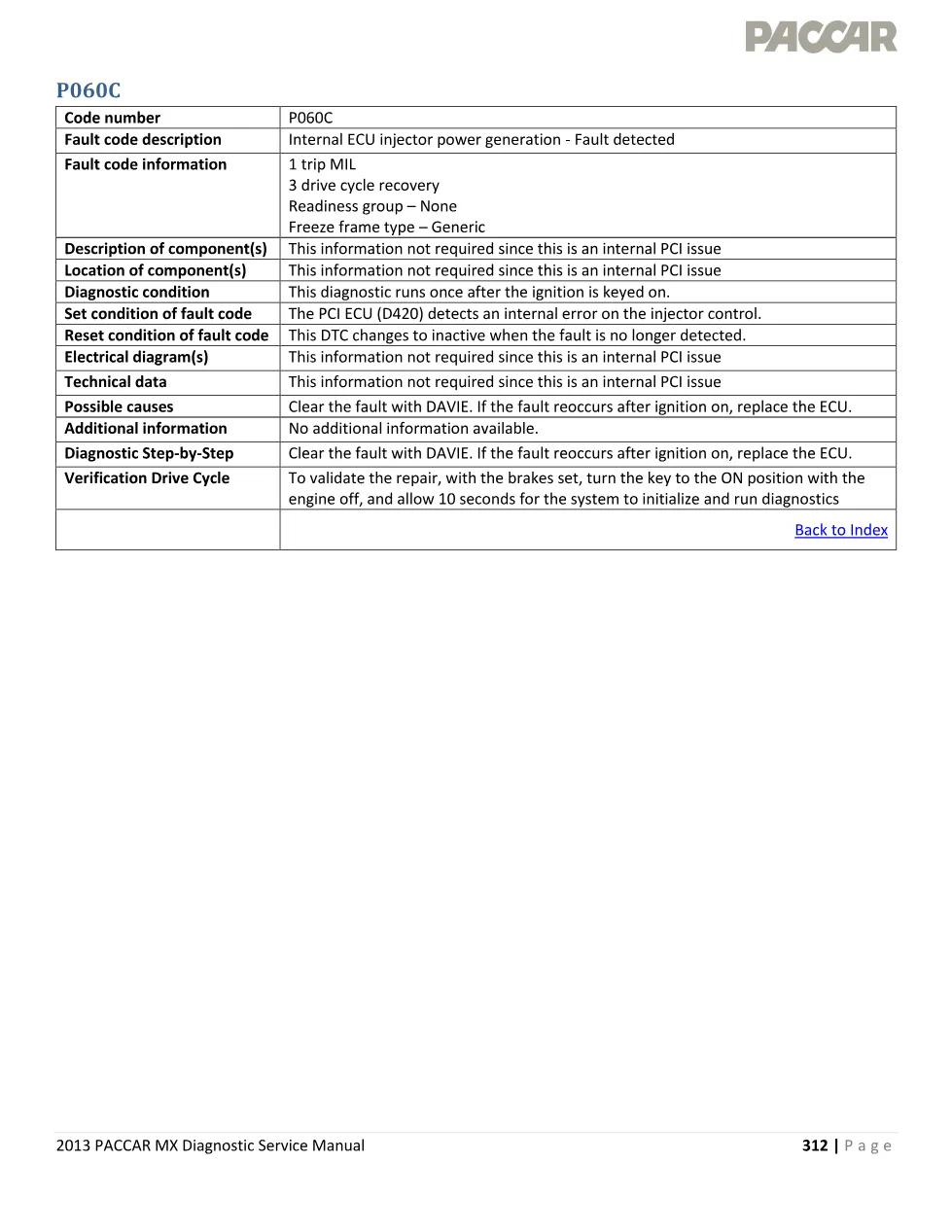

PACCAR MX P060C is the diagnostic trouble code documented on this 1 page extract from the 2013 PACCAR MX Diagnostic Service Manual, published by PACCAR for EPA2013 MX engines. PACCAR prints the fault as “Internal ECU injector power generation – Fault detected”, in the manual’s standard fault code layout.
Document details for PACCAR MX P060C
| Brand | PACCAR |
|---|---|
| Model coverage | PACCAR MX engines, EPA2013 emissions level |
| System / group | DTCs / MX Engines (EPA2013) |
| Source publication | 2013 PACCAR MX Diagnostic Service Manual |
| Fault code | P060C — Internal ECU injector power generation – Fault detected |
| Pages | 1 |
| File size | 0.4 MB |
| Format | |
| Language | English |
Fault code summary and monitor data
The manual lists the code as 1 trip MIL with 3 drive cycle recovery, no readiness group and a generic freeze frame type. The diagnostic runs once after the ignition is keyed on.
- Code number
- Fault code description
- Fault code information
- Description of component(s)
- Set condition of fault code
- Reset condition of fault code
- Possible causes
- Diagnostic Step-by-Step
- Verification Drive Cycle
Component and system background
PACCAR treats this as an internal PCI issue, so the manual prints no component description, no location drawing, no electrical diagram and no technical data table. The page states plainly that this information is not required because the problem sits inside the control unit itself.
Set and reset conditions for PACCAR MX P060C
The code is set when the PCI ECU (D420) detects an internal error on the injector control, and it changes to inactive when the fault is no longer detected. The listed repair is to clear the fault with DAVIE; if it returns after ignition on, the ECU is replaced. Verification is done with the brakes set, key ON and the engine off, allowing 10 seconds for the system to initialise and run diagnostics.
Applies to EPA2013 MX engines
The PACCAR MX P060C entry sits in the DTCs / MX Engines (EPA2013) section, so it applies to PACCAR MX engines built to that emissions level. Manufacturer product information is published on the PACCAR corporate website.
Who needs the PACCAR MX P060C fault code page
Technicians reading a live code, foremen writing an estimate and fleet managers deciding whether a truck stays in service all need the manufacturer wording rather than a generic code list.
The full PDF for MX P060C is in the DiagTechPro manuals library; a free account is required to download it.
