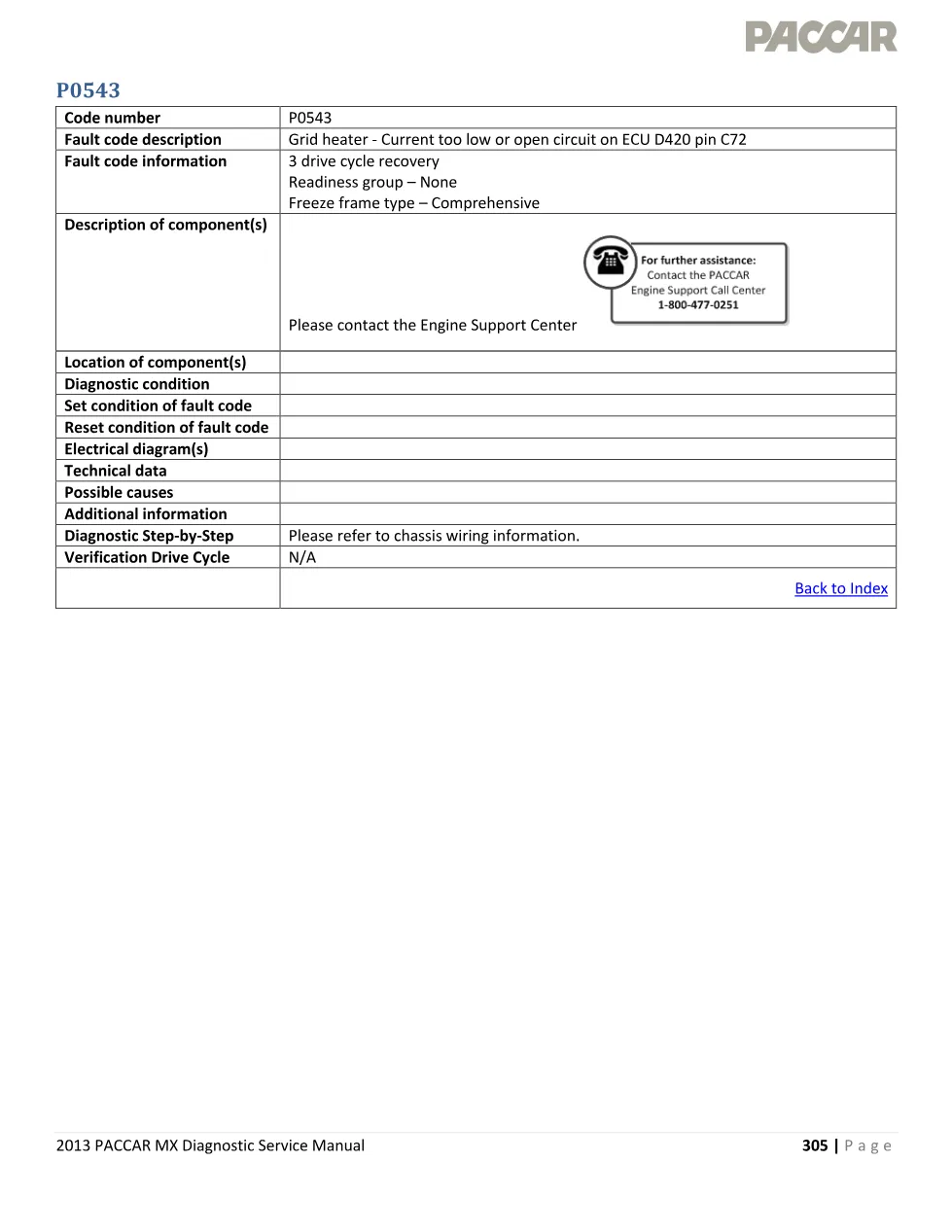

PACCAR MX P0543 is the fault-code chapter of the 2013 PACCAR MX Diagnostic Service Manual covering grid heater current too low, or an open circuit on ECU D420 pin C72. It carries three drive cycle recovery, no readiness group and a comprehensive freeze frame type, so the header block is filled in even though the body is not. The step-by-step field is answered with a single referral: refer to chassis wiring information, and the verification drive cycle is marked as not applicable.
Document details at a glance
| Brand | PACCAR |
|---|---|
| Model coverage | PACCAR MX engines, EPA 2013 emissions level |
| System group | DTCs, MX Engines EPA2013 |
| Source publication | 2013 PACCAR MX Diagnostic Service Manual, page 305 |
| Pages | 1 |
| File size | 0.3 MB |
| Format | |
| Language | English |
What the PACCAR MX P0543 chapter covers
- The circuit-level fault description naming ECU D420 pin C72
- Fault code information: three drive cycle recovery and a comprehensive freeze frame
- The instruction to contact the Engine Support Center in place of a component description
- The referral of the whole procedure to chassis wiring information
- Confirmation that no verification drive cycle applies to this code
- Confirmation that no resistance table or possible-cause list is printed
Diagnostic step sequence and verification
Inside PACCAR MX P0543 the procedure runs as follows. This is the rare code whose procedure lives outside the engine manual entirely. Because the grid heater draws its current through the chassis side, PACCAR sends the technician to the chassis wiring documentation rather than printing an engine-harness tree here. The pin reference, D420 C72, is the anchor that connects the engine-side code to that chassis-side circuit.
Trucks and engines it applies to
The entry covers EPA 2013 PACCAR MX engines with an intake grid heater in Kenworth and Peterbilt trucks, where cold-start behaviour is the usual complaint. Model programmes and dealer support for these engines are listed on the PACCAR corporate site.
Who needs the PACCAR MX P0543 chapter
Workshops handling hard cold starting or white smoke on start need this entry, because it tells them immediately that the wiring answer sits in the chassis documentation, not the engine manual.
The complete PDF of the PACCAR MX P0543 chapter is filed in the DiagTechPro manuals library, where a free account is required to download it alongside the rest of the MX Engines EPA2013 fault-code set.
