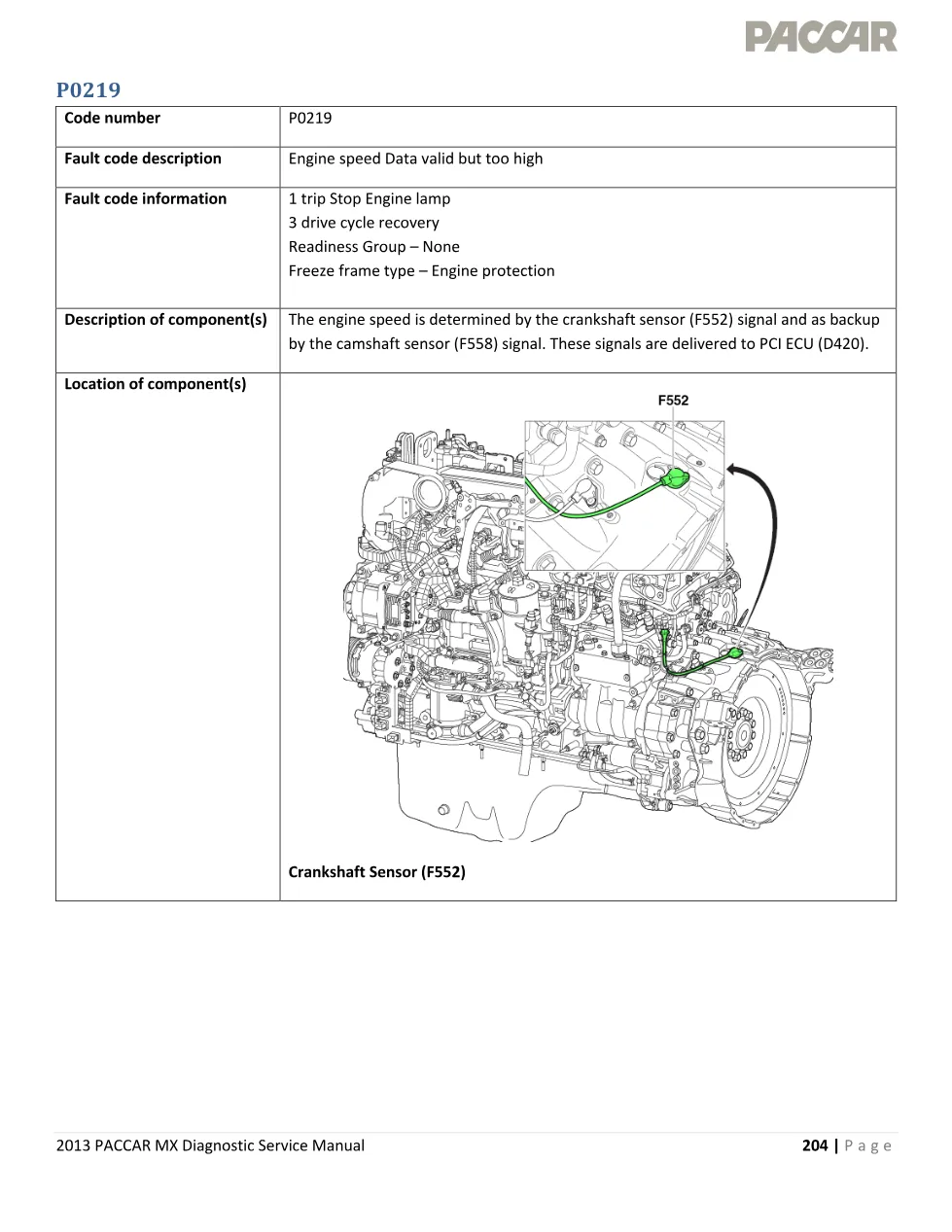

PACCAR MX P0219 is the fault-code chapter of the 2013 PACCAR MX Diagnostic Service Manual covering engine speed data that is valid but too high, in other words a recorded engine overspeed event. It is a one-trip Stop Engine lamp code with three drive cycle recovery and an engine protection freeze frame. Engine speed comes from crankshaft sensor F552 and, as backup, from camshaft sensor F558, both feeding PCI ECU D420.
Document details at a glance
| Brand | PACCAR |
|---|---|
| Model coverage | PACCAR MX engines, EPA 2013 emissions level |
| System group | DTCs, MX Engines EPA2013 |
| Source publication | 2013 PACCAR MX Diagnostic Service Manual, pages 204 to 209 |
| Pages | 6 |
| File size | 0.8 MB |
| Format | |
| Language | English |
What the PACCAR MX P0219 chapter covers
- Set condition: engine speed above 2300 rpm for more than one second, which lights the red lamp
- The code cannot be cleared from ECU memory, so the Engine Support Center must be contacted

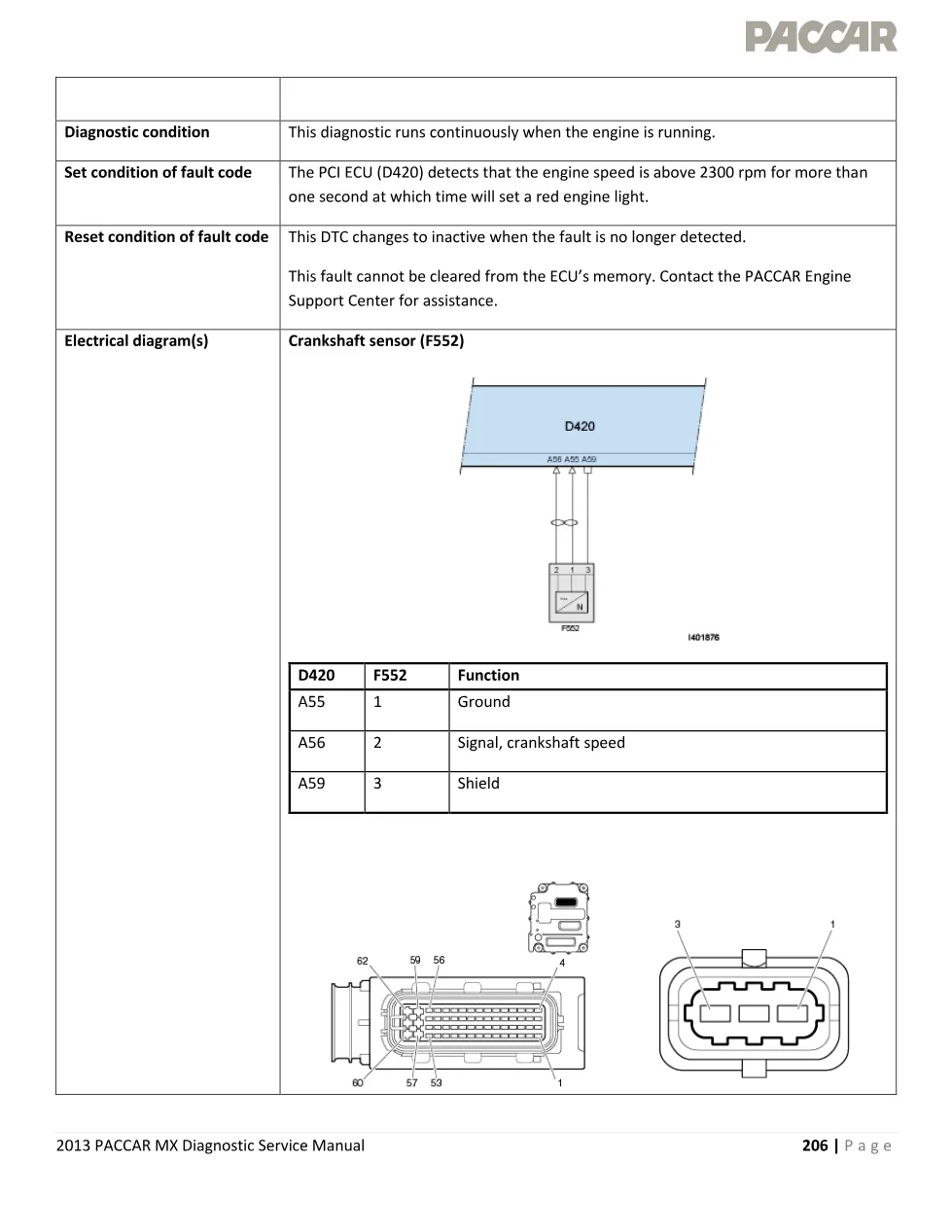

- Pin functions for crankshaft sensor F552 at D420 A55, A56 and A59

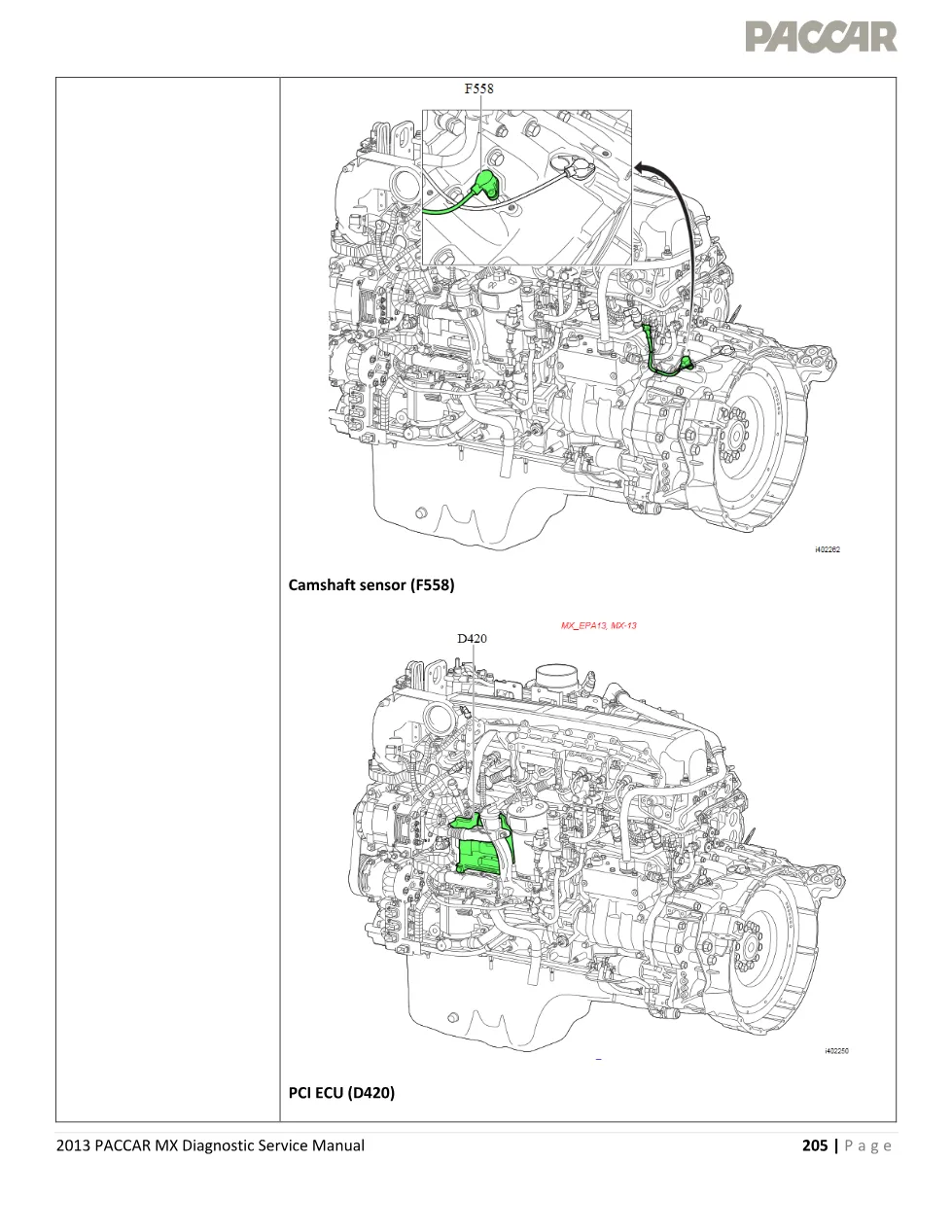

- Pin functions for camshaft sensor F558 at D420 A53, A54 and A57
- Component checks giving 774 to 964 Ω at 20°C, plus AC readings while cranking, at idle and at 1200 rpm
- Possible causes including ether overuse, sensor synchronisation and injector overhead setting
Diagnostic step sequence and verification
Inside PACCAR MX P0219 the procedure runs as follows. This chapter states plainly that the trouble code is informational and no troubleshooting is required. The single listed step is to contact the PACCAR Engine Support Call Center on 1-800-477-0251 if the code appears repeatedly or will not clear. PACCAR also advises interviewing the driver, since the fault is usually inactive by the time a technician plugs in.
Trucks and engines it applies to
The chapter covers EPA 2013 PACCAR MX engines in Kenworth and Peterbilt trucks, where the red Check Engine lamp is enabled above 2300 rpm and disabled once speed falls back below it. Model programmes and dealer support for these engines are listed on the PACCAR corporate site.
Who needs the PACCAR MX P0219 chapter
Fleet managers and warranty staff lean on this chapter as much as technicians do, because it shows the code records an event rather than a circuit failure waiting to be replaced.
The complete PDF of the PACCAR MX P0219 chapter is filed in the DiagTechPro manuals library, where a free account is required to download it alongside the rest of the MX Engines EPA2013 fault-code set.
