PACCAR MX P0182 is the fault code page for “Fuel temperature – Voltage too low or short circuit to ground on ECU D420 pin A42” in the 2013 PACCAR MX Diagnostic Service Manual. PACCAR publishes it for engines in the EPA 2013 emissions family, and it is worked with the DAVIE diagnostic software.
What this fault code means

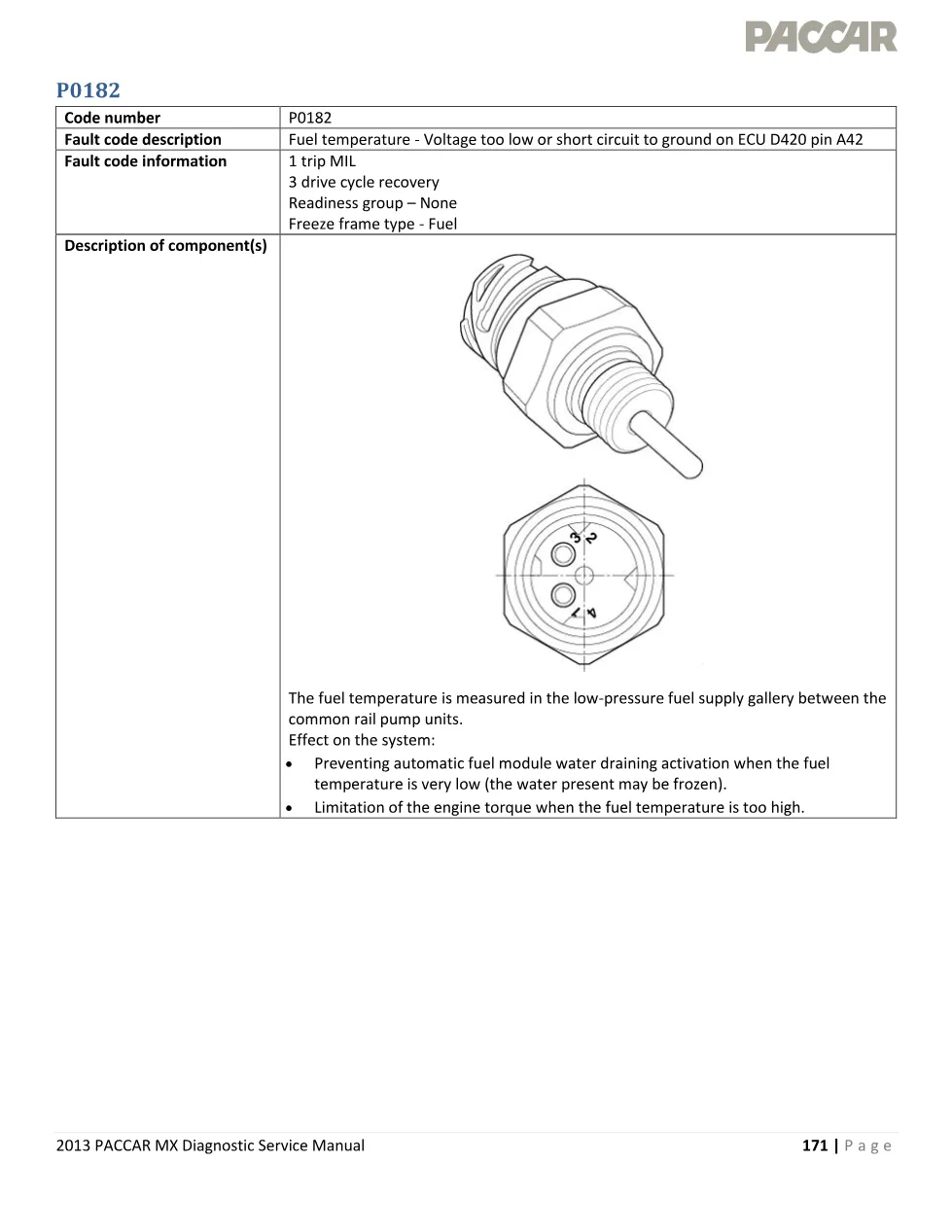

Fuel temperature sensor F803 is fitted in the low-pressure fuel supply gallery between the common rail pump units. The signal stops automatic fuel module water draining when the fuel may be frozen and limits engine torque when the fuel is too hot.
Set and reset conditions

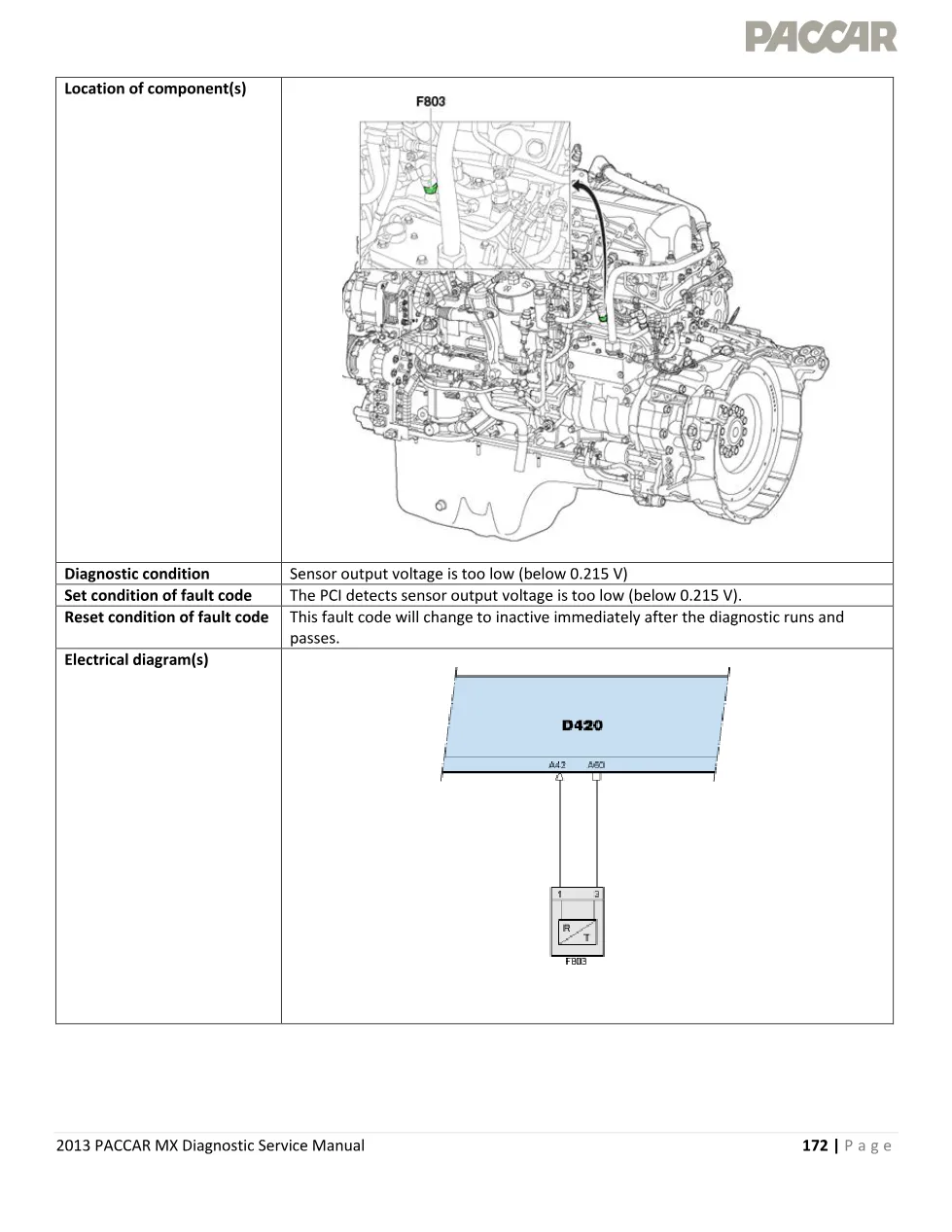

The code sets when the PCI detects sensor output voltage below 0.215 V, and changes to inactive immediately after the diagnostic runs and passes. That threshold is what separates this code from a plausibility fault on the same sensor.
PACCAR MX P0182 wiring and technical data

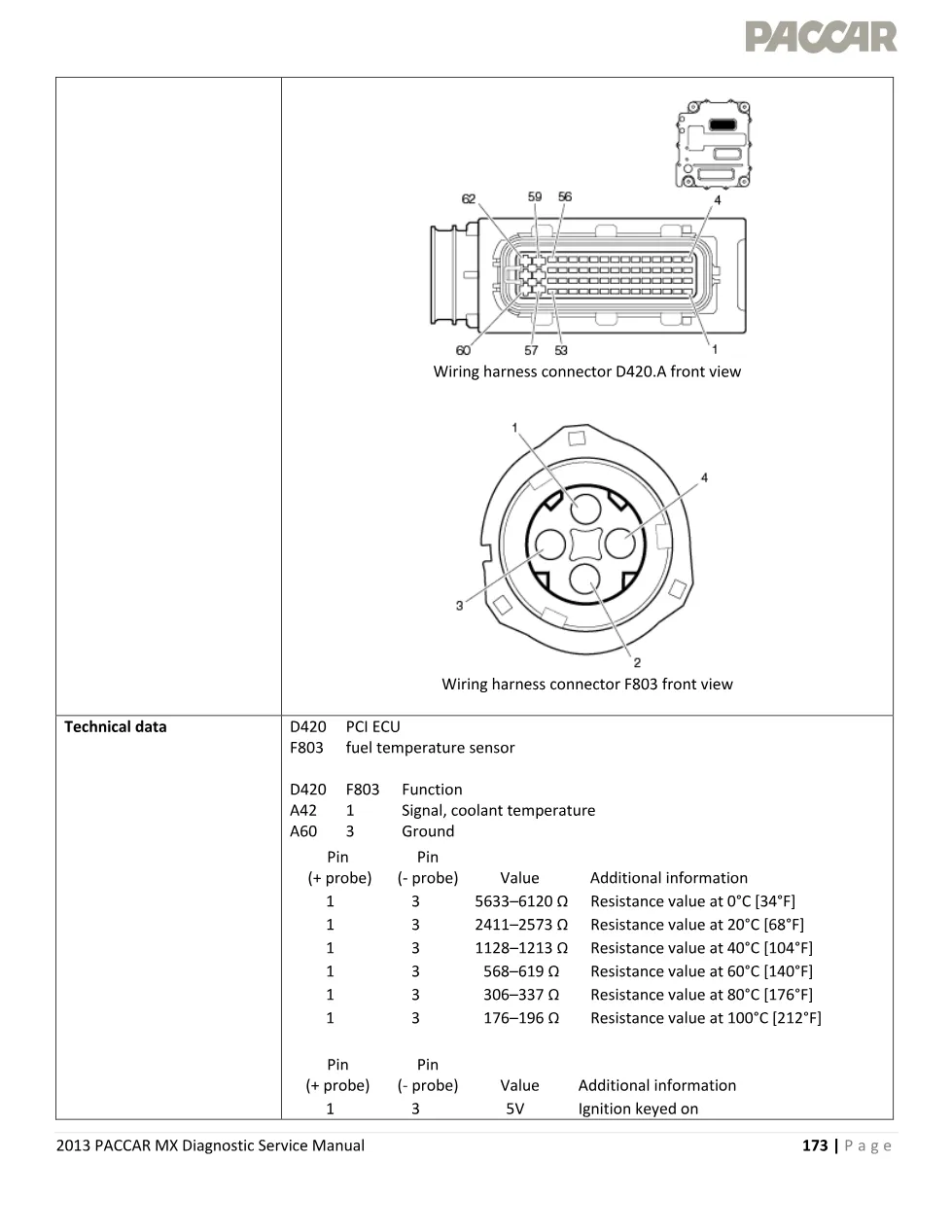

Signal and ground run to connector D420.A, and the resistance table lets you decide at the bench whether the sensor itself is shorted. The fault code information block records it as 1 trip MIL, 3 drive cycle recovery, readiness group none, freeze frame type Fuel.
| D420 pin | F803 pin | Function |
|---|---|---|
| A42 | 1 | Signal |
| A60 | 3 | Ground |
| – | 1 to 3 | 1128 to 1213 ohm at 40 C |
Possible causes and working notes
- Faulty wiring
- Faulty connector
- Faulty sensor
Use a breakout harness rather than back probing, and keep the ignition off whenever you connect or disconnect a component. The manual also reminds you to exit the fault code menu in DAVIE and rerun the diagnostic test before you decide anything changed.
Document details and format
| Field | Value |
|---|---|
| Brand | PACCAR |
| System group | DTCs, MX Engines (EPA2013) |
| Source publication | 2013 PACCAR MX Diagnostic Service Manual |
| Manual page | 171 |
| Pages | 9 |
| File size | 0.5 MB |
| Format | PDF, English |
Applies to PACCAR MX P0182 repairs
The page sits in the DTCs section for MX engines built to the EPA 2013 emissions standard, so it covers trucks running that engine family with the PCI engine control unit. Coverage and dealer support are published on the PACCAR corporate site.
Who needs this PACCAR MX P0182 page
Technicians measuring a shorted fuel temperature circuit on a PACCAR MX engine who want the exact voltage threshold and pin.
The full PDF page is in the DiagTechPro manuals library; a free account downloads it. Keep the PACCAR MX P0182 sheet open next to DAVIE.
