PACCAR MX P0180 is the fault code page for “Fuel temperature – Data erratic, intermittent, or incorrect at ignition on” in the 2013 PACCAR MX Diagnostic Service Manual. PACCAR publishes it for engines in the EPA 2013 emissions family, and it is worked with the DAVIE diagnostic software.
What this fault code means

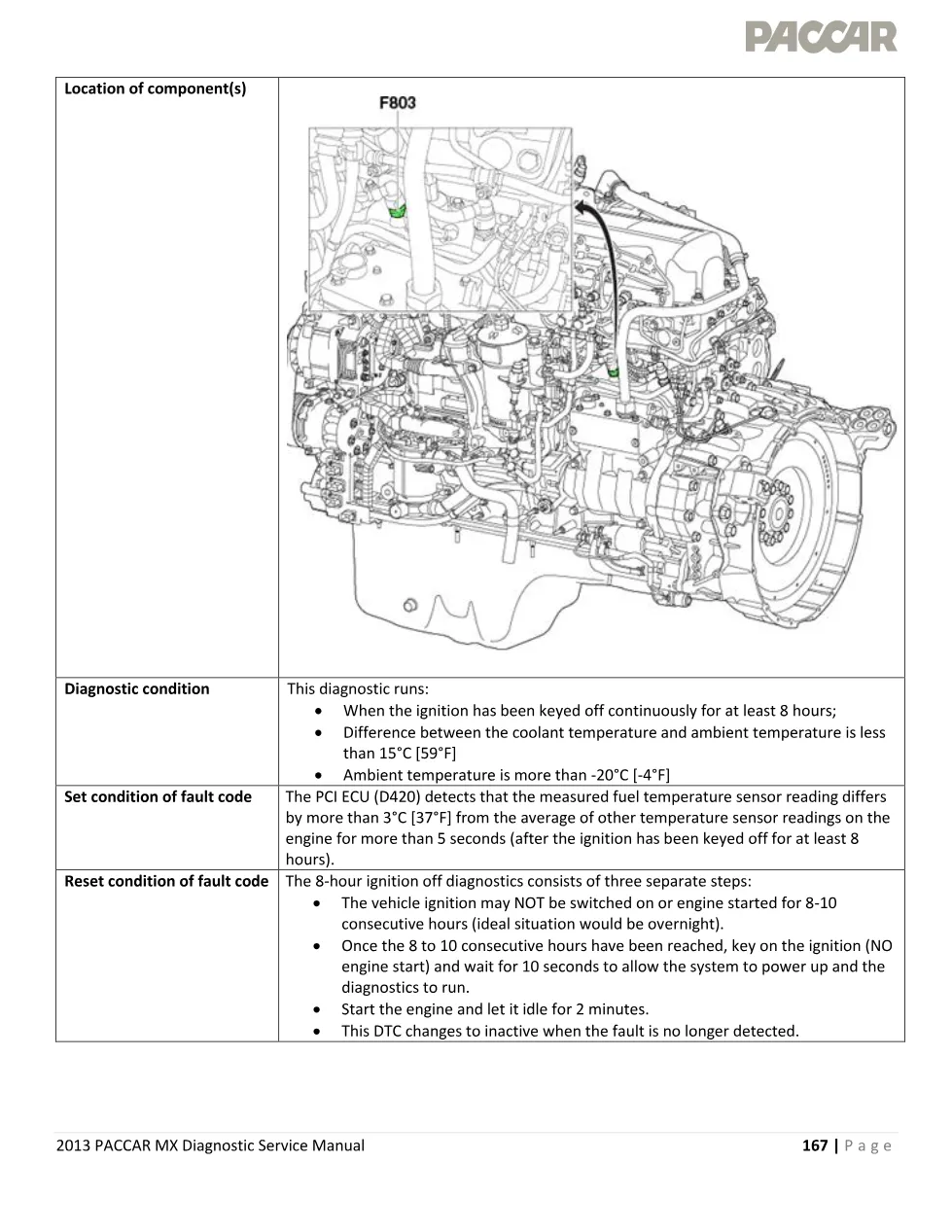

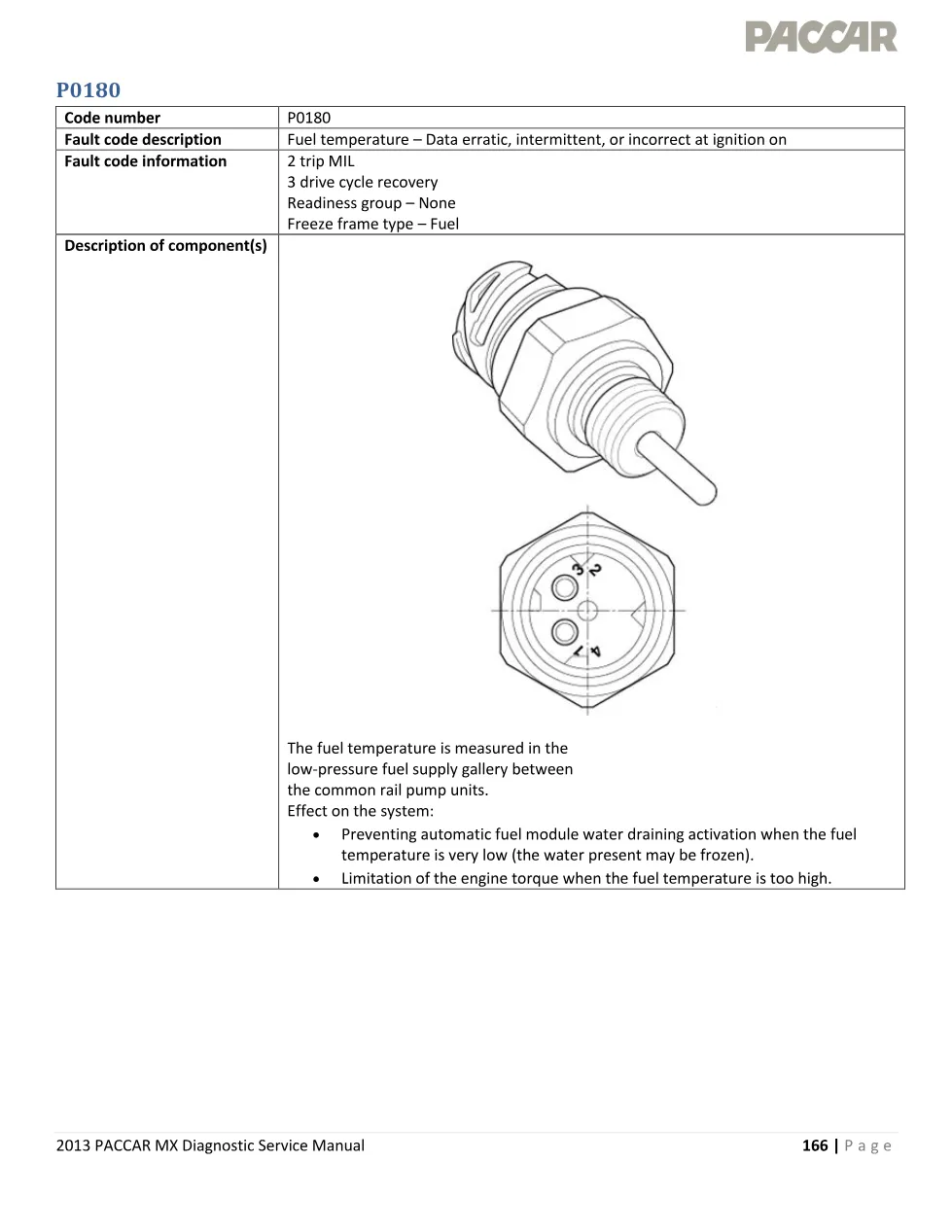

Fuel temperature sensor F803 sits in the low-pressure fuel supply gallery between the common rail pump units. Its reading prevents automatic fuel module water draining when the fuel is very cold and limits engine torque when the fuel is too hot.
Set and reset conditions
This is an 8-hour soak rationality check. It runs only after the ignition has been off at least 8 hours, with the coolant to ambient difference below 15 C and ambient above -20 C, and sets when the fuel temperature reading differs by more than 3 C from the average of the other engine temperature sensors.
PACCAR MX P0180 wiring and technical data

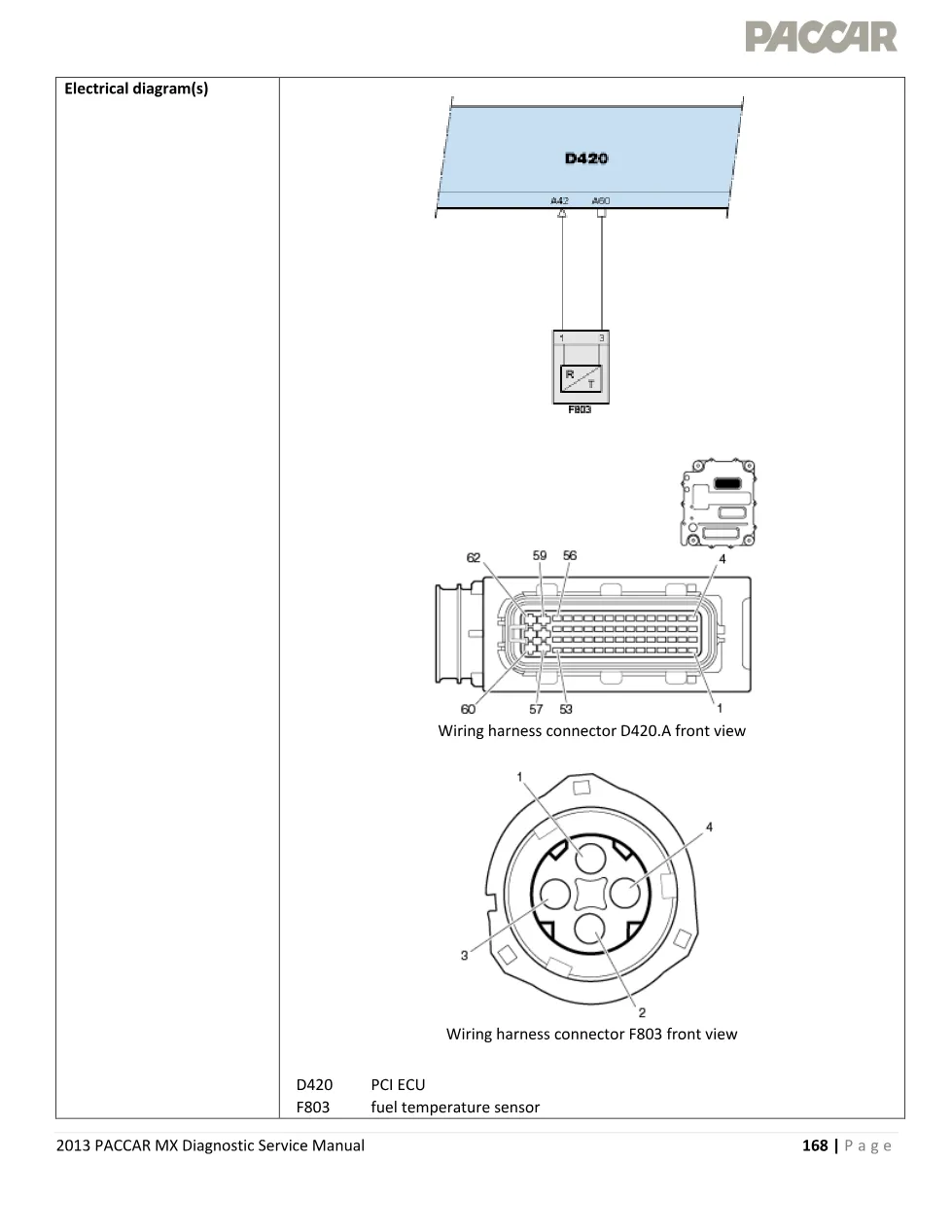

The manual gives the two ECU circuits plus the full resistance versus temperature table for the sensor. The fault code information block records it as 2 trip MIL, 3 drive cycle recovery, readiness group none, freeze frame type Fuel.
| D420 pin | F803 pin | Function |
|---|---|---|
| A42 | 1 | Signal |
| A60 | 3 | Ground |
| – | 1 to 3 | 5633 to 6120 ohm at 0 C |
Possible causes and working notes
- Fuel temperature sensor deviation
Resetting the check takes discipline: leave the truck 8 to 10 consecutive hours, then key on without starting and wait 10 seconds so the diagnostic can run, then start and idle for 2 minutes. Only one possible cause is listed.
Document details and format
| Field | Value |
|---|---|
| Brand | PACCAR |
| System group | DTCs, MX Engines (EPA2013) |
| Source publication | 2013 PACCAR MX Diagnostic Service Manual |
| Manual page | 166 |
| Pages | 5 |
| File size | 0.5 MB |
| Format | PDF, English |
Applies to PACCAR MX P0180 repairs
The page sits in the DTCs section for MX engines built to the EPA 2013 emissions standard, so it covers trucks running that engine family with the PCI engine control unit. Coverage and dealer support are published on the PACCAR corporate site.
Who needs this PACCAR MX P0180 page
Shops that must validate a temperature sensor repair on a PACCAR MX engine and need to schedule the overnight soak the diagnostic requires.
