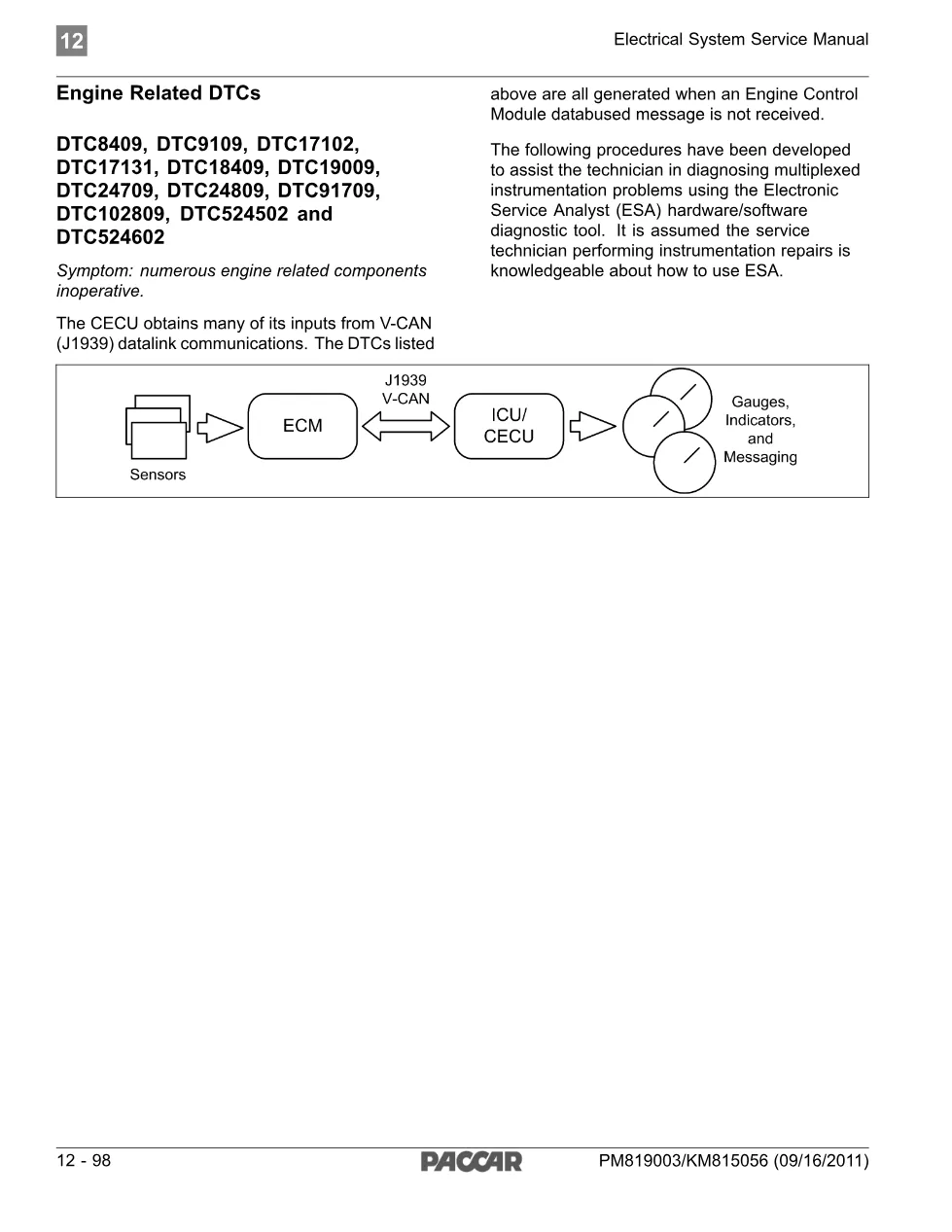

This PACCAR engine DTC diagnostic manual provides step-by-step guidance for diagnosing multiplexed instrumentation problems in PACCAR cab electrical systems manufactured in 2011 and newer. Published by PACCAR as part of their Electrical System Service Manual, it covers engine-related diagnostic trouble codes generated when the Cabin Electronic Control Unit (CECU) loses communication with the Engine Control Module over the J1939 datalink.
The document addresses a critical symptom: numerous engine-related components becoming inoperative simultaneously. When this occurs, the PACCAR engine DTC diagnostic helps technicians determine whether the root cause is a J1939 communication failure or individual sensor faults.
Document details and specifications — PACCAR engine DTC
| Brand | PACCAR |
| Model coverage | 2011 & Newer cab systems |
| System/Group | DTCs / Cab Electrical |
| Publication no. | PM819003/KM815056 |
| Year/Revision | 09/16/2011 |
| Pages | 2 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Table of contents
- Engine Related DTCs overview (codes 8409, 9109, 17102, 17131, 18409, 19009, 24709, 24809, 91709, 102809, 524502, 524602)
- Symptom description: numerous engine components inoperative
- CECU and J1939 datalink communication principles

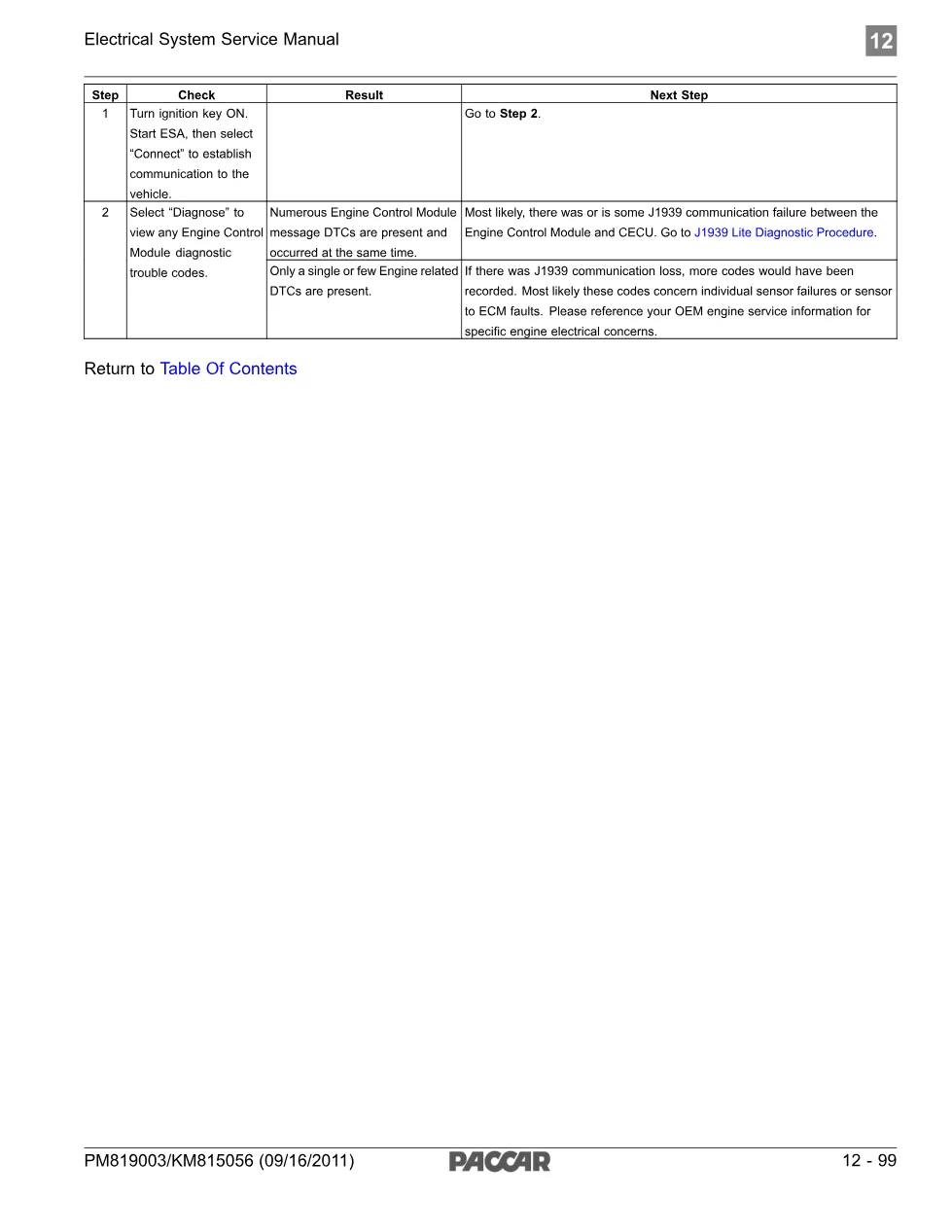

- Diagnostic procedure using Electronic Service Analyst (ESA)
- Step-by-step troubleshooting workflow
- Interpretation of multiple vs. single DTC occurrences
Applies to these models
This engine DTC diagnostic applies to all PACCAR cab electrical systems from 2011 onwards that use V-CAN (J1939) datalink communication between the Engine Control Module and Cabin Electronic Control Unit. It is essential for diagnosing engine-related faults across the multiplexed instrumentation network in modern PACCAR trucks. For official PACCAR documentation and specifications, visit PACCAR official.
Who needs this engine DTC diagnostic manual
Professional diesel mechanics, workshop owners, and certified technicians working on PACCAR trucks require this engine DTC diagnostic to diagnose and resolve J1939 datalink communication failures. The manual assumes the technician is already proficient with Electronic Service Analyst (ESA) diagnostic hardware and software tools.
The complete engine DTC diagnostic PDF is available in the DiagTechPro manuals library. A free account is required to download this technical document.
