This is the PACCAR center steer axle temperature gauge service manual covering diagnostic trouble codes DTC 7803 and DTC 7804. Published by PACCAR as part of the Electrical System Service Manual (publication PM819003/KM815056, revised 09/16/2011), this five-page guide provides step-by-step procedures for diagnosing and repairing inoperative center/steer axle oil temperature gauges using the Electronic Service Analyst (ESA) diagnostic tool.
The manual addresses cases where the center/steer axle oil temperature gauge becomes inoperative while all other gauges remain operational. It assumes the service technician is knowledgeable in ESA hardware and software operation.
Document details and specifications — PACCAR center steer
| Brand | PACCAR |
| System/Group | DTCs / Cab (2011 & Newer) |
| Publication number | PM819003/KM815056 |
| Revision date | 09/16/2011 |
| Pages | 5 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Table of contents
- Center/Steer Axle Oil Temperature Gauge Inoperative — DTC 7803 and DTC 7804

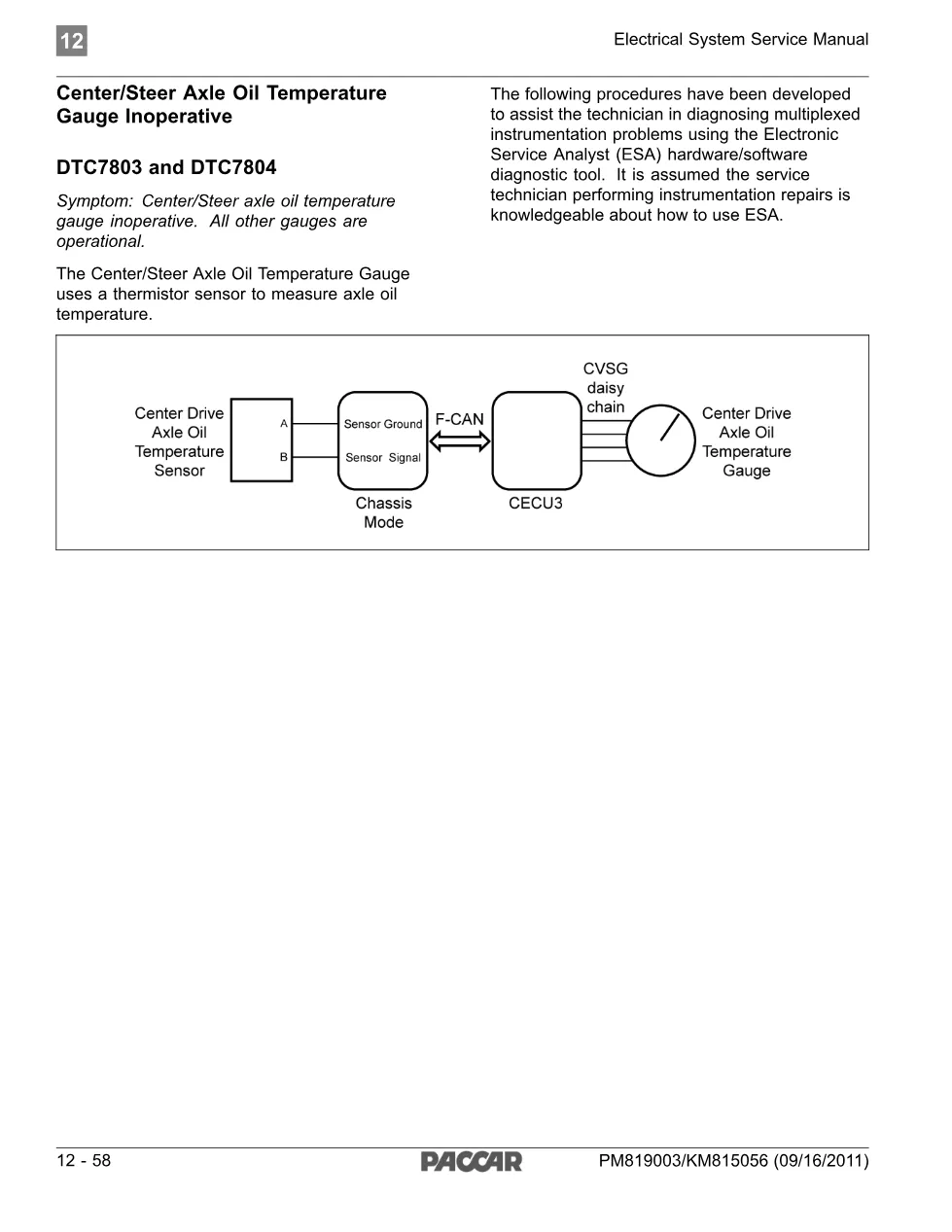

- Symptom and thermistor sensor overview
- Step 1: Ignition and ESA connection
- Step 2: Monitor center/steer axle oil temperature component

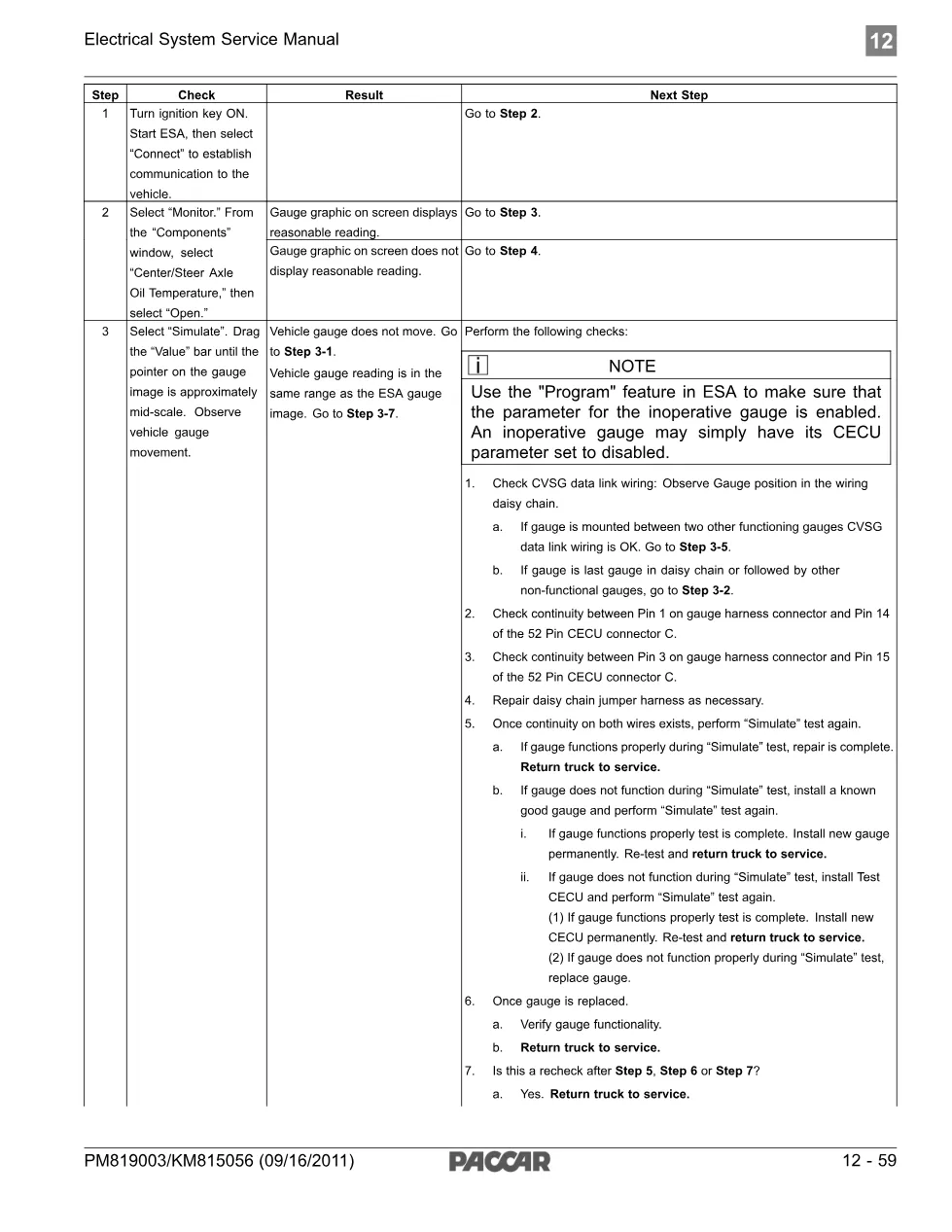

- Step 3: Simulate gauge function and CVSG data link wiring checks
- Step 4: Diagnose DTCs (DTC 7803 open circuit / DTC 7804 short circuit)
- Step 5: Oil temperature sensor harness connector continuity testing

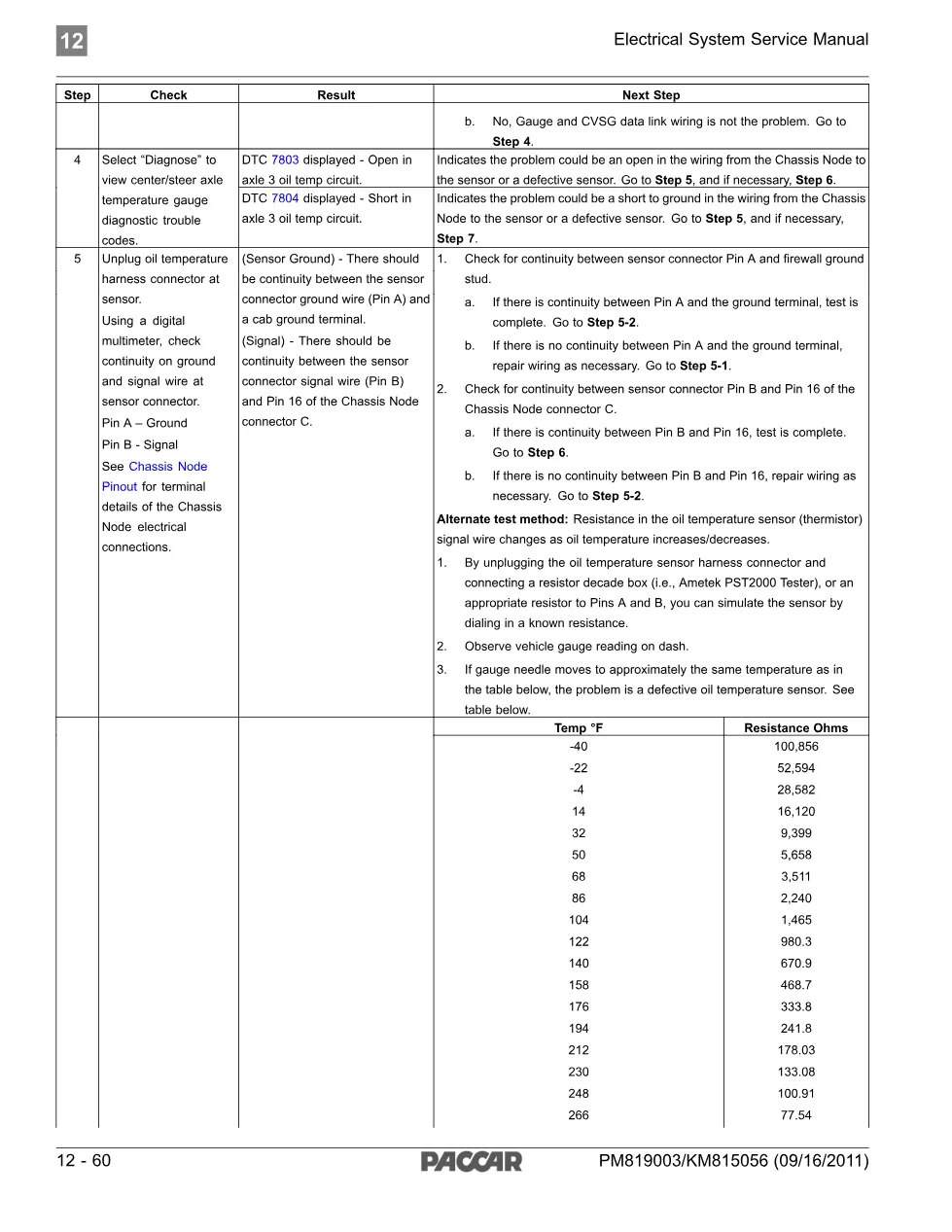

- Step 5 alternate: Resistor decade box sensor simulation and resistance table (-40°F to 392°F)
- Step 6: DTC 7803 active fault diagnosis and sensor replacement
- Step 7: DTC 7804 active fault diagnosis and wiring repair
Applies to these models
This manual applies to PACCAR trucks manufactured 2011 and newer equipped with multiplexed center/steer axle oil temperature instrumentation connected via CVSG data link and Chassis Node electrical architecture. The procedures cover diagnostic and repair of thermistor-based oil temperature sensors in center and steer axle applications.
