The PACCAR cab code 524502 document is the official PACCAR technical reference covering DTCs / Cab (2011 & Newer). This 2-page resource explains engine Related DTCs (DTC8409, DTC9109, DTC17102, DTC17131, DTC18409, DTC19009, DTC24709, DTC24809, DTC91709, DTC102809, DTC524502, DTC524602), giving technicians factory-accurate information instead of guesswork.

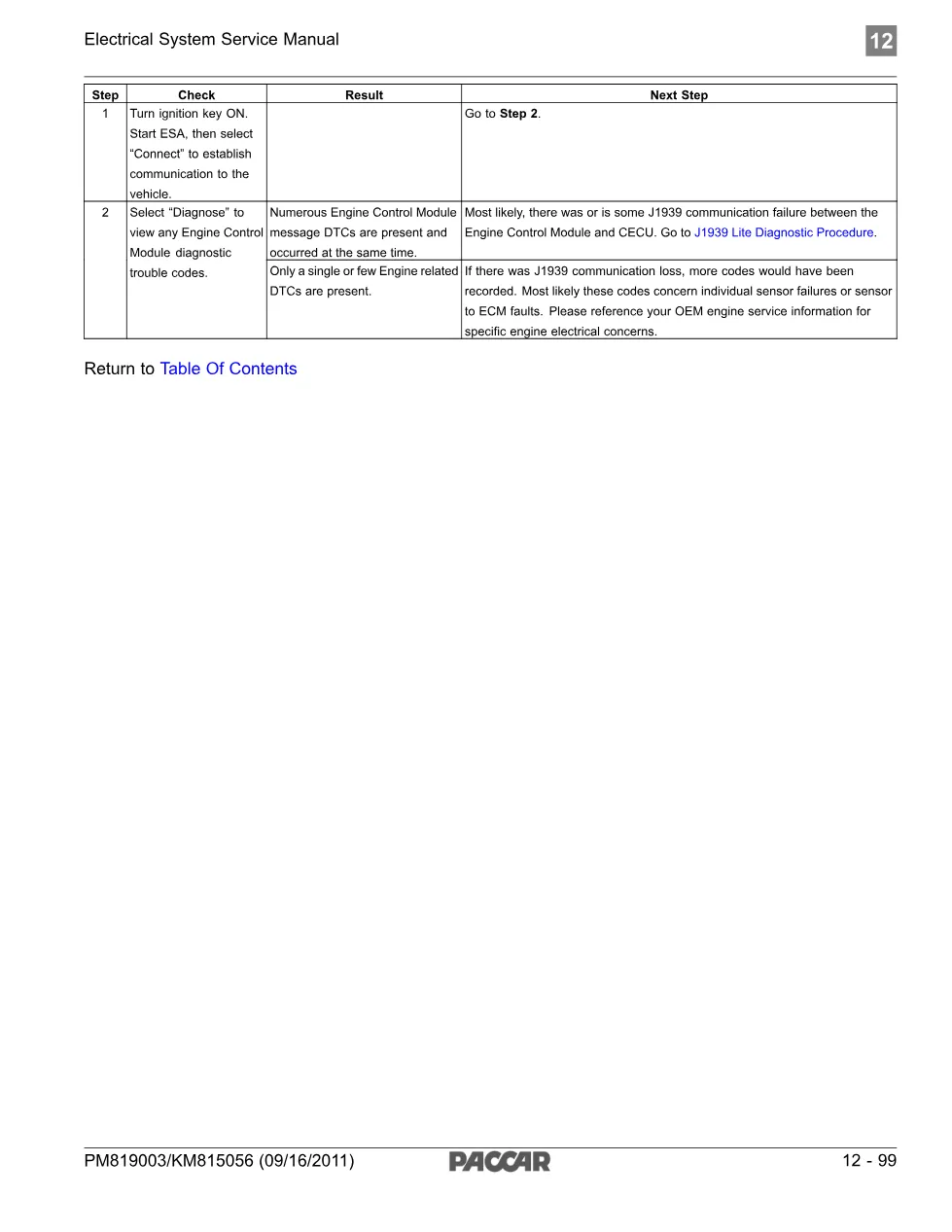

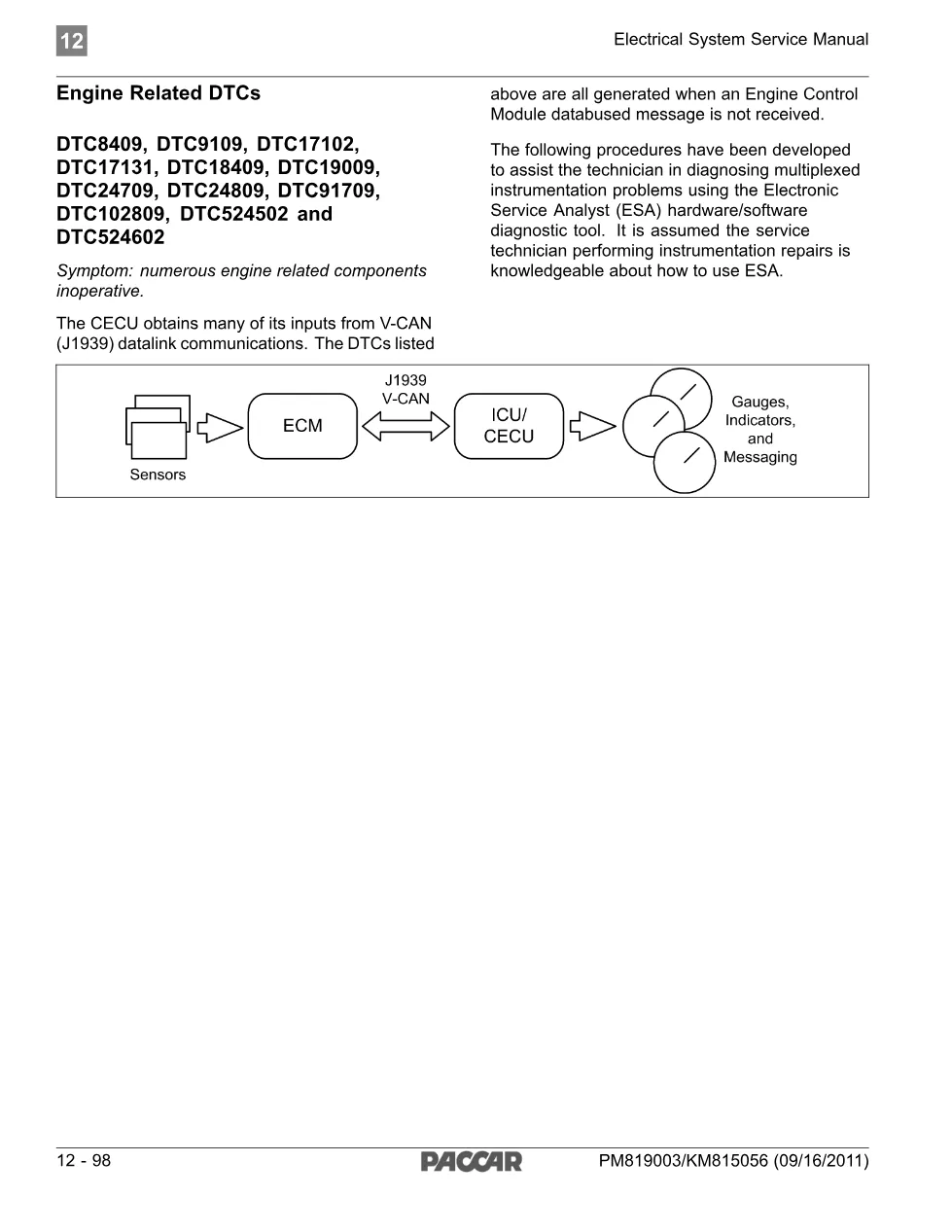

Working directly from the manufacturer’s own document keeps terminology, part numbers, and procedure order consistent with what a dealership or fleet audit expects, instead of relying on a third-party summary that can drop a step or mislabel a component. The preview pages below show the exact layout a technician sees once the file is downloaded, so there are no surprises about scope or formatting before registering for access.
Short factory bulletins like this one are meant to be read alongside the rest of the same document group rather than in isolation: cross-check the surrounding pages and any related codes before ordering parts or signing off a repair, since a single sheet rarely tells the whole diagnostic story on its own.
PACCAR cab code 524502: document details
| Brand | PACCAR |
| Model coverage | 2011 and newer PACCAR trucks |
| System/Group | DTCs / Cab Electrical |
| Publication number | PM819003/KM815056 |
| Year/Revision | 09/16/2011 |
| Pages | 2 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Table of contents
- Engine Related DTCs (DTC8409, DTC9109, DTC17102, DTC17131, DTC18409, DTC19009, DTC24709, DTC24809, DTC91709, DTC102809, DTC524502, DTC524602)
- Symptom: Numerous engine related components inoperative
- V-CAN (J1939) Datalink Communication Overview
- Electronic Service Analyst (ESA) Diagnostic Tool Procedures
- Step-by-step DTC diagnosis and troubleshooting workflow
- J1939 Lite Diagnostic Procedure reference
Applies to the PACCAR cab code 524502
The cab code 524502 applies to DTCs / Cab (2011 & Newer) documented by PACCAR. For complete manufacturer documentation, see PACCAR official website.
Who needs this cab code 524502 guide
Diesel technicians, fleet maintenance staff, and workshop owners need this cab code 524502 to diagnose faults and complete repairs using the manufacturer’s own factory data rather than guesswork.
The complete cab code 524502 PDF is available in the DiagTechPro manuals library. Free account registration is required to download this document.
