This PACCAR ammeter gauge diagnostic manual covers troubleshooting and repair of inoperative ammeter gauges using the Electronic Service Analyst (ESA) diagnostic tool. Published by PACCAR for cab electrical system service on 2011 and newer trucks, this document provides step-by-step procedures to identify and resolve ammeter gauge faults affecting the instrumentation cluster.

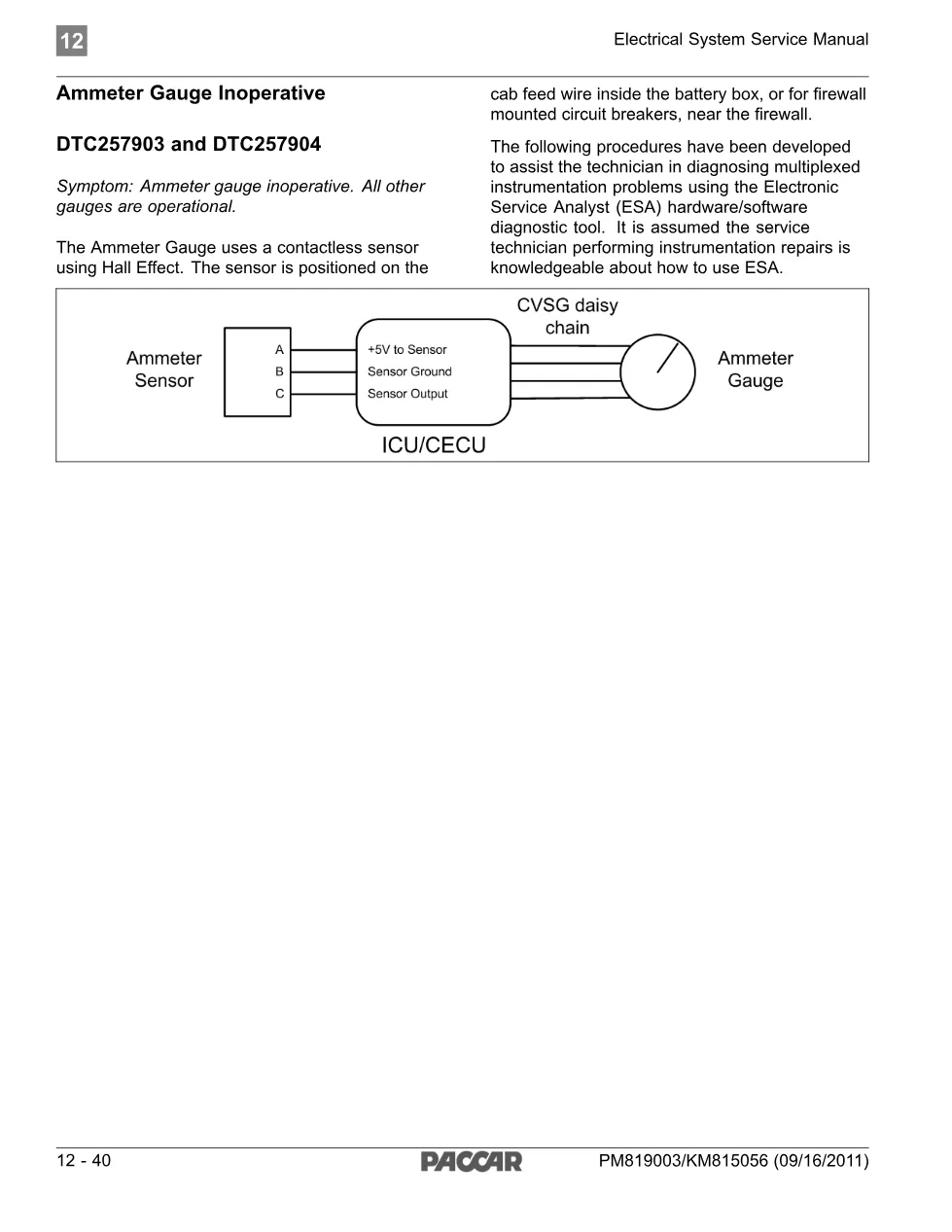

The ammeter gauge uses a contactless Hall Effect sensor positioned on the cab feed wire inside the battery box or near the firewall on vehicles with firewall-mounted circuit breakers. This manual addresses diagnostic trouble codes DTC 257903 (open circuit) and DTC 257904 (short circuit) affecting the ammeter sensor.
Document details and specifications — PACCAR ammeter gauge
| Brand | PACCAR |
| Model coverage | PACCAR cab models 2011 and newer |
| System/Group | DTCs / Cab Electrical System |
| Publication no. | PM819003/KM815056 |
| Year/Revision | 09/16/2011 |
| Pages | 4 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Table of contents
- Ammeter Gauge Inoperative — Overview and Symptom Description

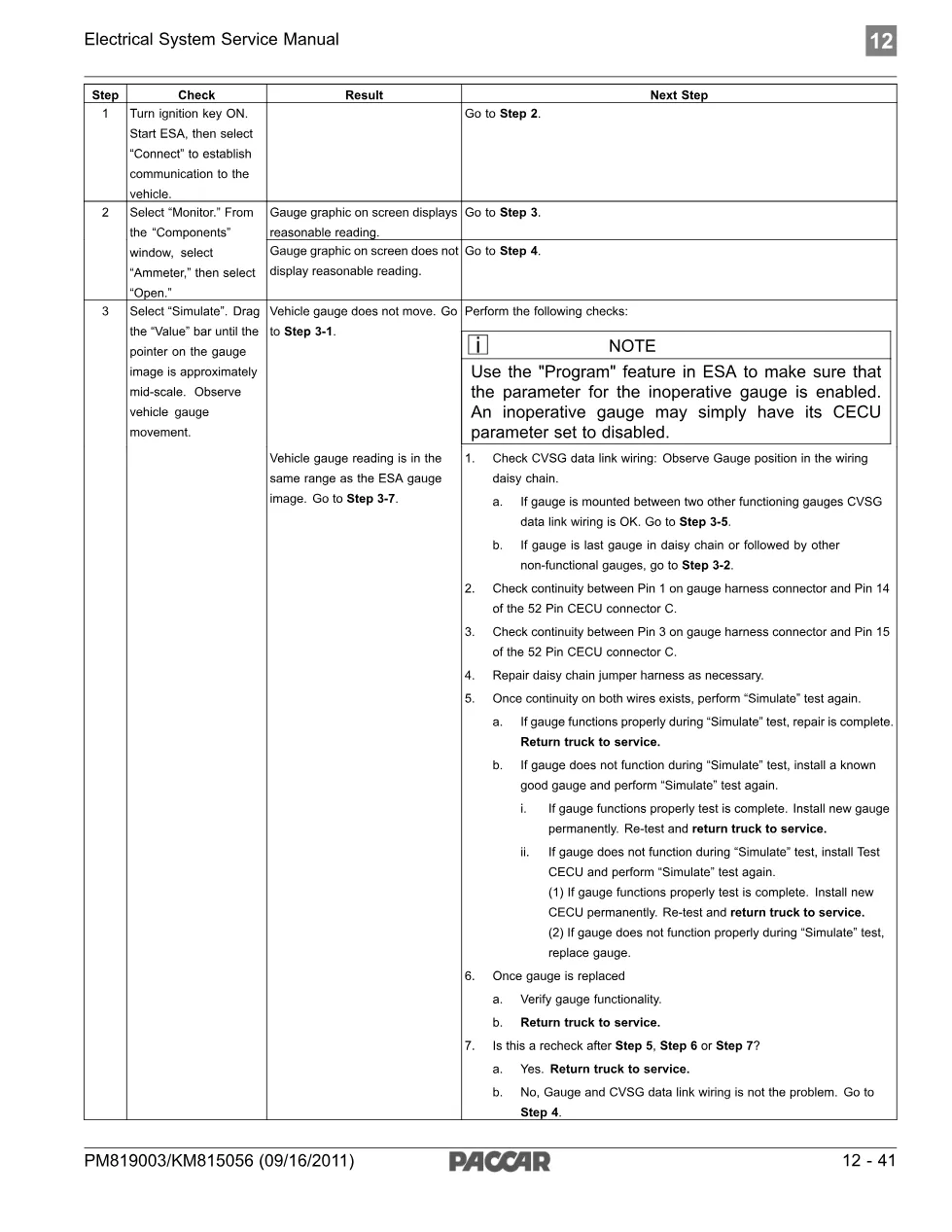

- Step 1: ESA Connection and Initial Gauge Monitoring
- Step 2: Ammeter Component Selection and Display Verification
- Step 3: Gauge Simulation and CVSG Data Link Wiring Diagnostics
- Step 4: Active DTC Diagnosis (DTC 257903, DTC 257904)

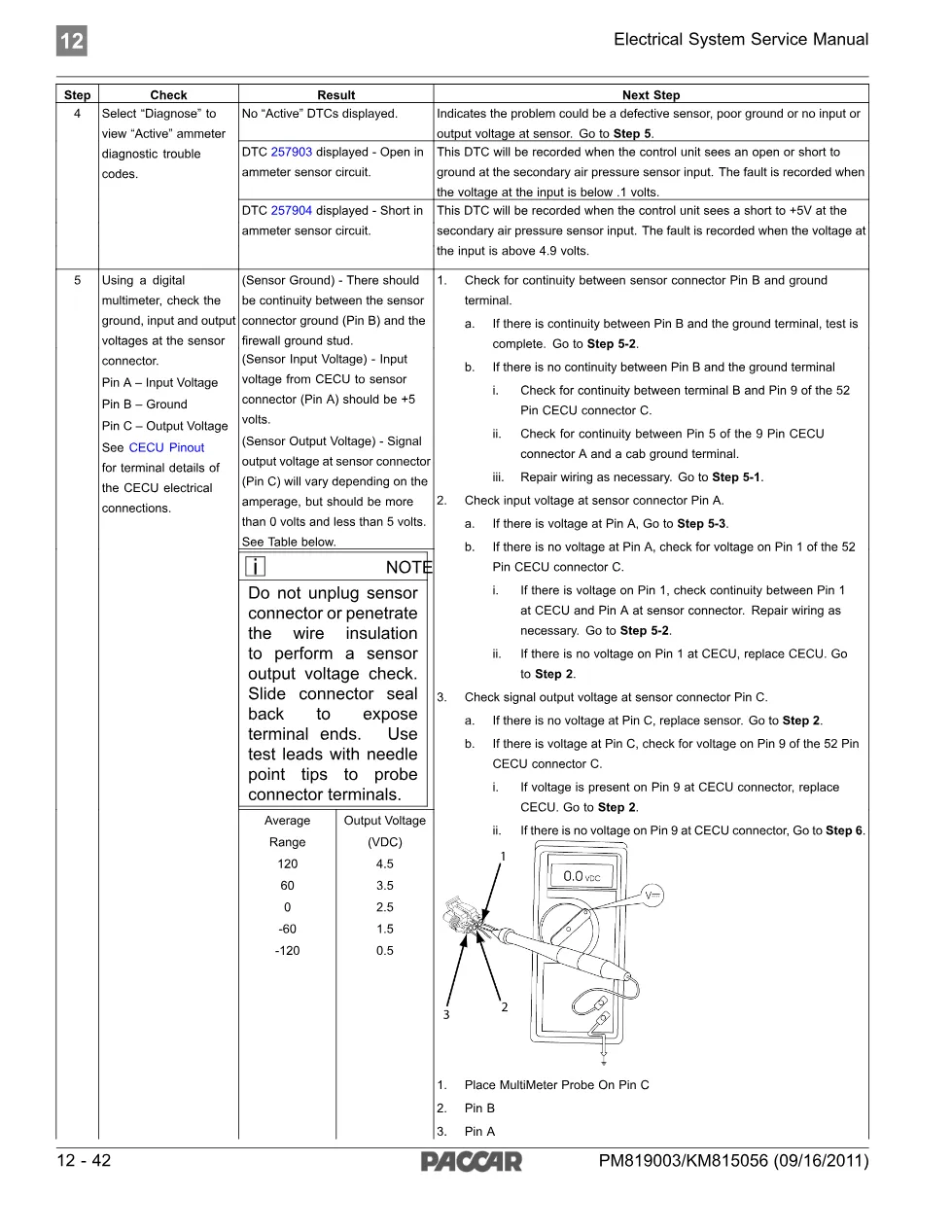

- Step 5: Sensor Connector Voltage Testing (Pins A, B, C)
- Step 6: Open Circuit Ammeter Sensor Diagnosis
- Step 7: Short Circuit Ammeter Sensor Diagnosis
Applies to these models
This PACCAR ammeter gauge diagnostic manual applies to PACCAR cab models manufactured in 2011 and newer equipped with electronic multiplexed instrumentation and Hall Effect ammeter sensors. The procedures support diagnosis and repair of ammeter gauge circuit failures on vehicles using 52-pin and 9-pin CECU (Cab Electronic Control Unit) connectors. For official PACCAR technical resources and parts information, visit PACCAR official website.
