This 2-page PDF is a oil pressure voltage DTCs diagnostic reference covering DTC 0100-04 for Caterpillar diesel engines. It documents the “Oil Pressure voltage low” fault code identified as event 24, providing technicians with the information needed to diagnose low oil pressure sensor voltage conditions on affected CAT powertrains.
Official oil pressure voltage DTCs document details
| Brand | Caterpillar (CAT) |
| Model coverage | C11, C13, C15 (All Others) |
| System / Group | Diagnostic Trouble Codes (DTCs) |
| Publication no. | 0100-04 |
| Year / Revision | Unknown |
| Pages | 2 |
| File size | 0.1 MB |
| Format | |
| Language | English |
Document table of contents

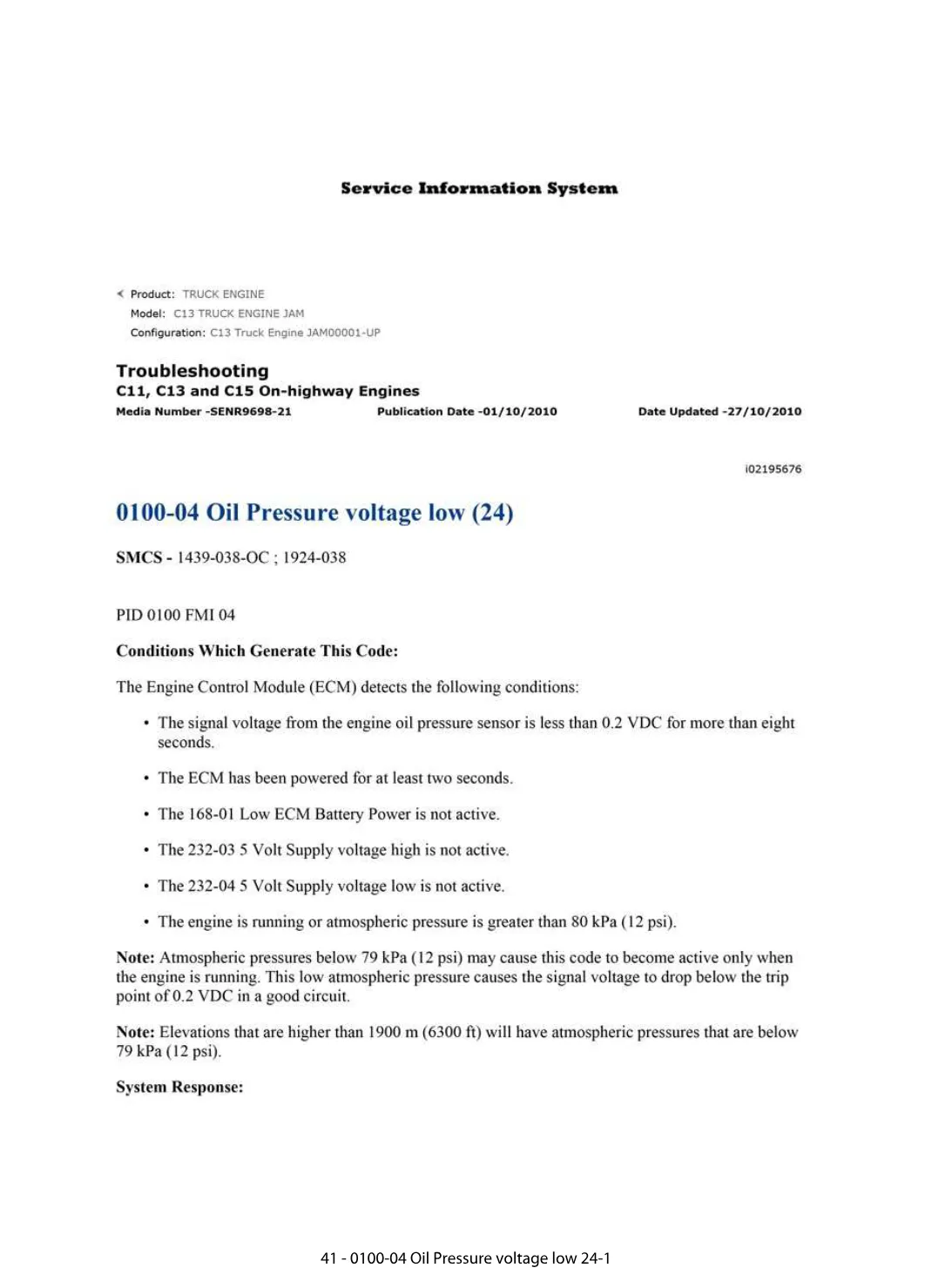

- 41 – 0100-04 Oil Pressure voltage low 24-1 (Page 1 of 2)

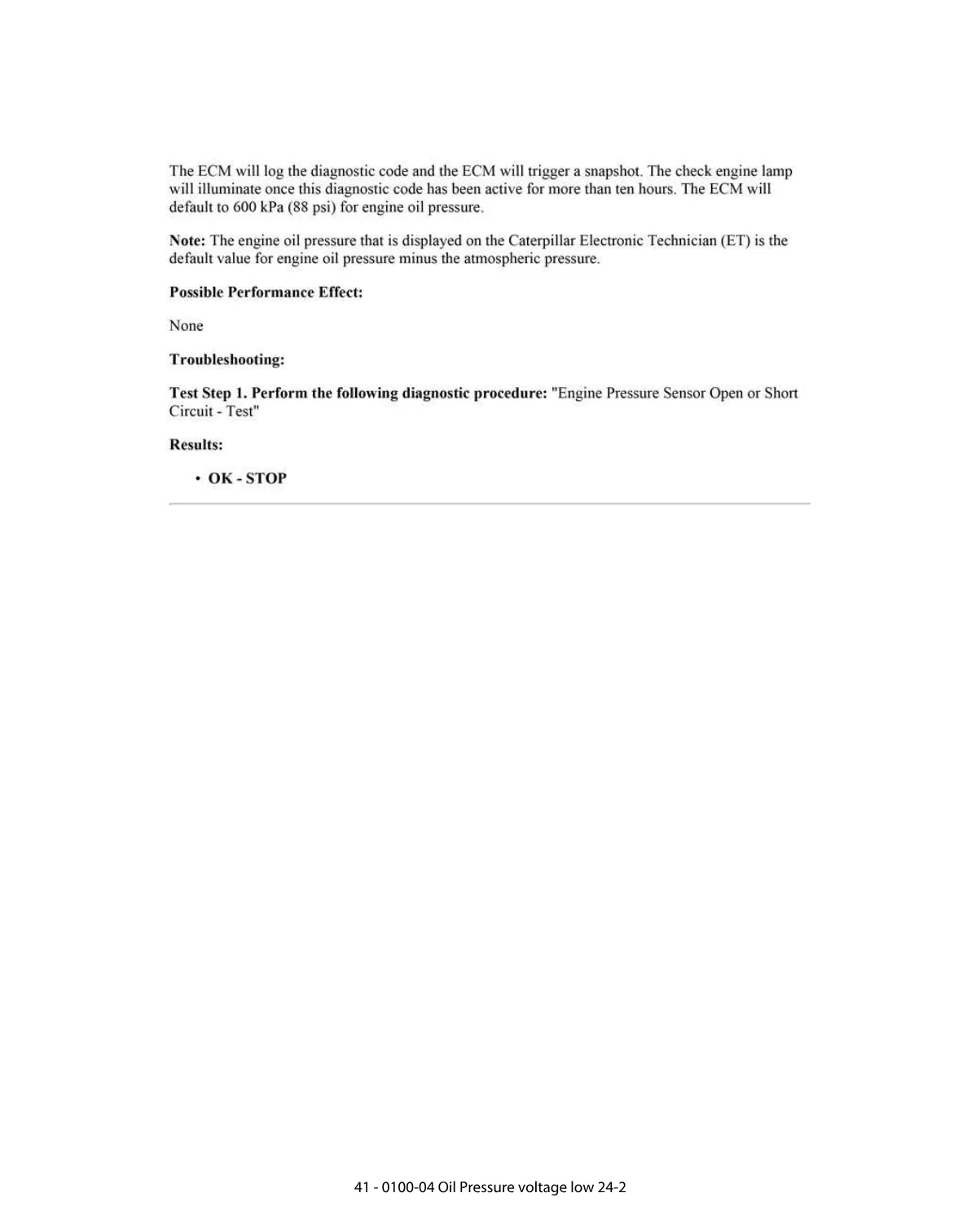

- 41 – 0100-04 Oil Pressure voltage low 24-2 (Page 2 of 2)
Applicable truck models
This diagnostic trouble code document applies to Caterpillar C11, C13, and C15 diesel engines classified under the “All Others” sub-group. These engines are widely installed in heavy-duty on-highway trucks, vocational vehicles, and select off-highway equipment. The C11 produces up to 430 hp, the C13 up to 520 hp, and the C15 up to 625 hp, making them common across Class 8 truck fleets. Workshop technicians servicing any platform equipped with these CAT powertrains should reference this file when DTC 0100-04 is logged. For official Caterpillar technical resources and parts information, visit Caterpillar Support.
Who needs this pressure voltage DTCs manual
Diesel mechanics, fleet maintenance technicians, and independent workshop owners diagnosing a low oil pressure sensor voltage fault on Caterpillar C11, C13, or C15 engines will benefit from this document. It is essential for anyone troubleshooting event code 24 related to oil pressure circuit diagnostics on these heavy-duty powertrains.
The full PDF is available in the DiagTechPro manuals library. A free account is required to download.
