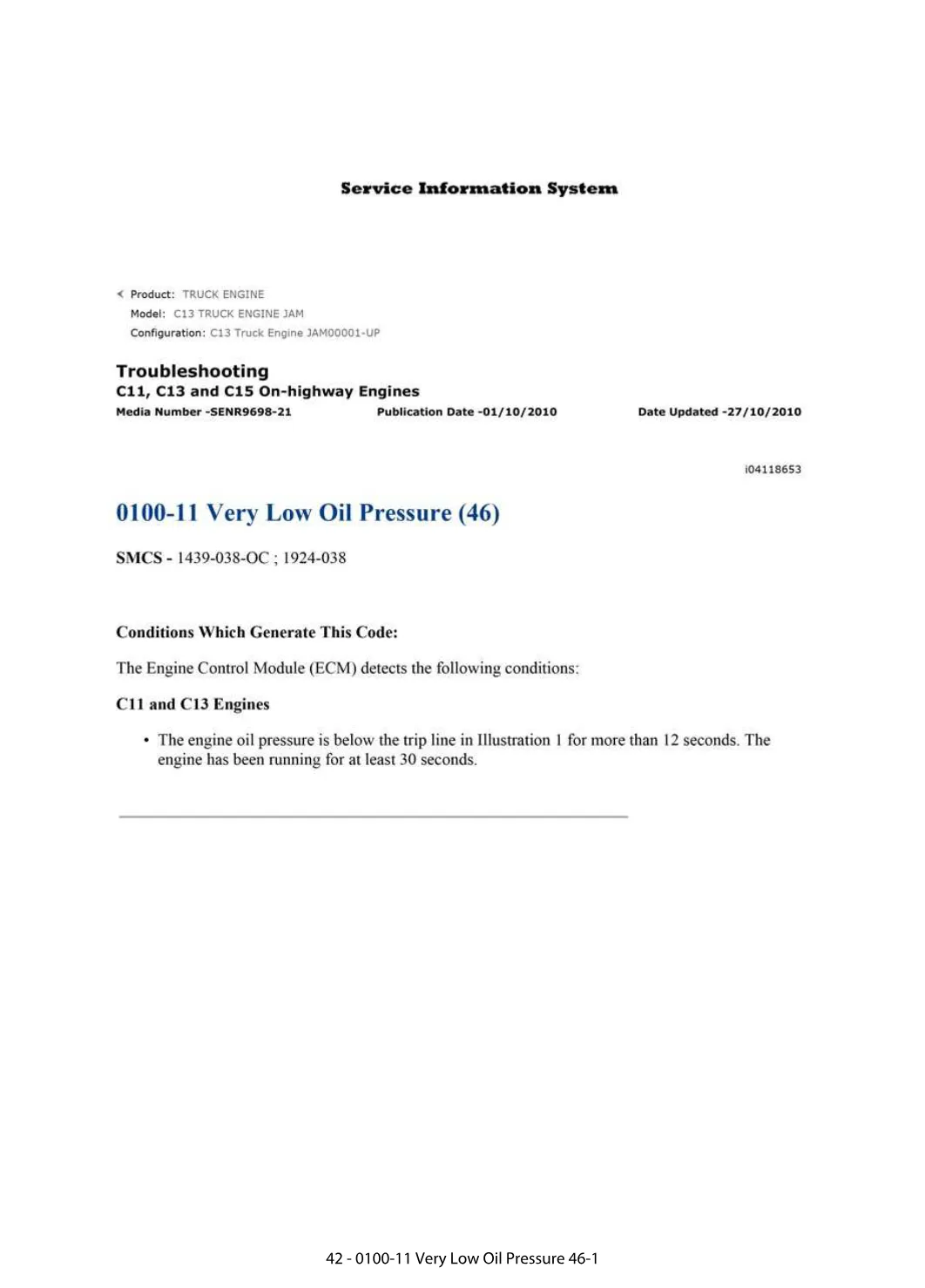

This 8-page oil pressure DTCs diagnostic document provides the official troubleshooting procedure for DTC 0100-11 (Very Low Oil Pressure) on Caterpillar C11, C13, and C15 diesel engines. It guides technicians through systematic fault isolation to identify root causes of critically low engine oil pressure conditions.
Official oil pressure DTCs document details
| Brand | Caterpillar (CAT) |
| Model coverage | C11, C13, C15 (All Others) |
| System / Group | Diagnostic Trouble Codes (DTCs) |
| Publication no. | 0100-11 (Section 42, pages 46-1 through 46-8) |
| Year / Revision | Not specified |
| Pages | 8 |
| File size | 0.5 MB |
| Format | |
| Language | English |
Document table of contents
- DTC 0100-11 — Very Low Oil Pressure overview and conditions for setting the code
- Diagnostic steps and decision tree for oil pressure fault isolation
- Oil pressure sensor circuit inspection procedures
- Mechanical oil system checks and verification
- Expected outcomes and recommended corrective actions
Applicable truck models
This document applies to heavy-duty trucks and equipment powered by Caterpillar C11, C13, and C15 diesel engines classified under the “All Others” configuration group. These engine families are widely installed in Class 8 on-highway trucks, vocational vehicles, and select industrial applications. The DTC 0100-11 procedure is relevant to any chassis platform using these powertrains where the ECM reports a very low oil pressure fault. For additional product and service information, visit Caterpillar’s official support page.
Who needs this oil pressure DTCs manual
Diesel technicians and workshop owners servicing Caterpillar-powered trucks will use this reference when the ECM logs DTC 0100-11. It is essential for anyone performing engine protection system diagnostics on C11, C13, or C15 engines to follow the factory-prescribed troubleshooting sequence rather than guessing at component replacement.
The full PDF is available in the DiagTechPro manuals library. A free account is required to download.
