This is the 2013 PACCAR MX Diagnostic Service Manual covering P1203 fault code for the MX injector solenoid P1203 system. Published by PACCAR for heavy-duty truck diagnostic service, this document provides complete technical guidance for diagnosing and repairing cylinder 1 injector solenoid valve faults related to low voltage or ground shorts on the ECU D420 pin A2.
The MX injector solenoid P1203 operates by controlling fuel injection duration in combination with rail pressure. Each injector is factory-calibrated with a unique code that must be reprogrammed using DAVIE diagnostic software whenever injectors are replaced or the ECU is changed. Incorrect calibration can reduce engine performance or trigger driver warnings.
Document details and specifications — MX injector solenoid
| Brand | PACCAR |
| Model coverage | PACCAR MX Engines |
| System/Group | DTCs / MX Engines (EPA2013) |
| Publication number | P1203 |
| Year/Revision | 2013 |
| Pages | 5 |
| File size | 0.4 MB |
| Format | |
| Language | English |
Table of contents

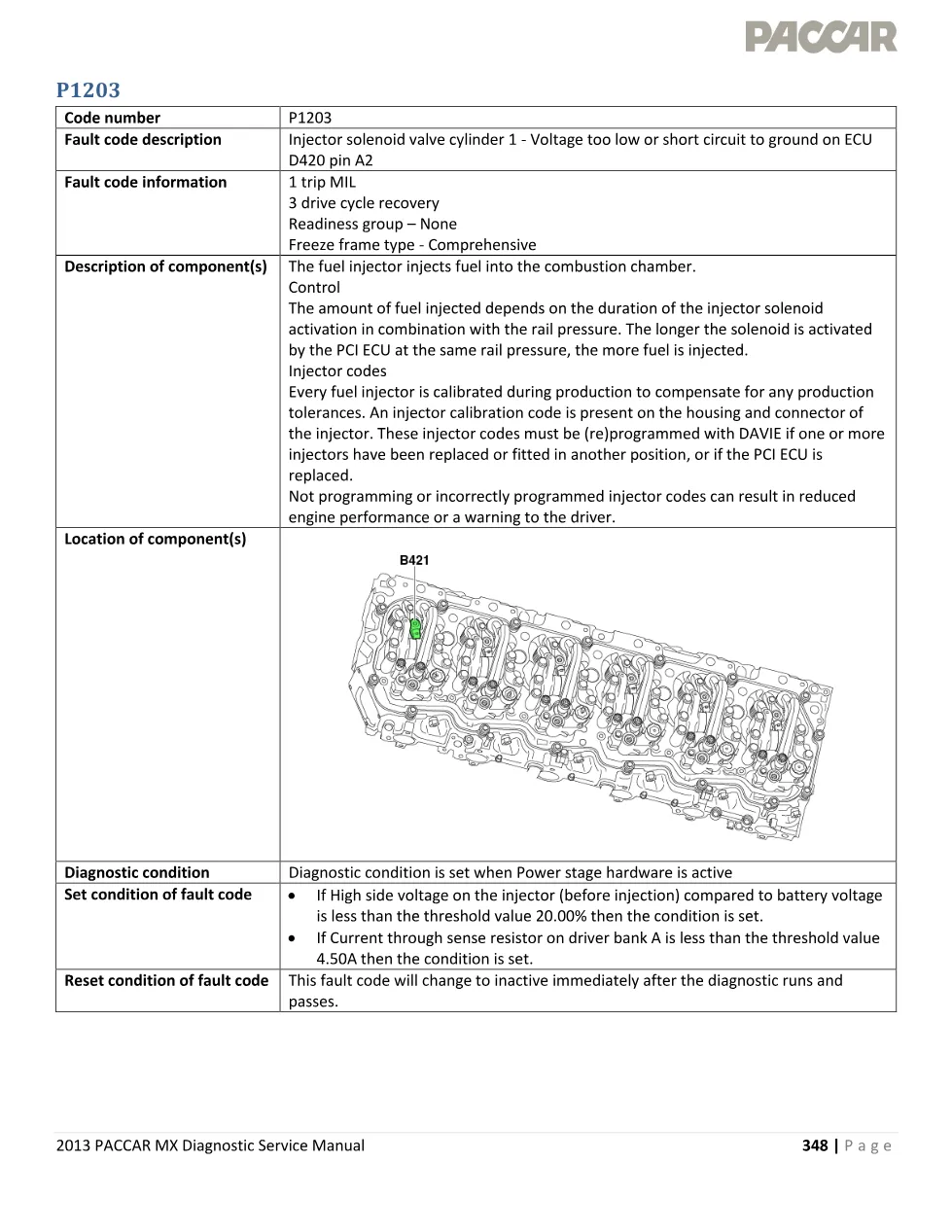

- P1203 Fault code description and information
- Description of component and control operation
- Injector codes and recalibration requirements
- Diagnostic conditions and fault set/reset criteria

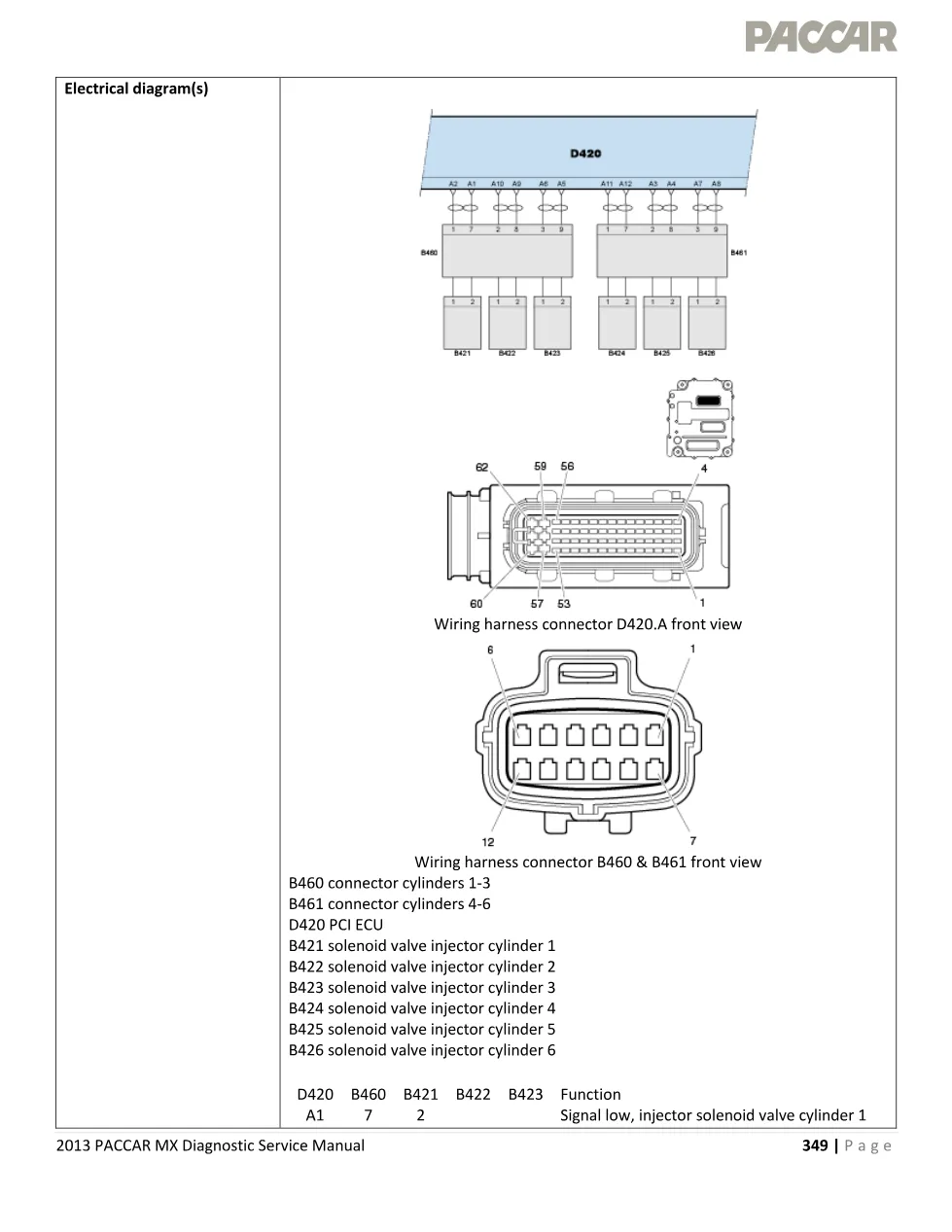

- Electrical diagrams and wiring harness connectors (D420, B460, B461)
- Component check procedures for injectors cylinder 1–6

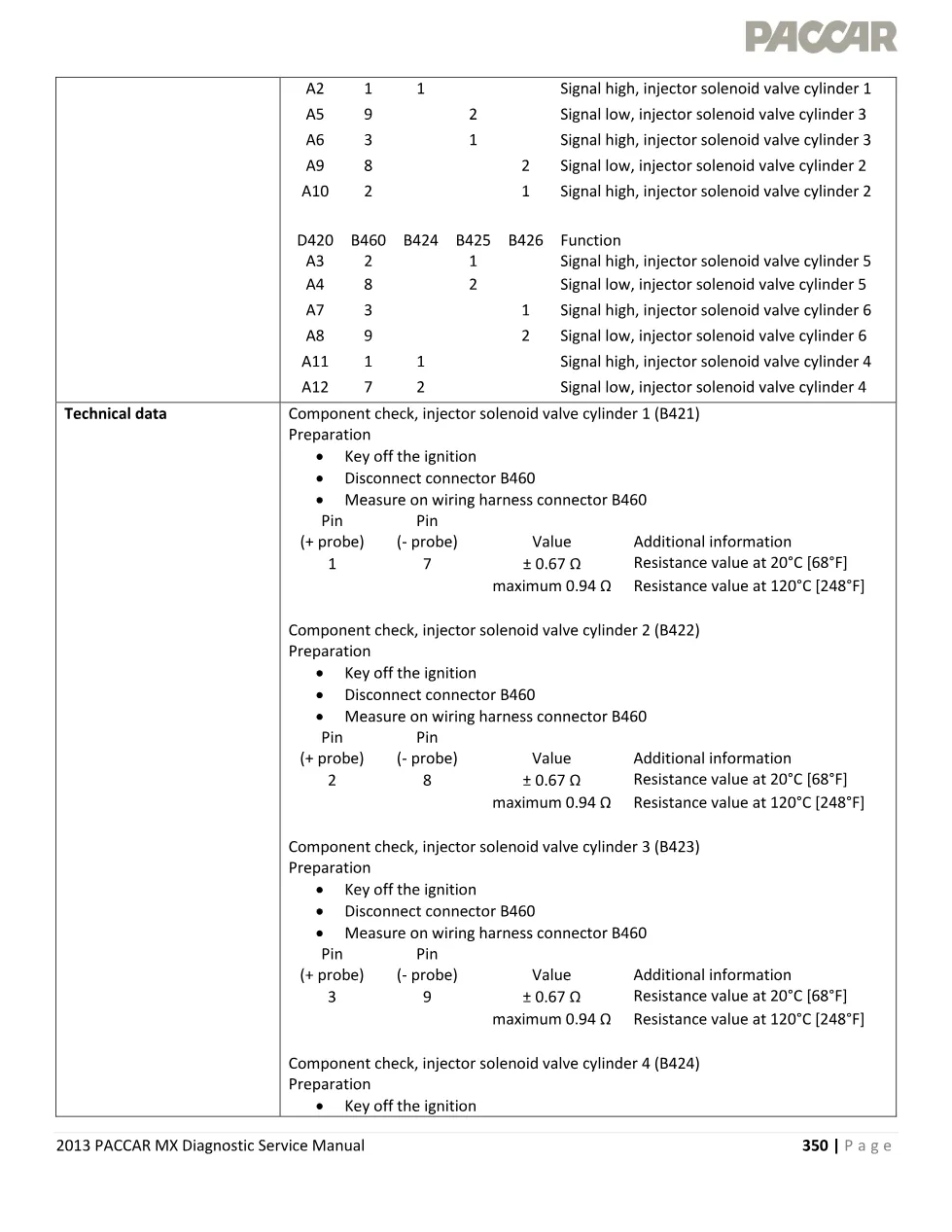

- Technical data and resistance specifications
- Diagnostic step-by-step troubleshooting procedure
- Verification drive cycle validation
Applies to these models
This MX injector solenoid P1203 diagnostic manual applies to all 2013 PACCAR MX engines equipped with common-rail fuel injection systems under EPA2013 emissions standards. It covers fault diagnosis for cylinder 1 through cylinder 6 fuel injector solenoids and their control circuits. For additional technical support, visit PACCAR official website.
Who needs this injector solenoid P1203 manual
Diesel truck mechanics, workshop owners, and diagnostic technicians working on PACCAR-powered vehicles require this injector solenoid P1203 service manual to accurately diagnose P1203 fault codes and related fuel injection system failures. Technicians performing injector replacement, ECU updates, or electrical troubleshooting will find the wiring diagrams, component checks, and step-by-step procedures essential for efficient repairs.
The complete PDF is available in the DiagTechPro manuals library. Free account registration is required to download this diagnostic document.
