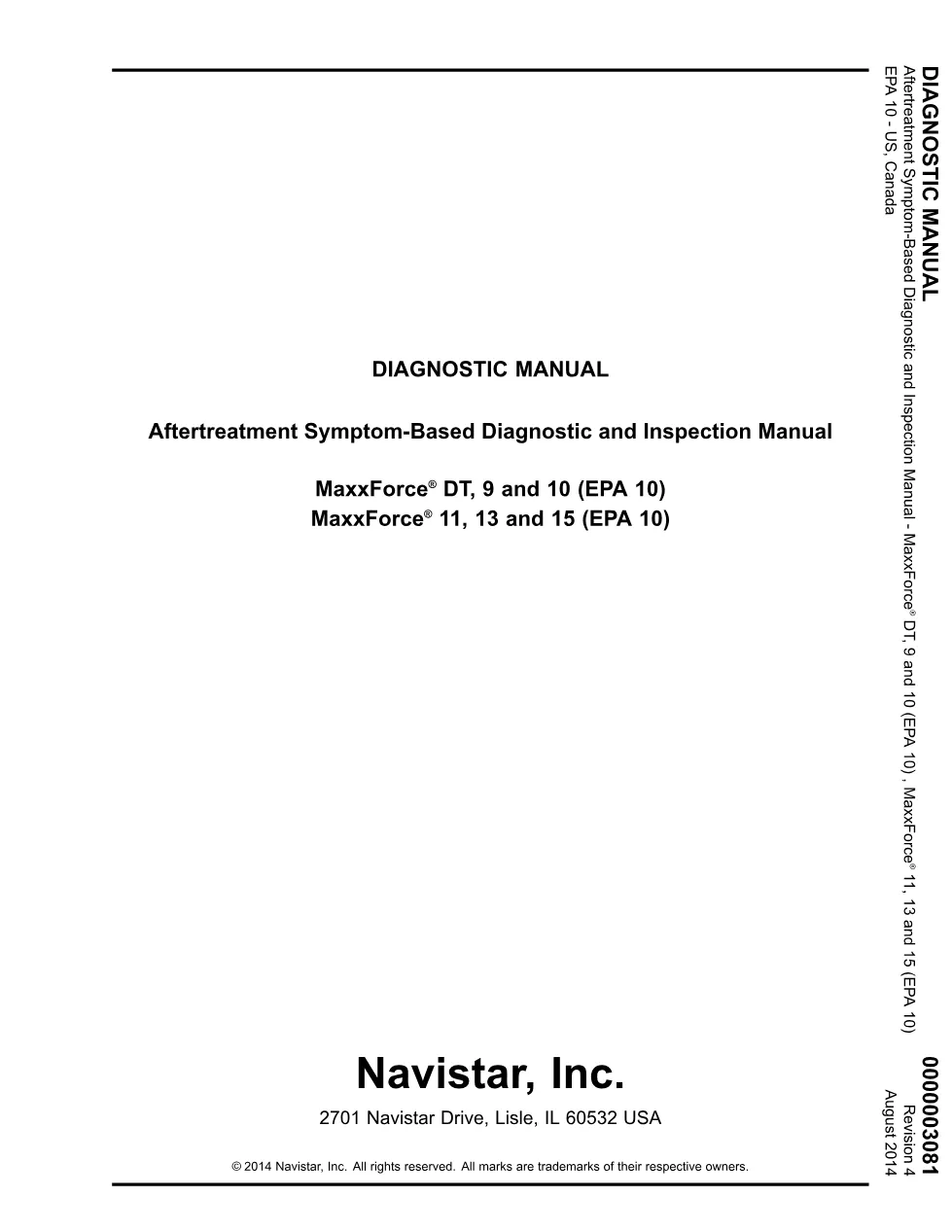

The MaxxForce aftertreatment diagnostic manual is the Navistar Aftertreatment Symptom-Based Diagnostic and Inspection Manual (Revision 4, EPA 10) for MaxxForce DT, 9 and 10 and MaxxForce 11, 13 and 15 engines. This 206-page document guides symptom-based diagnosis of frequent parked regens, no-start conditions and black smoke using ServiceMaxx snapshots.
Official document details
| Brand | International / Navistar |
| Model coverage | MaxxForce DT, 9, 10 and MaxxForce 11, 13, 15 (EPA 10) |
| System/Group | Aftertreatment — symptom-based diagnostics and inspection |
| Publication no. | Document 0000003081, Revision 4 |
| Year/Revision | August 2014, US/Canada |
| Pages | 206 |
| File size | 12.8 MB |
| Format | |
| Language | English |

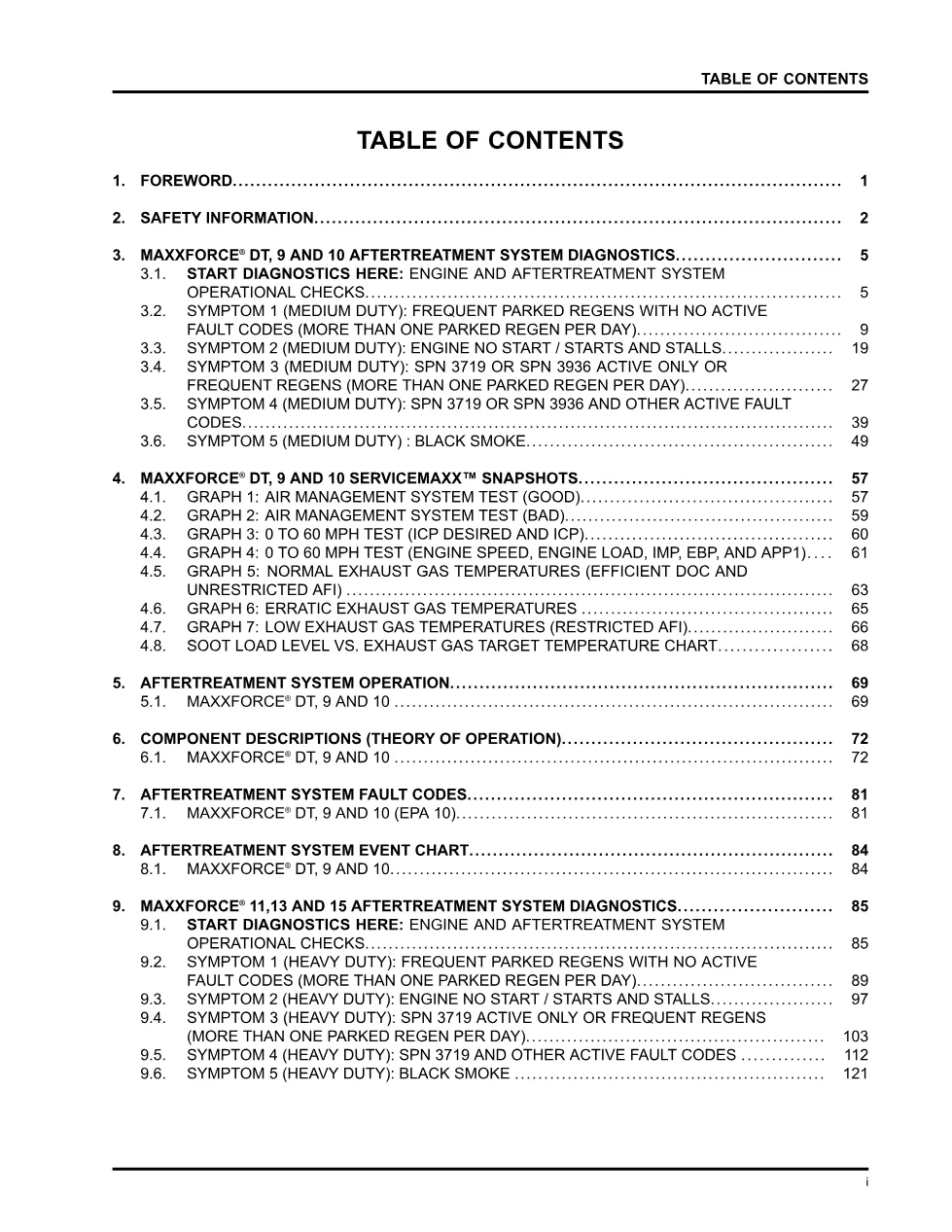

Sections in this MaxxForce aftertreatment diagnostic manual
- Foreword and Safety Information
- MaxxForce DT, 9 and 10 aftertreatment system diagnostics (Symptoms 1-5)
- ServiceMaxx snapshots and exhaust gas temperature graphs
- Aftertreatment system operation and component theory of operation
- Aftertreatment system fault codes and event chart
- MaxxForce 11, 13 and 15 aftertreatment system diagnostics (Symptoms 1-5)
- Glossary
Applicable engines and diagnostics
The manual covers medium-duty MaxxForce DT, 9 and 10 and heavy-duty MaxxForce 11, 13 and 15 engines. Symptom trees address frequent parked regens, no-start / starts-and-stalls, SPN 3719 and SPN 3936 faults, and black smoke, cross-referenced to DOC, DPF and sensor fault codes such as DPFIT, DPFOT and DPFDP. Parked-regen checks list expected DOCOT and DPFOT temperature ranges. Product and dealer support is available from the International Trucks website.
Who needs this aftertreatment diagnostic manual
Technicians chasing regen and DPF complaints on International MaxxForce engines use this manual to follow the official symptom flow and compare ServiceMaxx snapshots against reference graphs. It supports both the medium-duty DT, 9 and 10 and the heavy-duty 11, 13 and 15 families, so a shop can work a single procedure set across mixed fleets and verify repairs with the standard KOER and lug-down tests.
