This HC doser fuel supply sheet documents Detroit SPN 3480 FMI 1, an abnormal supply pressure that carries a 10 percent derate. It runs from a related-code check through leak inspection to a measured priming-port test. Follow the numbered steps.
Official document details
| Brand | Detroit |
|---|---|
| Model coverage | DD Series (EPA 2007-Current); also filed under Series 60 (DDEC VI – EPA 2007) |
| System / Group | DTCs — Hydrocarbon (HC) Doser Fuel Supply Pressure Abnormal |
| Fault code | SPN 3480 / FMI 1 |
| Source | www.TruckFaultCodes.com (© 2017) |
| Pages | 4 |
| File size | 0.3 MB |
| Format | |
| Language | English |
HC doser fuel supply diagnostic guide

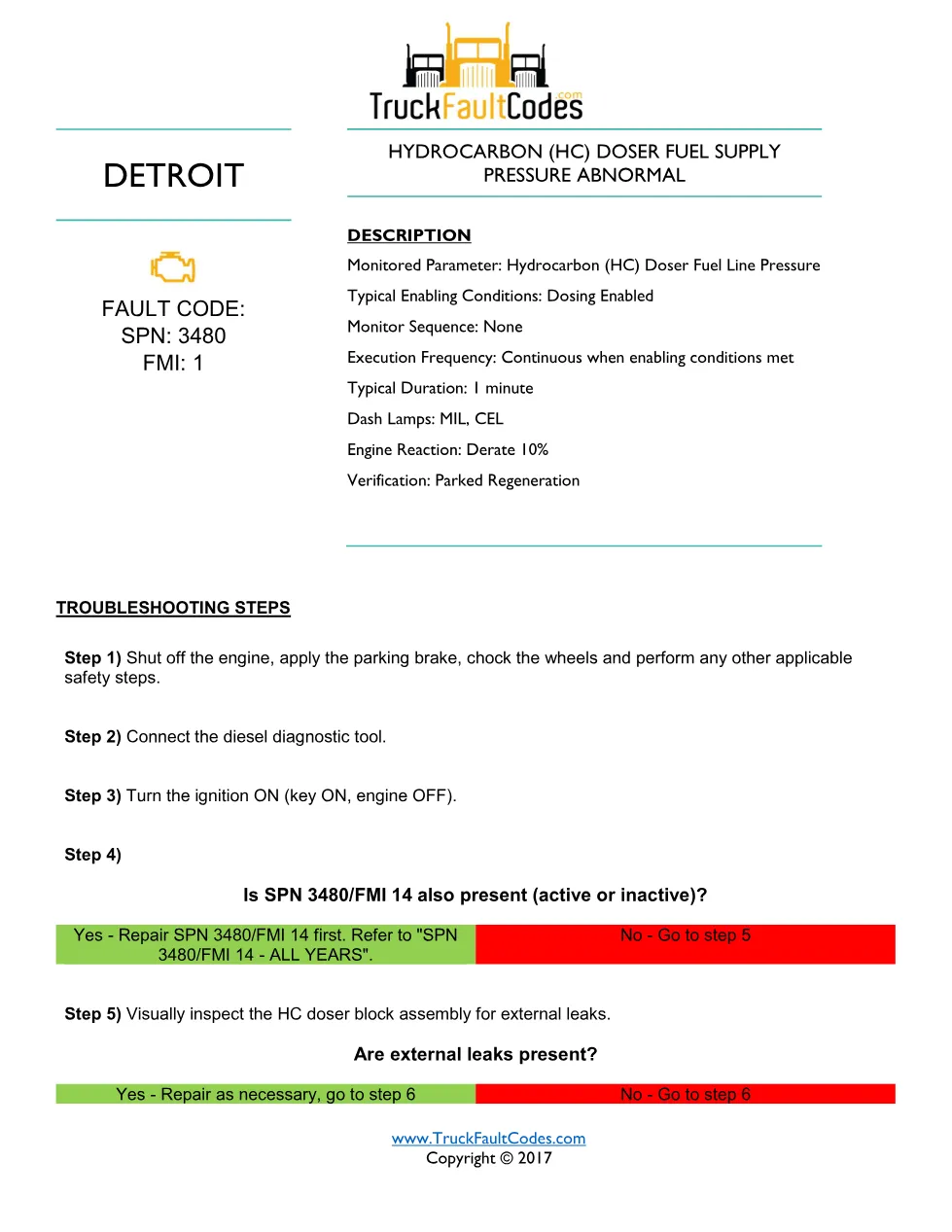

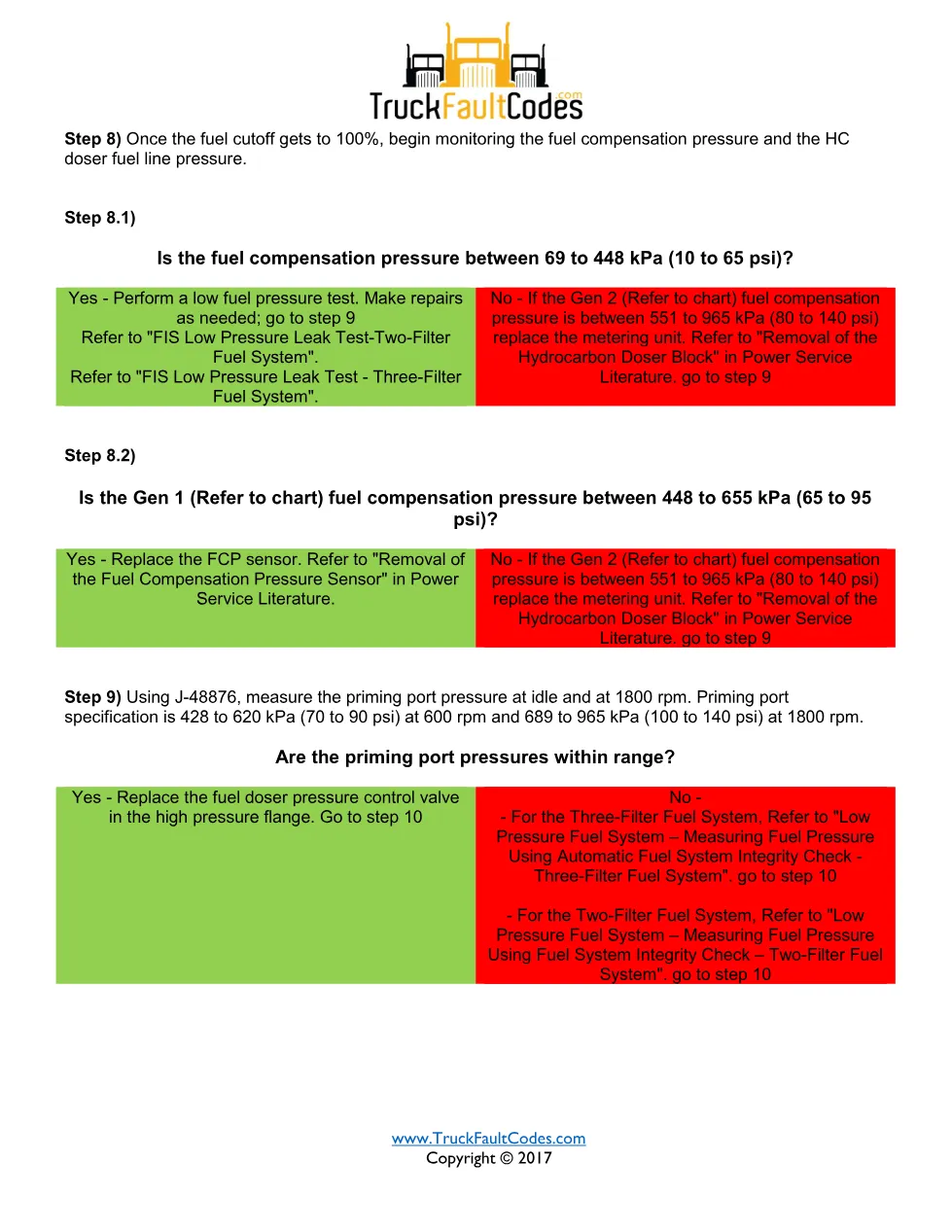

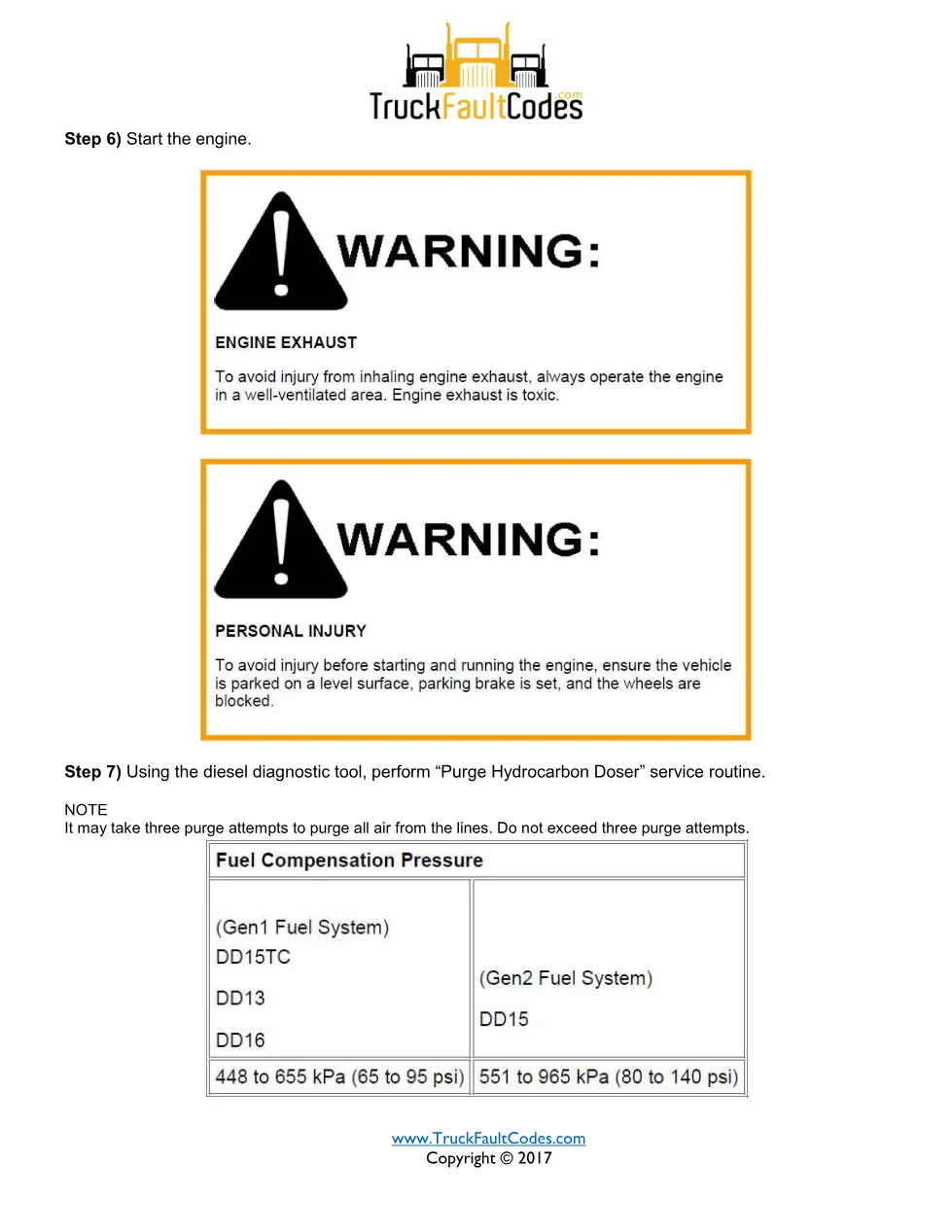

After safing the vehicle, the technician confirms SPN 3480 FMI 14 is not present, inspects the doser block for leaks and runs a purge routine of up to three attempts. With the cutoff at 100 percent, compensation pressure is compared against the charted Gen 1 and Gen 2 windows to decide between a low-pressure fuel test, a new sensor and a new metering unit. Tool J-48876 then checks the priming port at 70 to 90 psi at idle and 100 to 140 psi at 1800 rpm before a parked regeneration verifies the repair.
Document table of contents
- Fault code identification: SPN 3480, FMI 1
- Description, monitored parameter and 10 percent derate
- Related-code check and leak inspection
- Live pressure monitoring and priming-port test
- Parked regeneration and verification
