This HC doser fuel line sheet documents Detroit SPN 3480 FMI 14, a fuel line pressure sensor self-test failure that carries a 10 percent derate. It gives a short replace-purge-regenerate routine by system generation. Follow it in order.
Official document details
| Brand | Detroit |
|---|---|
| Model coverage | DD Series (EPA 2007-Current); also filed under Series 60 (DDEC VI – EPA 2007) |
| System / Group | DTCs — Hydrocarbon (HC) Doser Fuel Line Pressure (FLP) Sensor – Failed Self-Test |
| Fault code | SPN 3480 / FMI 14 |
| Source | www.TruckFaultCodes.com (© 2017) |
| Pages | 2 |
| File size | 0.3 MB |
| Format | |
| Language | English |
HC doser fuel line diagnostic guide

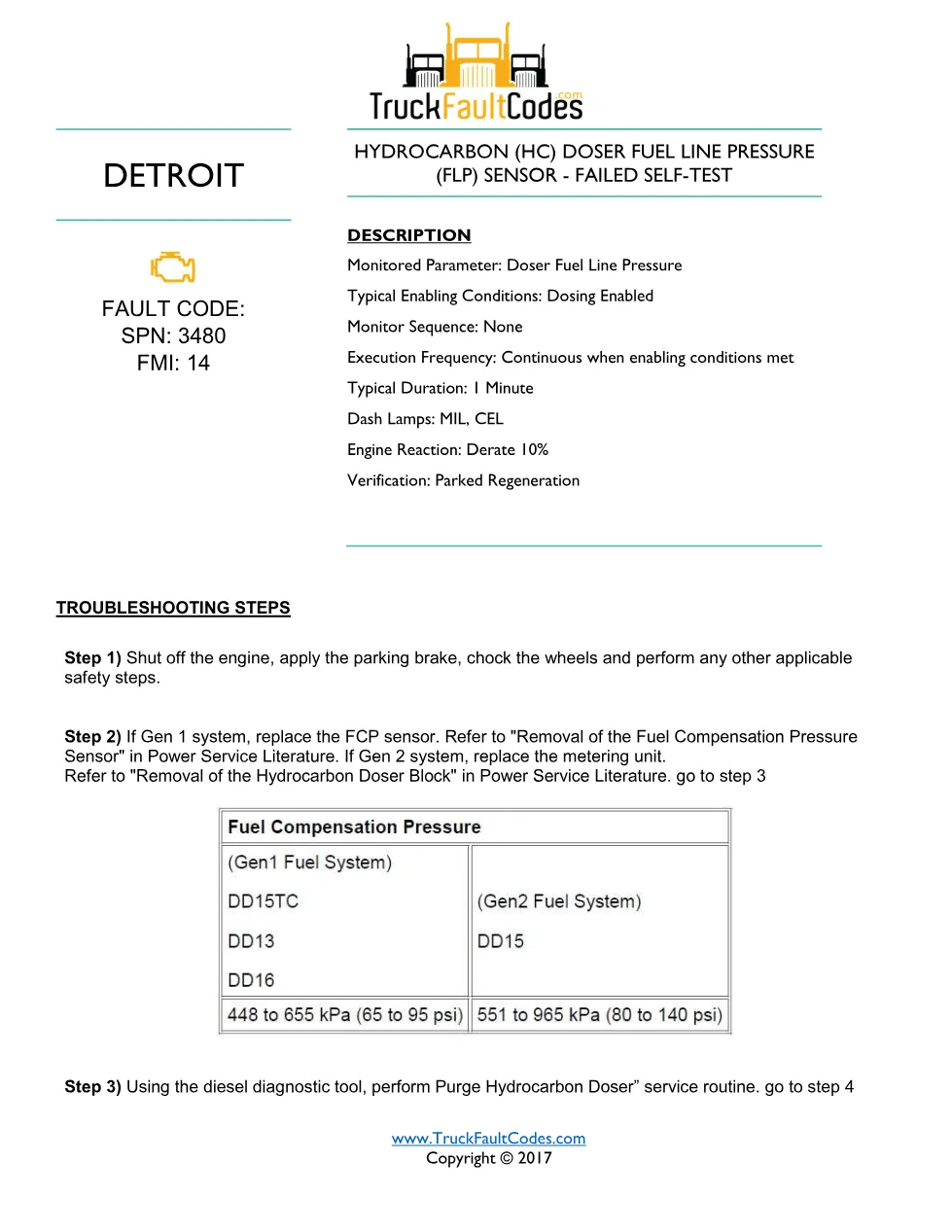

After safing the vehicle, the technician replaces the fuel compensation pressure sensor on a Gen 1 system or the metering unit on a Gen 2 system, following the relevant removal procedure in Power Service Literature. A purge routine is run next, limited to three attempts to clear all air from the lines. A parked regeneration then verifies the repair; if the code stays active, the regeneration log is retained and the Detroit Customer Support Center is contacted for further instruction.
Document table of contents
- Fault code identification: SPN 3480, FMI 14
- Description, monitored parameter and 10 percent derate
- Gen 1 sensor or Gen 2 metering unit replacement

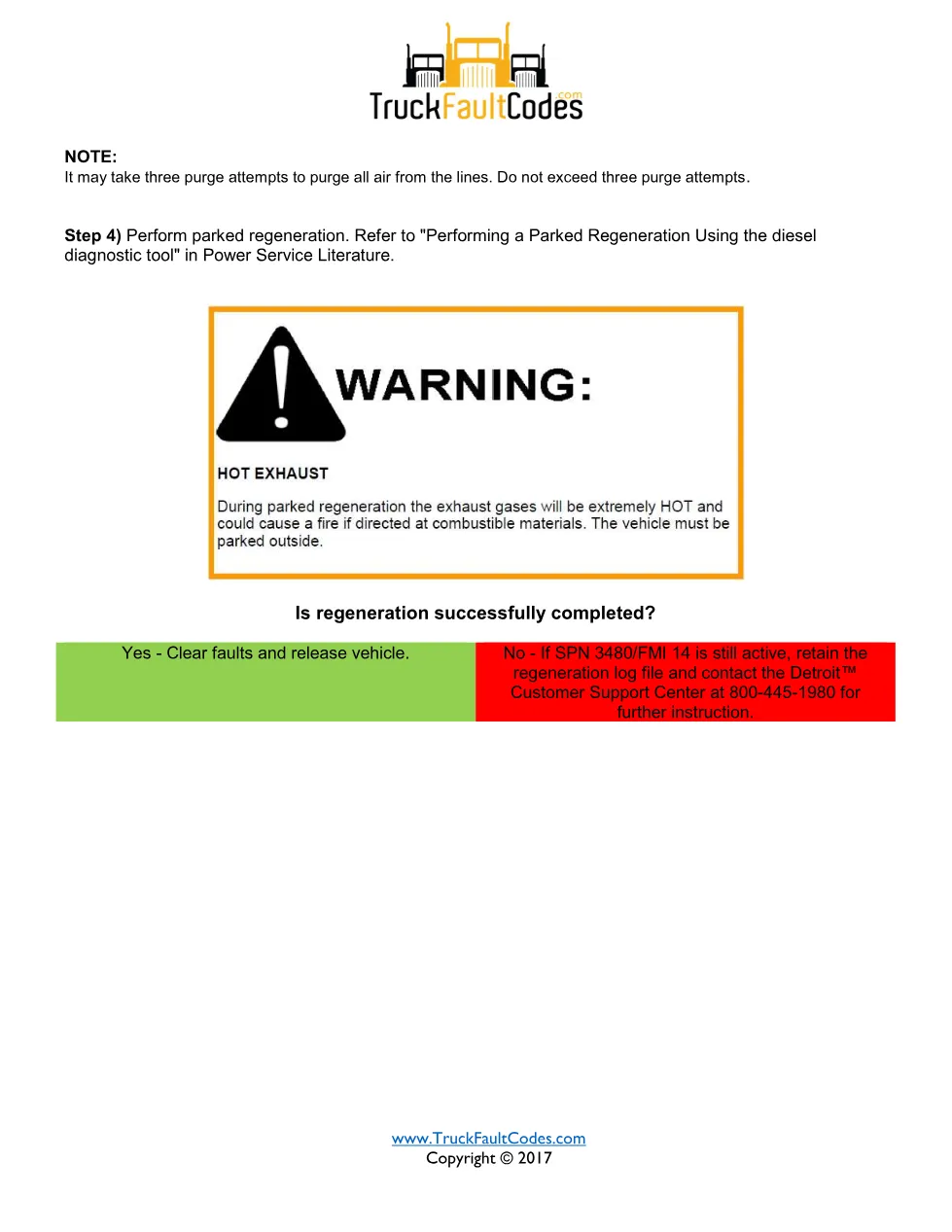

- Doser purge and parked regeneration
- Verification and support-centre escalation
Applicable truck models
This procedure applies to Detroit DD Series engines built for EPA 2007 and later, covering all model years (EPA07, EPA10 and GHG14) as printed on the document cover, and the identical SPN/FMI sheet is also filed under Detroit Series 60 (DDEC VI, EPA 2007). Confirm the emissions platform on your truck and cross-check the connector and pin numbers against the official Detroit engine support site before making any repair.
Who needs this HC doser fuel line manual
A diesel technician on any Detroit DD model year with a sensor self-test failure uses this sheet to pick the right part by system generation, purge the lines and regenerate to confirm the fix.
