This Inlet manifold pressure sensor guide is the Detroit DD Series SPN 3563 FMI 21 fault-code procedure for EPA07 engines, where an ambient and manifold pressure difference reads high box. It compares manifold to barometric pressure to judge the component and the charge air system.
Official document details
| Brand | Detroit |
| Model coverage | Detroit DD Series (EPA 2007-Current) |
| System / group | DD Series / DTCs |
| SPN | 3563 |
| FMI | 21 |
| Condition | ambient and inlet manifold pressure difference (high box) |
| Emissions level | EPA07 |
| Source | Detroit Power Service Literature |
| Pages | 2 |
| File size | 0.2 MB |
| Format | |
| Language | English |
Inlet manifold pressure sensor checks
With the ignition on you compare manifold pressure to barometric pressure; a mismatch beyond 0.5 psi sends you to inspect the harness connector for bent, damaged or corroded pins, then replace the component if the pins are clean. The comparison is repeated at idle, and if both pass you perform a charge air cooler inspection and leak test per the vehicle manufacturer literature before contacting the Customer Support Center.
- Fault description: ambient and manifold pressure difference (high box)

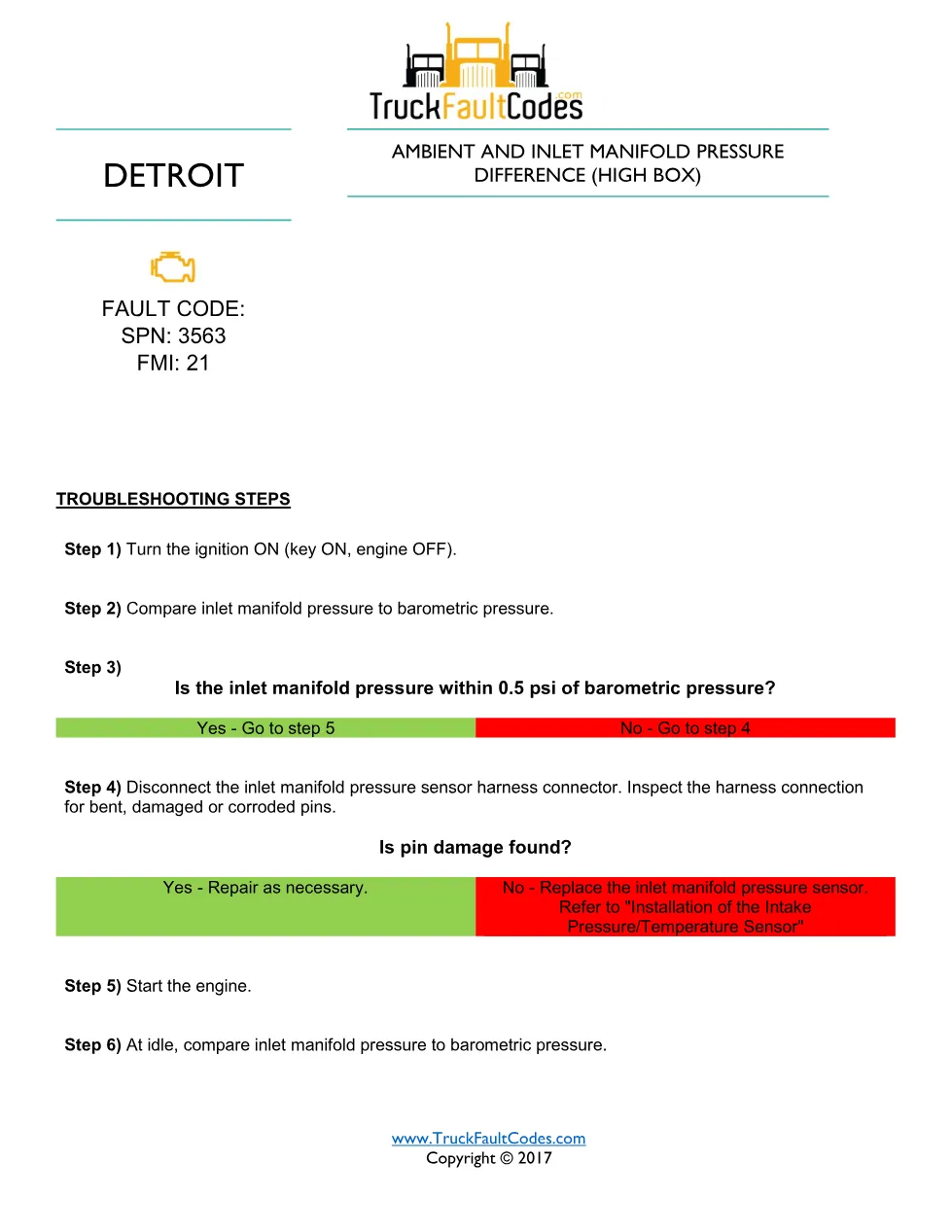

- Steps 1 to 3 – Compare manifold to barometric pressure, key on
- Step 4 – Inspect the harness connector for pin damage
- Steps 5 to 7 – Repeat comparison at idle after starting

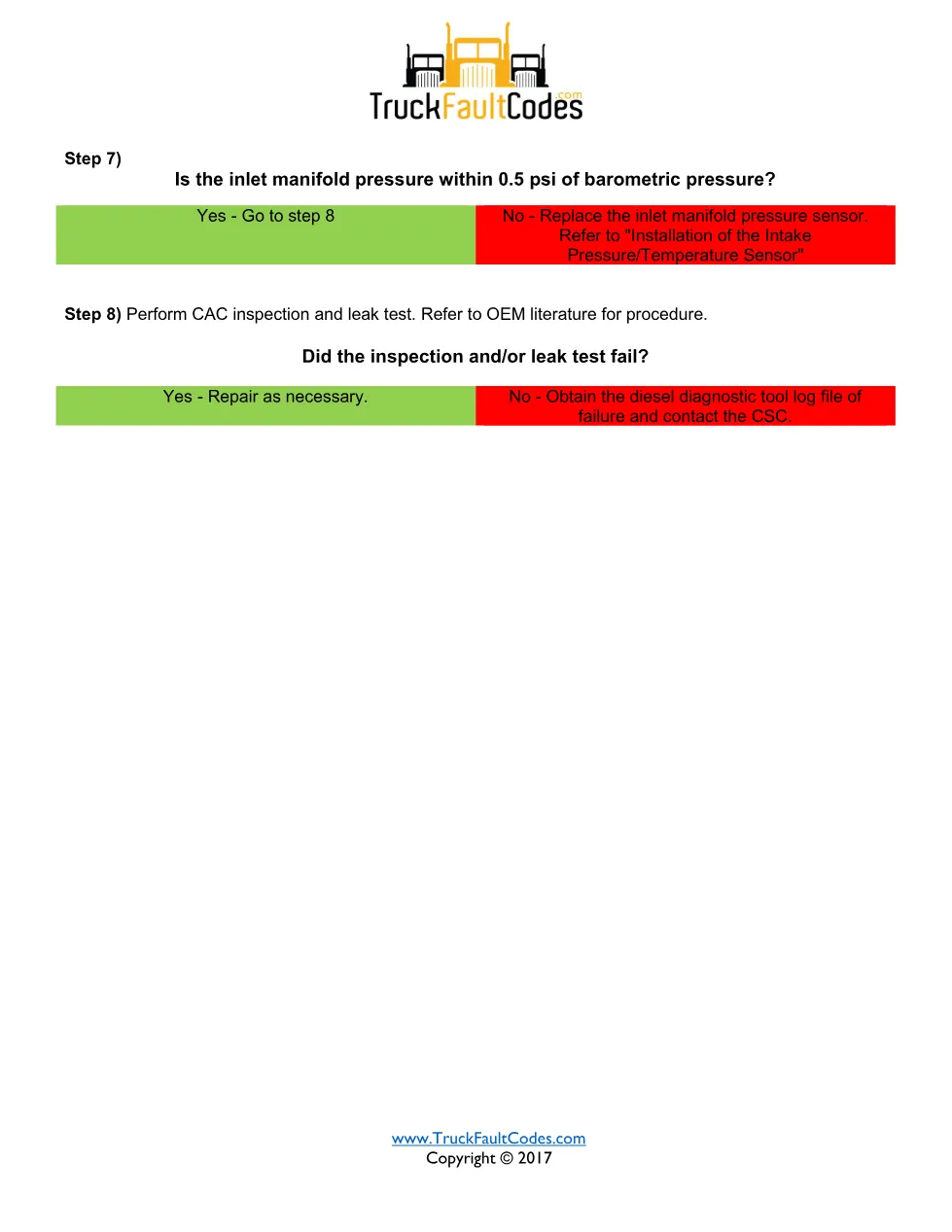

- Step 8 – Charge air cooler inspection and leak test
Applicable truck models
This EPA07 fault code applies to Detroit DD Series diesel engines using an intake pressure/temperature sensor and a charge air cooler. Installation follows Detroit Power Service Literature; confirm the part and the leak-test method on the official Detroit Diesel website.
Who needs this Inlet manifold pressure sensor manual
Diesel technicians and workshop owners chasing a high-box mismatch on an EPA07 Detroit engine use this document to check the harness pins and the charge air system before replacing the component.
