This Fuel injector harness circuit guide is the Detroit DD Series SPN 3597 FMI 4 fault-code procedure for EPA07 engines, where proportional valve bank 1 reads failed low. It isolates a short to ground in the front valve cover wiring at the Motor Control Module.
Official document details
| Brand | Detroit |
| Model coverage | Detroit DD Series (EPA 2007-Current) |
| System / group | DD Series / DTCs |
| SPN | 3597 |
| FMI | 4 |
| Condition | proportional valve bank 1 circuit failed low |
| Emissions level | EPA07 |
| Source | Detroit Power Service Literature |
| Pages | 3 |
| File size | 0.3 MB |
| Format | |
| Language | English |
Fuel injector harness circuit checks
The routine removes the front valve cover injector harness, then measures resistance to ground at the harness, the low engine brake solenoid, the engine 31-pin connector, and the air seal pressure regulator valve. A reading below one thousand ohms at each point directs you to replace the brake solenoid, repair a segment back to MCM pin 91, repair short to ground at the 31-pin connector, or replace the regulator valve.
- Fault description: proportional valve bank 1 circuit failed low

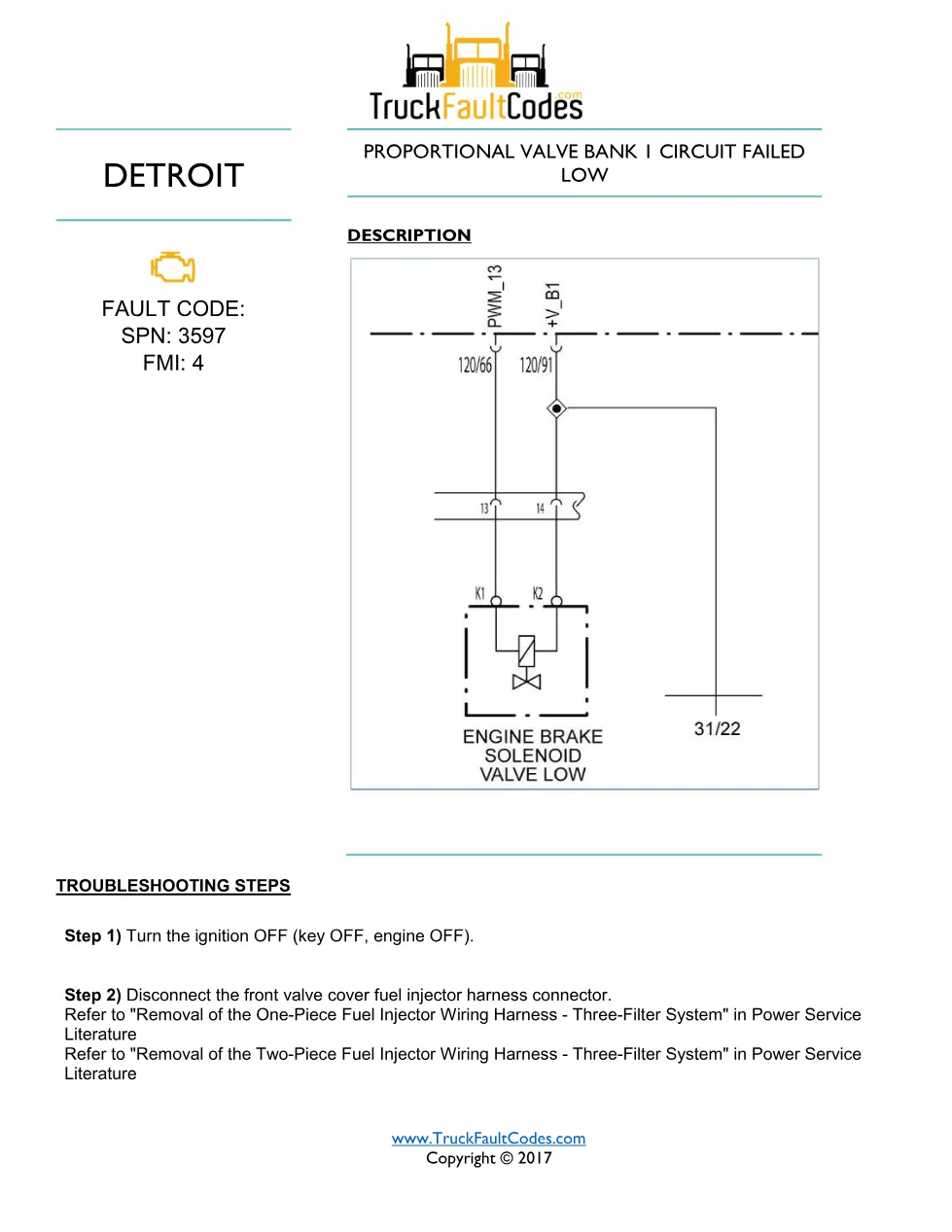

- Steps 1 to 3 – Front valve cover harness resistance to ground

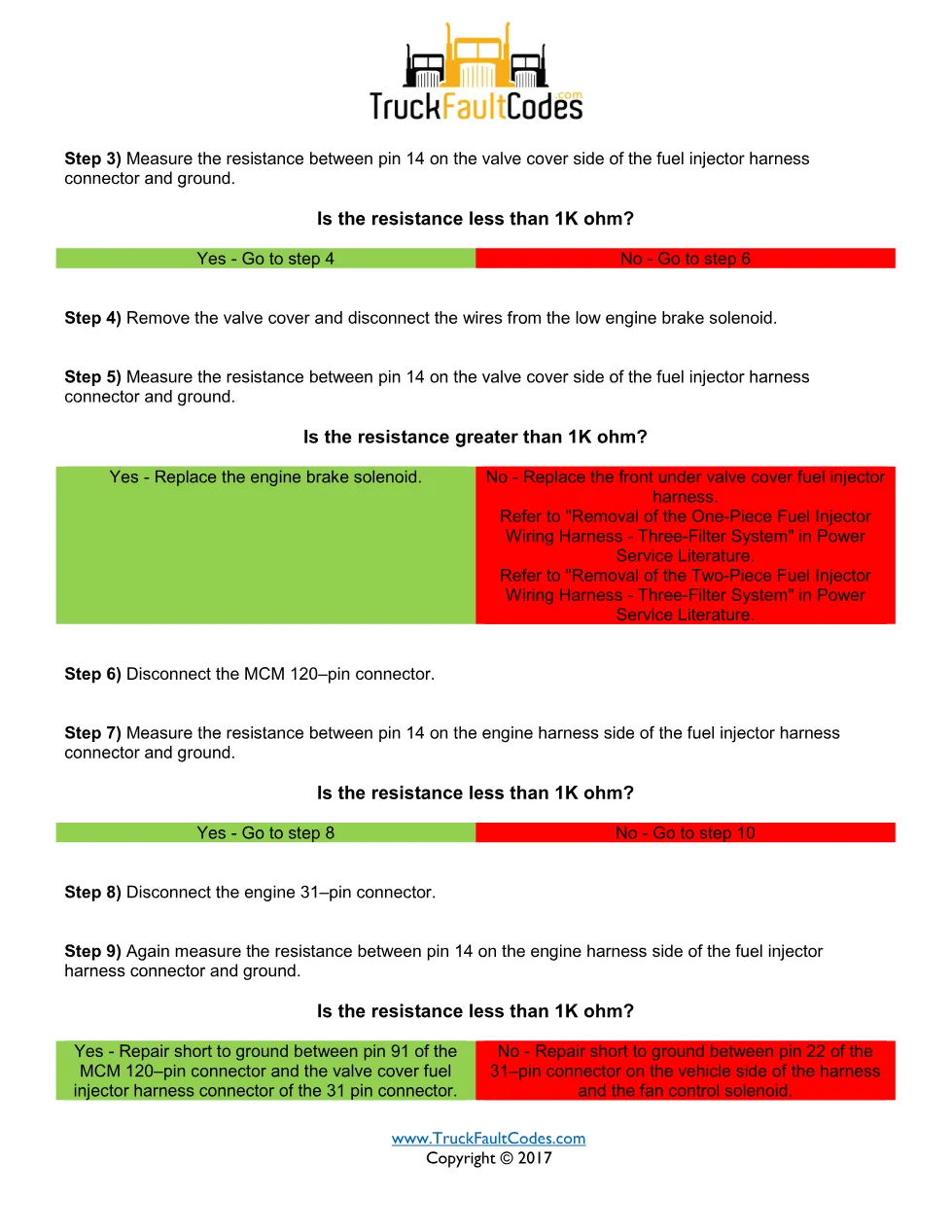

- Steps 4 to 5 – Low engine brake solenoid isolation
- Steps 6 to 9 – MCM and engine 31-pin connector checks

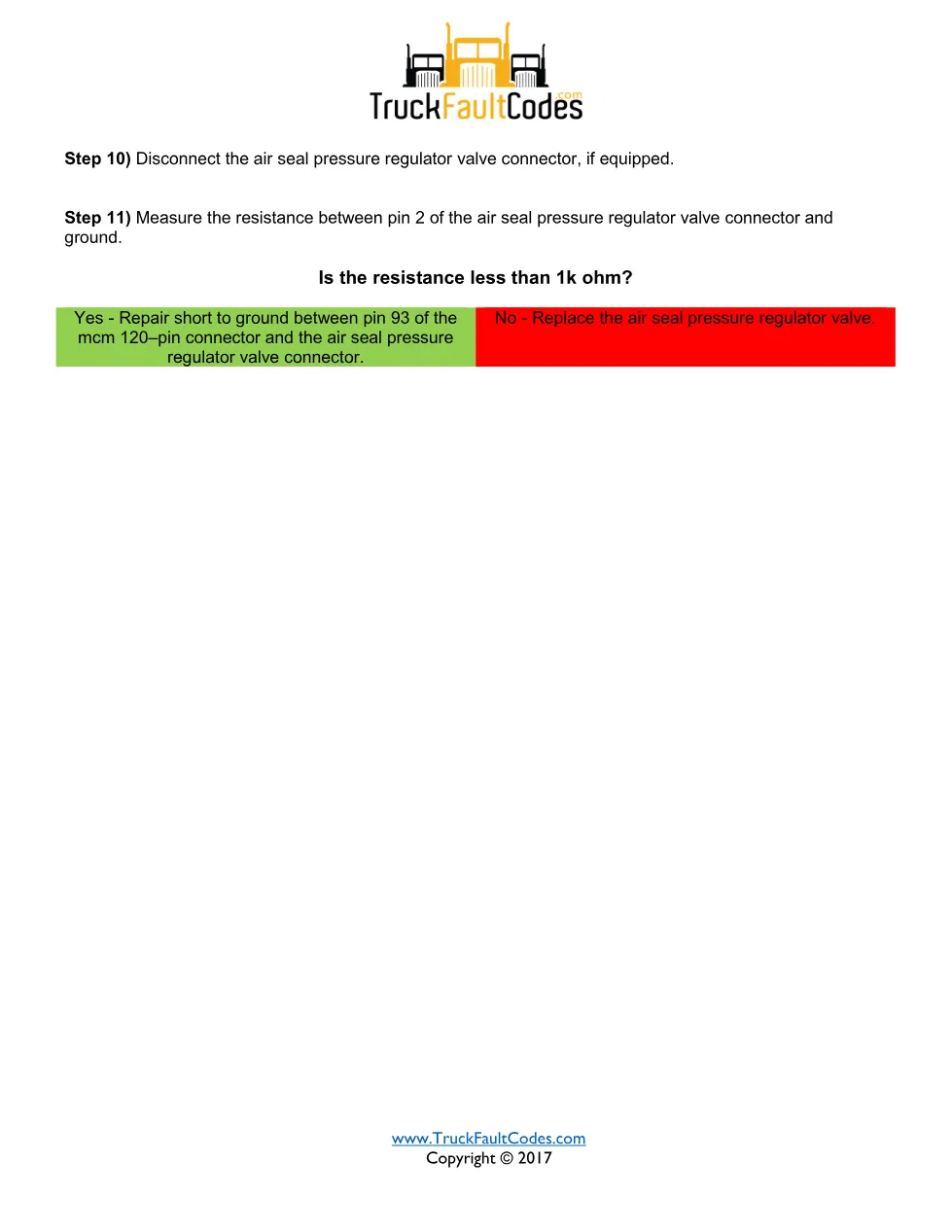

- Steps 10 to 11 – Air seal pressure regulator valve
Applicable truck models
This EPA07 fault code applies to Detroit DD Series diesel engines managed by a Motor Control Module. Harness removal cites Detroit Power Service Literature for one-piece and two-piece injector harnesses; verify the correct procedure on the official Detroit Diesel website.
Who needs this Fuel injector harness circuit manual
Diesel technicians and workshop owners tracing a bank 1 ground on an EPA07 Detroit engine use this document to walk the valve cover wiring and confirm whether a solenoid, a harness segment, or the regulator valve is at fault.
The full PDF is available in the DiagTechPro manuals library, where a free account is required to download.
